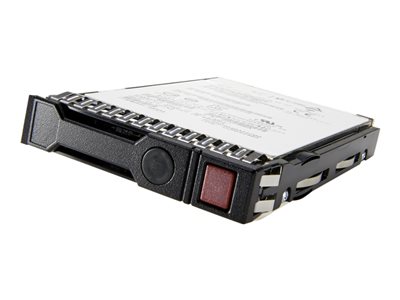

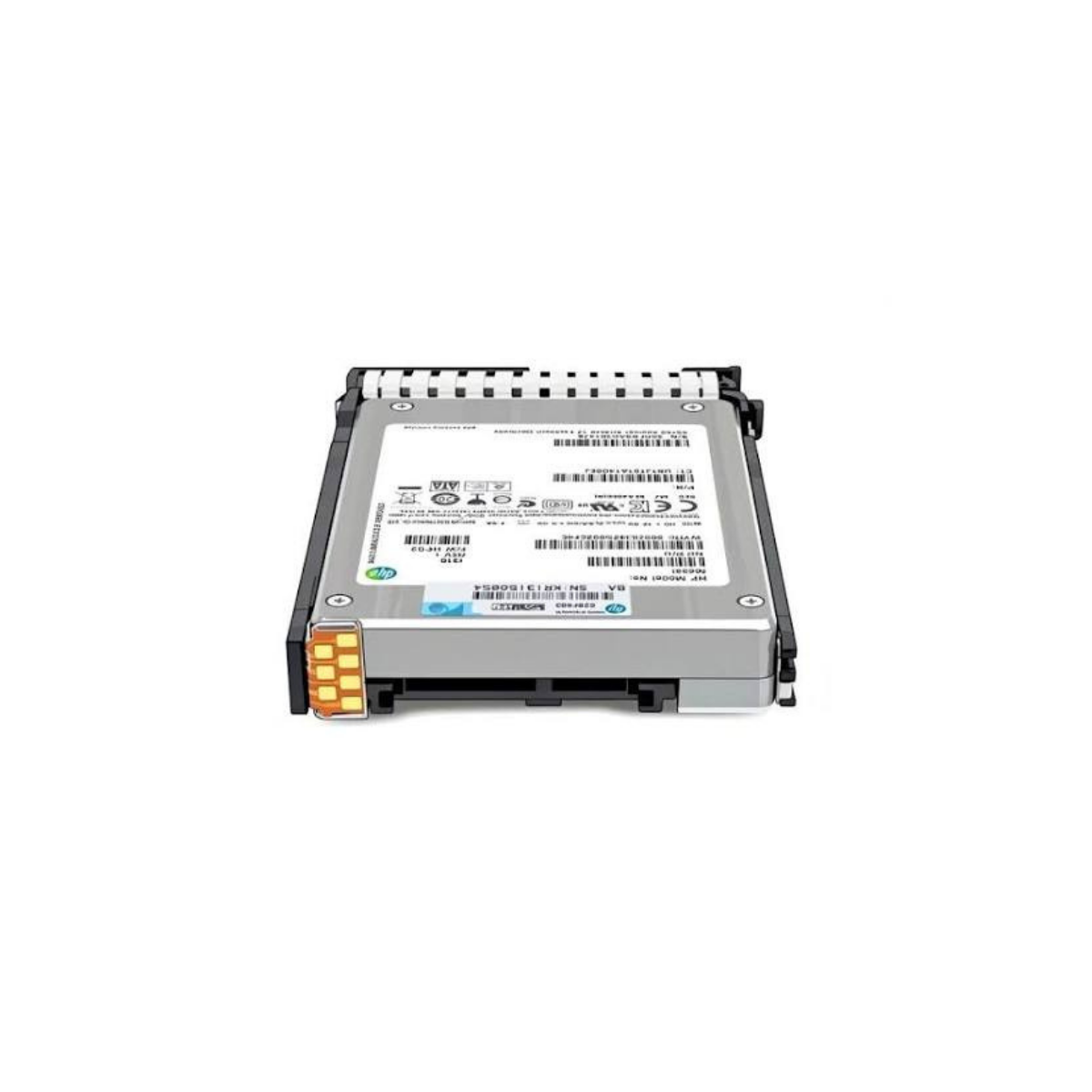

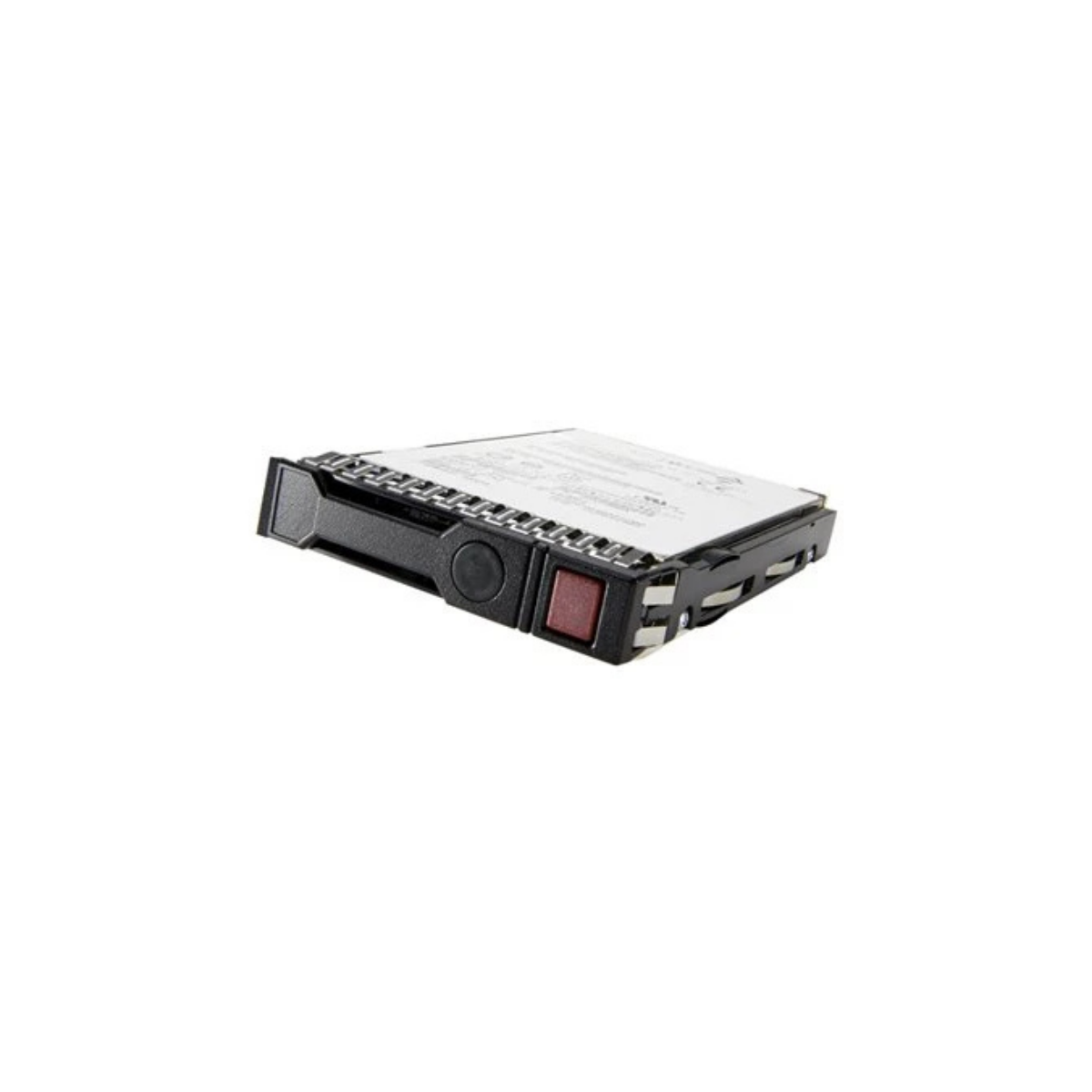

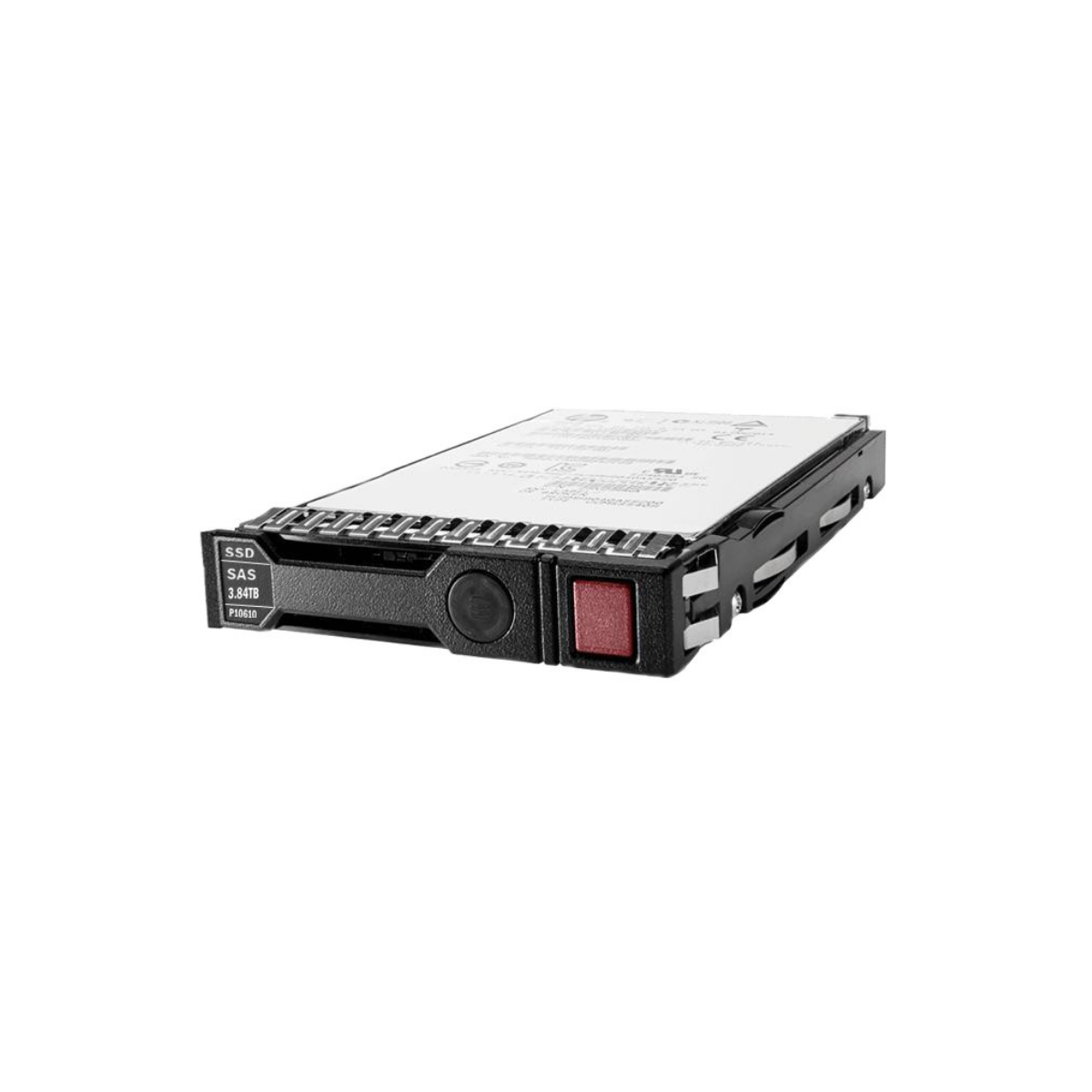

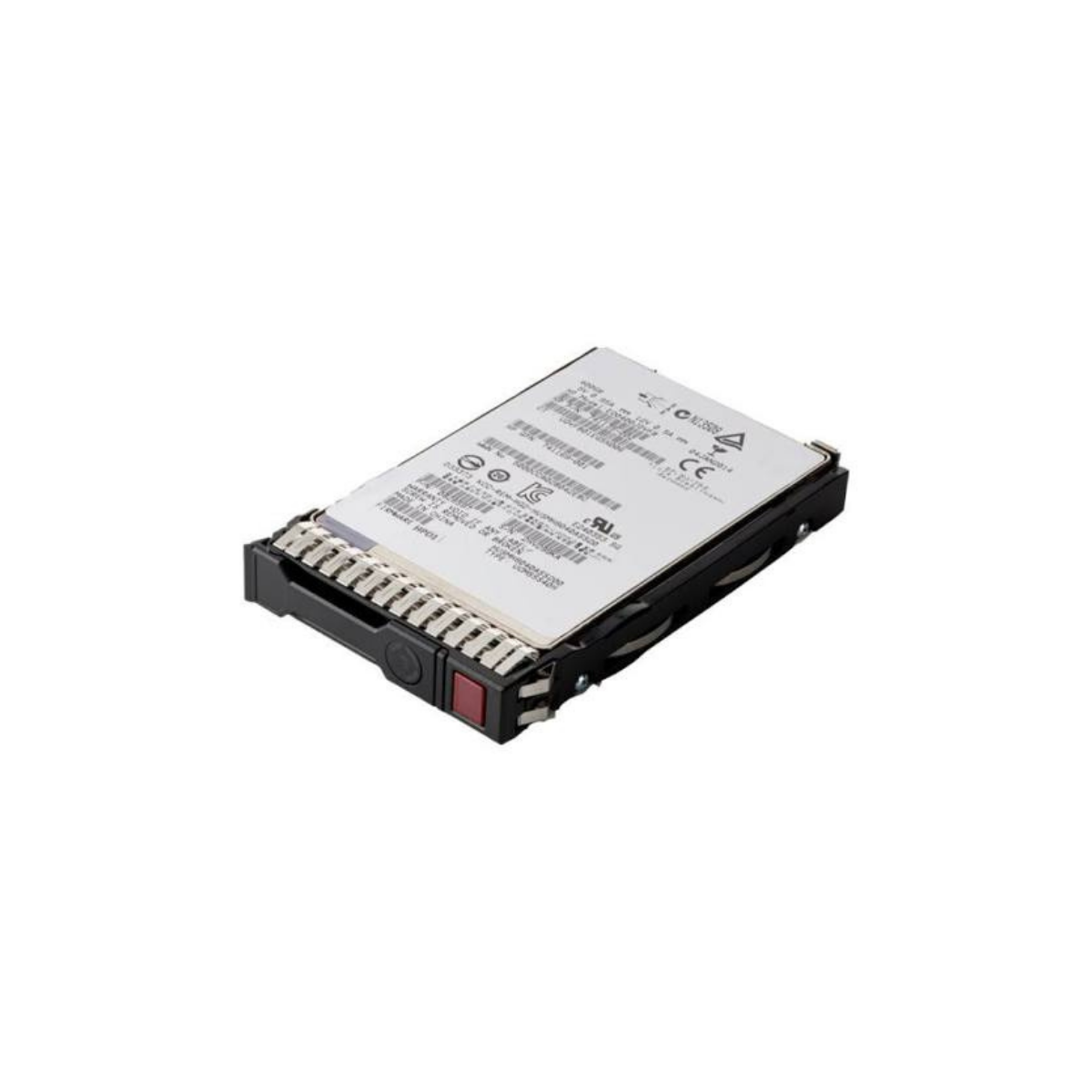

HPE 3.84TB 2.5" SFF SAS 12Gbps Mixed Use SSD P10460-B21

BRAND NEW FACTORY SEALED & RETAIL BOXED WITH THE FULL HPE WARRANTY!!!

Overview

The HPE P10460-B21 3.84TB SAS 12Gbps Mixed Use SSD is an enterprise-grade solid state drive designed for demanding applications that require a balanced combination of read and write performance. Built for Mixed Use (MU) workloads, this SSD is suitable for mission-critical enterprise environments, virtualization, Big Data analytics, and high-performance computing.

Featuring a SAS 12Gbps interface, the P10460-B21 provides full-duplex bidirectional data transfer for increased I/O bandwidth compared with 6Gbps SATA storage. With 3.84TB capacity, a 2.5-inch Small Form Factor (SFF) design, and an HPE Smart Carrier, it provides a high-performance storage solution for compatible HPE server platforms.

The drive delivers up to 103,000 4KB random read IOPS and 52,000 4KB random write IOPS, along with a 3 DWPD endurance rating and 21,000 TB SSD endurance, making it suitable for workloads with substantial read and write activity.

Key Features

• Genuine HPE enterprise solid state drive
• 3.84TB storage capacity
• SAS 12Gbps interface
• Mixed Use (MU) workload design
• 2.5-inch Small Form Factor (SFF)
• Hot-swap drive design
• HPE Smart Carrier included
• Triple-level cell (TLC) NAND flash
• Up to 103,000 4KB random read IOPS
• Up to 52,000 4KB random write IOPS
• 3 DWPD endurance rating
• 21,000 TB SSD endurance
• Digitally Signed Firmware
• Full-duplex SAS data transfer
• Designed for compatible HPE server platforms
• Factory sealed and retail boxed
• Full HPE warranty

Technical Specifications

• Manufacturer: Hewlett-Packard
• Brand: HPE
• Product Line: HPE Mixed Use
• Part Number: P10460-B21
• Model: Value
• Product Type: Solid State Drive
• Workload Type: Mixed Use
• Capacity: 3.84 TB
• Hard Drive Type: Hot-swap hard drive
• Form Factor: 2.5" SFF
• Form Factor (Metric): 6.4 cm SFF
• Form Factor (Short): 2.5"
• Storage Interface: Serial Attached SCSI 3
• Interface: Serial Attached SCSI 3
• Data Transfer Rate: 1.2 GBps
• Internal Data Rate: 810 MBps
• Internal Data Rate (Write): 635 MBps
• NAND Flash Memory Type: Triple-level cell (TLC)
• Interfaces: 1 x SAS 12 Gb/s
• Compatible Bay: 2.5" SFF
• Bundled With: HPE Smart Carrier
• Packaged Quantity: 1
• Drive Writes Per Day (DWPD): 3
• SSD Endurance: 21,000 TB
• Features: Digitally Signed Firmware
• Compliant Standards: WEEE

Performance Specifications

The HPE P10460-B21 is designed to provide high I/O performance for enterprise workloads requiring both read and write operations.

• 4KB Random Read: 103,000 IOPS
• 4KB Random Write: 52,000 IOPS
• Internal Data Rate: 810 MBps
• Internal Data Rate (Write): 635 MBps
• Data Transfer Rate: 1.2 GBps
• DWPD: 3
• SSD Endurance: 21,000 TB

The SAS 12Gbps interface supports full-duplex bidirectional data transfer, providing greater I/O bandwidth than 6Gbps SATA storage and helping reduce storage bottlenecks in demanding enterprise environments.

Enterprise Features

The P10460-B21 includes Digitally Signed Firmware, helping provide firmware integrity and assurance that the drive firmware originates from a trusted source.

The HPE Smart Carrier provides a supported carrier solution for compatible HPE server configurations and enables hot-swap installation where supported by the server platform.

As a 12Gb Value SAS Mixed Use SSD, this drive is designed to provide a balance of performance and cost for enterprise workloads requiring substantial read and write activity.

Physical Specifications

The SSD uses a 2.5-inch Small Form Factor (SFF) design for compatible HPE server storage bays.

• Form Factor: 2.5" SFF
• Form Factor (Metric): 6.4 cm SFF
• Compatible Bay: 2.5" SFF
• Height: 0.6 inch
• Carrier: HPE Smart Carrier
• Drive Type: Hot-swap hard drive
• Color Category: Black, Red
• Compliance: WEEE

Power Consumption

The HPE P10460-B21 has the following specified power consumption figures:

• Idle: 4.47 Watt
• Random Read: 5.4 Watt
• Random Write: 5.4 Watt
• Sequential Read: 7.93 Watt
• Sequential Write: 7.56 Watt
• Random Read/Write: 7.96 Watt
• Maximum: 7.96 Watt

Compatibility

The HPE P10460-B21 is designed for compatible HPE server platforms that support 2.5-inch SFF SAS storage.

Before purchasing or installing the drive, verify compatibility with your exact HPE server model, storage controller, SAS backplane, drive bay, firmware, and supported configuration.

Ideal Applications

The HPE P10460-B21 is suitable for:

• Enterprise server storage
• Mission-critical applications
• Mixed read/write workloads
• Big Data analytics
• High-performance computing
• Virtualization environments
• Database applications
• Enterprise application servers
• Data center infrastructure
• Storage upgrades
• HPE server deployments

Why Choose HPE P10460-B21

The HPE P10460-B21 combines 3.84TB capacity, SAS 12Gbps connectivity, Mixed Use workload support, high I/O performance, and strong endurance in a compact 2.5-inch SFF design.

With 103,000 random read IOPS, 52,000 random write IOPS, 3 DWPD endurance, and 21,000 TB SSD endurance, it is designed for enterprise environments where consistent read and write performance is important.

FAQ

What is the storage capacity of the HPE P10460-B21?
The HPE P10460-B21 provides 3.84TB of solid-state storage capacity.

What interface does the HPE P10460-B21 use?
The SSD uses a SAS 12Gbps interface with a data transfer rate of up to 1.2 GBps.

What type of workload is the P10460-B21 designed for?
The P10460-B21 is a Mixed Use (MU) SSD, designed for enterprise workloads involving both read and write operations.

What is the form factor of the HPE P10460-B21?
The drive uses a 2.5-inch Small Form Factor (SFF) design and includes an HPE Smart Carrier.

What are the random read and write IOPS of the P10460-B21?
The drive provides up to 103,000 4KB random read IOPS and 52,000 4KB random write IOPS.

What is the endurance rating of the HPE P10460-B21?
The SSD has a 3 DWPD endurance rating and an SSD endurance specification of 21,000 TB.
