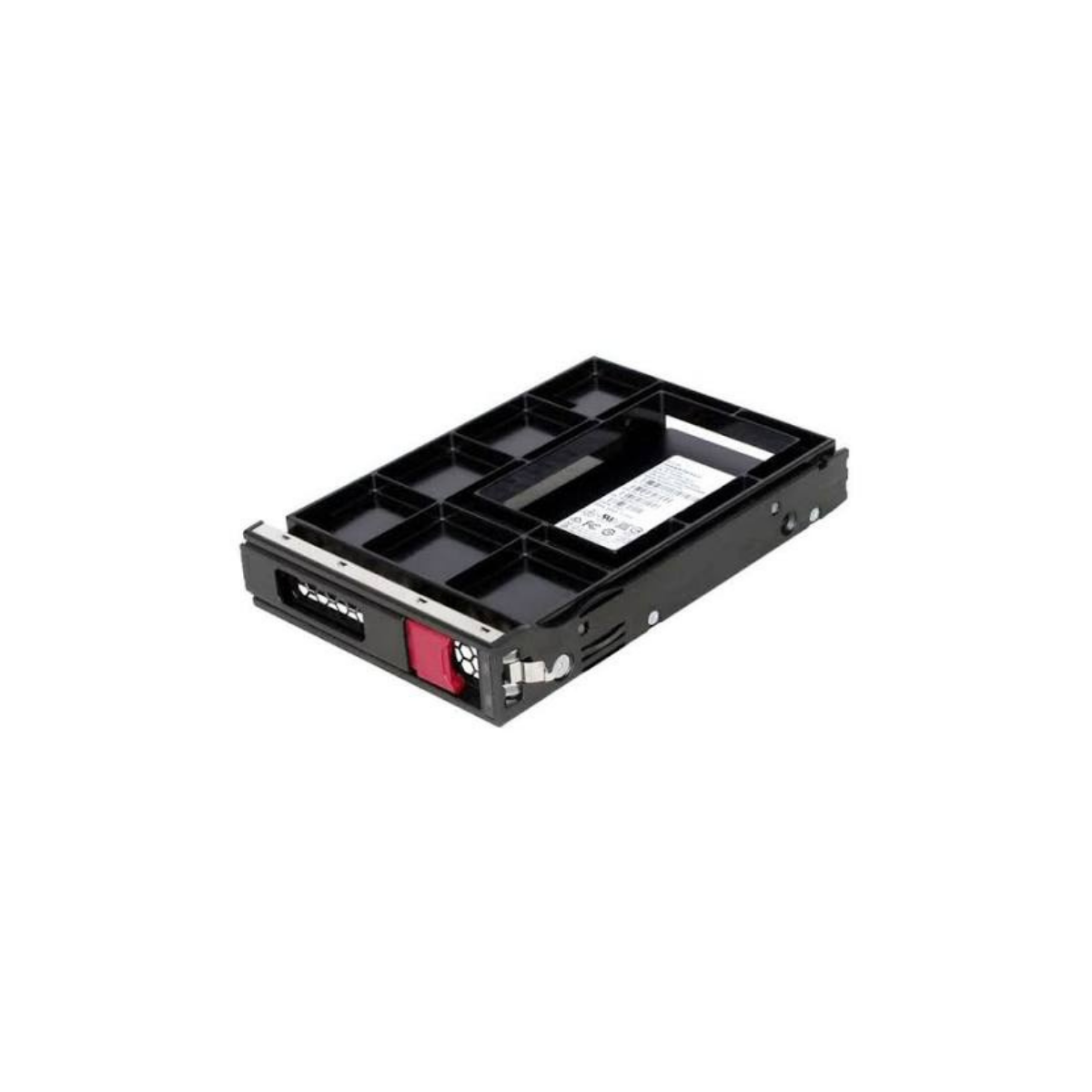

HPE 3.84TB 3.5" LFF SAS Mixed Use SSD P10462-B21

BRAND NEW FACTORY SEALED & RETAIL BOXED WITH THE FULL HPE WARRANTY!!!

Overview

The HPE P10462-B21 3.84TB SAS Mixed Use Solid State Drive is an enterprise-grade SSD designed to provide high performance, endurance, and reliable storage for compatible HPE server environments. With a SAS 12Gbps interface and 3.84TB capacity, this drive is built for demanding enterprise workloads requiring a balance of read and write performance.

The drive uses a 3.5-inch Large Form Factor (LFF) design and comes bundled with an HPE Smart Carrier for compatible server configurations. Its Mixed Use workload classification makes it suitable for applications with significant read and write activity.

With up to 103,000 4KB random read IOPS and 52,000 4KB random write IOPS, the P10462-B21 provides strong I/O performance for demanding storage workloads. It also offers a 3 DWPD endurance rating and 21,000 TB SSD endurance, making it suitable for write-intensive enterprise environments.

Key Features

• Genuine HPE enterprise solid state drive
• 3.84TB storage capacity
• SAS 12Gbps interface
• Mixed Use (MU) workload design
• 3.5-inch Large Form Factor (LFF)
• Hot-swap drive design
• HPE Smart Carrier included
• Triple-level cell (TLC) NAND flash
• Up to 103,000 4KB random read IOPS
• Up to 52,000 4KB random write IOPS
• 3 DWPD endurance rating
• 21,000 TB SSD endurance
• Digitally Signed Firmware
• Designed for compatible HPE server platforms
• Factory sealed and retail boxed
• Full HPE warranty

Technical Specifications

• Manufacturer: Hewlett-Packard
• Brand: HPE
• Product Line: HPE Mixed Use
• Part Number: P10462-B21
• Model: Value
• Product Type: Solid State Drive
• Workload Type: Mixed Use
• Capacity: 3.84 TB
• Hard Drive Type: Hot-swap hard drive
• Form Factor: 3.5" LFF
• Form Factor (Metric): 8.9 cm LFF
• Form Factor (Short): 3.5"
• Form Factor (Short) (Metric): 8.9 cm
• Storage Interface: Serial Attached SCSI 3
• Interface: Serial Attached SCSI 3
• Data Transfer Rate: 1.2 GBps
• Internal Data Rate: 810 MBps
• Internal Data Rate (Write): 635 MBps
• NAND Flash Memory Type: Triple-level cell (TLC)
• Interfaces: 1 x SAS 12 Gb/s
• Compatible Bay: 3.5" LFF
• Bundled With: HPE Smart Carrier
• Packaged Quantity: 1
• Drive Writes Per Day (DWPD): 3
• SSD Endurance: 21,000 TB
• Features: Digitally Signed Firmware

Performance Specifications

The HPE P10462-B21 is designed for enterprise workloads requiring consistent read and write performance.

• 4KB Random Read: 103,000 IOPS
• 4KB Random Write: 52,000 IOPS
• Internal Data Rate: 810 MBps
• Internal Data Rate (Write): 635 MBps
• External Data Transfer Rate: 1.2 GBps
• DWPD: 3
• SSD Endurance: 21,000 TB

The combination of SAS 12Gbps connectivity and Mixed Use endurance makes this SSD suitable for demanding applications with frequent read and write operations.

Enterprise Features

The P10462-B21 includes Digitally Signed Firmware, helping provide firmware integrity and assurance that the drive firmware comes from a trusted source.

The HPE Smart Carrier provides the appropriate carrier solution for supported HPE server configurations and supports hot-swap installation where the server platform allows it.

Physical Specifications

The SSD uses a 3.5-inch Large Form Factor (LFF) design for compatible HPE server storage bays.

• Form Factor: 3.5" LFF
• Form Factor (Metric): 8.9 cm LFF
• Compatible Bay: 3.5" LFF
• Height: 0.6 inch
• Carrier: HPE Smart Carrier
• Drive Type: Hot-swap hard drive
• Color Category: Red, Black

Power Consumption

The HPE P10462-B21 has the following specified power consumption figures:

• Idle: 4.47 Watt
• Random Read: 5.4 Watt
• Random Write: 5.4 Watt
• Sequential Read: 7.93 Watt
• Sequential Write: 7.56 Watt
• Random Read/Write: 7.96 Watt
• Maximum: 7.96 Watt

Compatibility

The HPE P10462-B21 is designed for compatible HPE server platforms that support 3.5-inch LFF SAS storage.

Before purchasing or installing the drive, verify compatibility with your exact HPE server model, storage controller, backplane, drive bay, firmware, and supported configuration.

Ideal Applications

The HPE P10462-B21 is suitable for:

• Enterprise server storage
• Mixed read/write workloads
• Database applications
• Virtualization environments
• Enterprise application servers
• Data center infrastructure
• High-performance storage
• Transactional workloads
• Server storage upgrades
• HPE server deployments

Why Choose HPE P10462-B21

The HPE P10462-B21 combines 3.84TB capacity, SAS 12Gbps connectivity, Mixed Use workload support, and high endurance in a 3.5-inch LFF enterprise SSD.

With 103,000 random read IOPS, 52,000 random write IOPS, 3 DWPD endurance, and 21,000 TB SSD endurance, it is designed for enterprise environments where both performance and write endurance are important.

FAQ

What is the storage capacity of the HPE P10462-B21?
The HPE P10462-B21 provides 3.84TB of solid-state storage capacity.

What interface does the HPE P10462-B21 use?
The SSD uses a SAS 12Gbps interface with a data transfer rate of up to 1.2 GBps.

What type of workload is the P10462-B21 designed for?
The P10462-B21 is a Mixed Use (MU) SSD, designed for enterprise workloads involving both read and write operations.

What is the form factor of the HPE P10462-B21?
The drive uses a 3.5-inch Large Form Factor (LFF) design.

What are the random read and write IOPS of the P10462-B21?
The drive provides up to 103,000 4KB random read IOPS and 52,000 4KB random write IOPS.
