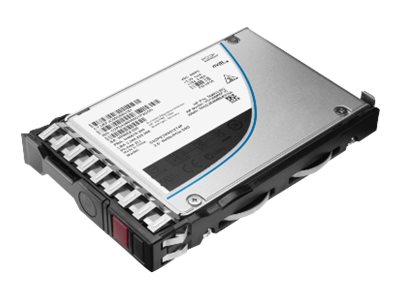

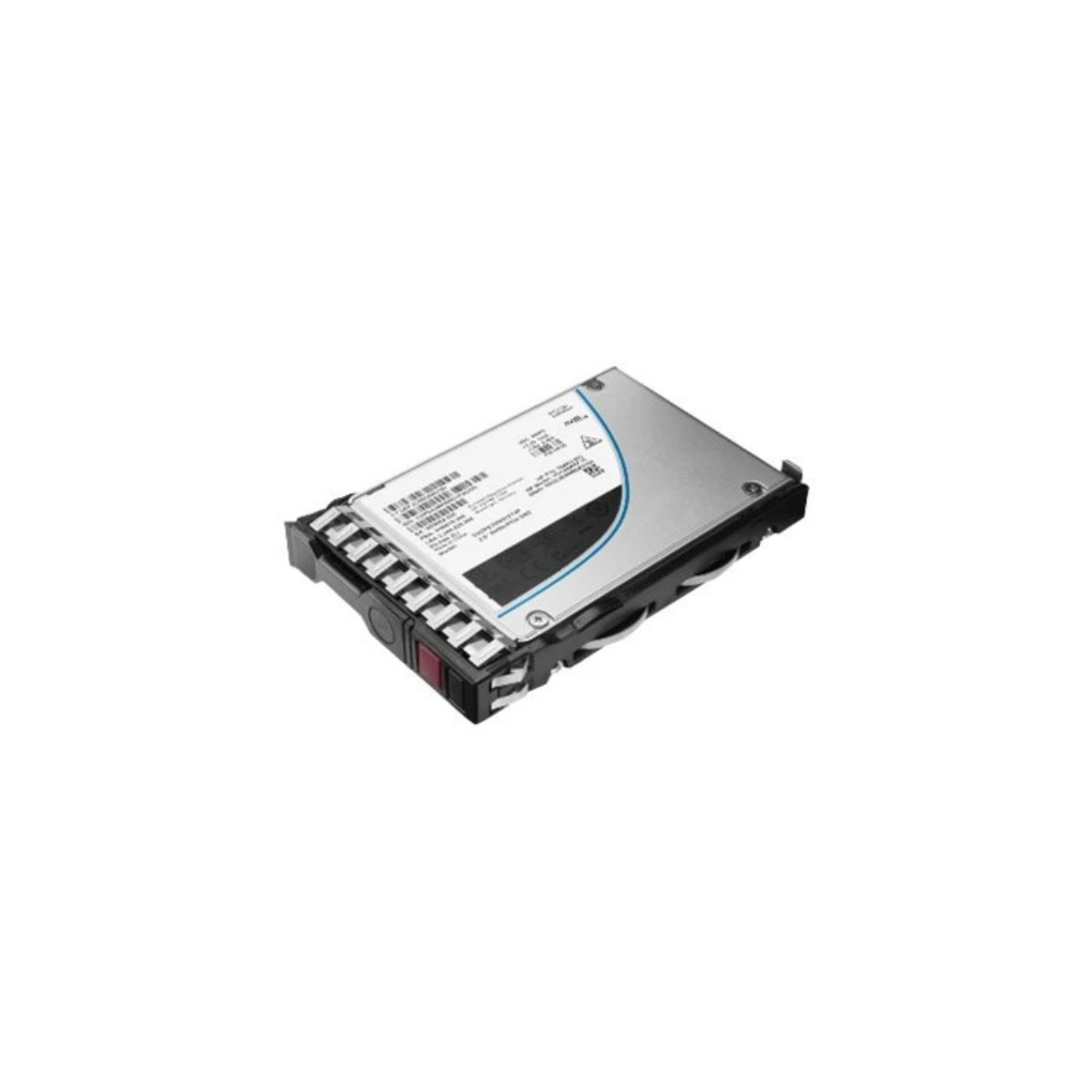

HPE 1.6TB NVMe x4 Lanes Mixed Use SFF Solid State Drive P13670-B21

BRAND NEW FACTORY SEALED & RETAIL BOXED WITH THE FULL HPE WARRANTY!!!

Overview

The HPE P13670-B21 1.6TB NVMe Mixed Use SSD is an enterprise solid state drive designed for demanding server environments that require high performance, endurance, and fast data access. Featuring a PCI Express 3.0 x4 (NVMe) interface, this SSD provides high-speed storage connectivity for compatible HPE server platforms.

With 1.6TB of storage capacity, a 2.5-inch Small Form Factor (SFF) design, and an HPE Smart Carrier NVMe, the P13670-B21 is designed for compatible hot-swap server configurations. Its Mixed Use (MU) workload classification makes it suitable for applications requiring a combination of intensive read and write operations.

The drive provides up to 425,000 4KB random read IOPS and 425,000 4KB random write IOPS, along with a 3.48 DWPD endurance rating and 10,162 TB SSD endurance. It also features Digitally Signed Firmware to help maintain firmware integrity in supported enterprise environments.

Key Features

• Genuine HPE enterprise solid state drive
• 1.6TB storage capacity
• PCI Express 3.0 x4 (NVMe) interface
• Mixed Use (MU) workload design
• 2.5-inch Small Form Factor (SFF)
• Hot-swap drive design
• HPE Smart Carrier NVMe included
• Digitally Signed Firmware
• Up to 425,000 4KB random read IOPS
• Up to 425,000 4KB random write IOPS
• 3.48 Drive Writes Per Day (DWPD)
• 10,162 TB SSD endurance
• 3300 MBps internal data rate
• 1250 MBps internal write data rate
• Designed for compatible HPE server platforms
• Factory sealed and retail boxed
• Full HPE warranty

Technical Specifications

• Manufacturer: Hewlett-Packard
• Brand: HPE
• Product Line: HPE Mixed Use
• Part Number: P13670-B21
• Product Type: Solid State Drive
• Workload Type: Mixed Use
• Capacity: 1.6 TB
• NAND Flash Memory Type: Triple-level Cell (TLC)
• Hard Drive Type: Hot-swap hard drive
• Form Factor: 2.5" SFF
• Form Factor (Metric): 6.4 cm SFF
• Storage Interface: PCI Express 3.0 x4 (NVMe)
• Interface: PCI Express 3.0 x4 (NVMe)
• Interfaces: 1 x PCI Express 3.0 x4 (NVMe)
• Compatible Bay: 2.5" SFF
• Bundled With: HPE Smart Carrier NVMe
• Packaged Quantity: 1
• Drive Writes Per Day (DWPD): 3.48
• SSD Endurance: 10,162 TB
• Features: Digitally Signed Firmware
• Internal Data Rate: 3300 MBps
• Internal Data Rate (Write): 1250 MBps

Performance Specifications

The HPE P13670-B21 is designed to provide high I/O performance for enterprise applications requiring rapid and consistent access to stored data.

• 4KB Random Read: 425,000 IOPS
• 4KB Random Write: 425,000 IOPS
• Internal Data Rate: 3300 MBps
• Internal Data Rate (Write): 1250 MBps
• Drive Writes Per Day: 3.48
• SSD Endurance: 10,162 TB

The balanced read and write performance makes this SSD suitable for Mixed Use environments where applications generate both read-intensive and write-intensive storage activity.

Enterprise Features

The P13670-B21 includes Digitally Signed Firmware, which helps provide firmware integrity for supported HPE enterprise environments. The drive is also bundled with an HPE Smart Carrier NVMe, providing a supported carrier solution for compatible server configurations.

HPE Mixed Use SSDs are designed to provide high performance and endurance for applications requiring substantial random read and write IOPS.

Form Factor & Installation

The SSD uses a 2.5-inch Small Form Factor (SFF) and is specified as a hot-swap hard drive. The drive is bundled with an HPE Smart Carrier NVMe for supported configurations.

The P13670-B21 uses PCI Express 3.0 x4 NVMe connectivity, so installation requires a compatible HPE server, NVMe backplane, drive bay, PCIe connectivity, and supporting firmware. Verify your exact server configuration before purchasing.

Physical Specifications

• Form Factor: 2.5" SFF
• Form Factor (Metric): 6.4 cm SFF
• Compatible Bay: 2.5" SFF
• Height: 0.6 inch
• Bundled Carrier: HPE Smart Carrier NVMe
• Drive Type: Hot-swap hard drive
• Color Category: Black
• Packaged Quantity: 1

Power Consumption

The HPE P13670-B21 provides efficient power consumption for enterprise storage applications.

• Idle: 3.25 Watt
• Sequential Read: 7.94 Watt
• Sequential Write: 7.41 Watt
• Random Read: 7 Watt
• Random Write: 7 Watt
• Random Read/Write: 7 Watt
• Maximum: 7.94 Watt

Ideal Applications

The HPE P13670-B21 is suitable for:

• Enterprise server storage
• Virtualization environments
• Database applications
• Data-intensive applications
• Mixed read/write workloads
• Enterprise application servers
• High-performance computing
• Data center infrastructure
• Server storage upgrades
• HPE ProLiant deployments
• Compatible HPE NVMe environments

Why Choose HPE P13670-B21

The HPE P13670-B21 combines 1.6TB capacity, PCIe 3.0 x4 NVMe connectivity, high random read/write performance, and strong Mixed Use endurance in a compact 2.5-inch SFF enterprise drive.

With 425,000 random read IOPS, 425,000 random write IOPS, 3.48 DWPD, and 10,162 TB SSD endurance, it is designed for demanding enterprise workloads where both storage performance and write endurance are important.

FAQs

What is the storage capacity of the HPE P13670-B21?
The HPE P13670-B21 provides 1.6TB of solid-state storage capacity.

What interface does the HPE P13670-B21 use?
The SSD uses a PCI Express 3.0 x4 (NVMe) storage interface.

What type of workload is the P13670-B21 designed for?
The P13670-B21 is a Mixed Use (MU) SSD, designed for workloads requiring both high read and write performance.

What are the random read and write IOPS?
The drive provides 425,000 4KB random read IOPS and 425,000 4KB random write IOPS.

What is the endurance rating of the HPE P13670-B21?
The SSD has a 3.48 DWPD rating and 10,162 TB SSD endurance.

What is the form factor of the P13670-B21?
The drive uses a 2.5-inch Small Form Factor (SFF) and is bundled with an HPE Smart Carrier NVMe.
