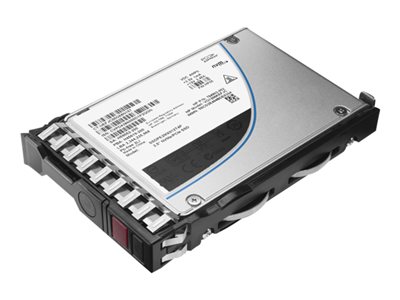

HPE 3.2TB NVMe x4 Lanes Mixed Use SFF Solid State Drive P13672-B21

BRAND NEW FACTORY SEALED & RETAIL BOXED WITH THE FULL HPE WARRANTY!!!

Overview

The HPE P13672-B21 3.2TB NVMe Mixed Use SSD is an enterprise-grade solid state drive designed for demanding HPE server environments that require high performance, strong endurance, and fast data access. With a PCI Express 3.0 x4 (NVMe) interface, this SSD provides high-speed storage performance for workloads involving intensive read and write operations.

Featuring 3.2TB of storage capacity, a 2.5-inch Small Form Factor (SFF) design, and an HPE Smart Carrier NVMe, the P13672-B21 is designed for compatible HPE server configurations. Its Mixed Use (MU) workload classification makes it suitable for applications requiring a balanced combination of read and write performance.

The SSD delivers up to 650,000 4KB random read IOPS and 175,000 4KB random write IOPS, with an impressive 3.5 DWPD endurance rating and 20,440 TB SSD endurance. It also features Digitally Signed Firmware to help maintain firmware integrity in supported enterprise environments.

Key Features

• Genuine HPE enterprise solid state drive
• 3.2TB storage capacity
• PCI Express 3.0 x4 (NVMe) interface
• Mixed Use (MU) workload design
• 2.5-inch Small Form Factor (SFF)
• Hot-swap drive design
• HPE Smart Carrier NVMe included
• Digitally Signed Firmware
• Up to 650,000 4KB random read IOPS
• Up to 175,000 4KB random write IOPS
• 3.5 Drive Writes Per Day (DWPD)
• 20,440 TB SSD endurance
• 3300 MBps internal data rate
• 2400 MBps internal write data rate
• Designed for compatible HPE server platforms
• Factory sealed and retail boxed
• Full HPE warranty

Technical Specifications

• Manufacturer: Hewlett-Packard
• Brand: HPE
• Product Line: HPE Mixed Use
• Part Number: P13672-B21
• Product Type: Solid State Drive
• Workload Type: Mixed Use
• Capacity: 3.2 TB
• NAND Flash Memory Type: Triple-level Cell (TLC)
• Hard Drive Type: Hot-swap hard drive
• Form Factor: 2.5" SFF
• Form Factor (Metric): 6.4 cm SFF
• Storage Interface: PCI Express 3.0 x4 (NVMe)
• Interface: PCI Express 3.0 x4 (NVMe)
• Interfaces: 1 x PCI Express 3.0 x4 (NVMe)
• Compatible Bay: 2.5" SFF
• Bundled With: HPE Smart Carrier NVMe
• Packaged Quantity: 1
• Drive Writes Per Day (DWPD): 3.5
• SSD Endurance: 20,440 TB
• Features: Digitally Signed Firmware
• Internal Data Rate: 3300 MBps
• Internal Data Rate (Write): 2400 MBps

Performance Specifications

The HPE P13672-B21 is designed for enterprise applications requiring high random read and write performance. Its PCIe 3.0 x4 NVMe interface provides a high-speed connection for compatible server storage configurations.

• 4KB Random Read: 650,000 IOPS
• 4KB Random Write: 175,000 IOPS
• Internal Data Rate: 3300 MBps
• Internal Data Rate (Write): 2400 MBps
• Drive Writes Per Day: 3.5
• SSD Endurance: 20,440 TB

The high random read performance makes this drive suitable for applications that require rapid access to frequently used data, while its Mixed Use classification and high DWPD rating support workloads with substantial write activity.

Enterprise Features

The P13672-B21 includes Digitally Signed Firmware, helping provide firmware integrity for supported HPE enterprise environments. The drive also comes bundled with an HPE Smart Carrier NVMe, providing a supported carrier solution for compatible server configurations.

HPE SSDs are designed to provide improved performance and endurance while reducing power consumption compared with traditional rotating storage media.

Form Factor & Installation

The SSD uses a 2.5-inch Small Form Factor (SFF) and is specified as a hot-swap hard drive. This allows it to be installed in compatible HPE server configurations supporting 2.5-inch NVMe storage.

The drive uses PCI Express 3.0 x4 NVMe connectivity, so compatibility depends on the server's NVMe backplane, PCIe connectivity, bay configuration, and firmware. Verify the exact server configuration before installation.

Physical Specifications

• Form Factor: 2.5" SFF
• Form Factor (Metric): 6.4 cm SFF
• Compatible Bay: 2.5" SFF
• Height: 0.6 inch
• Bundled Carrier: HPE Smart Carrier NVMe
• Drive Type: Hot-swap hard drive
• Color Category: Black

Power Consumption

The HPE P13672-B21 is designed with power-efficient enterprise storage operation in mind.

• Idle: 3.35 Watt
• Sequential Read: 8.18 Watt
• Sequential Write: 11.41 Watt
• Random Read: 8.64 Watt
• Random Write: 8.64 Watt
• Random Read/Write: 8.64 Watt
• Maximum: 11.41 Watt

Ideal Applications

The HPE P13672-B21 is suitable for:

• Enterprise server storage
• Virtualization environments
• Database applications
• Data-intensive applications
• Mixed read/write workloads
• High-performance computing
• Enterprise application servers
• Data center infrastructure
• Server storage upgrades
• HPE ProLiant deployments
• Compatible HPE server environments

Why Choose HPE P13672-B21

The HPE P13672-B21 combines 3.2TB capacity, PCIe 3.0 x4 NVMe connectivity, high random I/O performance, and strong Mixed Use endurance in a compact 2.5-inch SFF enterprise drive.

Its 650,000 random read IOPS, 175,000 random write IOPS, 3.5 DWPD endurance, and 20,440 TB SSD endurance make it suitable for demanding enterprise workloads that require both fast data access and substantial write endurance.

FAQs

What is the storage capacity of the HPE P13672-B21?
The HPE P13672-B21 provides 3.2TB of solid-state storage capacity.

What interface does the HPE P13672-B21 use?
The SSD uses a PCI Express 3.0 x4 (NVMe) storage interface.

What type of workload is the P13672-B21 designed for?
The P13672-B21 is a Mixed Use (MU) SSD, designed for workloads requiring a combination of high read and write performance.

What are the random read and write IOPS?
The drive provides 650,000 4KB random read IOPS and 175,000 4KB random write IOPS.

What is the endurance rating of the HPE P13672-B21?
The SSD has a 3.5 Drive Writes Per Day (DWPD) rating and 20,440 TB SSD endurance.

What is the form factor of the P13672-B21?
The drive uses a 2.5-inch Small Form Factor (SFF) and comes bundled with an HPE Smart Carrier NVMe.
