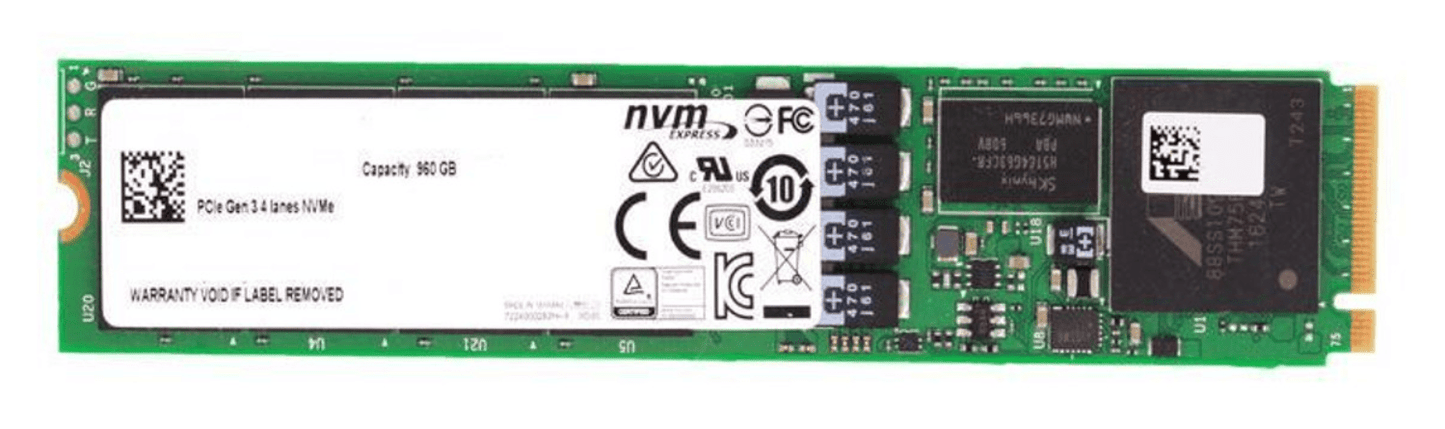

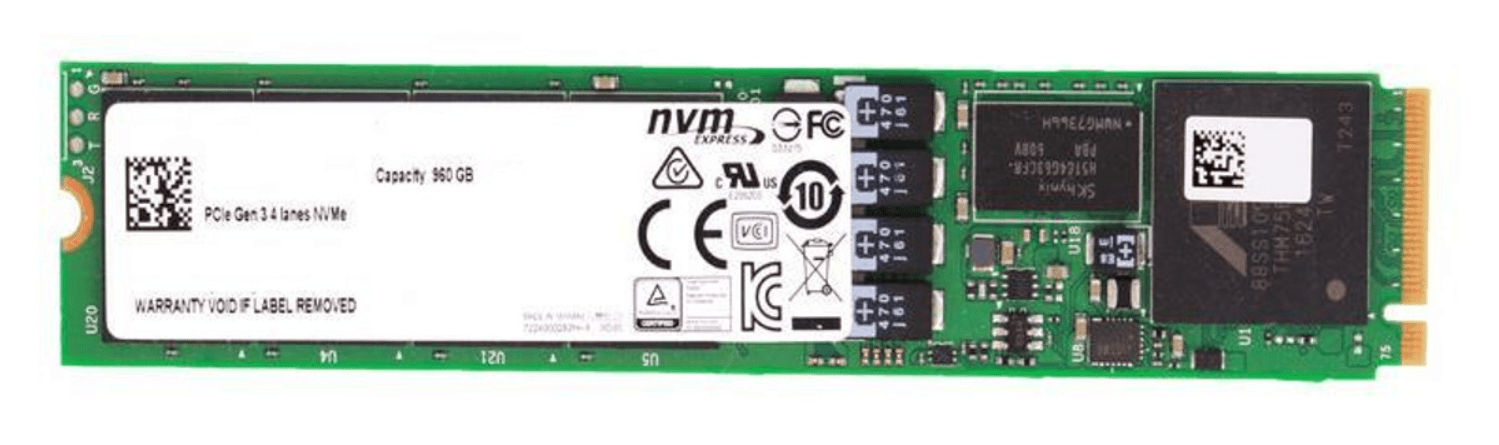

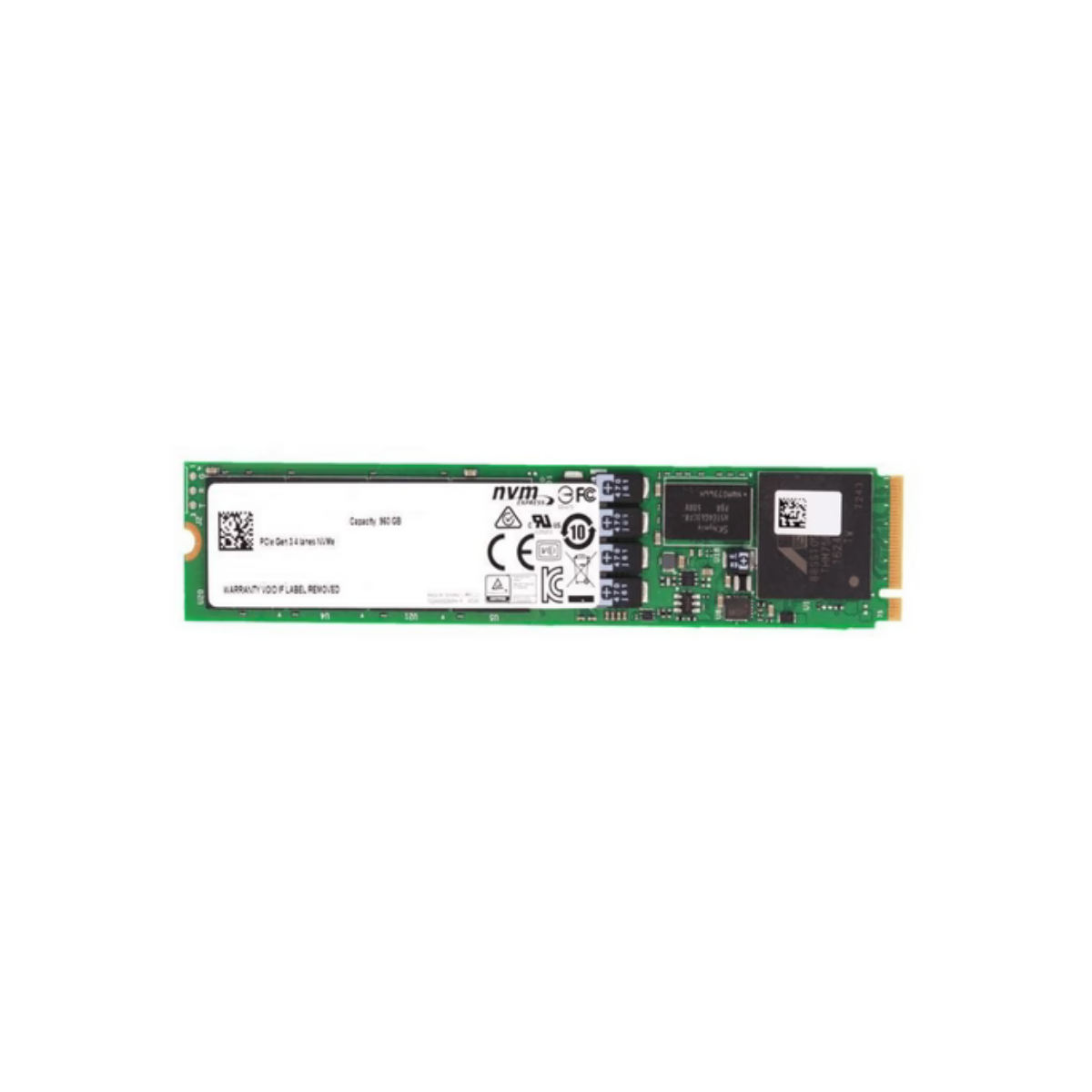

HPE 960GB NVMe x4 Lanes Read Intensive Solid State Drive P13689-B21

BRAND NEW WITH THE FULL HPE WARRANTY!!!

Overview

The HPE P13689-B21 960GB NVMe x4 Lanes Read Intensive Solid State Drive is an enterprise storage solution designed to provide fast, reliable, and efficient performance for compatible HPE server environments. With a PCI Express x4 (NVMe) interface and M.2 22110 form factor, this SSD delivers high-speed data access and low latency for applications that require responsive storage performance.

Featuring 960GB of storage capacity and Multi-Level Cell (MLC) NAND flash memory, the P13689-B21 is designed for read-intensive workloads where fast and consistent data retrieval is important. The drive provides an internal data rate of up to 3300 MBps and supports up to 155,000 4KB random read IOPS.

The SSD also delivers up to 47,500 4KB random write IOPS and a maximum random read performance of 480,000 IOPS, making it suitable for demanding enterprise applications, databases, virtualization environments, server boot workloads, and frequently accessed data.

With a 0.029 millisecond average latency, 0.56 DWPD endurance rating, and 981 TB SSD endurance, the P13689-B21 is designed to provide dependable storage performance for compatible enterprise systems.

The drive includes Digitally Signed Firmware, helping maintain firmware integrity and providing additional security for supported HPE server deployments.

Key Features

• Genuine HPE enterprise solid state drive
• 960GB storage capacity
• Read Intensive (RI) workload design
• PCI Express x4 (NVMe) interface
• M.2 22110 form factor
• Multi-Level Cell (MLC) NAND flash memory
• Up to 3300 MBps internal read data rate
• Up to 1350 MBps internal write data rate
• Up to 155,000 4KB random read IOPS
• Up to 47,500 4KB random write IOPS
• Up to 480,000 maximum 4KB random read IOPS
• 0.56 Drive Writes Per Day (DWPD)
• 981 TB SSD endurance
• 0.029 millisecond average latency
• Digitally Signed Firmware
• Low-power enterprise storage design
• Designed for compatible HPE server environments
• Brand new with full HPE warranty

Technical Specifications

• Manufacturer: Hewlett-Packard
• Brand: HPE
• Product Line: HPE Read Intensive
• Part Number: P13689-B21
• Product Type: Solid State Drive
• Workload Type: Read Intensive
• Capacity: 960 GB
• Hard Drive Type: Internal hard drive
• Storage Interface: PCI Express x4 (NVMe)
• Interface: PCI Express x4 (NVMe)
• Interfaces: 1 x PCI Express x4 (NVMe) - M.2 Card
• Form Factor: M.2 22110
• Form Factor (Metric): M.2 22110
• Form Factor (Short): M.2
• NAND Flash Memory Type: Multi-Level Cell (MLC)
• Compatible Bay: M.2 22110
• Features: Digitally Signed Firmware
• Average Latency: 0.029 millisecond
• Drive Writes Per Day (DWPD): 0.56
• SSD Endurance: 981 TB
• Packaged Quantity: 1

Performance Specifications

The HPE P13689-B21 is optimized for read-intensive enterprise workloads requiring fast access to stored data.

• Internal Data Rate: 3300 MBps
• Internal Data Rate (Write): 1350 MBps
• 4KB Random Read: 155,000 IOPS
• 4KB Random Write: 47,500 IOPS
• Maximum 4KB Random Read: 480,000 IOPS
• Maximum 4KB Random Write: 47,500 IOPS
• Average Latency: 0.029 millisecond
• Drive Writes Per Day: 0.56 DWPD
• SSD Endurance: 981 TB

The combination of PCIe x4 NVMe connectivity and high random read performance makes this SSD suitable for applications where fast data retrieval and responsive storage are important.

Physical Specifications

The P13689-B21 uses an M.2 22110 form factor, designed for compatible server systems that support this specific M.2 NVMe drive configuration.

• Form Factor: M.2 22110
• Form Factor Type: M.2
• Compatible Bay: M.2 22110
• Height: 0.1 inch
• Interface: PCI Express x4 (NVMe)
• Connector: M.2 Card

The M.2 22110 design is intended for compatible enterprise server configurations rather than standard 2.5-inch SFF drive bays. Confirm physical and electrical compatibility with the target server before installation.

Power Consumption

The HPE P13689-B21 is designed to provide efficient NVMe storage performance with the following listed power consumption levels:

• Idle: 2.41 Watt
• Random Read: 6.16 Watt
• Random Write: 6.16 Watt
• Sequential Read: 6.57 Watt
• Sequential Write: 6.33 Watt
• Maximum: 6.57 Watt

Enterprise Features

The P13689-B21 includes Digitally Signed Firmware, which helps verify that the drive firmware originates from a trusted source. This can be particularly important for enterprise environments where storage firmware integrity and system security are priorities.

The SSD's 0.56 DWPD endurance rating and 981 TB total endurance make it suitable for supported read-intensive applications where the workload is primarily focused on data retrieval.

OS Support

The supplied specifications list support for the following operating systems and virtualization platforms:

• Microsoft Windows Server 2012 R2
• Microsoft Windows Server 2016
• Microsoft Windows Server 2019
• Red Hat Enterprise Linux Server 6.5
• Red Hat Enterprise Linux Server 7
• SUSE Linux Enterprise Server 12
• Ubuntu 14.04
• VMware vSphere 6.1

Actual support may depend on the specific HPE server model, firmware version, driver configuration, and operating environment.

Installation & Compatibility

The HPE P13689-B21 uses a PCI Express x4 NVMe interface and M.2 22110 physical form factor. It should be installed only in compatible HPE server configurations that provide the required M.2 22110 slot and PCIe NVMe support.

Before purchasing or installing the drive, verify:

• Exact HPE server model
• M.2 22110 slot availability
• PCIe NVMe support
• Required PCIe lane configuration
• Server firmware compatibility
• Operating system and driver support
• Storage configuration requirements

Compatibility should be confirmed for the exact server configuration rather than relying only on the physical M.2 size.

Ideal Applications

The HPE P13689-B21 is suitable for:

• Enterprise server storage
• Read-intensive workloads
• Database applications
• Virtualization environments
• Server boot storage
• Enterprise application servers
• Frequently accessed data
• Read caching workloads
• Data-intensive applications
• High-performance server environments
• Data center infrastructure
• Compatible HPE server deployments

Why Choose HPE P13689-B21

The HPE P13689-B21 combines 960GB capacity, PCIe x4 NVMe connectivity, M.2 22110 form factor, MLC NAND flash, high random read performance, and enterprise-grade endurance in a compact storage solution.

Its 3300 MBps internal read rate, 155,000 4KB random read IOPS, and up to 480,000 maximum random read IOPS make it well suited for workloads that depend heavily on fast data retrieval.

With 0.56 DWPD endurance, 981 TB SSD endurance, low average latency, and Digitally Signed Firmware, this SSD is designed to deliver reliable performance for compatible HPE enterprise server environments.

FAQs

What is the storage capacity of the HPE P13689-B21?
The HPE P13689-B21 provides 960GB of solid-state storage capacity.

What interface does the HPE P13689-B21 use?
The drive uses a PCI Express x4 (NVMe) storage interface through an M.2 connection.

What is the form factor of the P13689-B21?
The HPE P13689-B21 uses an M.2 22110 form factor and is designed for compatible enterprise server configurations supporting this drive format.

What are the random read and write IOPS of the P13689-B21?
The SSD provides up to 155,000 4KB random read IOPS and 47,500 4KB random write IOPS. Its maximum listed random read performance is 480,000 IOPS.

What is the endurance rating of the HPE P13689-B21?
The P13689-B21 has an endurance rating of 0.56 DWPD and a listed total SSD endurance of 981 TB.

What type of workloads is the HPE P13689-B21 designed for?
The P13689-B21 is an HPE Read Intensive SSD designed for workloads that require fast and frequent data reads, including databases, virtualization, server boot environments, read caching, and enterprise applications.
