HPE 3.84TB NVMe x4 Lanes Read Intensive Solid State Drive P13693-B21

BRAND NEW WITH THE FULL HPE WARRANTY!!!

Overview

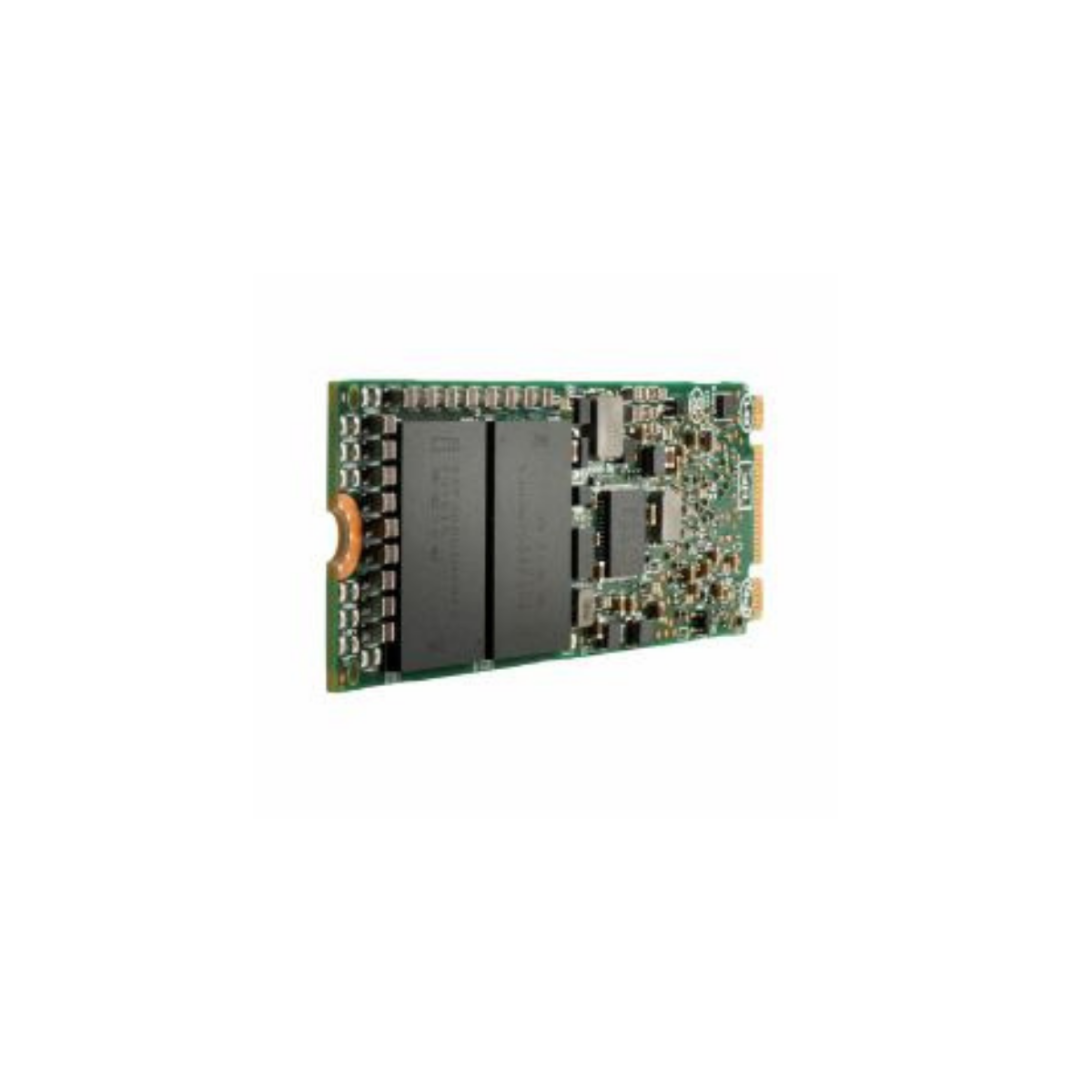

The HPE P13693-B21 3.84TB NVMe Read Intensive Solid State Drive is an enterprise-class storage solution designed to deliver high performance and reliable storage for compatible server environments. Using a PCI Express x4 (NVMe) interface and M.2 22110 form factor, this SSD provides fast data access and low latency for demanding applications.

With a 3.84TB capacity, Multi-Level Cell (MLC) NAND flash memory, and Read Intensive workload design, the P13693-B21 is well suited for applications requiring high random read performance. It delivers an internal read data rate of up to 3,300 MBps and an internal write data rate of up to 1,300 MBps.

The SSD provides up to 155,000 4KB random read IOPS and 64,500 4KB random write IOPS, along with a 1.37 DWPD endurance rating and 9,601 TB SSD endurance. It also features digitally signed firmware for supported enterprise environments.

Key Features

• Genuine HPE enterprise solid state drive
• 3.84TB storage capacity
• Read Intensive (RI) workload design
• PCI Express x4 NVMe interface
• M.2 22110 form factor
• Multi-Level Cell (MLC) NAND flash memory
• Up to 3,300 MBps internal read data rate
• Up to 1,300 MBps internal write data rate
• Up to 155,000 4KB random read IOPS
• Up to 64,500 4KB random write IOPS
• Up to 645,000 maximum 4KB random read IOPS
• 1.37 Drive Writes Per Day (DWPD)
• 9,601 TB SSD endurance
• Digitally Signed Firmware
• Low average latency of 0.028 millisecond
• Internal M.2 NVMe card interface
• Full HPE warranty

Technical Specifications

• Manufacturer: Hewlett-Packard
• Brand: HPE
• Product Line: HPE Read Intensive
• Part Number: P13693-B21
• Product Type: Solid State Drive
• Workload Type: Read Intensive
• Capacity: 3.84 TB
• NAND Flash Memory Type: Multi-Level Cell (MLC)
• Drive Type: Internal hard drive
• Form Factor: M.2 22110
• Form Factor (Metric): M.2 22110
• Form Factor (Short): M.2
• Storage Interface: PCI Express x4 (NVMe)
• Interface: PCI Express x4 (NVMe)
• Interfaces: 1 x PCI Express x4 (NVMe) - M.2 Card
• Compatible Bay: M.2 22110
• Drive Writes Per Day (DWPD): 1.37
• SSD Endurance: 9,601 TB
• Features: Digitally Signed Firmware
• Packaged Quantity: 1

Performance Specifications

The HPE P13693-B21 is designed for high-performance enterprise workloads that require fast access to stored data and strong random read performance.

• Average Latency: 0.028 millisecond
• Internal Data Rate: 3,300 MBps
• Internal Data Rate (Write): 1,300 MBps
• 4KB Random Read: 155,000 IOPS
• 4KB Random Write: 64,500 IOPS
• Maximum 4KB Random Read: 645,000 IOPS
• Maximum 4KB Random Write: 64,500 IOPS
• DWPD: 1.37
• SSD Endurance: 9,601 TB

The PCI Express x4 NVMe interface provides high-speed connectivity, making the drive suitable for applications where storage responsiveness and high I/O performance are important.

Physical Specifications

• Form Factor: M.2 22110
• Form Factor (Short): M.2
• Compatible Bay: M.2 22110
• Height: 0.1 inch
• Drive Type: Internal
• Interface: PCI Express x4 (NVMe)
• Card Type: M.2 Card

The M.2 22110 design provides a compact enterprise storage format intended for compatible server configurations that support this specific NVMe form factor.

Power Consumption

The HPE P13693-B21 is designed to provide high-performance NVMe storage while maintaining efficient power usage.

• Idle: 2.43 Watt
• Sequential Read: 6.9 Watt
• Sequential Write: 6.64 Watt
• Random Read: 7.49 Watt
• Random Write: 7.49 Watt
• Maximum: 7.49 Watt

Enterprise Features

The P13693-B21 includes Digitally Signed Firmware, helping provide assurance that the firmware originates from a trusted source. This feature is valuable for enterprise environments where firmware integrity is an important consideration.

Its Read Intensive workload classification makes the SSD suitable for applications that perform a high volume of read operations. The combination of high random read IOPS, low latency, and substantial endurance makes it suitable for demanding enterprise storage applications.

Form Factor & Installation

The HPE P13693-B21 uses an M.2 22110 form factor and connects through a PCI Express x4 (NVMe) interface.

Unlike a standard 2.5-inch SFF enterprise SSD, this model is an M.2 card, so the server must have the appropriate M.2 22110 bay and NVMe PCIe connectivity.

Before installation, verify the exact server configuration, supported M.2 slot, PCIe connectivity, firmware requirements, and operating system compatibility.

Operating System Support

The specifications list support for the following operating systems and virtualization platforms:

• Microsoft Windows Server 2019
• Microsoft Windows Server 2016
• Microsoft Windows Server 2012 R2
• VMware vSphere 6.1
• Red Hat Enterprise Linux Server 7
• Red Hat Enterprise Linux Server 6.5
• SUSE Linux Enterprise Server 12
• Ubuntu 14.04

Actual compatibility may depend on the server platform, drivers, firmware, and specific operating system configuration.

Ideal Applications

The HPE P13693-B21 is suitable for:

• Enterprise server storage
• Read-intensive workloads
• High-performance computing
• Database applications
• Virtualization environments
• Data-intensive applications
• Enterprise application servers
• Data center infrastructure
• High-speed data storage
• Application data storage
• Server storage upgrades

Why Choose HPE P13693-B21

The HPE P13693-B21 combines 3.84TB capacity, PCIe x4 NVMe connectivity, M.2 22110 form factor, MLC NAND flash, and high read performance in an enterprise solid state drive.

With up to 155,000 4KB random read IOPS, 3,300 MBps internal read performance, 1.37 DWPD endurance, and 9,601 TB SSD endurance, it is designed for compatible enterprise environments where fast and reliable storage is required.

Its digitally signed firmware and low-latency NVMe architecture further support demanding storage workloads on compatible server platforms.

FAQs

What is the storage capacity of the HPE P13693-B21?
The HPE P13693-B21 provides 3.84TB of solid-state storage capacity.

What interface does the HPE P13693-B21 use?
The SSD uses a PCI Express x4 (NVMe) interface through an M.2 card.

What is the form factor of the HPE P13693-B21?
The P13693-B21 uses an M.2 22110 form factor and is designed for compatible M.2 22110 server bays.

What are the random read and write IOPS of the P13693-B21?
The drive provides up to 155,000 4KB random read IOPS and 64,500 4KB random write IOPS.

What is the endurance rating of the HPE P13693-B21?
The SSD has a 1.37 DWPD rating and a specified SSD endurance of 9,601 TB.

What operating systems are supported by the P13693-B21?
The listed supported platforms include Windows Server 2019/2016/2012 R2, VMware vSphere 6.1, Red Hat Enterprise Linux Server, SUSE Linux Enterprise Server 12, and Ubuntu 14.04, subject to the compatible server configuration.
