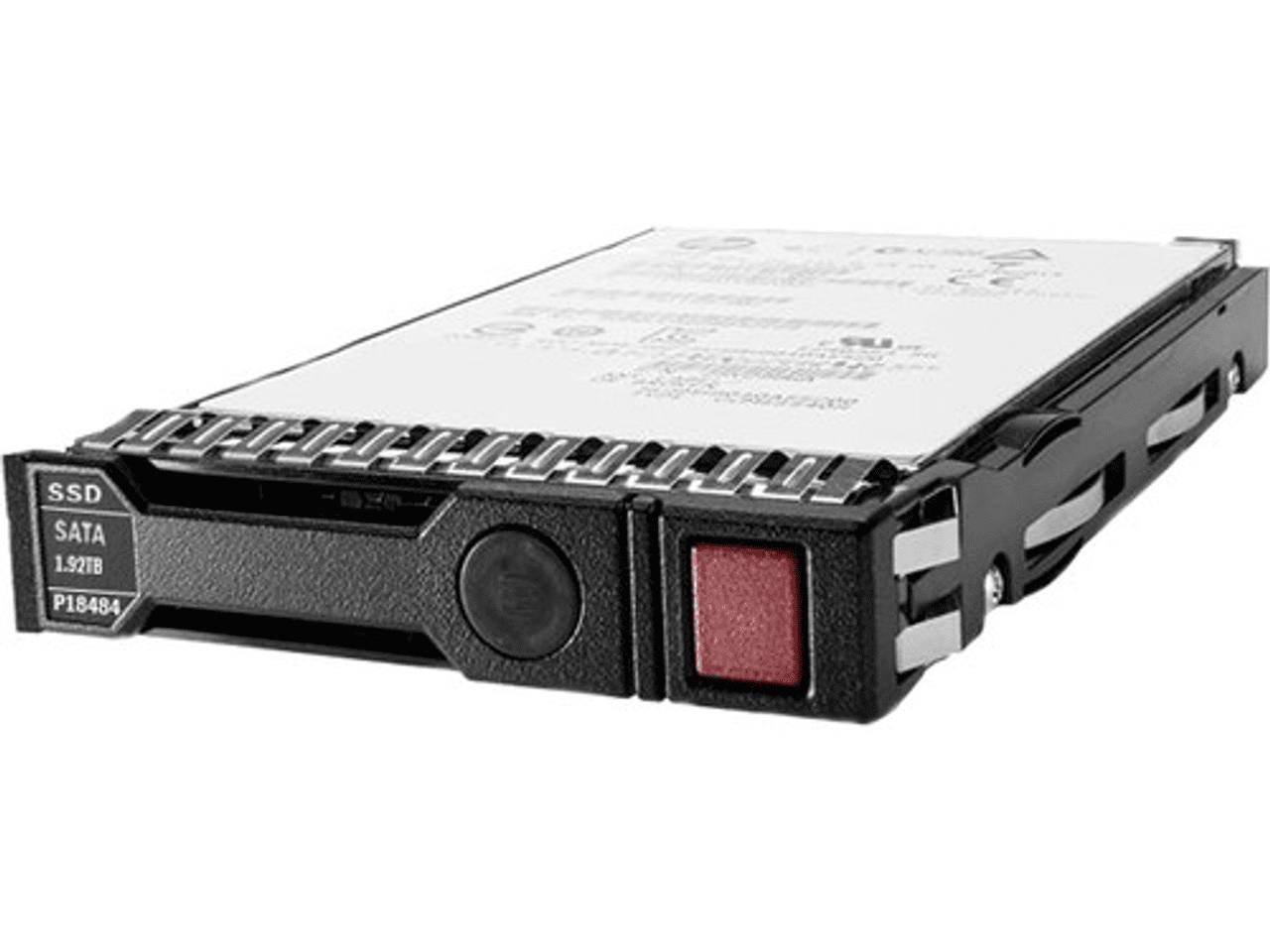

HPE 1.92TB SATA 6Gb/s Read Intensive SFF Smart Carrier SSD – P18484-001

BRAND NEW FACTORY SEALED & RETAIL BOXED WITH THE FULL HPE WARRANTY!!!

Overview

The HPE P18484-001 is a 1.92TB Read Intensive Solid State Drive (SSD) designed for compatible HPE ProLiant and HPE Synergy server platforms. It features a SATA 6Gbps interface, 2.5-inch Small Form Factor (SFF) design, and an HPE Smart Carrier (SC) for supported hot-swap configurations.

Built for read-intensive workloads, the P18484-001 delivers up to 55,500 random read IOPS and up to 56,000 maximum random read IOPS. It uses Triple-Level Cell (TLC) NAND flash memory and provides 1.00 DWPD endurance.

The drive also features Digitally Signed Firmware, Multi Vendor support, and HPE SmartSSD Wear Gauge compatibility for supported management environments.

Key Features

• Genuine HPE enterprise SSD
• 1.92TB storage capacity
• Read Intensive workload classification
• SATA 6Gbps interface
• 2.5-inch Small Form Factor (SFF)
• HPE Smart Carrier (SC)
• Hot-pluggable design
• TLC NAND flash memory
• Multi Vendor configuration
• Digitally Signed Firmware
• Up to 55,500 random read IOPS
• Up to 24,000 random write IOPS
• Up to 56,000 maximum random read IOPS
• Up to 25,000 maximum random write IOPS
• 1.00 DWPD endurance
• HPE SmartSSD Wear Gauge compatibility
• Factory sealed and retail boxed
• Full HPE warranty

Technical Specifications

Brand: HPE
Manufacturer: Hewlett-Packard Enterprise
Part Number / SKU: P18484-001
Product Type: Solid State Drive
Storage Capacity: 1.92TB
Workload Type: Read Intensive
Device Type: Solid State Drive - Hot-Swap
Interface: SATA 6Gbps
Drive Transfer Rate: 600 MBps
NAND Flash Memory: Triple-Level Cell (TLC)
Connectivity: Single Port
Form Factor: 2.5-inch SFF
Carrier Type: Smart Carrier (SC)
Plug Type: Hot-Pluggable
Features: Multi Vendor, Digitally Signed Firmware
Bundled With: HPE Smart Carrier (SC)
Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy

Performance Specifications

• Maximum Sequential Read: 520 MiB/s
• Maximum Sequential Write: 470 MiB/s
• Random Read IOPS (4KiB, Q=16): 55,500
• Random Write IOPS (4KiB, Q=16): 24,000
• Maximum Random Read IOPS (4KiB): 56,000 @ Q32
• Maximum Random Write IOPS (4KiB): 25,000 @ Q32
• Random Read Average Latency: 125 µs
• Random Write Average Latency: 60 µs
• External Drive Transfer Rate: 600 MBps

Endurance Specifications

• Workload Type: Read Intensive
• Endurance DWPD: 1.00
• 30 Days Writes: 2,800

The 1.00 DWPD rating indicates that the drive is designed for workloads where the equivalent of its full capacity can be written once per day over the specified endurance period.

Physical Specifications

Form Factor: 2.5-inch SFF
Height: 7.00mm (0.30 inch)
Carrier Type: Smart Carrier (SC)
Compatible Bay: 2.5-inch SFF
Plug Type: Hot-Pluggable
Weight: 1.10 lbs (0.50 kg)

Power Consumption

• Idle: 1.45W
• Random Read: 3.15W
• Random Write: 3.15W
• Sequential Read: 2.36W
• Sequential Write: 3.31W
• Random Read/Write: 3.15W
• Maximum: 3.31W

Read Intensive Workload

The HPE P18484-001 is designed for Read Intensive (RI) applications that perform substantially more read operations than write operations. This makes the SSD suitable for environments where consistent read performance, low latency, and power efficiency are important.

Typical applications can include boot and swap workloads, web servers, read caching, and other enterprise applications with predominantly read-oriented I/O patterns.

Smart Carrier and Firmware

The P18484-001 includes an HPE Smart Carrier (SC) designed for supported HPE server configurations. The Smart Carrier provides drive-status information and helps reduce the possibility of accidental drive removal.

The SSD also includes Digitally Signed Firmware, which helps ensure that the drive firmware originates from a trusted source. HPE SmartSSD Wear Gauge compatibility allows supported management tools to monitor SSD lifespan and identify drives that may require attention.

Compatibility

The HPE P18484-001 is designed for compatible HPE ProLiant Rack, Tower, BladeSystem, and Synergy servers supporting 2.5-inch SATA SFF storage configurations.

Compatibility should be verified against the exact HPE server model, storage controller, drive bay, firmware, and configuration before installation.

Benefits

• Provides 1.92TB of enterprise solid-state storage
• SATA 6Gbps connectivity
• Read Intensive workload optimization
• 2.5-inch SFF form factor
• Smart Carrier included
• Hot-pluggable design
• TLC NAND flash technology
• Up to 56,000 maximum random read IOPS
• Up to 25,000 maximum random write IOPS
• 1.00 DWPD endurance
• Digitally Signed Firmware
• Multi Vendor support
• SmartSSD Wear Gauge compatibility
• Designed for compatible HPE server platforms

Ideal Applications

• Enterprise server storage
• Read-intensive applications
• Web servers
• Boot and swap workloads
• Read caching
• Data center environments
• HPE ProLiant server deployments
• HPE Synergy environments
• Enterprise application storage
• Storage capacity upgrades

Why Choose HPE P18484-001

• Genuine HPE enterprise SSD
• 1.92TB capacity
• SATA 6Gbps interface
• Read Intensive workload classification
• 2.5-inch SFF design
• HPE Smart Carrier
• Hot-pluggable configuration
• TLC NAND flash
• Digitally Signed Firmware
• Multi Vendor design
• 1.00 DWPD endurance
• SmartSSD Wear Gauge compatibility
• Full HPE warranty
• Factory sealed and retail boxed

FAQs

What is the storage capacity of the HPE P18484-001 SSD?
The HPE P18484-001 provides 1.92TB of solid-state storage capacity.

What interface does the HPE P18484-001 use?
The drive uses a SATA 6Gbps interface with an external drive transfer rate of up to 600 MBps.

What is the form factor of the HPE P18484-001?
The SSD features a 2.5-inch Small Form Factor (SFF) design and includes an HPE Smart Carrier (SC).

What type of workload is the HPE P18484-001 designed for?
The P18484-001 is a Read Intensive (RI) SSD, making it suitable for workloads that perform more read operations than write operations.

What are the performance specifications of the HPE P18484-001?
The SSD provides up to 55,500 random read IOPS and 24,000 random write IOPS at 4KiB, Q=16. Maximum performance is listed at 56,000 random read IOPS and 25,000 random write IOPS.

Which HPE systems are compatible with the P18484-001?
The drive is designed for compatible HPE ProLiant Rack, Tower, BladeSystem, and Synergy platforms. Compatibility should be confirmed against the exact server model, controller, drive bay, firmware, and storage configuration before installation.
