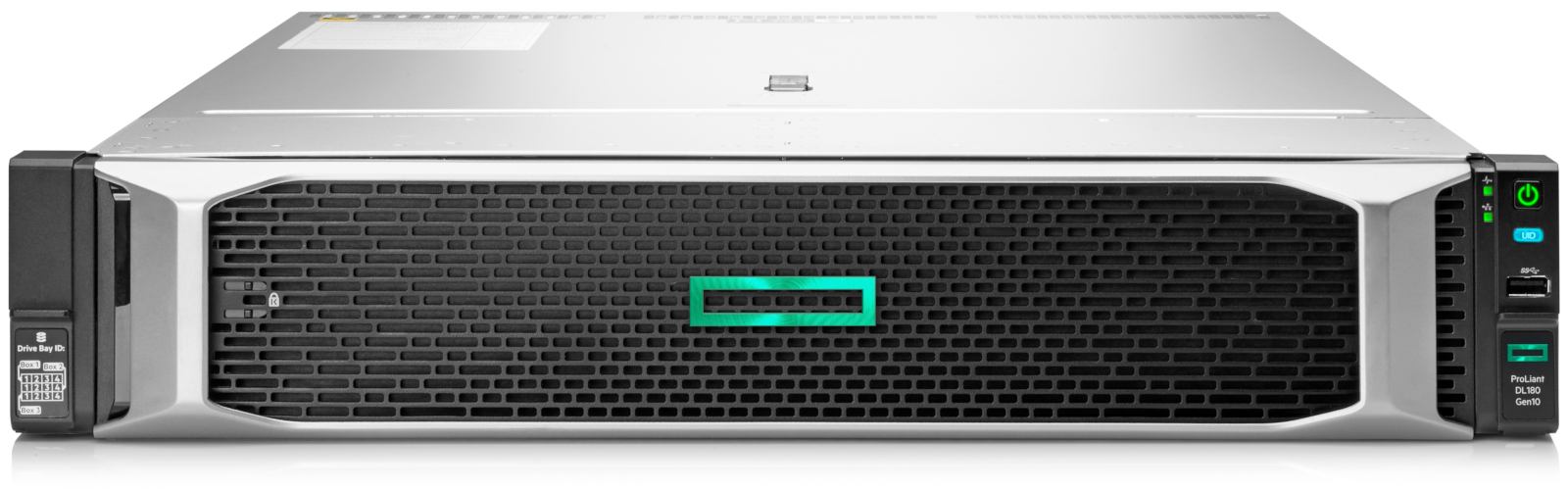

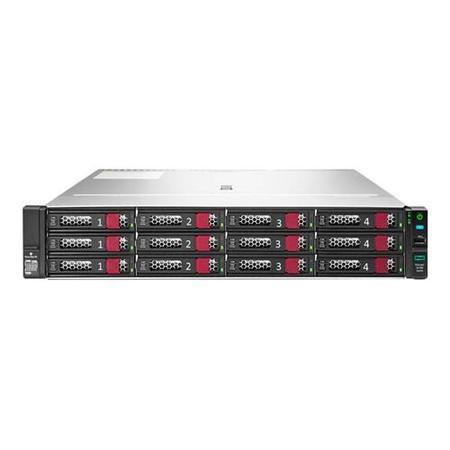

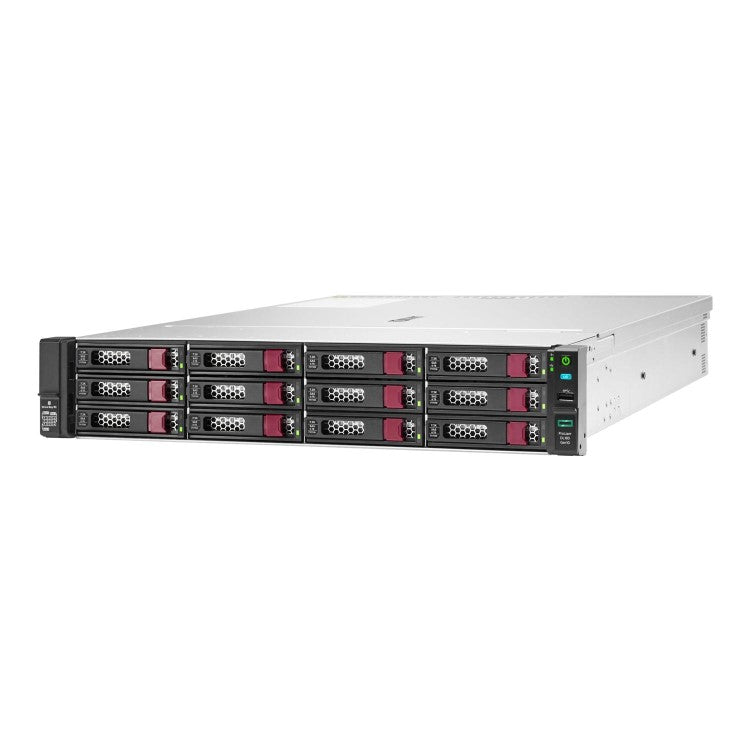

HPE ProLiant DL180 Gen10 12LFF 2U Rack Server – P19563-B21

BRAND NEW. FACTORY SEALED. RETAIL BOXED. FULL HPE WARRANTY INCLUDED. AVAILABLE FROM CHICAGO COMPUTER SUPPLY.

Overview

Organizations managing large-capacity storage workloads need a server platform that combines enterprise reliability, flexible expansion, and scalable storage architecture.

The HPE ProLiant DL180 Gen10 (P19563-B21) is a 2U enterprise rack server designed for storage-intensive environments, backup infrastructure, virtualization, and business-critical applications. Featuring support for up to 12 LFF drives and an HPE Smart Array P408i-a RAID controller, it provides flexible large-capacity storage deployment in a scalable enterprise platform.

Key Features

• Intel Xeon Scalable processor
• 2U enterprise rack server
• Supports 12 LFF drive bays
• HPE Smart Array P408i-a RAID controller
• Hardware RAID and Smart Storage Battery included
• HPE iLO remote management
• Flexible expansion and networking options
• Enterprise storage-focused architecture

Technical Specifications

Brand: HPE
Model: ProLiant DL180 Gen10
Part Number: P19563-B21
Product Type: Rack Server

Processor

• Intel Xeon Scalable 3204
• 6-core processor
• 1.9 GHz clock speed
• 11 MB L3 cache
• 85W processor

Processor Configuration

1 processor installed

Memory

• 16 GB DDR4 Smart Memory installed
• 16GB RDIMM
• PC4-2933Y-R Smart Kit

Storage

• Supports up to 12 LFF SAS/SATA drives
• No hard drives included

Storage Controller

• HPE Smart Array P408i-a
• 2 GB cache
• Smart Storage Battery included

Networking

• Embedded dual-port 1GbE Ethernet adapter
• FlexibleLOM and PCIe networking expansion supported

Expansion

6 expansion slots

Remote Management

• HPE iLO Standard
• Intelligent Provisioning
• HPE OneView support
• Optional advanced management licensing

Power Supply

1 × 500W HPE Flex Slot Platinum hot-plug PSU

Security

• Optional TPM 2.0
• Intrusion detection support
• Optional locking bezel

Form Factor

2U rack-mount server

Dimensions

3.44 × 17.54 × 24.99 inches

Weight

• Minimum: 28 lbs
• Maximum: 58 lbs

Use Cases

• Large-capacity storage deployments
• Backup and archive infrastructure
• File servers
• Storage-heavy SMB virtualization
• Media and surveillance storage
• Business continuity infrastructure
• General-purpose enterprise storage workloads

Why Choose HPE ProLiant DL180 Gen10

• High-capacity 12 LFF storage support
• Hardware RAID controller included
• Flexible enterprise expansion platform
• Reliable HPE infrastructure
• Integrated remote management capabilities
• Suitable for storage-focused environments
• Enterprise-grade scalability
• Brand new with full HPE warranty

FAQs

What is the HPE P19563-B21 used for?
It is used for enterprise storage, backup, virtualization, and large-capacity business workloads.

How many drive bays are supported?
It supports up to 12 LFF SAS/SATA drives.

What RAID controller is included?
It includes the HPE Smart Array P408i-a RAID controller with 2 GB cache.

Does this server include hard drives?
No. Hard drives are not included.

Does it support remote management?
Yes. It includes HPE iLO Standard management.
