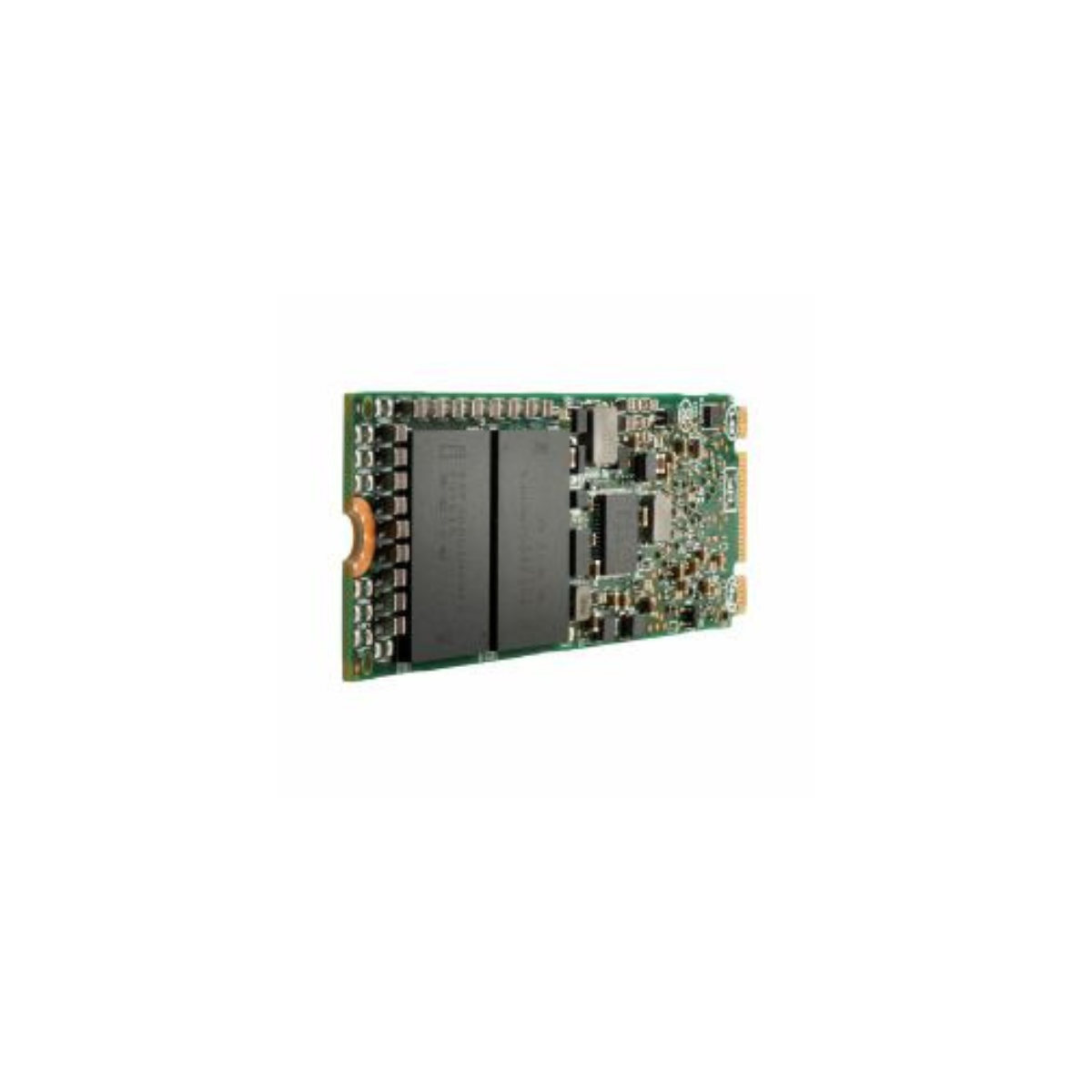

HPE 480GB NVMe x4 Lanes Read Intensive Solid State Drive – P24188-B21

BRAND NEW FACTORY SEALED & RETAIL BOXED WITH THE FULL HPE WARRANTY!!!

Overview

The HPE P24188-B21 is a 480GB Read Intensive Solid State Drive (SSD) designed for compatible HPE ProLiant servers requiring high-performance storage with low latency and reduced power consumption. It uses a PCI Express x4 (NVMe) interface and an M.2 22110 form factor.

The drive features MLC NAND flash memory and delivers up to 135,000 4KB random read IOPS and 26,500 4KB random write IOPS. With an endurance rating of 482 TB and 0.55 Drive Writes Per Day (DWPD), the P24188-B21 is designed for read-intensive enterprise workloads.

Key Features

• Genuine HPE enterprise SSD
• 480GB storage capacity
• Read Intensive (RI) workload classification
• PCI Express x4 (NVMe) interface
• M.2 22110 form factor
• MLC NAND flash memory
• Up to 135,000 4KB random read IOPS
• Up to 26,500 4KB random write IOPS
• Up to 250,000 maximum 4KB random read IOPS
• 0.55 DWPD endurance rating
• 482 TB SSD endurance
• Digitally Signed Firmware
• Internal drive design
• Designed for compatible HPE ProLiant Gen10 servers
• Brand new factory sealed
• Full HPE warranty

Technical Specifications

Manufacturer: Hewlett-Packard
Brand: HPE
Part Number: P24188-B21
Product Line: HPE Read Intensive
Product Type: Solid State Drive
Packaged Quantity: 1
Drive Type: Internal Hard Drive
Storage Capacity: 480GB
Storage Interface: PCI Express x4 (NVMe)
Interface: PCI Express x4 (NVMe)
NAND Flash Memory Type: Multi-Level Cell (MLC)
Features: Digitally Signed Firmware

Performance Specifications

• 4KB Random Read: 135,000 IOPS

• 4KB Random Write: 26,500 IOPS

• Maximum 4KB Random Read: 250,000 IOPS

• Maximum 4KB Random Write: 26,500 IOPS

• Drive Writes Per Day (DWPD): 0.55

• SSD Endurance: 482 TB

Physical Specifications

Form Factor: M.2 22110
Form Factor (Short): M.2
Form Factor (Metric): M.2 22110
Compatible Bay: M.2 22110
Height: 0.1 inch
Interface: 1 × PCI Express x4 (NVMe) – M.2 Card

Power Consumption

• Idle: 2.41W
• Random Read: 4.62W
• Random Write: 4.62W
• Sequential Write: 4.66W
• Sequential Read: 6.49W
• Maximum: 6.49W

Read Intensive Workload

The HPE P24188-B21 is designed for Read Intensive workloads, where applications perform significantly more read operations than write operations. Its NVMe PCIe x4 interface provides high-speed storage connectivity, while the MLC NAND flash technology delivers solid-state performance and low latency.

It is suitable for workloads such as server boot storage, web servers, read caching, and other applications that require fast access to frequently read data.

Compatibility

The HPE P24188-B21 is compatible with supported configurations of:

• HPE ProLiant DL20 Gen10
• HPE ProLiant DL20 Gen10 Entry
• HPE ProLiant DL20 Gen10 Performance
• HPE ProLiant DL20 Gen10 Solution
• HPE ProLiant ML30 Gen10
• HPE ProLiant ML30 Gen10 Entry
• HPE ProLiant ML30 Gen10 Performance
• HPE ProLiant ML30 Gen10 Solution

Compatibility should be verified against the exact server configuration, M.2 bay, firmware, and storage controller before installation.

Benefits

• Provides 480GB of high-speed solid-state storage
• PCIe x4 NVMe interface enables high-performance storage connectivity
• M.2 22110 design saves physical space
• Read Intensive design is suitable for read-heavy applications
• Up to 135,000 random read IOPS
• Up to 250,000 maximum random read IOPS
• Digitally Signed Firmware helps protect firmware integrity
• MLC NAND flash technology
• Suitable for compatible HPE ProLiant Gen10 servers

Ideal Applications

• Enterprise server storage
• Server boot drives
• Web servers
• Read caching
• Read-intensive applications
• Data center environments
• Enterprise IT infrastructure
• HPE ProLiant Gen10 server deployments
• High-performance storage configurations

Why Choose HPE P24188-B21

• Genuine HPE enterprise SSD
• 480GB storage capacity
• PCIe x4 NVMe interface
• M.2 22110 form factor
• Read Intensive workload classification
• MLC NAND flash memory
• Up to 250,000 maximum random read IOPS
• 482 TB endurance
• Digitally Signed Firmware
• Designed for compatible HPE ProLiant Gen10 servers
• Factory sealed and backed by the full HPE warranty

FAQs

What is the storage capacity of the HPE P24188-B21 SSD?
The HPE P24188-B21 provides 480GB of solid-state storage capacity.

What interface does the HPE P24188-B21 use?
The drive uses a PCI Express x4 (NVMe) interface through an M.2 card.

What is the form factor of the HPE P24188-B21?
The SSD uses an M.2 22110 form factor and is designed for compatible M.2 22110 bays.

What type of workload is the HPE P24188-B21 designed for?
The P24188-B21 is an HPE Read Intensive SSD, making it suitable for applications with predominantly read operations such as boot storage, web servers, and read caching.

What are the performance specifications of the HPE P24188-B21?
The SSD provides 135,000 4KB random read IOPS, 26,500 4KB random write IOPS, and up to 250,000 maximum 4KB random read IOPS.

Which HPE servers are compatible with the P24188-B21?
The P24188-B21 is compatible with supported configurations of HPE ProLiant DL20 Gen10 and ML30 Gen10 server models, including their listed Entry, Performance, and Solution configurations. Compatibility should be verified against the exact server configuration before installation.
