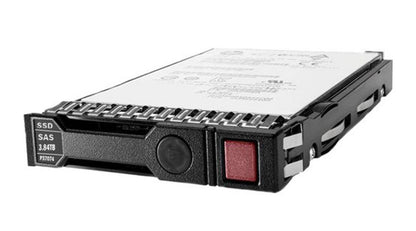

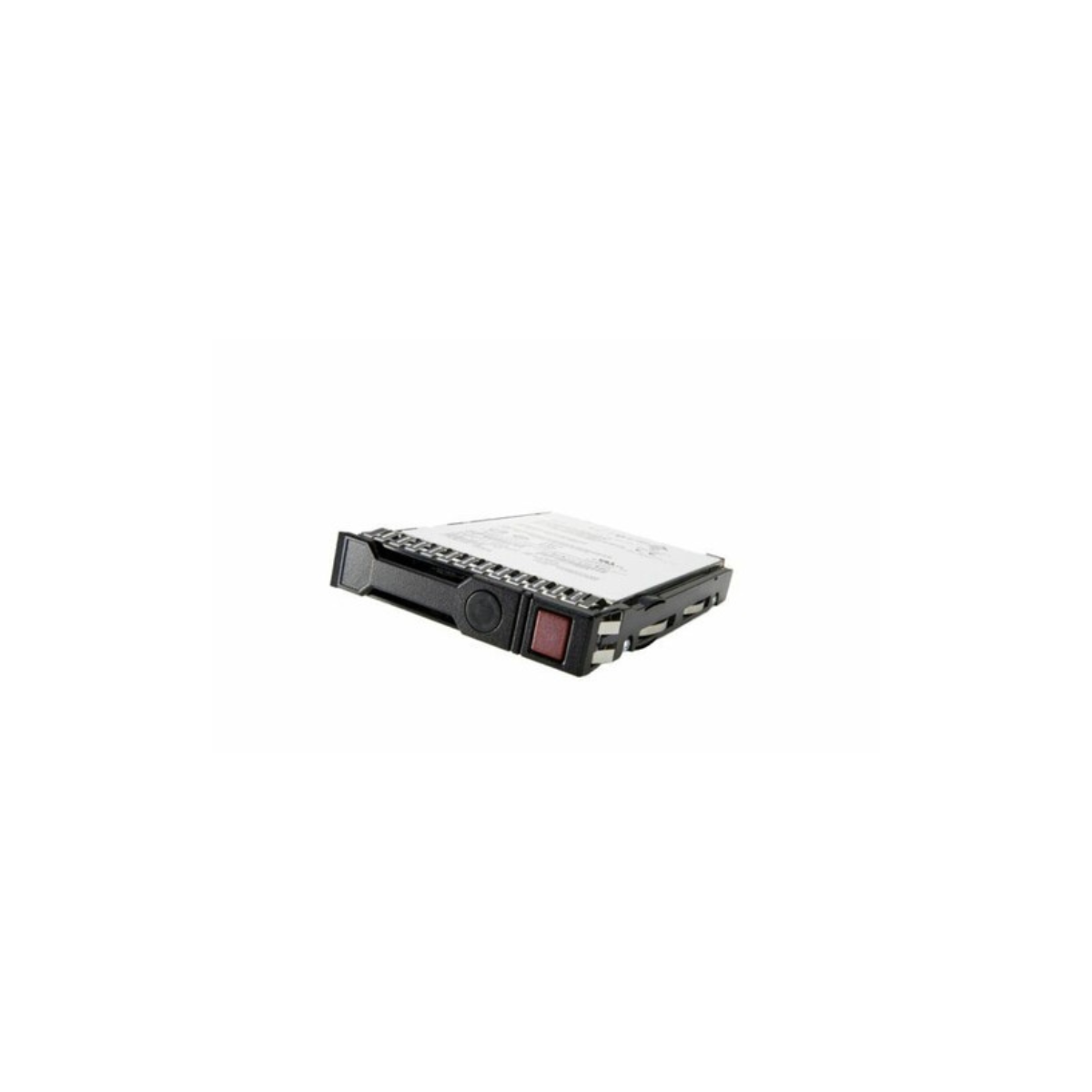

HPE 3.84TB 2.5in DS SAS-12G SC Mixed Use VS G9 G10 SSD – P37017-B21

BRAND NEW FACTORY SEALED & RETAIL BOXED WITH THE FULL HPE WARRANTY!!!

Overview

The HPE P37017-B21 is a 3.84TB Mixed Use Solid State Drive (SSD) designed for compatible HPE ProLiant server environments. It features a SAS 12Gbps interface, 2.5-inch Small Form Factor (SFF) design, and Smart Carrier (SC) for enterprise server storage configurations.

The drive uses Triple-Level Cell (TLC) NAND flash memory and is designed for mixed-use workloads requiring a balance of read and write performance. It provides up to 155,000 random read IOPS and 52,000 random write IOPS, making it suitable for demanding enterprise applications.

The P37017-B21 also includes digitally signed firmware and HPE SmartSSD management capabilities for compatible environments.

Key Features

• Genuine HPE enterprise SSD
• 3.84TB storage capacity
• Mixed Use workload classification
• SAS 12Gbps interface
• 2.5-inch Small Form Factor (SFF)
• Hot-swap design
• Smart Carrier (SC)
• TLC NAND flash memory
• Digitally Signed Firmware
• HPE Value SAS technology
• Up to 155,000 random read IOPS
• Up to 52,000 random write IOPS
• Up to 810 MBps internal read rate
• Up to 635 MBps internal write rate
• HPE Smart Carrier included
• Designed for compatible HPE ProLiant Gen9 and Gen10 environments

Technical Specifications

Brand: HPE
Manufacturer: Hewlett Packard Enterprise
Part Number / SKU: P37017-B21
Product Type: Solid State Drive
Storage Capacity: 3.84TB
Workload Type: Mixed Use
Interface: SAS 12Gbps
NAND Flash Memory Type: Triple-Level Cell (TLC)
Form Factor: 2.5-inch SFF
Drive Type: Hot-Swap
Plug Type: Hot-Pluggable
Carrier Type: Smart Carrier (SC)
Features: Digitally Signed Firmware, HPE Value SAS
Bundled With: HPE Smart Carrier
Compatible Bay: 2.5-inch SFF
Interface Provided: 1 x SAS 12Gbps

Performance Specifications

• Random Read IOPS (4KiB, Q=16): 103,000
• Maximum Random Read IOPS (4KiB): 155,000 @ Q32
• Random Write IOPS (4KiB, Q=16): 52,000
• Maximum Random Write IOPS (4KiB): 52,000 @ Q4
• Internal Data Rate – Read: 810 MBps
• Internal Data Rate – Write: 635 MBps
• Random Read Average Latency: 140 µs (4KiB, Q1)
• Random Write Average Latency: 35 µs (4KiB, Q1)
• Endurance: 3 DWPD
• Lifetime Writes: 21,000 TB

Physical Specifications

Form Factor: 2.5-inch SFF
Compatible Bay: 2.5-inch SFF
Carrier: HPE Smart Carrier
Drive Type: Hot-Swap
Interface: SAS 12Gbps
Plug Type: Hot-Pluggable

Storage Technology

The HPE P37017-B21 uses TLC NAND flash technology to provide solid-state storage with improved responsiveness and lower latency compared with traditional rotating hard disk drives.

The drive is classified as Mixed Use, making it appropriate for environments where both read and write operations are important. It also incorporates HPE Value SAS technology and digitally signed firmware for compatible HPE enterprise storage environments.

Mixed Use Workload

The P37017-B21 is designed for Mixed Use workloads, providing a balance between read and write performance. Its performance characteristics make it suitable for enterprise applications that generate a combination of read and write I/O operations.

Potential applications include databases, virtualization, business applications, and other demanding server workloads.

Hot-Swap and Smart Carrier Design

The drive uses an HPE Smart Carrier (SC) and supports a hot-swap configuration for compatible HPE server systems.

The Smart Carrier can provide drive-status information and management capabilities when supported by the HPE server and storage configuration. Actual hot-swap functionality depends on the server, storage controller, firmware, and drive-bay configuration.

Compatibility

The supplied specifications identify the P37017-B21 for compatible HPE ProLiant Gen9 and Gen10 server environments.

Compatibility should be verified against the exact HPE ProLiant server model, storage controller, drive bay, firmware, and carrier requirements before installation.

Benefits

• Provides 3.84TB of enterprise solid-state storage
• SAS 12Gbps connectivity
• Mixed Use workload design
• TLC NAND flash technology
• 2.5-inch SFF form factor
• Hot-swap capability for compatible systems
• Smart Carrier design
• Up to 155,000 random read IOPS
• Up to 52,000 random write IOPS
• 3 DWPD endurance rating
• Digitally Signed Firmware
• HPE Value SAS technology
• Suitable for compatible HPE ProLiant environments

Power Consumption

• Idle: 4.47W
• Random Read: 5.40W
• Random Write: 5.40W
• Sequential Read: 7.93W
• Sequential Write: 7.56W
• Random Read/Write: 7.96W
• Maximum: 7.96W

Ideal Applications

• Enterprise server storage
• Database applications
• Virtualization environments
• Data center workloads
• Mixed read/write applications
• Business-critical applications
• High-performance server storage
• HPE ProLiant Gen9 environments
• HPE ProLiant Gen10 environments
• Storage capacity upgrades

Why Choose HPE P37017-B21

• Genuine HPE enterprise SSD
• 3.84TB storage capacity
• SAS 12Gbps interface
• Mixed Use workload classification
• TLC flash technology
• 2.5-inch SFF form factor
• Hot-swap design
• HPE Smart Carrier
• HPE Value SAS technology
• Digitally Signed Firmware
• Up to 155,000 random read IOPS
• Up to 52,000 random write IOPS
• 3 DWPD endurance
• Full HPE warranty

FAQs

What is the storage capacity of the HPE P37017-B21 SSD?
The HPE P37017-B21 provides 3.84TB of solid-state storage capacity.

What interface does the HPE P37017-B21 use?
The drive uses a SAS 12Gbps interface for enterprise server storage connectivity.

What type of workload is the HPE P37017-B21 designed for?
The P37017-B21 is a Mixed Use SSD, designed for workloads involving a combination of read and write operations.

What is the form factor of the HPE P37017-B21?
The SSD uses a 2.5-inch Small Form Factor (SFF) design with an HPE Smart Carrier.

What are the performance specifications of the HPE P37017-B21?
The drive provides up to 155,000 random read IOPS and 52,000 random write IOPS. Its internal data rates are up to 810 MBps for reads and 635 MBps for writes.

What flash technology does the HPE P37017-B21 use?
The SSD uses Triple-Level Cell (TLC) NAND flash memory.

Does the HPE P37017-B21 support hot swapping?
Yes. The drive is specified as hot-swap/hot-pluggable, subject to support from the compatible HPE server and storage configuration.

What carrier does the HPE P37017-B21 use?
The drive is supplied with an HPE Smart Carrier (SC).

What is the endurance rating of the HPE P37017-B21?
The supplied specifications list an endurance rating of 3 Drive Writes Per Day (DWPD).

Which HPE servers are compatible with the P37017-B21?
The supplied information identifies the drive for compatible HPE ProLiant Gen9 and Gen10 environments. Exact compatibility should be verified against the specific server model, controller, firmware, and drive-bay configuration.
