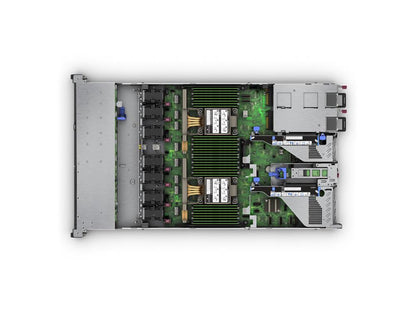

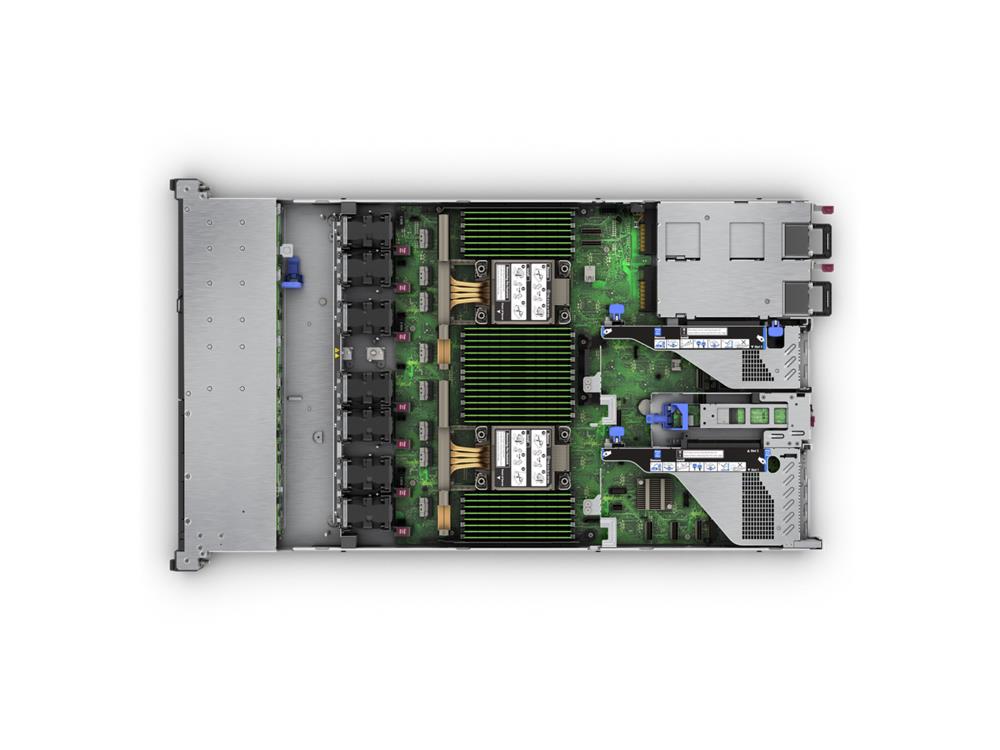

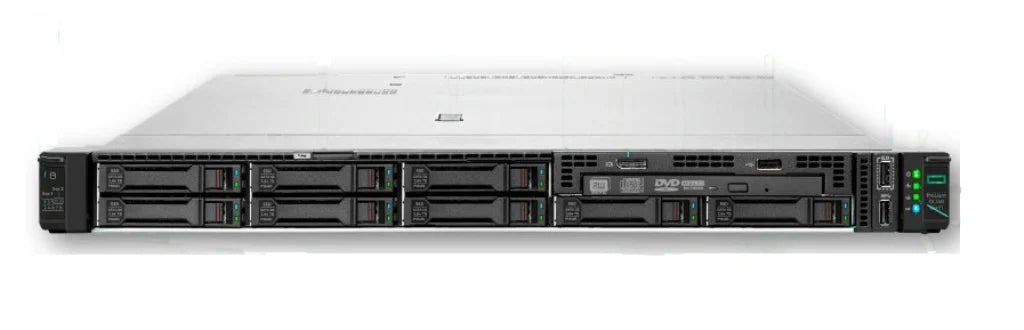

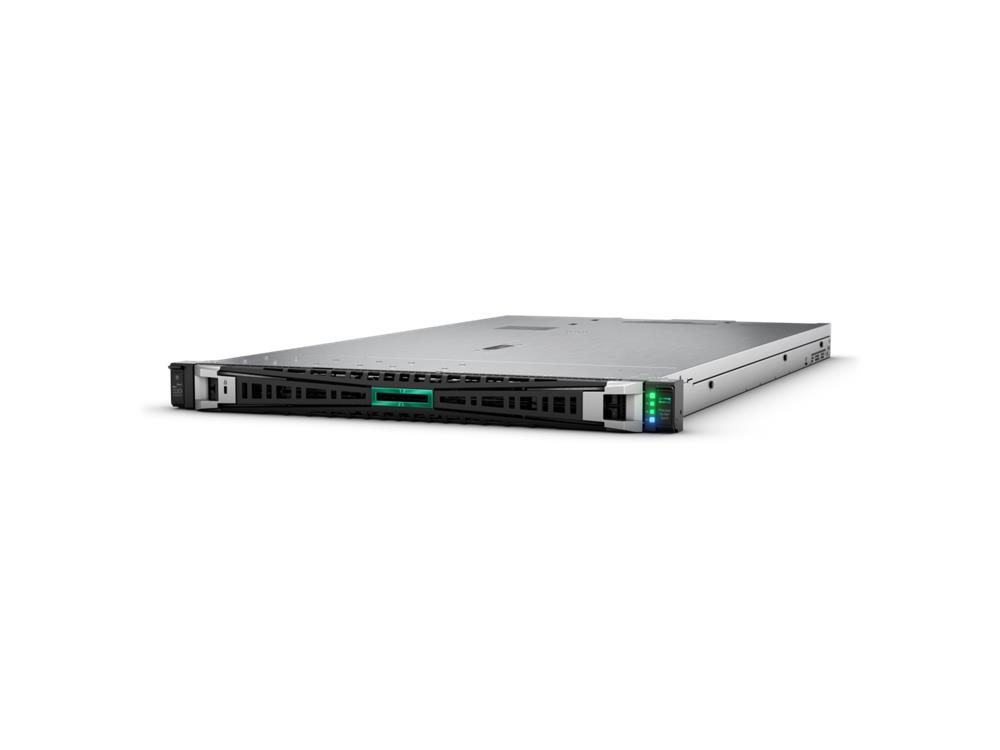

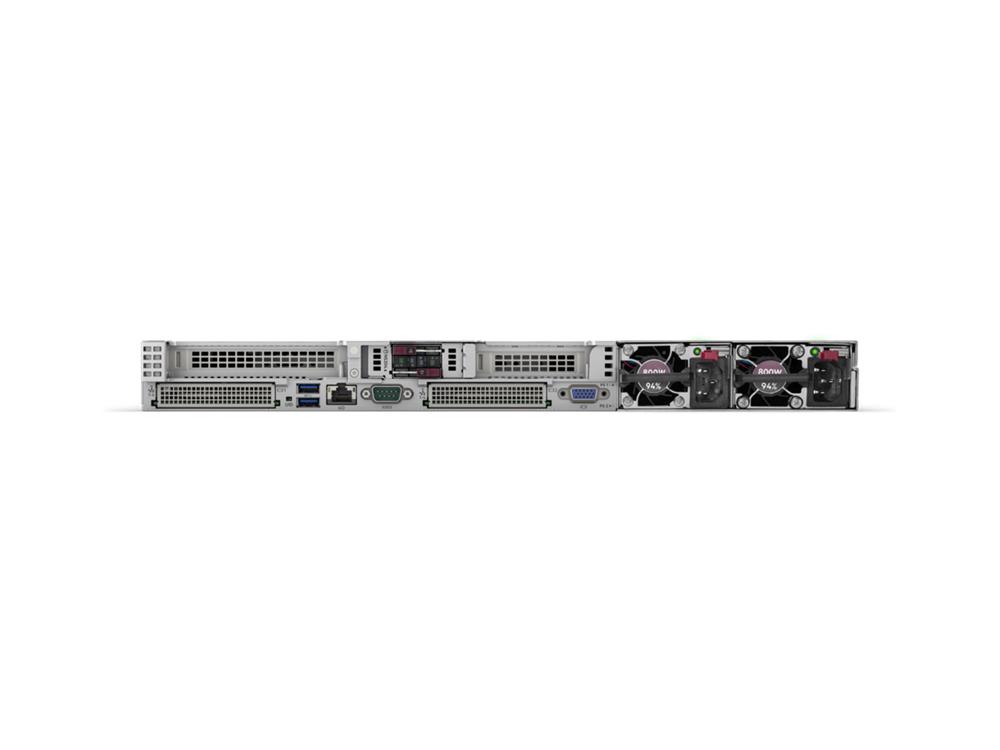

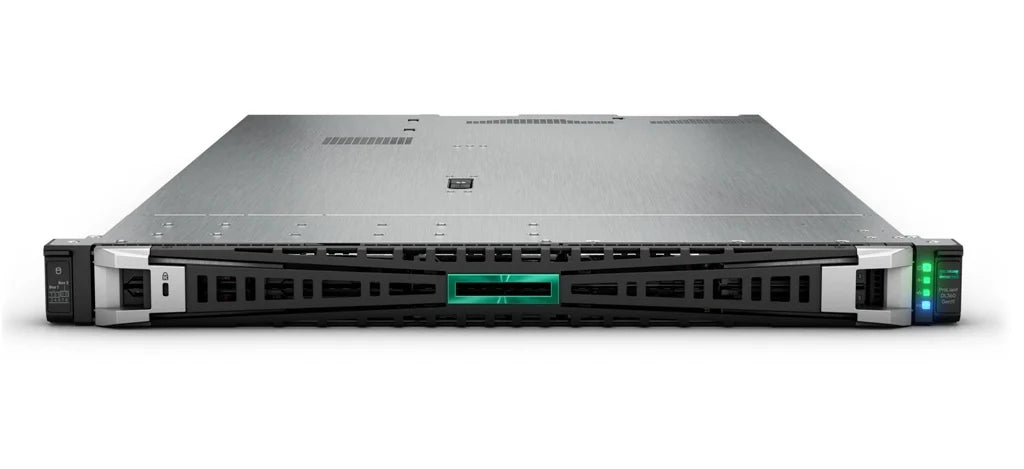

HPE ProLiant DL360 Gen11 4509Y 8-Core 64GB Rack Server – P71676-005

BRAND NEW. FACTORY SEALED. RETAIL BOXED. FULL HPE WARRANTY INCLUDED.

The HPE ProLiant DL360 Gen11 server is a compact and powerful 1U enterprise rack server built for virtualization, hybrid cloud infrastructure, business applications, and software-defined workloads. Powered by 4th and 5th Generation Intel Xeon Scalable processors, the DL360 Gen11 delivers outstanding compute efficiency, DDR5 memory performance, PCIe Gen5 expansion, and advanced HPE security technologies.

The P71676-005 configuration features an Intel Xeon Silver 4509Y processor, 64GB DDR5 Smart Memory, dual 480GB SATA SSDs, HPE MR408i-o RAID controller, and dual 1000W Titanium hot-plug redundant power supplies. This server is ideal for businesses seeking enterprise-class reliability, scalability, and performance in a space-saving 1U design.

Key Features

• Intel Xeon Silver 4509Y 8-core processor
• 64GB DDR5 Smart Memory
• 2 × 480GB SATA SSDs included
• HPE MR408i-o Gen11 RAID controller
• PCIe Gen5 expansion support
• Dual 1000W Titanium hot-plug redundant power supplies
• Broadcom 4-port Gigabit Ethernet adapter
• HPE Silicon Root of Trust security
• HPE iLO remote server management
• Compact 1U rack server

Technical Specifications

Brand: HPE
Model: ProLiant DL360 Gen11
Part Number: P71676-005
Product Type: Rack Server

Processor

• Intel Xeon Silver 4509Y
• 8 cores
• 2.60 GHz base frequency
• 22.5 MB L3 cache
• 125W processor

Processor Configuration

• 1 processor installed
• Supports 4th and 5th Gen Intel Xeon Scalable processors

Memory

• 64GB HPE DDR5 Smart Memory
• 2 × 32GB DIMMs
• 5600 MT/s memory speed

Storage

• 2 × 480GB SATA SSD included
• 8SFF drive configuration
• Expandable enterprise storage support

Storage Controller

• HPE MR408i-o Gen11
• x8 lanes
• 4GB cache
• OCP SPDM storage controller

Networking

• Broadcom BCM5719
• 4-port 1GbE BASE-T OCP3 Ethernet adapter

Expansion Slots

• 2 standard PCIe slots
• x16 FH and x16 HH slot configuration
• Upgradeable third slot option
• Up to 2 OCP 3.0 PCIe5 slots

Cooling

5 standard system fans

Power Supply

• 2 × HPE 1000W Flex Slot Titanium Hot Plug Power Supplies
• Redundant power configuration

Security Features

• UEFI Secure Boot
• Secure Start support
• Immutable Silicon Root of Trust
• Intel Software Guard Extensions (SGX)
• Optional TPM support
• Optional chassis intrusion detection
• Optional bezel locking kits
• Optional Trusted Supply Chain support

Infrastructure Management

• HPE iLO Standard
• Intelligent Provisioning
• HPE OneView Standard
• Optional HPE iLO Advanced support

Optical Drive Support

• Optional HPE SATA DVD-RW optical drive
• Optional HPE Mobile USB DVD-RW drive

Form Factor

1U rack-mount server

Ideal Workloads

• Small to medium business virtualization
• Hybrid cloud infrastructure
• Business application hosting
• Database applications
• Web and file hosting
• Software-defined storage
• Branch office deployments
• Virtual desktop infrastructure (VDI)
• Enterprise edge computing

Why Choose the HPE DL360 Gen11

• Enterprise-class 1U performance
• Intel Xeon scalable architecture
• High-speed DDR5 memory technology
• PCIe Gen5 future-ready expansion
• Advanced HPE security protection
• Redundant Titanium power efficiency
• Flexible storage scalability
• Compact data center footprint
• Intelligent remote management tools

FAQs

What processor is included in the P71676-005 server?
The server includes an Intel Xeon Silver 4509Y 8-core processor running at 2.60 GHz.

How much memory is installed?
This configuration includes 64GB DDR5 Smart Memory using 2 × 32GB DIMMs.

What storage is included?
The server ships with 2 × 480GB SATA SSDs installed.

Which RAID controller is included?
The system includes the HPE MR408i-o Gen11 storage controller with 4GB cache.

Does the server support PCIe Gen5?
Yes. The DL360 Gen11 supports PCIe Gen5 expansion slots and OCP 3.0 slots.

Are redundant power supplies included?
Yes. Dual 1000W HPE Flex Slot Titanium hot-plug power supplies are included.
