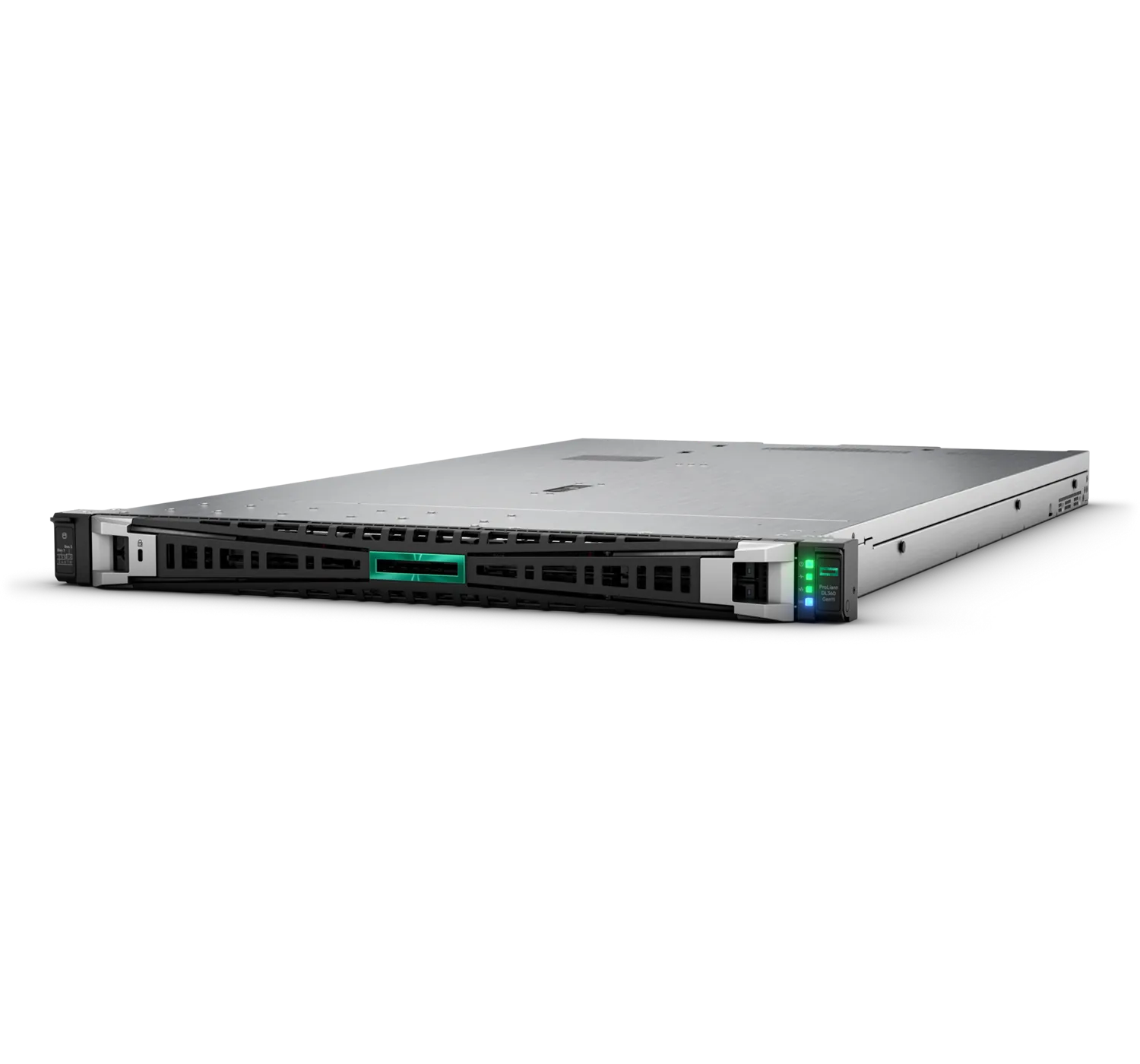

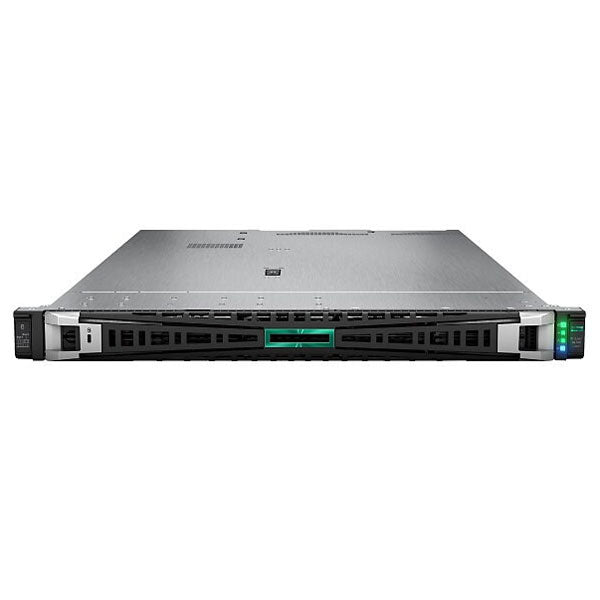

HPE ProLiant DL360 Gen11 6526Y 16-Core 128GB Rack Server – P71678-005

BRAND NEW. FACTORY SEALED. RETAIL BOXED. FULL HPE WARRANTY INCLUDED.

The HPE ProLiant DL360 Gen11 server is a high-density 1U rack platform engineered for modern enterprise workloads, virtualization, cloud infrastructure, and software-defined environments. Powered by 4th and 5th Generation Intel Xeon Scalable processors, the DL360 Gen11 delivers exceptional compute performance, advanced security, DDR5 memory bandwidth, and PCIe Gen5 expansion capabilities for demanding business applications.

The P71678-005 configuration features an Intel Xeon Gold 6526Y processor, 128GB DDR5 Smart Memory, HPE NS204i-u NVMe boot optimized storage, and dual 1000W Titanium hot-plug redundant power supplies. Designed for performance-focused data centers, this server offers enterprise reliability, scalability, and advanced infrastructure management in a compact 1U form factor.

Key Features

• Intel Xeon Gold 6526Y 16-core processor
• 128GB DDR5 Smart Memory
• HPE NS204i-u NVMe boot optimized storage

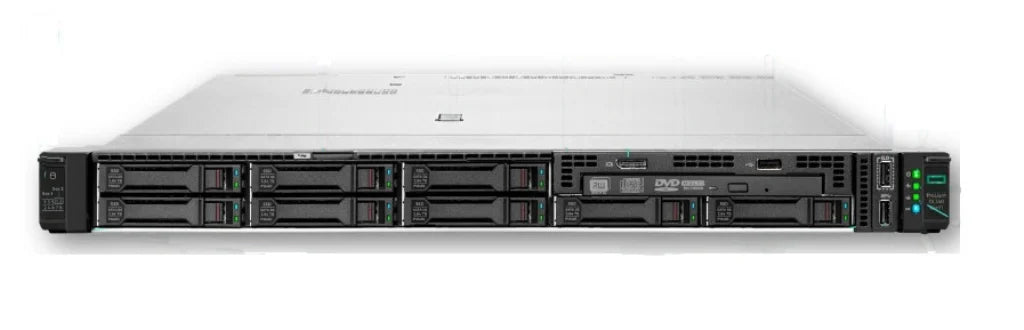

• Supports up to 8 SFF drive bays
• PCIe Gen5 expansion support
• Dual 1000W Titanium hot-plug redundant power supplies
• Broadcom 4-port Gigabit Ethernet adapter
• HPE Silicon Root of Trust security
• HPE iLO remote server management
• Compact 1U rack server design

Technical Specifications

Brand: HPE
Model: ProLiant DL360 Gen11
Part Number: P71678-005
Product Type: Rack Server

Processor

• Intel Xeon Gold 6526Y
• 16 cores
• 2.80 GHz base frequency
• 37.5 MB L3 cache
• 195W processor

Processor Configuration

• 1 processor installed
• Supports 4th and 5th Gen Intel Xeon Scalable processors

Memory

• 128GB HPE DDR5 Smart Memory
• 4 × 32GB DIMMs
• 5600 MT/s memory speed

Storage

• No hard drives included
• Supports up to 8 SFF drives
• Flexible enterprise storage expansion

Boot Storage Device

• HPE NS204i-u Gen11
• NVMe hot-plug boot optimized storage device

Networking

• Broadcom BCM5719
• 4-port 1GbE BASE-T OCP3 Ethernet adapter

Expansion Slots

• 2 standard expansion slots
• x16 FH and x16 HH configuration
• Upgradeable third slot option
• Up to 2 OCP 3.0 PCIe5 slots

Cooling

7 high-performance system fans

Power Supply

• 2 × HPE 1000W Flex Slot Titanium Hot Plug Power Supplies
• Redundant power configuration

Security Features

• UEFI Secure Boot
• Secure Start support
• Immutable Silicon Root of Trust
• Intel Software Guard Extensions (SGX)
• Optional TPM support
• Optional chassis intrusion detection
• Optional bezel locking kits
• Optional Trusted Supply Chain support

Infrastructure Management

• HPE iLO Standard
• Intelligent Provisioning
• HPE OneView Standard
• Optional HPE iLO Advanced support

Optical Drive Support

• Optional HPE SATA DVD-RW optical drive
• Optional HPE Mobile USB DVD-RW drive

Form Factor

1U rack-mount server

Ideal Workloads

• Enterprise virtualization
• Hybrid cloud infrastructure
• Software-defined storage
• High-density compute environments
• Database hosting
• Virtual desktop infrastructure (VDI)
• Private cloud deployments
• Business-critical applications
• Data center consolidation

Why Choose the HPE DL360 Gen11

• High-performance 1U enterprise platform
• Intel Xeon Gold compute power
• DDR5 memory performance and scalability
• Advanced PCIe Gen5 expansion
• Enterprise-grade HPE security architecture
• Flexible storage configuration support
• Efficient redundant Titanium power supplies
• Compact rack-optimized design
• Advanced remote management capabilities

FAQs

What processor is included in the P71678-005 server?
The server includes an Intel Xeon Gold 6526Y 16-core processor running at 2.80 GHz.

How much memory is installed?
This configuration includes 128GB DDR5 Smart Memory using 4 × 32GB DIMMs.

Are hard drives included?
No. The server ships without hard drives and supports up to 8 SFF drives.

What boot storage device is included?
The server includes the HPE NS204i-u Gen11 NVMe boot optimized storage device.

Does the DL360 Gen11 support PCIe Gen5?
Yes. The server supports PCIe Gen5 expansion and OCP 3.0 slots.

Are redundant power supplies included?
Yes. Dual 1000W HPE Flex Slot Titanium hot-plug power supplies are included.
