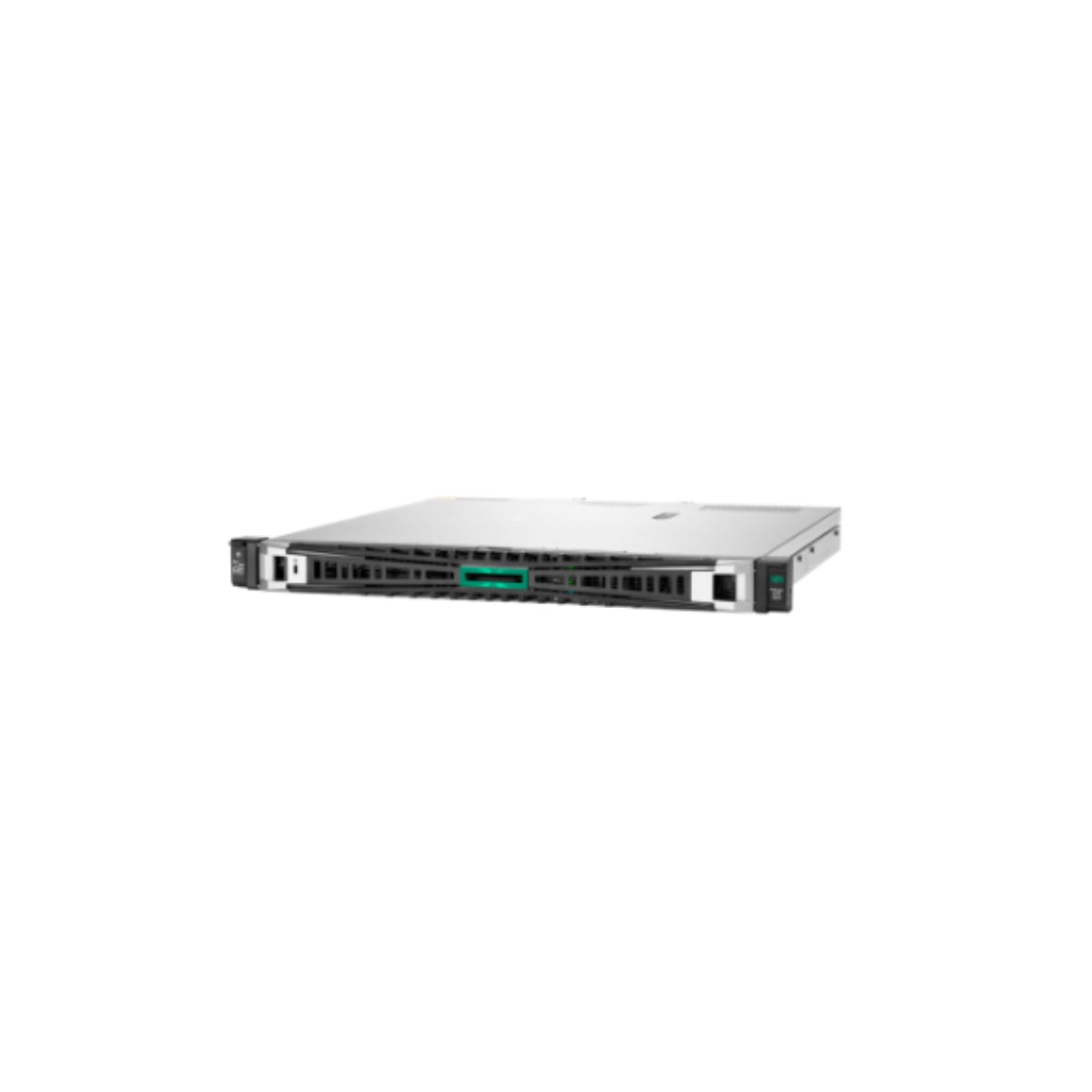

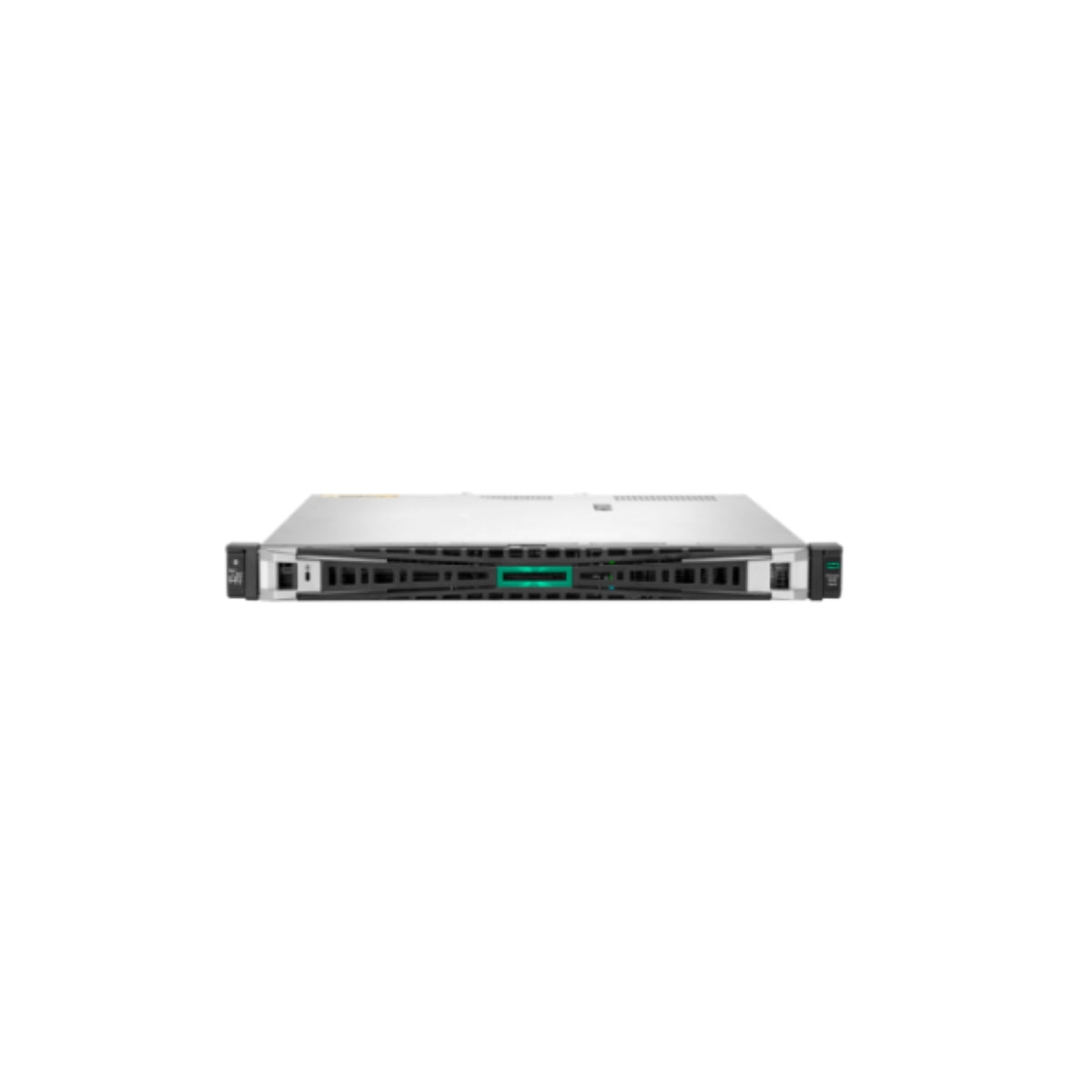

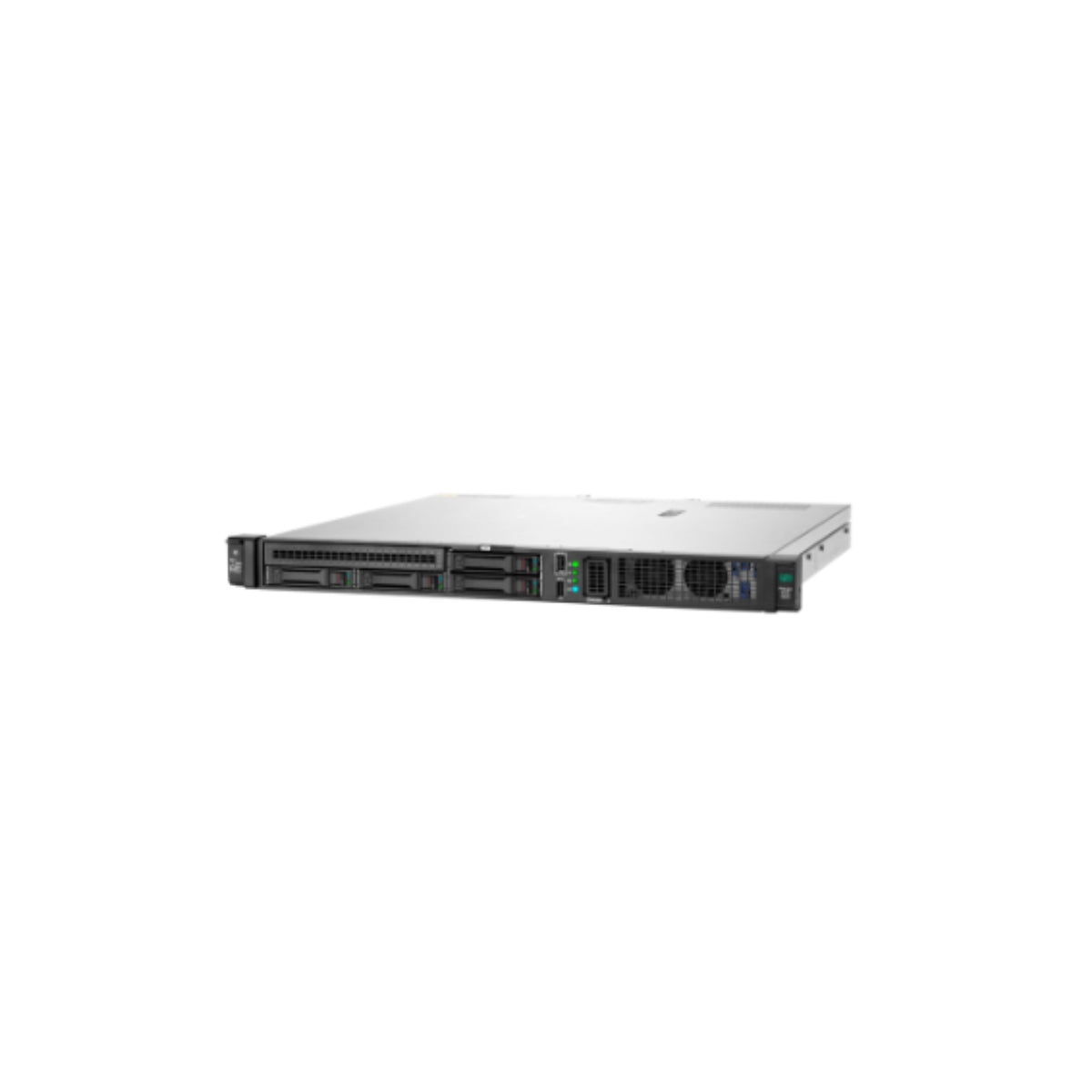

HPE ProLiant DL20 Gen11 E-2436 Server P71682-005

BRAND NEW WITH FULL HPE WARRANTY!!!

The P71682-005 - HPE ProLiant DL20 Gen11 E-2436 2.9GHz 6-Core 1P 32GB-DR MR408i-o 4SFF 2x500W RPS NA Server is a compact yet powerful 1U rack server built for small-to-midsize businesses, remote offices, and edge deployments requiring enterprise reliability in a short-depth chassis. Powered by the Intel® Xeon® E-2436 six-core processor and configured with 32GB of DDR5 ECC memory, this platform delivers dependable performance for line-of-business applications, infrastructure services, and secure edge workloads.

Designed for flexibility and space efficiency, this configuration supports four small form factor (SFF) hot-swap drive bays and includes the HPE MR408i-o RAID controller for data protection and storage acceleration. Dual 500W hot-plug redundant power supplies enhance uptime, while HPE Integrated Lights-Out (iLO) management provides remote monitoring and lifecycle control. The DL20 Gen11 is ideal for organizations that need enterprise-grade performance in a space-conscious 1U footprint.

Key Features – HPE ProLiant DL20 Gen11 – P71682-005

• Processor:
 o Intel® Xeon® E-2436, 6-Core, 2.9GHz base frequency

• Memory:
 o 32GB DDR5 ECC Unbuffered DIMM

• Storage:
 o 4 × SFF (2.5") hot-swap drive bays

• Controller (if applicable):
 o HPE MR408i-o PCIe Gen4 RAID Controller

• Networking / Ports:
 o Integrated 1Gb Ethernet ports
 o USB 3.x ports (front/rear)
 o VGA port
 o Dedicated iLO management port

• Power & Cooling:
 o 2 × 500W Hot-Plug Redundant Power Supplies
 o High-efficiency cooling fans

• Management:
 o HPE Integrated Lights-Out (iLO) remote management

• Security (if applicable):
 o Silicon Root of Trust
 o UEFI Secure Boot
 o TPM 2.0 support

• Form Factor:
 o 1U Rack Mount Server

Technical Specifications

• Processor Type: Intel® Xeon® E-2436 (6-Core)
• Chipset / Platform: Intel C260 Series Chipset / HPE Gen11 Platform
• Memory Technology: DDR5 ECC UDIMM
• Storage Interface: SATA / SAS via RAID controller
• RAID Support: RAID 0, 1, 5, 6, 10, 50, 60 (via MR408i-o)
• Expansion Slots: PCIe Gen4 expansion slot(s)
• Networking: Integrated 1GbE Ethernet
• I/O Ports: USB 3.x, VGA, Dedicated iLO port
• Operating System Compatibility: Microsoft Windows Server, VMware ESXi, Red Hat Enterprise Linux, SUSE Linux Enterprise Server

Physical Specifications

• Form Factor:
 o 1U Rack Mount

• Weight:
 o 6.1 kg
 o 13.45 lbs

• Dimensions (H × W × D):
 o 43.2 mm × 434.6 mm × 382 mm
 o 1.7 in × 17.11 in × 15.04 in

• Rack Compatibility:
 o Standard 19-inch rack
 o Occupies 1U rack height

Ideal For

• Remote office / branch office (ROBO) deployments
• Small business virtualization hosts
• Edge computing applications
• File, print, and directory services
• Retail and distributed enterprise infrastructure

Warranty & Support

• Standard manufacturer warranty: 3-Year Parts, 3-Year Labor, 3-Year Onsite Support
• Support contract compatibility: HPE Care Pack, HPE Foundation Care, HPE Proactive Care

FAQs – HPE ProLiant DL20 Gen11 – P71682-005

Q1: Can memory be expanded beyond 32GB?
A1: Yes. The DL20 Gen11 supports additional DDR5 ECC UDIMMs up to the platform’s maximum supported capacity.

Q2: Does this server support redundant power?
A2: Yes. This configuration includes dual 500W hot-plug redundant power supplies for high availability.

Q3: Is this suitable for virtualization?
A3: Yes. With a 6-core Xeon processor and DDR5 ECC memory, it supports lightweight virtualization and infrastructure workloads.

Q4: What type of drives can be installed?
A4: The system supports up to four 2.5" SAS or SATA drives in hot-swap bays.

Q5: Does it include remote management?
A5: Yes. HPE iLO is integrated for remote provisioning, monitoring, and firmware management.

Q6: Is this server appropriate for edge deployments?
A6: Yes. Its short-depth 1U chassis and enterprise feature set make it ideal for branch offices and space-constrained environments.
