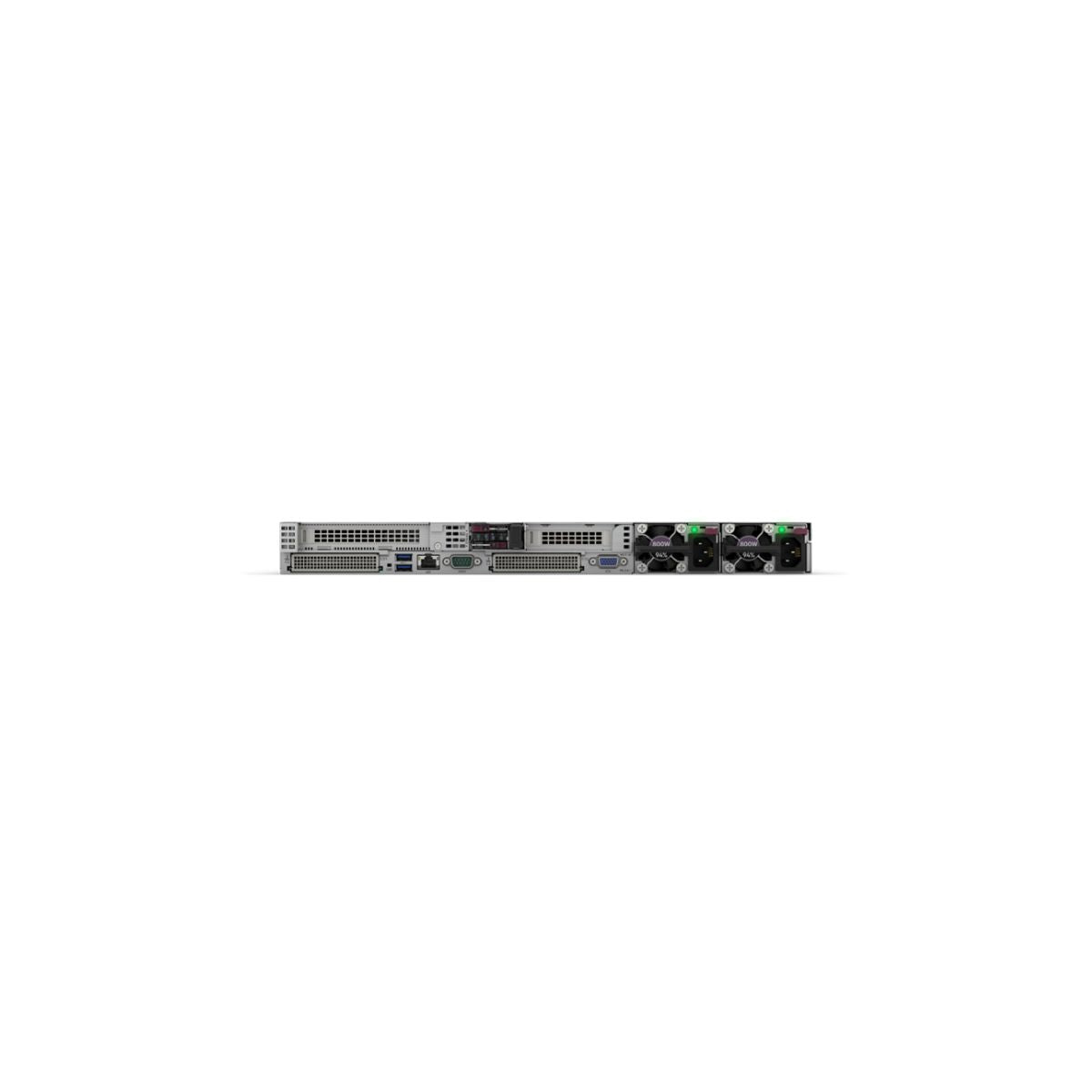

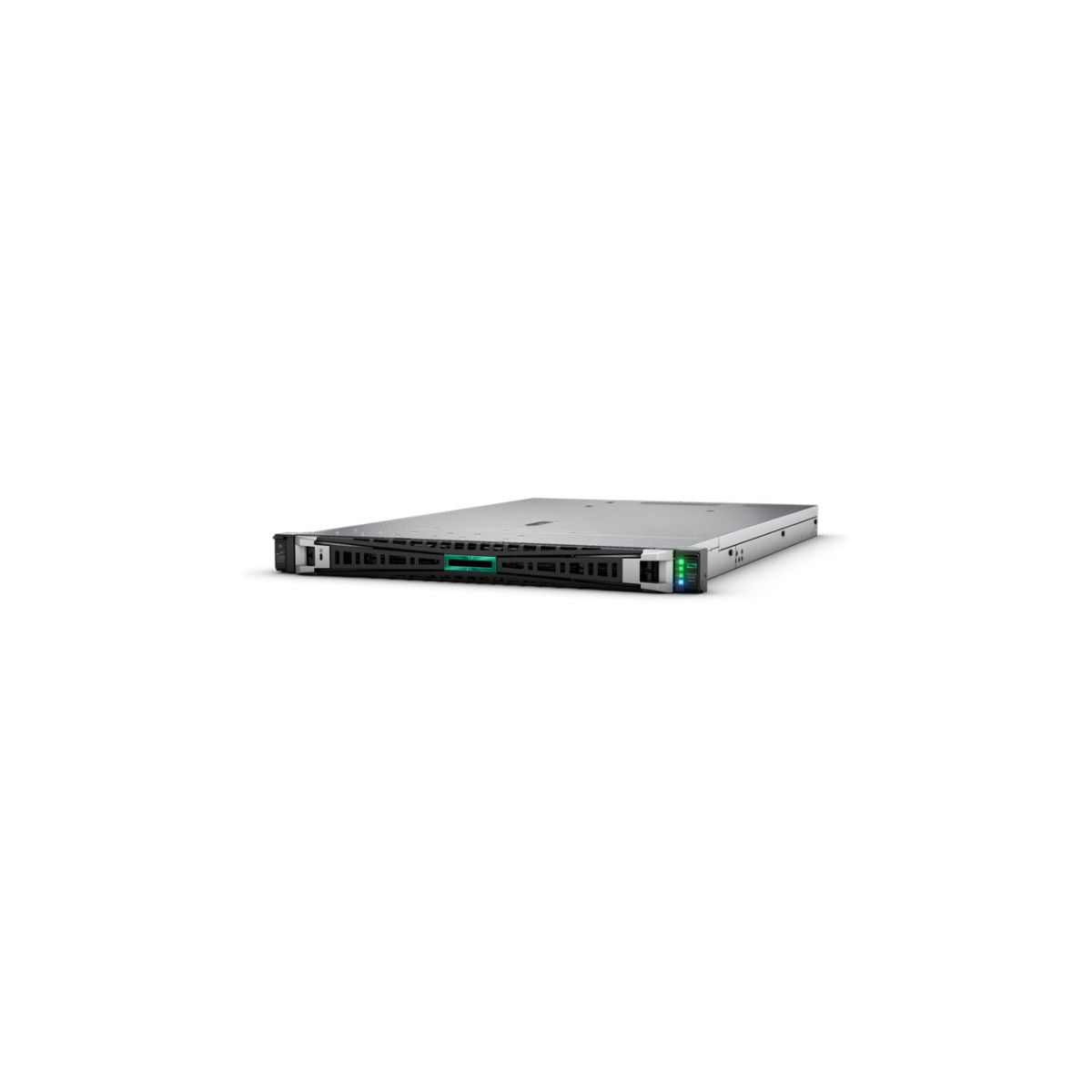

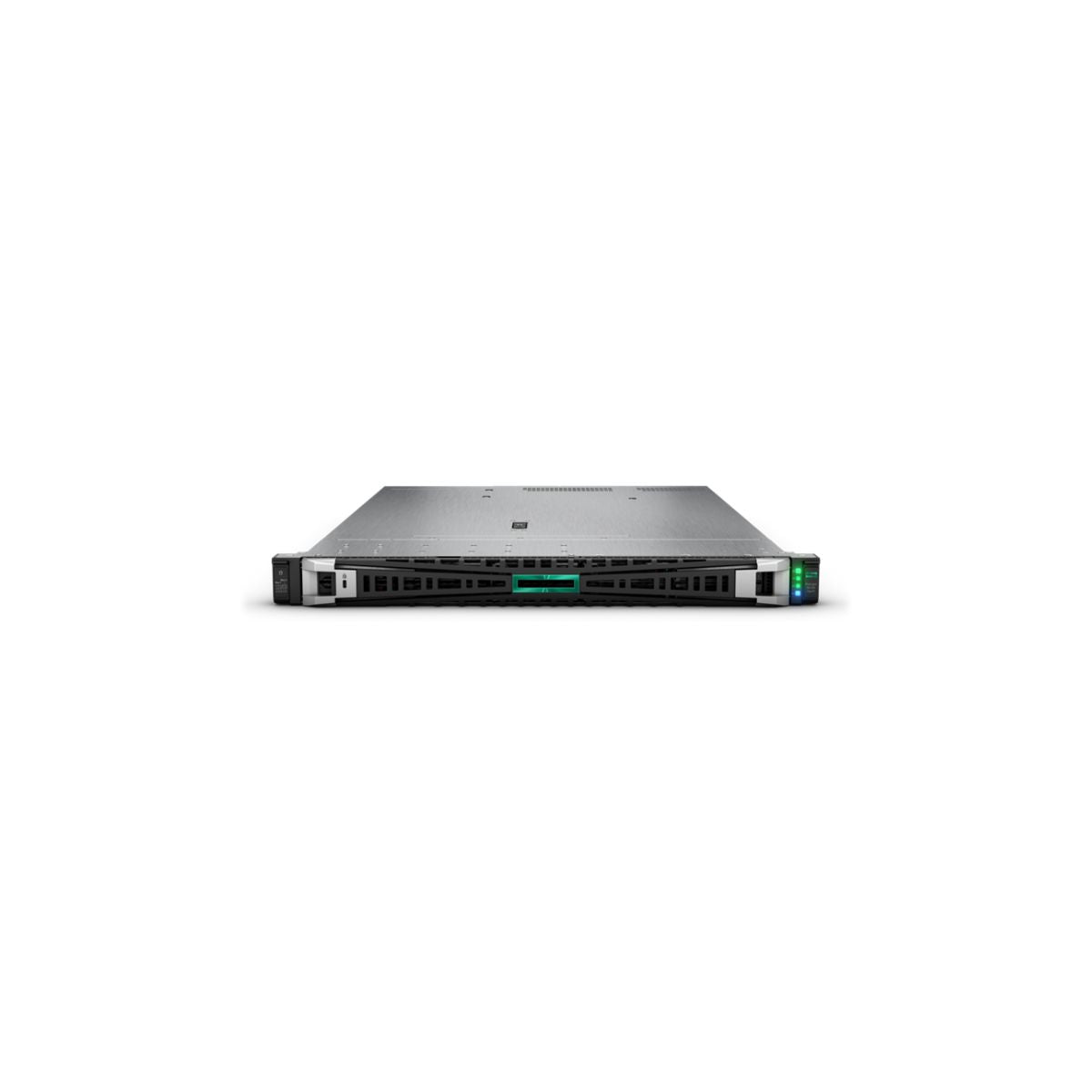

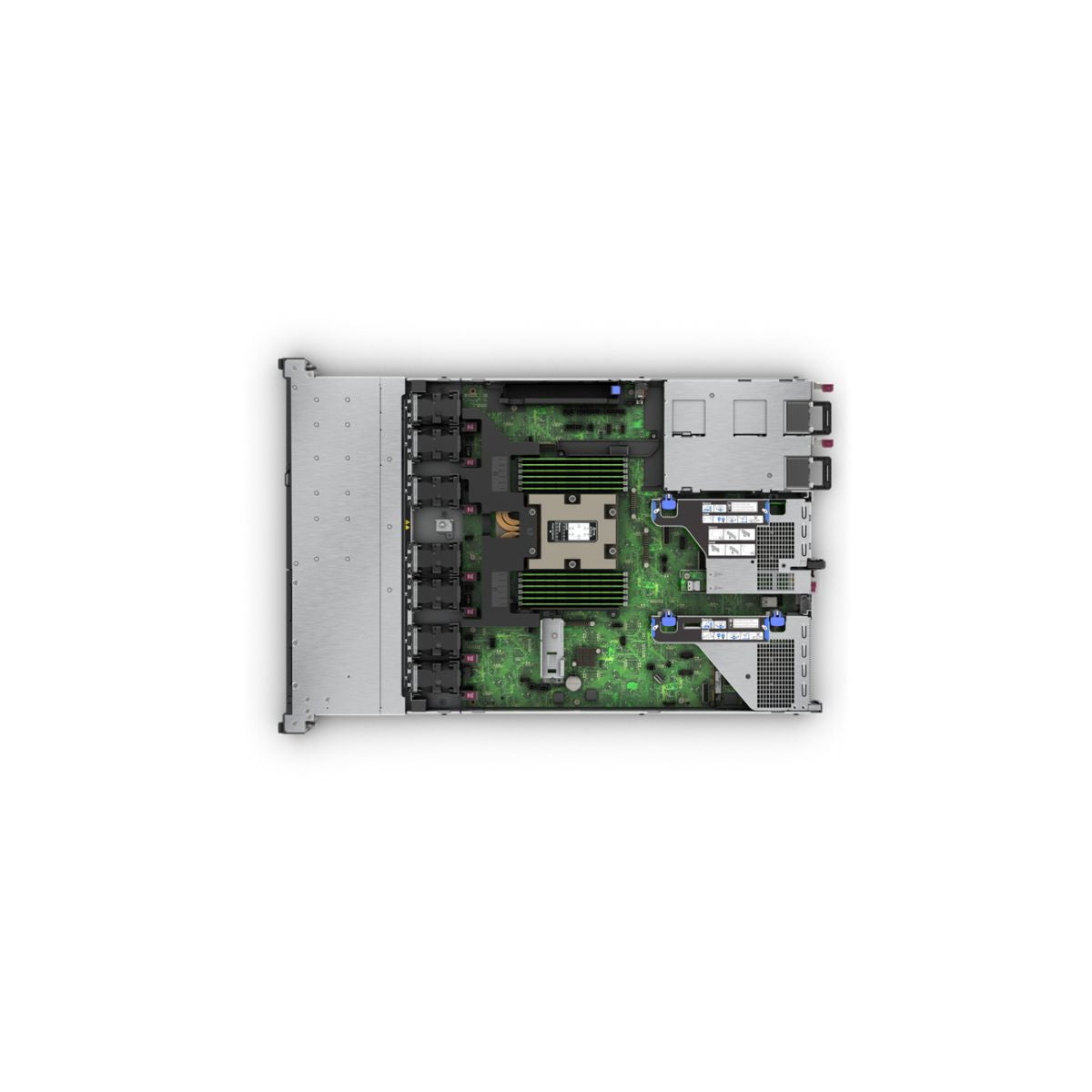

P77246-005 - HPE ProLiant DL325 Gen11 Rack Server

BRAND NEW WITH FULL HPE WARRANTY!!!

P77246-005 HPE ProLiant DL325 Gen11 is a high-performance, single-socket 1U rack server designed to deliver exceptional compute density and efficiency for modern data center workloads. Powered by the latest AMD EPYC 9004 series architecture, this platform provides a strong balance of performance, scalability, and cost efficiency, making it ideal for virtualized and software-defined environments.

Equipped with a 16-core AMD EPYC 9124 processor, 64GB DDR5 memory, and dual enterprise-grade 480GB SSDs, this configuration is optimized for virtualization, VDI, cloud infrastructure, and data-intensive applications. The integrated HPE MR408i-o RAID controller and dual 500W hot-plug redundant power supplies ensure high availability, data protection, and consistent performance under demanding workloads.

Organizations choose the DL325 Gen11 for its PCIe Gen5 expansion, high memory bandwidth (up to 3TB DDR5), advanced security with Silicon Root of Trust, and intelligent remote management via HPE iLO 6. The P77246-005 is a future-ready infrastructure solution for enterprises seeking performance, efficiency, and scalability in a compact 1U form factor.

Key Features – HPE ProLiant DL325 Gen11 (P77246-005)

• Processor:
AMD EPYC 9124, 16-core, 3.0 GHz

• Memory:
64GB DDR5 Registered ECC (2×32GB), expandable up to 3TB

• Storage:
2 × 480GB SATA 6G Read Intensive SSD

• Controller:
HPE MR408i-o Gen11 RAID Controller, 4GB cache

• Networking / Ports:
Broadcom BCM57416 10Gb 2-port BASE-T OCP3 adapter

• Power & Cooling:
Dual 500W Flex Slot Platinum hot-plug redundant power supplies
7 × standard hot-plug fans

• Management:
HPE iLO 6 with Intelligent Provisioning

• Security:
TPM 2.0, Secure Boot, Silicon Root of Trust

• Form Factor:
1U rack server

Technical Specifications

• Processor Type:
AMD EPYC 9004 series

• Chipset / Platform:
AMD EPYC server platform

• Memory Technology:
DDR5 Registered ECC, up to 6400 MT/s

• Storage Interface:
SATA 6G (supports NVMe/SAS depending on configuration)

• RAID Support:
Hardware RAID via MR408i-o controller

• Expansion Slots:
Up to 4 PCIe Gen5 slots + OCP 3.0 networking

• Networking:
10Gb Ethernet (2-port BASE-T)

• I/O Ports:
USB 3.2, video, Ethernet, iLO service port

• Operating System Compatibility:
Windows Server, VMware ESXi, Linux distributions

Physical Specifications

• Form Factor:
1U rack-mounted

• Weight:
o Approx. 13.6 kg
o Approx. 29.9 lbs

• Dimensions:
o 43 mm (H) × 434 mm (W) × 700 mm (D)
o 1.69 in (H) × 17.09 in (W) × 27.56 in (D)

• Rack Compatibility:
Standard 19-inch rack (1U)

Ideal For

• Virtualization and hyperconverged infrastructure
• VDI (Virtual Desktop Infrastructure)
• Cloud and software-defined compute workloads
• Edge computing and CDN deployments
• Database and analytics workloads
• High-density data center environments

Warranty & Support

• 3-Year Parts, Labor, Onsite Warranty (3/3/3)
• Compatible with:

• HPE Foundation Care
• HPE Proactive Care
• HPE Datacenter Care

FAQs – HPE ProLiant DL325 Gen11 (P77246-005)

1. Is this a dual-processor server?
No, this is a single-socket (1P) server, optimized for cost-efficient performance with AMD EPYC.

2. What is the maximum memory supported?
Up to 3TB DDR5 memory, depending on configuration.

3. Does it include redundant power supplies?
Yes, it comes with dual 500W hot-plug redundant PSUs.

4. What workloads is this server best suited for?
Ideal for virtualization, VDI, cloud workloads, and software-defined infrastructure.

5. Can storage be expanded?
Yes, supports up to 8 SFF drives and NVMe configurations, depending on backplane.

6. How is the server managed remotely?
Through HPE iLO 6, enabling secure remote monitoring, provisioning, and lifecycle management.
