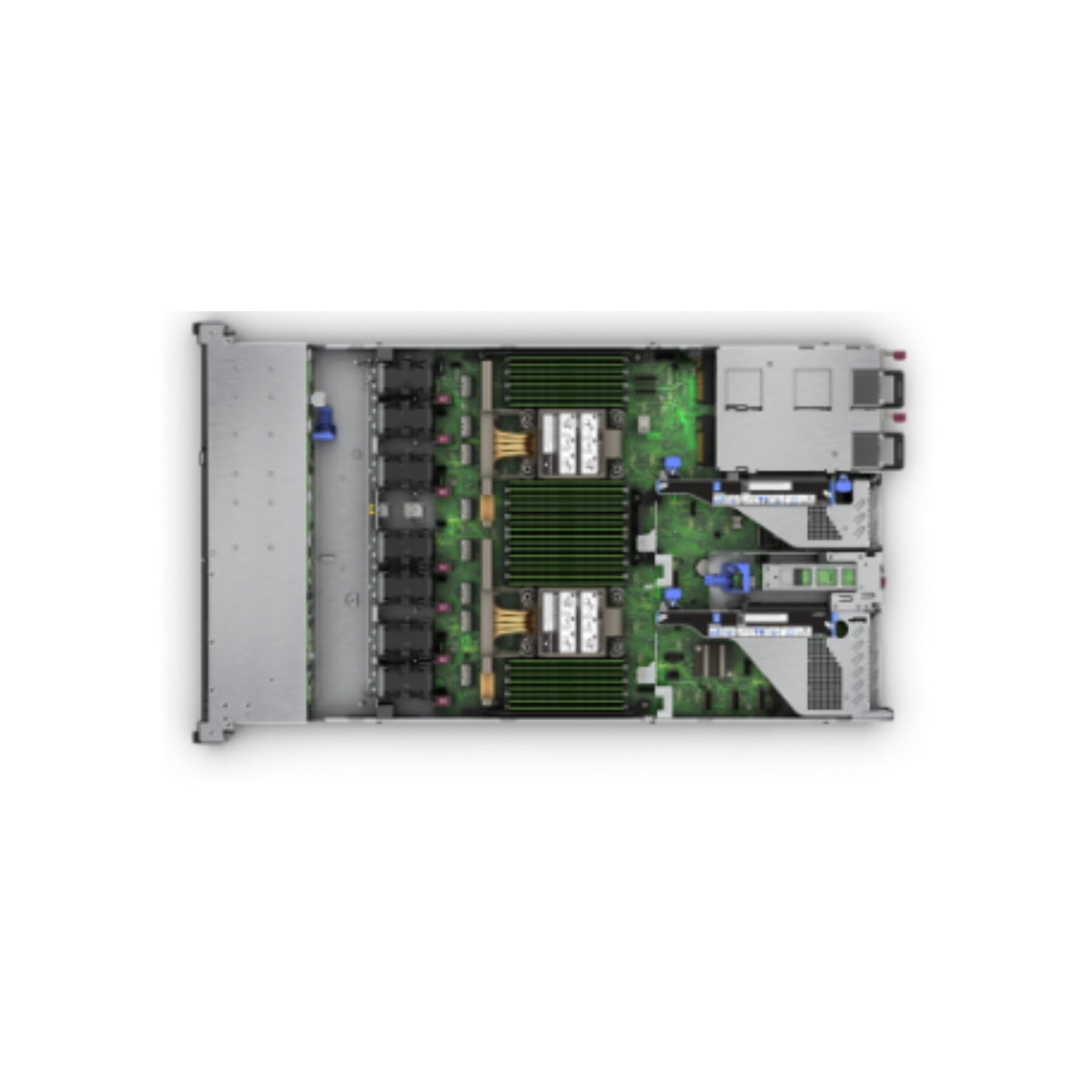

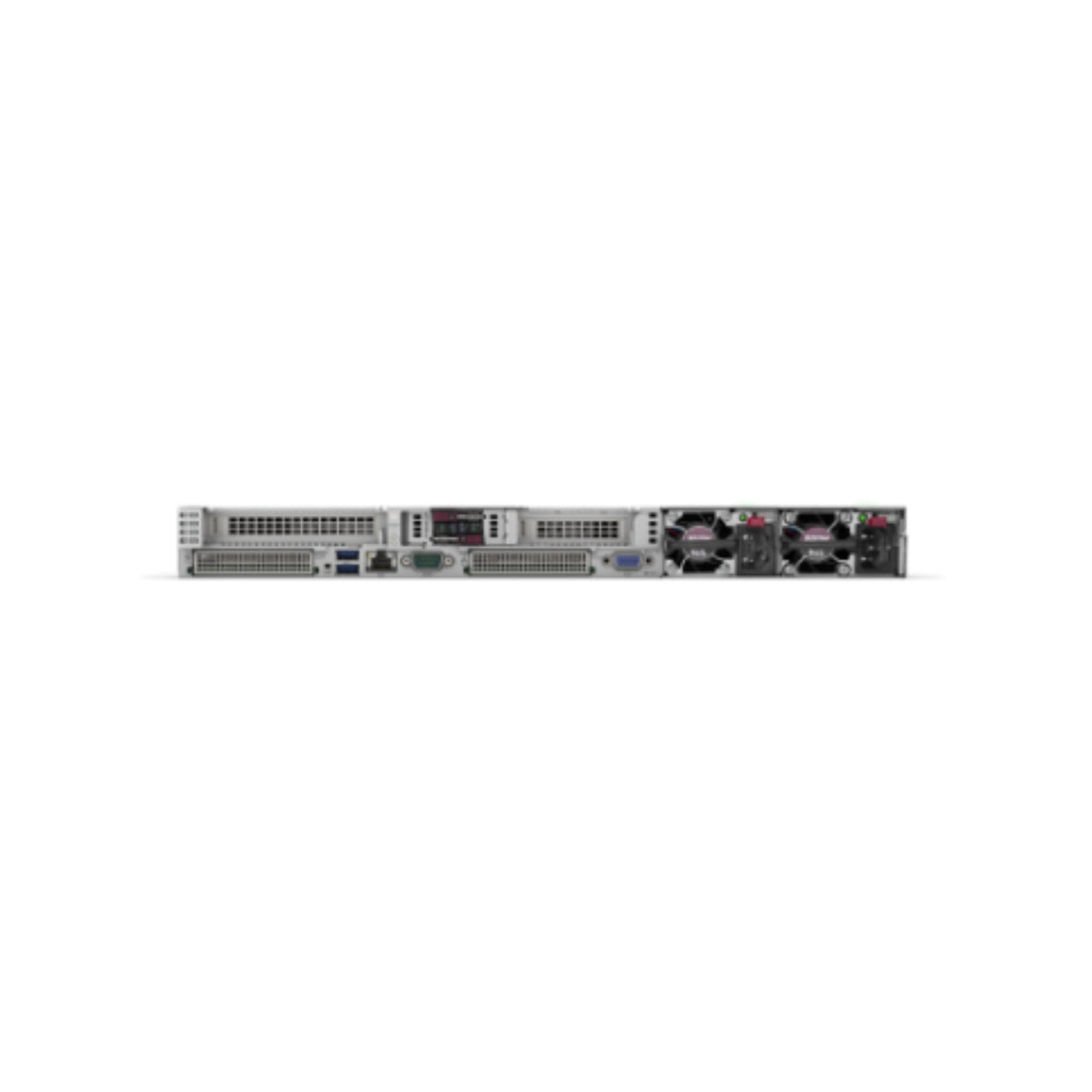

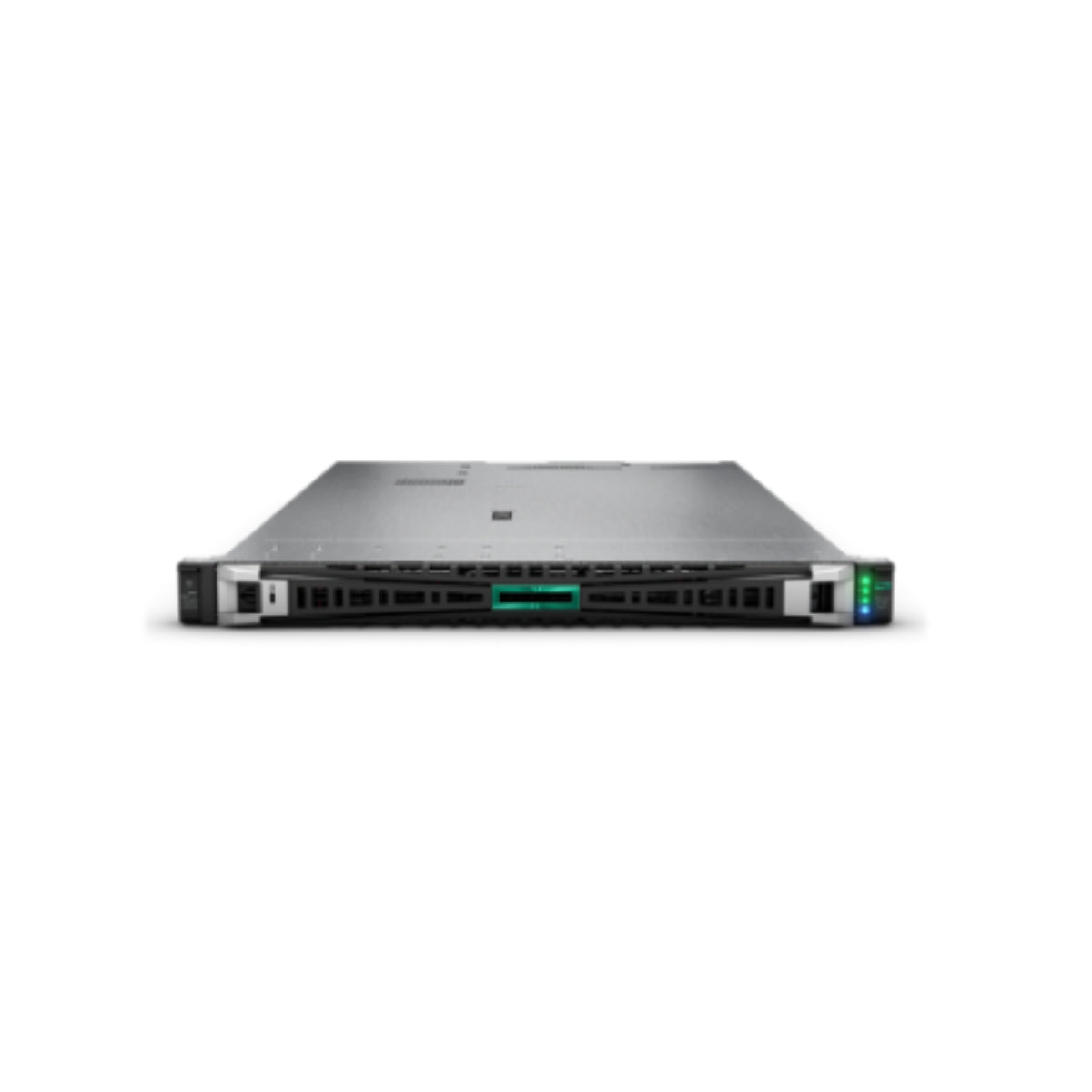

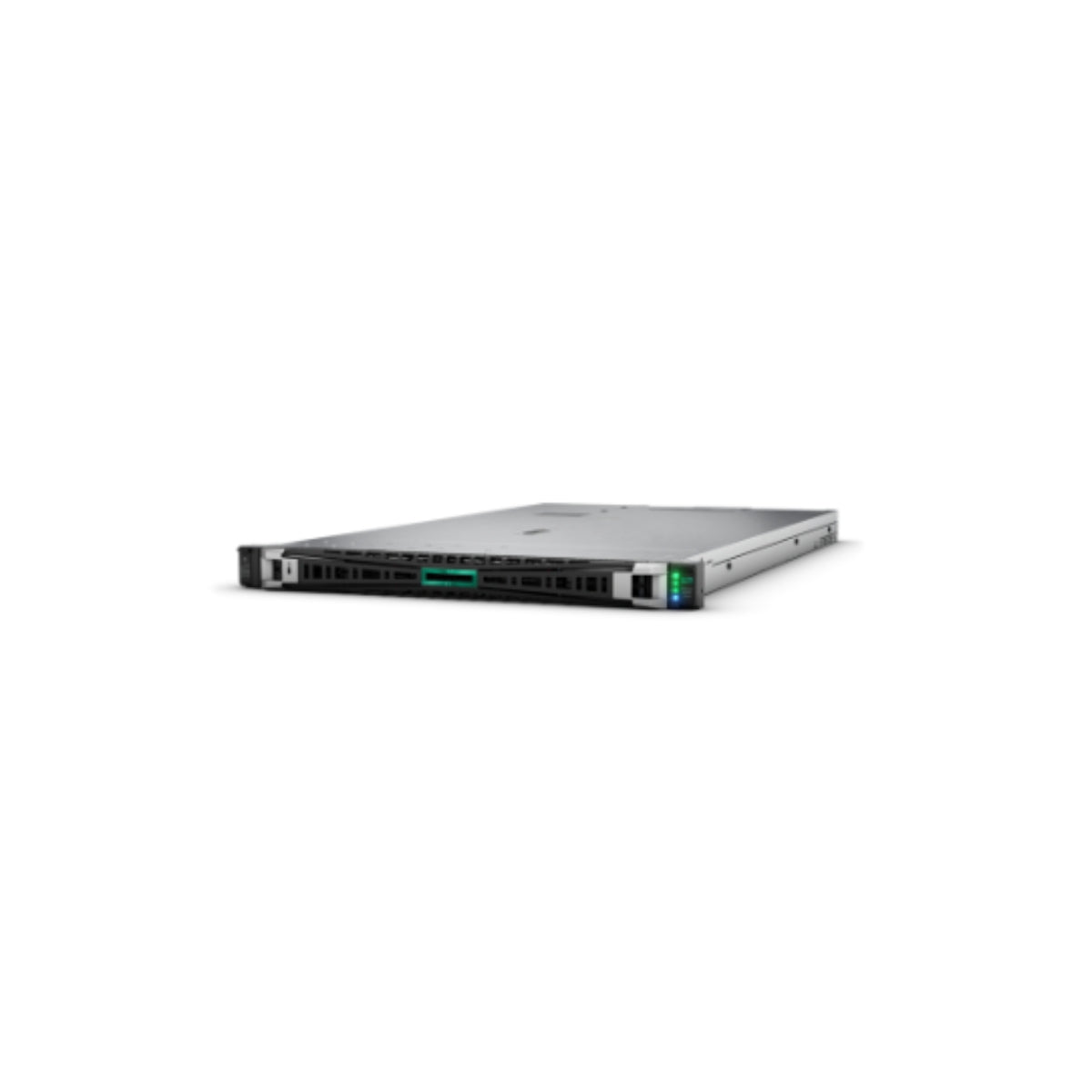

P83291-005 – HPE ProLiant DL360 Gen11 1U Rack Server

BRAND NEW WITH FULL HPE WARRANTY!!!

The P83291-005 – HPE ProLiant DL360 Gen11 1U Rack Server is a high-density enterprise rack server engineered for demanding data center, virtualization, and hybrid cloud workloads. Powered by a single Intel® Xeon® Gold 5416S 16-core processor at 2.00 GHz with up to 4.00 GHz Turbo Boost, this solution offers robust performance for mixed application environments, database processing, and compute-intensive operations.

Configured with 64 GB of DDR5 SmartMemory, dual 480 GB SATA SSDs, and redundant 2 × 1000W hot-plug power supplies, the DL360 Gen11 maximizes uptime and throughput while maintaining a compact 1U footprint. Integrated Broadcom networking and scalable PCIe Gen5 I/O further enhance performance and adaptability. With HPE iLO remote management and enhanced security features, this server delivers enterprise-grade control, reliability, and efficiency for modern infrastructures.

Key Features – HPE ProLiant DL360 Gen11 – P83291-005

• Processor:
 o Intel® Xeon® Gold 5416S, 16 cores, 2.00 GHz base, up to 4.00 GHz Turbo
• Memory:
 o 64 GB DDR5 Registered ECC Smart Memory
• Storage:
 o 2 × 480 GB SATA 6 Gb/s SSD (hot-swap 2.5″ bays)
• Controller (if applicable):
 o HPE MR408i-o Gen11 OCP RAID Controller (with 4 GB cache)
• Networking / Ports:
 o Integrated Gigabit and 10 Gb Ethernet networking
 o Standard USB, VGA, dedicated iLO port
• Power & Cooling:
 o Dual hot-plug 1000W Flex Slot Titanium Power Supplies
 o Standard server fan array
• Management:
 o HPE iLO (Integrated Lights-Out) with Intelligent Provisioning
• Security (if applicable):
 o UEFI Secure Boot, Silicon Root of Trust, TPM support
• Form Factor:
 o 1U rack server

Technical Specifications

• Processor Type: Intel® Xeon® Gold 5416S (16-core)
• Chipset / Platform: HPE ProLiant Gen11 architecture
• Memory Technology: DDR5 Registered ECC Smart Memory
• Storage Interface: SATA 6 Gb/s (hot-swap SFF)
• RAID Support: Configurable RAID with HPE MR408i-o (RAID 0/1/5/6/10/50/60)
• Expansion Slots: PCIe Gen5 slots (varies by riser configuration)
• Networking: Integrated 1 GbE and 10 GbE, optional FlexibleLOM & PCIe NICs
• I/O Ports: USB 3.x, VGA, Dedicated iLO Management Port
• Operating System Compatibility: Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi (HPE validated configurations recommended)

Physical Specifications

• Form Factor:
 o 1U rack-mount server

• Weight:
 o 14.56 kg
 o 32.10 lbs

• Dimensions (H × W × D):
 o 43.46 × 75.31 × 4.29 cm
 o 17.11 × 29.65 × 1.69 in

• Rack Compatibility:
 o Standard 19″ rack, occupies 1U height

Ideal for

• Virtualized server clusters and hypervisor hosts
• Enterprise-class database and application services
• High-performance compute in hybrid cloud environments
• Data center and colocation rack deployments
• Workloads requiring dense processing in 1U footprint

Warranty & Support

• Standard manufacturer warranty: 3 years parts, 3 years labor, 3 years onsite
• Support contract compatibility: HPE Care Pack, Proactive Care, Foundation Care, and other HPE service options

FAQs – HPE ProLiant DL360 Gen11 – P83291-005

Q1: Can I upgrade the processor?
A1: Yes. The DL360 Gen11 supports installable second Intel Xeon Gold/Platinum processors for future expansion.

Q2: How much memory can this server handle?
A2: The platform supports up to 8 TB of DDR5 memory when fully populated across available DIMM slots.

Q3: Does this SKU include redundant power?
A3: Yes. The configuration includes dual hot-plug 1000W power supplies for power redundancy and increased uptime.

Q4: Is remote management included?
A4: Yes. HPE Integrated Lights-Out (iLO) provides secure remote monitoring, configuration, and firmware access.

Q5: What storage expansion options exist?
A5: Additional hot-swap 2.5″ drive bays and interface choices support scalable storage via SATA, SAS, or NVMe.

Q6: What rack size and height does this server support?
A6: This server installs in a standard 19″ rack and occupies a 1U rack height.
