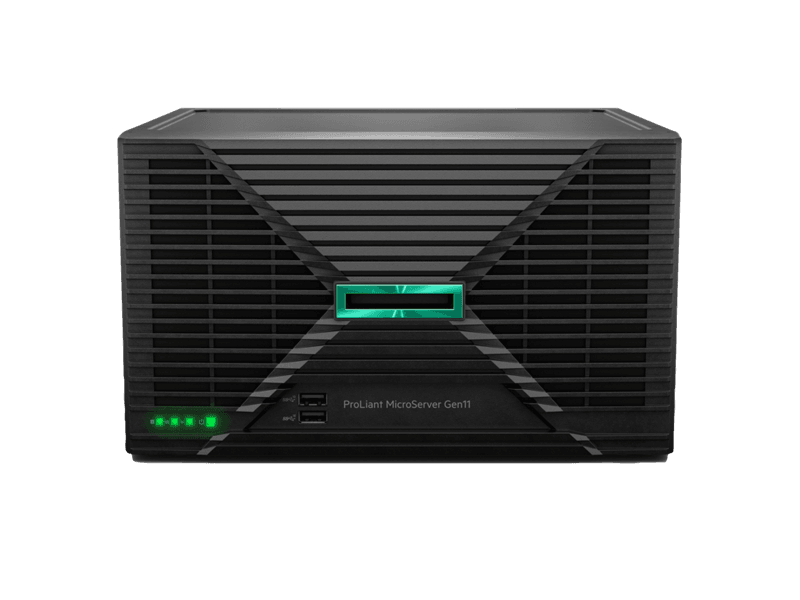

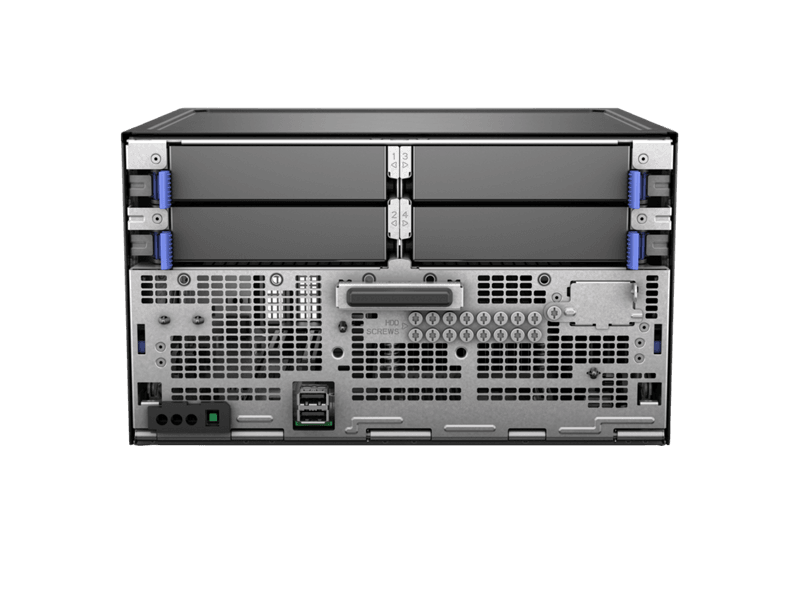

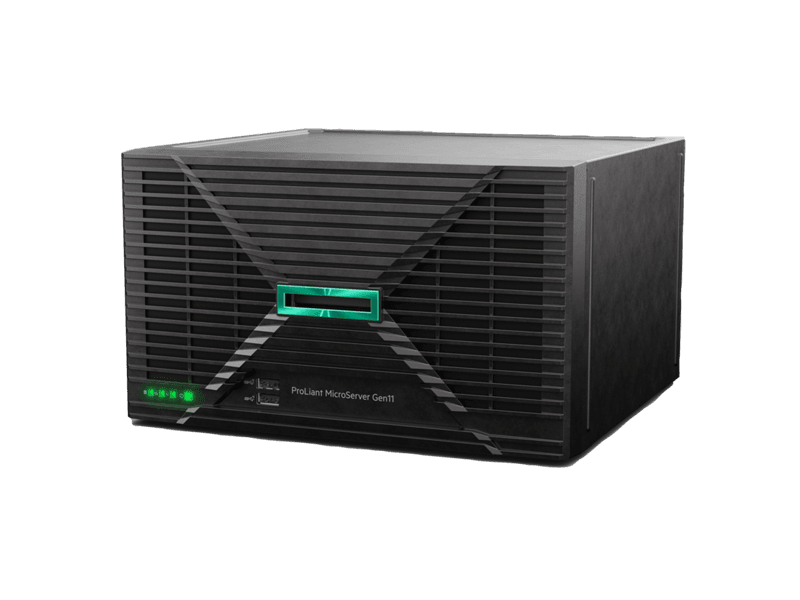

HPE ProLiant MicroServer Gen11 Ultra Micro Tower Server P86771-005

BRAND NEW WITH THE FULL HPE WARRANTY!!!

The HPE ProLiant MicroServer Gen11 Ultra Micro Tower Server P86771-005 is a compact enterprise server designed to bring full-featured server performance to small office, remote site, and edge deployments where space is limited but performance can’t be compromised. Built around an Intel® Xeon® 6325P quad-core 3.50 GHz processor and 32 GB of DDR5 memory, it delivers dependable compute power for file services, collaboration platforms, virtualization, and lightweight database tasks — all within an ultra micro tower form factor that’s easy to deploy and manage.

Equipped with a 4 TB SATA hard drive and four large-form-factor drive bays, this configuration provides substantial local storage capacity for critical data, backups, and shared resources. Integrated HPE iLO 6 remote management simplifies administration, while robust embedded security — including TPM 2.0 and Silicon Root of Trust — protects against unauthorized firmware and platform tampering. The MicroServer Gen11’s combination of performance, expandability, and enterprise-grade manageability makes it an excellent choice for small and growing IT environments.

Key Features – HPE ProLiant MicroServer Gen11 Ultra Micro Tower Server

• Processor: Intel® Xeon® 6325P 3.50 GHz quad-core
• Memory: 32 GB DDR5 SDRAM (ECC)
• Storage: 4 TB SATA 6 Gb/s HDD (4 × 3.5" bays)
• Controller (if applicable): Intel VROC Serial ATA/600
• Networking / Ports: 4 × 1 GbE RJ-45, VGA, DisplayPort, 6 × USB
• Power & Cooling: 1 × 180 W external PSU; system fan
• Management: HPE Integrated Lights-Out (iLO 6)
• Security: TPM 2.0, UEFI Secure Boot, Silicon Root of Trust
• Form Factor: Ultra Micro Tower

Technical Specifications

• Processor Type: Intel® Xeon® 6325P (quad-core)
• Chipset / Platform: Intel® C262
• Memory Technology: DDR5 SDRAM with ECC
• Storage Interface: SATA 6 Gb/s
• RAID Support: Intel VROC SATA (software RAID capabilities)
• Expansion Slots: 1 × PCIe 5.0 x16; 1 × PCIe 4.0 x8 (low profile)
• Networking: 4 × 1 GbE Ethernet
• I/O Ports: VGA, DisplayPort, 6 × USB, iLO LAN
• Operating System Compatibility: Windows Server, Linux distributions, VMware (industry supported)

Physical Specifications

• Form Factor: Ultra Micro Tower

• Weight:
   o 8.65 kg
   o 19.07 lbs

• Dimensions (H×W×D):
   o 153.92 mm × 261.11 mm × 249.43 mm
   o 6.06 in × 10.28 in × 9.82 in

• Rack Compatibility: Stand-alone chassis; rack mount not supported without third-party accessories.

Ideal For

• Small office and branch server deployments requiring compact, full-featured compute.
• File/print, collaboration, and backup servers with significant local storage needs.
• Entry-level virtualization hosts and container nodes.
• Remote iLO-managed infrastructure where physical access is limited.
• Edge environments needing robust performance in a minimal footprint.

Warranty & Support

• Standard manufacturer warranty: 1-year parts, labor, and on-site support with next business day response.
• Support contract compatibility: HPE Foundation Care, HPE Proactive Care, HPE Datacenter Care, optional HPE iLO Advanced and HPE OneView subscription support.

FAQs – HPE ProLiant MicroServer Gen11 Ultra Micro Tower Server

Q1: Can the memory be expanded beyond 32 GB?
A1: Yes — the MicroServer Gen11 supports up to 128 GB of DDR5 ECC memory across four DIMM slots.

Q2: Does this configuration support redundant power?
A2: No — the P86771-005 includes a single 180 W external PSU; redundant power options are not supported.

Q3: What management features does it have?
A3: Integrated HPE iLO 6 provides remote out-of-band hardware control, monitoring, and firmware updates.

Q4: How many drives and what types can be installed?
A4: The server supports four internal 3.5″ SATA drives for high capacity storage configurations.

Q5: Which operating systems are supported?
A5: Industry-standard server OSes like Microsoft Windows Server, major Linux distributions, and VMware ESXi are supported.

Q6: Is this suitable for virtualization?
A6: Yes — with a quad-core Xeon and ECC memory support, it can host lightweight virtual machines in SMB and edge scenarios.
