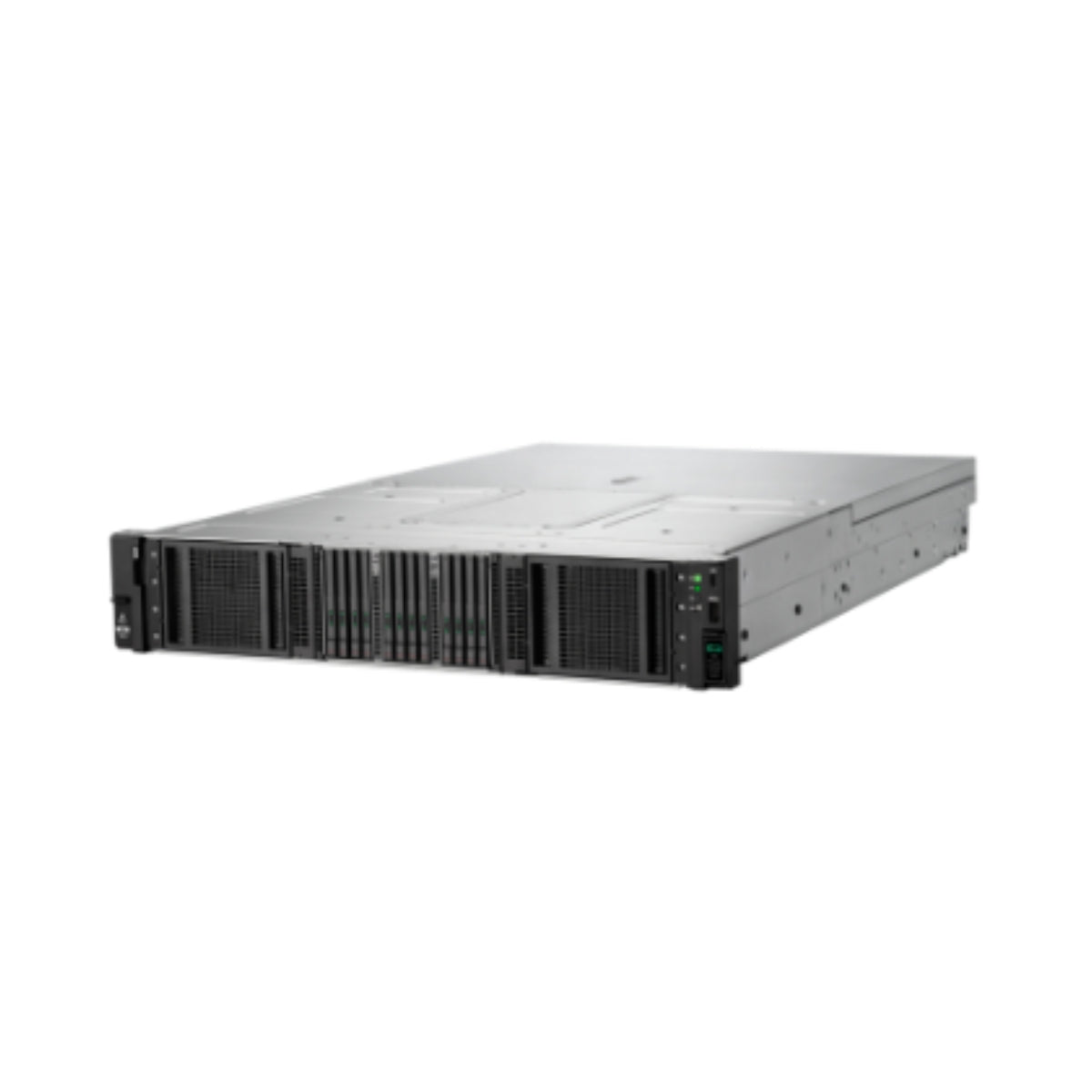

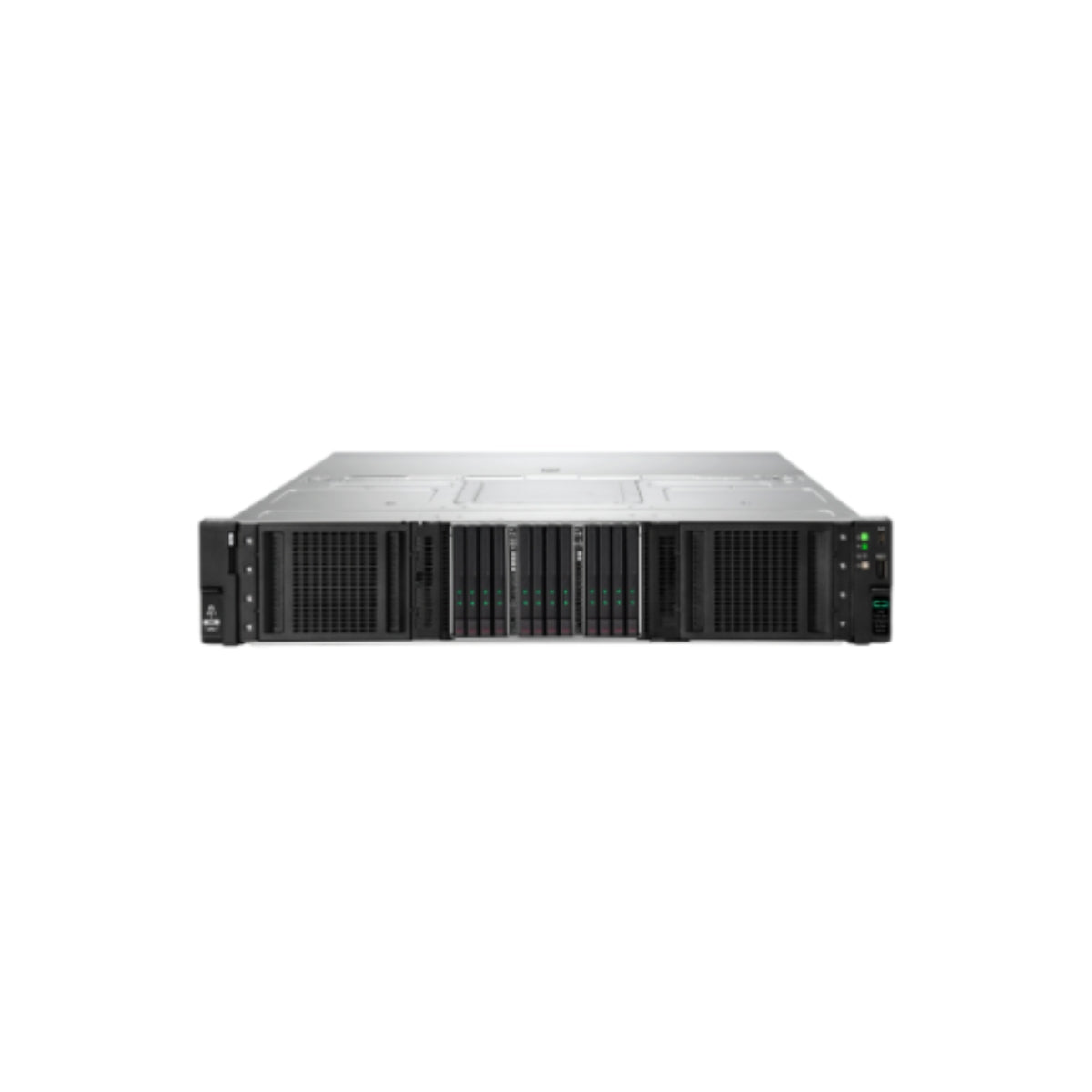

P87742-005 – HPE ProLiant Compute DL340 Gen12 2U Rack Server

BRAND NEW WITH FULL HPE WARRANTY!!!

The P87742-005 – HPE ProLiant Compute DL340 Gen12 2U Rack Server is an enterprise-grade rack server engineered to deliver high-density performance and flexibility for demanding data center and virtualization workloads. Built around a single Intel® Xeon® 6515P 16-core processor running at 2.3 GHz with up to 3.8 GHz Turbo Boost and equipped with 64 GB of DDR5 registered ECC Smart Memory, this server balances robust compute capability with efficient memory throughput for business applications, analytics, and mixed workloads.

Designed with support for hot-swappable 8 × 2.5″ drive bays and flexible storage interfaces including SATA, SAS, and NVMe, the DL340 Gen12 platform enables tailored storage configurations for performance or capacity-optimized deployments. Dual 1,000 W hot-plug power supplies offer redundancy for high availability, and advanced management via HPE Integrated Lights-Out (iLO7) delivers secure remote control and monitoring. Its 2U rack form factor fits standard data center racks while providing serviceability and expansion for future growth.

Key Features – HPE ProLiant Compute DL340 Gen12 – P87742-005

• Processor:
 o Intel® Xeon® 6515P, 16 cores, 2.3 GHz base, up to 3.8 GHz Turbo Boost
• Memory:
 o 64 GB DDR5 Registered ECC Smart Memory
• Storage:
 o Support for 8 × hot-swap 2.5″ SAS/SATA/NVMe bays
• Controller (if applicable):
 o HPE MR416i-o Gen11 OCP RAID controller support
• Networking / Ports:
 o Integrated management and Ethernet ports; USB 3.2; VGA; iLO7 service port
• Power & Cooling:
 o Dual hot-plug 1000 W Flex Slot Titanium Power Supplies (1+1)
• Management:
 o HPE Integrated Lights-Out (iLO7) remote management
• Security (if applicable):
 o TPM 2.0, UEFI Secure Boot & Silicon Root of Trust
• Form Factor:
 o 2U rack server

Technical Specifications

• Processor Type: Intel® Xeon® 6515P (16-core)
• Chipset / Platform: HPE ProLiant Gen12 architecture
• Memory Technology: DDR5 Registered ECC Smart Memory
• Storage Interface: SAS/SATA/NVMe via configurable backplane
• RAID Support: RAID 0, 1, 5, 6, 10, 50, 60 with appropriate controller
• Expansion Slots: Up to 6 × PCIe Gen5 and 2 × OCP 3.0 slots
• Networking: Integrated 10 Gb Ethernet with optional FlexibleLOM upgrades
• I/O Ports: USB 3.2 Gen1, VGA, dedicated iLO7 service port
• Operating System Compatibility: Supports enterprise OSs including Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, and VMware ESXi (HPE validated configurations recommended)

Physical Specifications

• Form Factor:
 o 2U rack-mount server

• Weight:
 o 17.6 kg
 o 38.80 lbs

• Dimensions (H × W × D):
 o 87.5 × 448 × 639.5 mm
 o 3.45″ × 17.64″ × 25.18″

• Rack Compatibility:
 o Standard 19″ rack, occupies 2U height

Ideal For

• Virtualized server clusters and hypervisor hosts
• Enterprise database and ERP/CRM systems
• Hybrid cloud computing infrastructures
• Scalable rack-mounted compute deployments
• Business-critical applications requiring high availability

Warranty & Support

• Standard manufacturer warranty: 3 years parts, 3 years labor, 3 years onsite support (3/3/3)
• Support contract compatibility: HPE Care Pack, Proactive Care, Foundation Care and extended service offerings available

FAQs – HPE ProLiant Compute DL340 Gen12 – P87742-005

Q1: Can I upgrade the processor?
A1: Yes. The DL340 Gen12 platform supports upgrade to other compatible Intel® Xeon® 6500/6700 Series processors subject to power and thermal limits.

Q2: How much memory can this server support?
A2: The system supports up to 4 TB of DDR5 SmartMemory when fully populated across available DIMM slots.

Q3: Does this configuration include redundant power?
A3: Yes. Dual hot-plug 1000 W power supplies provide redundancy and help ensure uptime in critical operations.

Q4: Is remote management included?
A4: Yes. HPE Integrated Lights-Out (iLO7) offers secure remote monitoring, configuration, and firmware management.

Q5: What storage options are supported?
A5: The chassis supports up to eight hot-swap 2.5″ drive bays with SAS, SATA, and NVMe interfaces for flexible storage configurations.

Q6: What rack height does this server occupy?
A6: This server fits in standard 19″ racks and occupies a 2U rack height.
