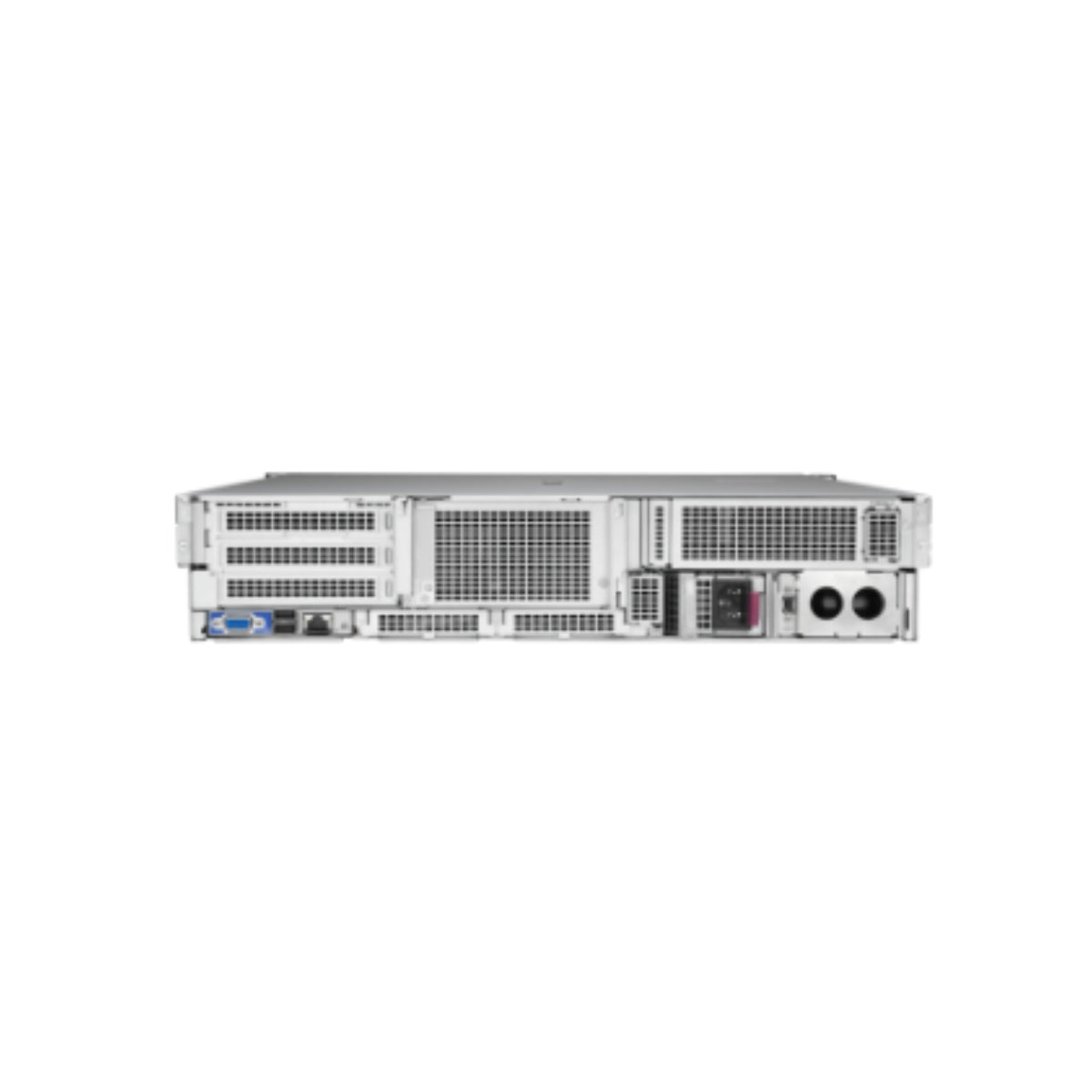

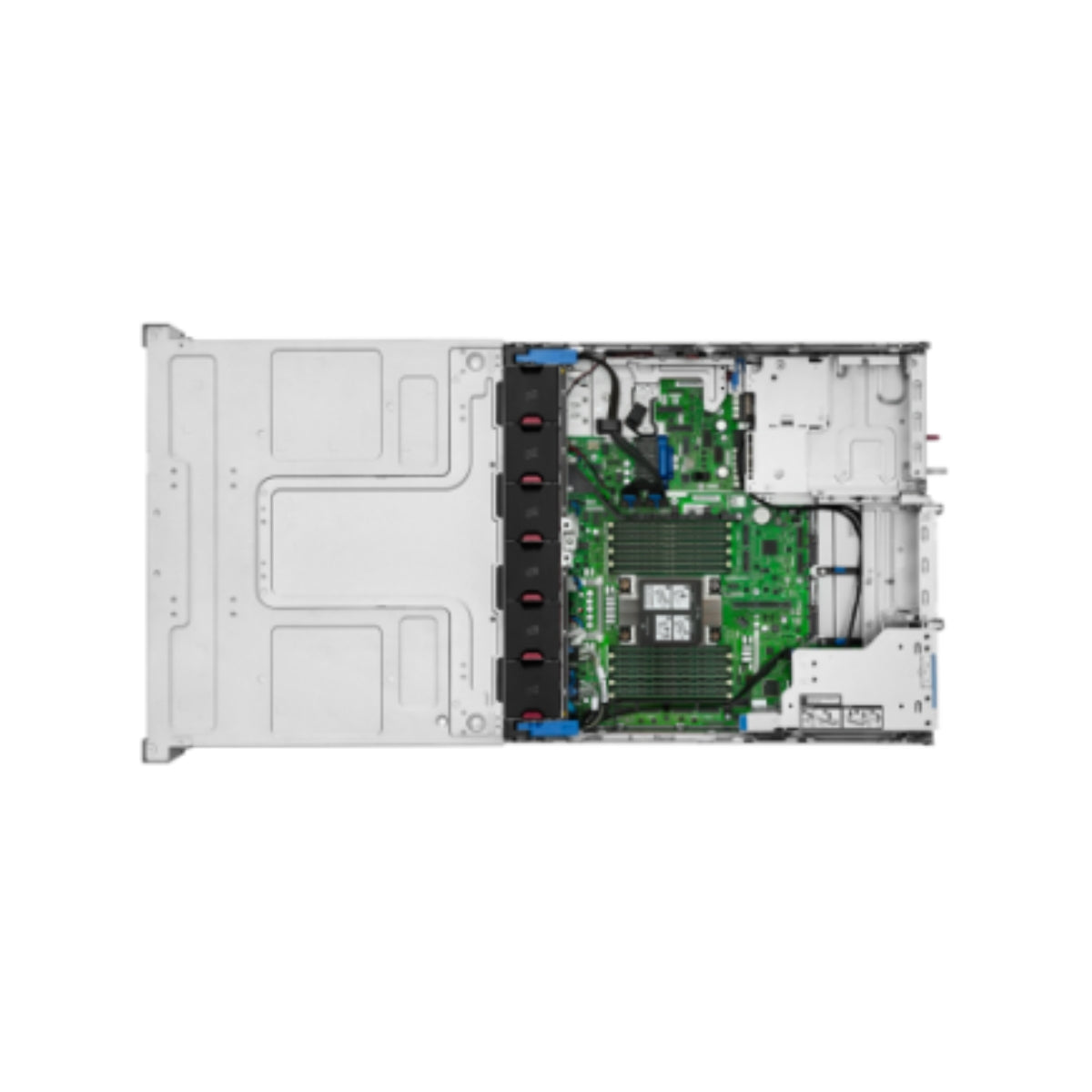

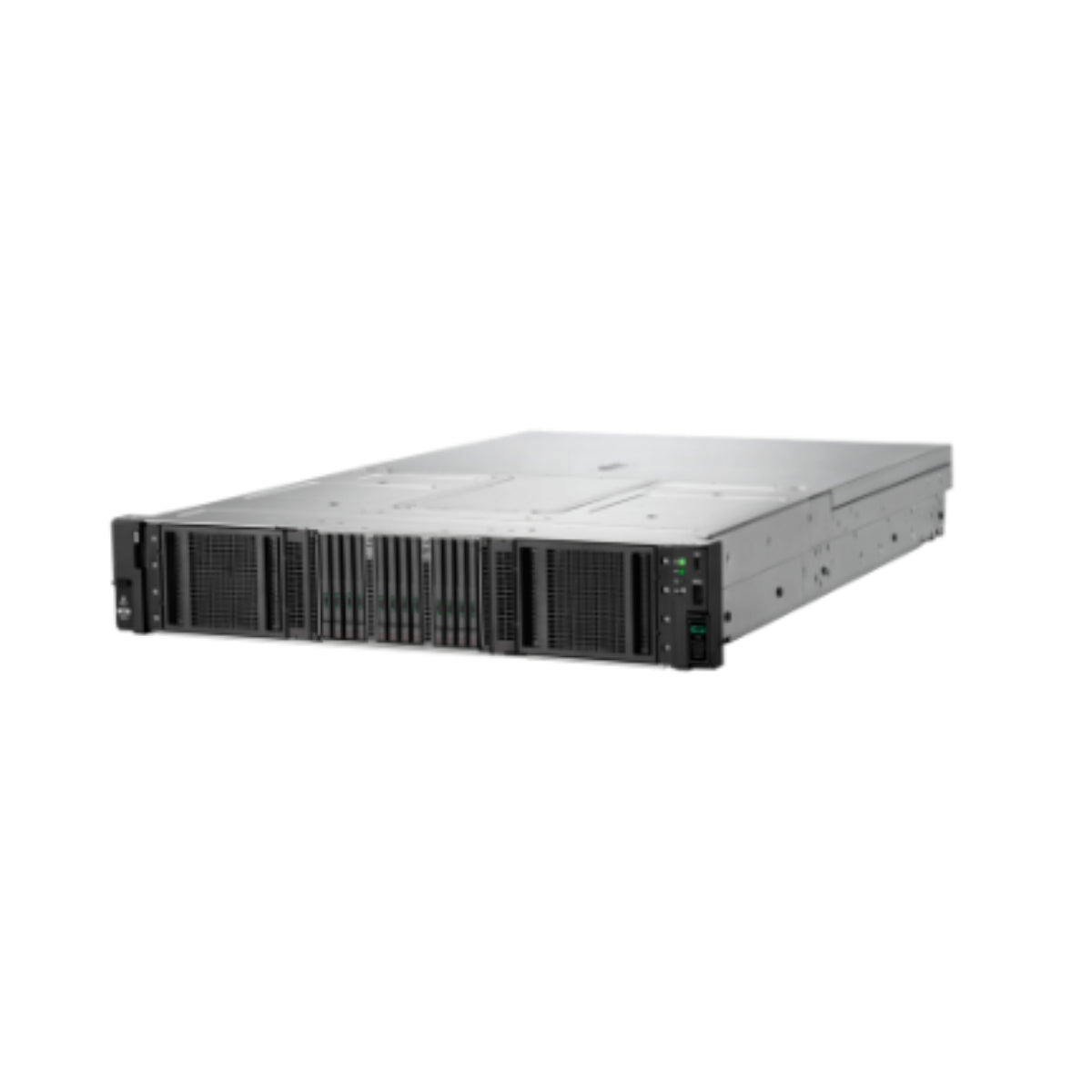

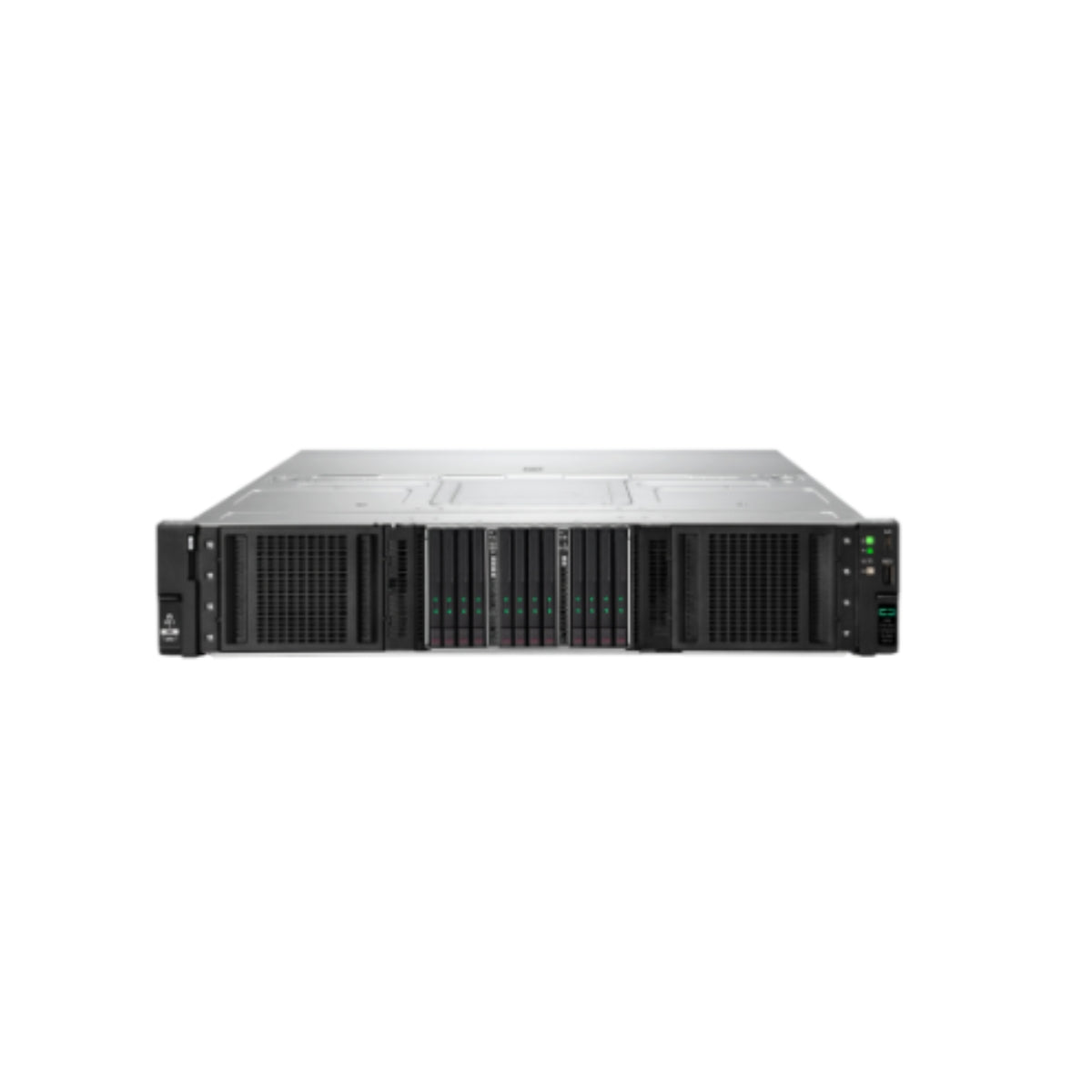

P87780-005 – HPE ProLiant Compute DL340 Gen12 2U Rack Server

BRAND NEW WITH FULL HPE WARRANTY!!!

The P87780-005 – HPE ProLiant Compute DL340 Gen12 2U Rack Server is a versatile, enterprise-grade single-socket rack server engineered for data centers, virtualization clusters, and hybrid cloud environments. Built around an Intel® Xeon® 6505P 12-core processor at 2.20 GHz with up to 4.10 GHz Turbo, this system delivers balanced multi-core performance with efficient power and thermal characteristics ideal for mixed workloads. In conjunction with 64 GB of DDR5 Registered ECC Smart Memory, it provides responsive performance for database processing, business applications, and general compute tasks.

This DL340 Gen12 configuration features two 480 GB SATA 6 Gb/s SSDs in hot-swap 2.5″ bays, providing agile storage for high-throughput applications and fast system responsiveness. The server’s dual 1000 W hot-plug Flex Slot power supplies ensure robust uptime and power redundancy, while HPE iLO7 remote management and advanced platform security (including silicon-to-cloud protections) give IT teams enterprise-level control, visibility, and peace of mind. The 2U rack form factor combines density with serviceability to support real-world data center deployment needs.

Key Features – HPE ProLiant Compute DL340 Gen12 – P87780-005

• Processor:
 o Intel® Xeon® 6505P, 12 cores, 2.20 GHz base, up to 4.10 GHz Turbo Boost
• Memory:
 o 64 GB DDR5 Registered ECC Smart Memory
• Storage:
 o 2 × 480 GB SATA 6 Gb/s hot-swap SSDs
• Controller (if applicable):
 o HPE MR408i-o Gen11 OCP Storage Controller with 4 GB cache
• Networking / Ports:
 o Broadcom BCM5719 1 GbE 4-port BASE-T OCP adapter
 o USB 3.2 Gen1, VGA, dedicated iLO service port
• Power & Cooling:
 o Dual 1000 W Flex Slot Titanium hot-plug power supplies
 o Standard hot-swap server fans
• Management:
 o HPE Integrated Lights-Out (iLO7) with Intelligent Provisioning
• Security (if applicable):
 o UEFI Secure Boot, Silicon Root of Trust, TPM support
• Form Factor:
 o 2U rack server

Technical Specifications

• Processor Type: Intel® Xeon® 6505P (12-core, 48 MB L3 cache)
• Chipset / Platform: HPE ProLiant Gen12 architecture
• Memory Technology: DDR5 Registered ECC Smart Memory
• Storage Interface: SATA 6 Gb/s (hot-swap 2.5″)
• RAID Support: RAID 0, 1, 5, 6, 10, 50, 60 via HPE MR408i-o controller
• Expansion Slots: Up to 6 × PCIe Gen5 and 2 × OCP 3.0 slots
• Networking: Integrated 4-port 1 GbE (OCP) with optional NIC upgrades
• I/O Ports: USB 3.2 Gen1, VGA, iLO service port
• Operating System Compatibility: Supports Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi (HPE validated configurations recommended)

Physical Specifications

• Form Factor:
 o 2U rack-mount server

• Weight:
 o 17.6 kg (minimum configuration)
 o 38.80 lbs (minimum configuration)

• Dimensions (H × W × D):
 o 87.5 × 448 × 639.5 mm
 o 3.45″ × 17.64″ × 25.18″

• Rack Compatibility:
 o Standard 19″ rack, occupies 2U height

Ideal For

• Virtualized server environments and hypervisor hosts
• Enterprise database and application services
• Scalable hybrid cloud compute and analytics workloads
• Data center rack deployments requiring serviceability and density
• Storage-intensive applications with hot-swap drive support

Warranty & Support

• Standard manufacturer warranty: 3 years parts, 3 years labor, 3 years onsite support
• Support contract compatibility: HPE Care Pack, Proactive Care, Foundation Care and extended service options available

FAQs – HPE ProLiant Compute DL340 Gen12 – P87780-005

Q1: Can the processor be upgraded?
A1: Yes. The DL340 Gen12 platform supports upgrade to other compatible Intel Xeon 6500/6700 Series processors within power and thermal limits.

Q2: How much memory can this server support?
A2: When fully populated, the system supports up to 4 TB of DDR5 SmartMemory across available DIMM slots for memory-intensive workloads.

Q3: Is redundant power supported?
A3: Yes. This configuration includes dual hot-plug 1000 W power supplies for redundancy and improved uptime.

Q4: Does this SKU include OS or hypervisor?
A4: No. The P87780-005 configuration ships without an operating system to allow custom software deployment.

Q5: What storage expansion options exist?
A5: The chassis supports up to 8 hot-swap 2.5″ bays with flexible interface options including SAS, SATA, or NVMe depending on chosen backplane.

Q6: What rack size and height does this server require?
A6: This server installs in a standard 19″ rack and occupies 2U of rack height.
