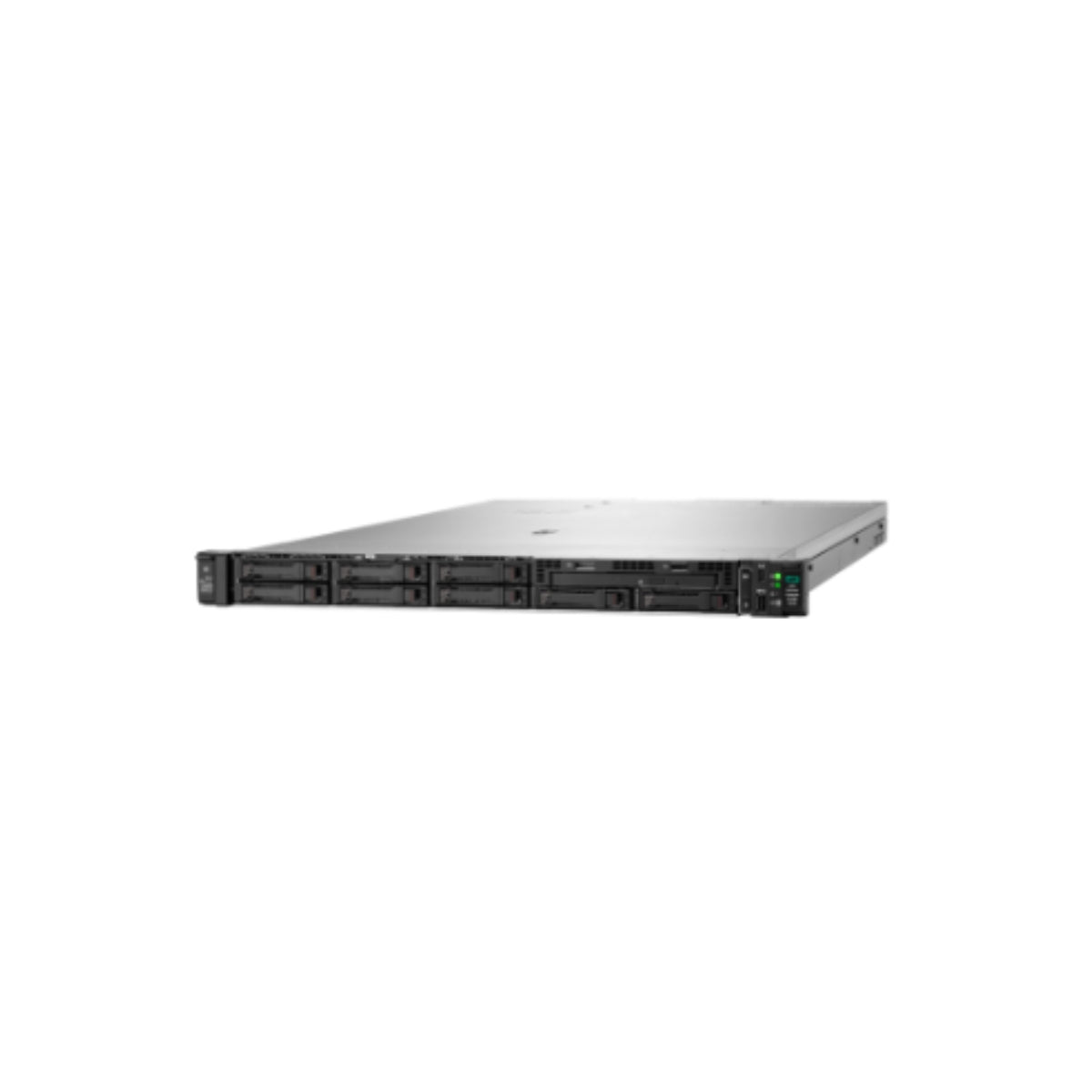

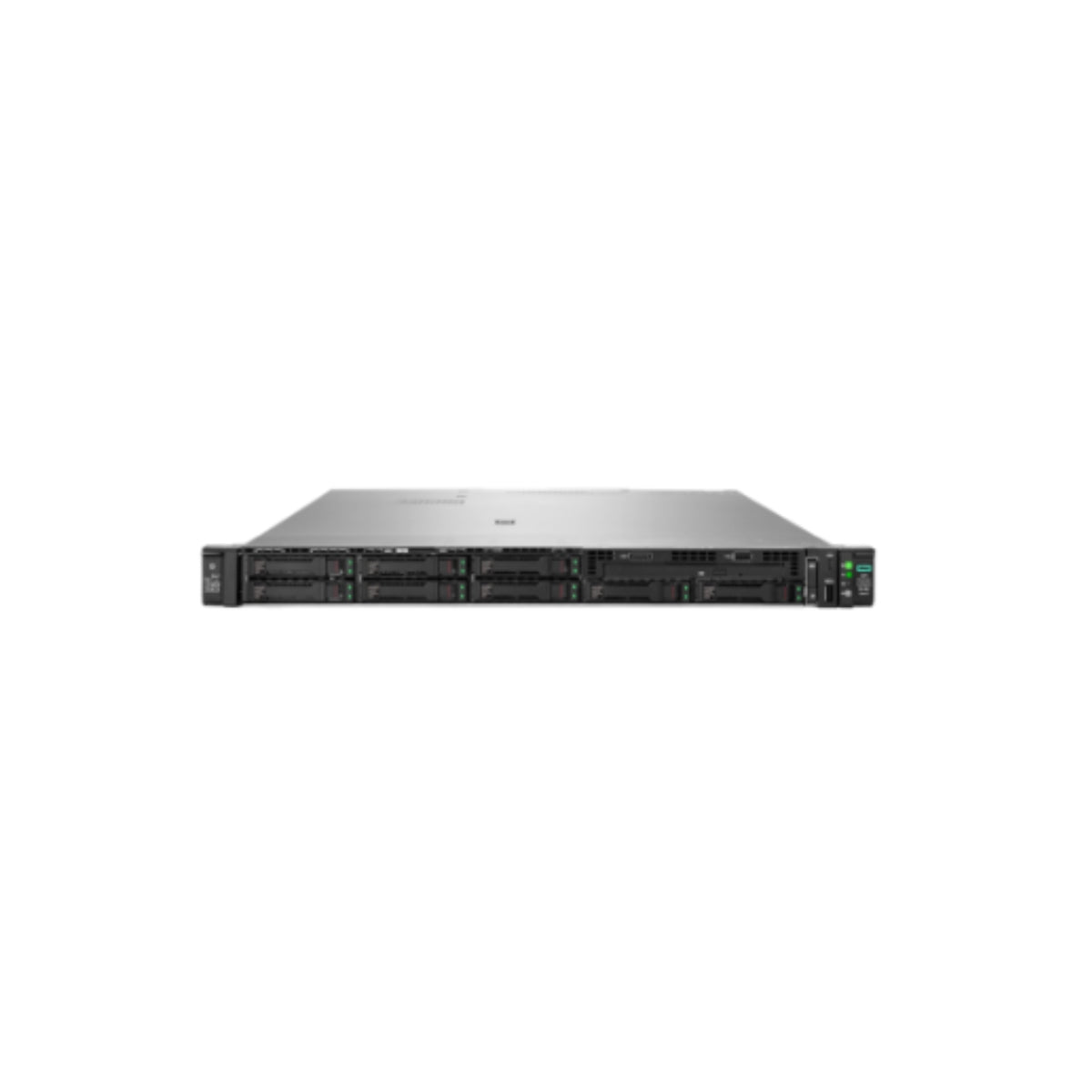

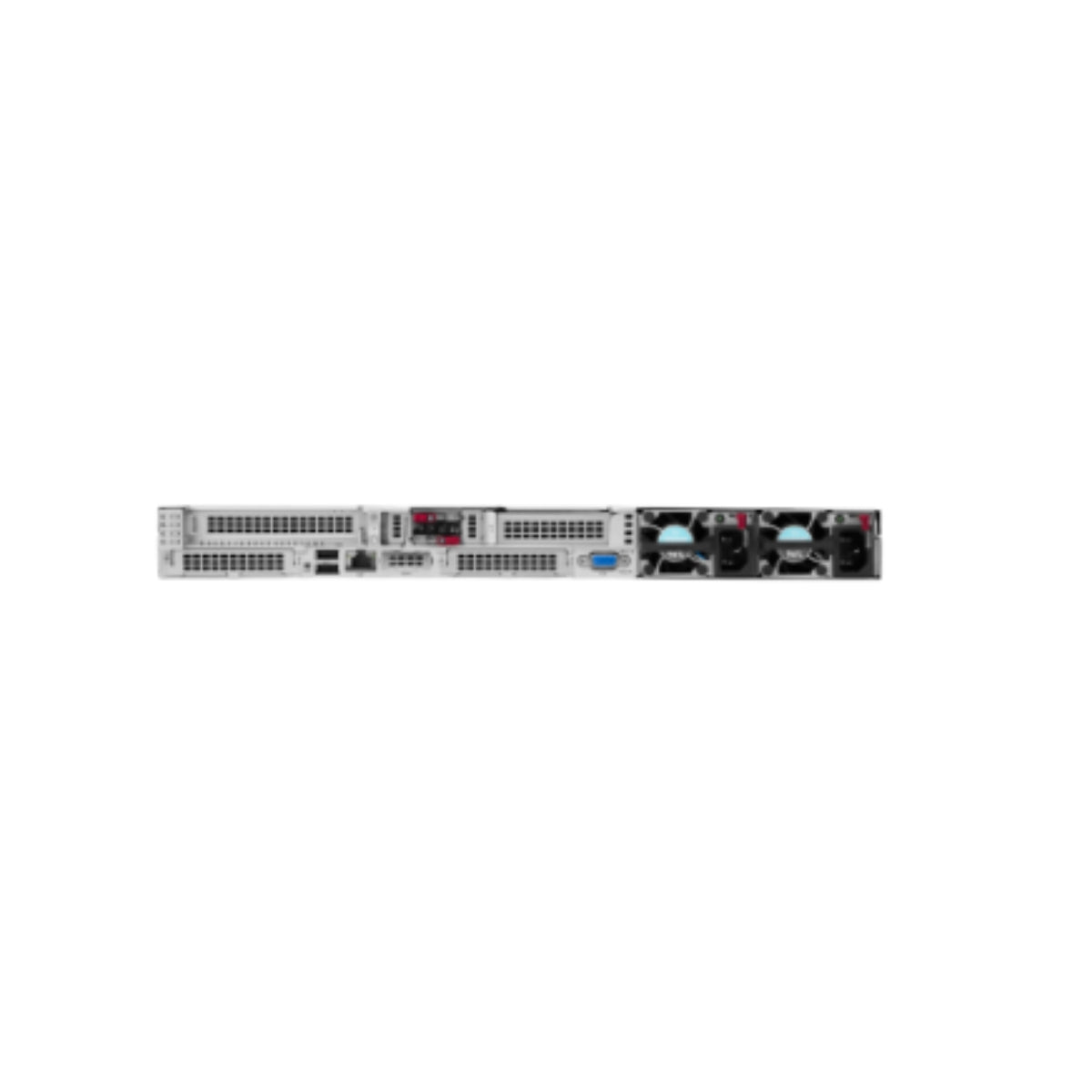

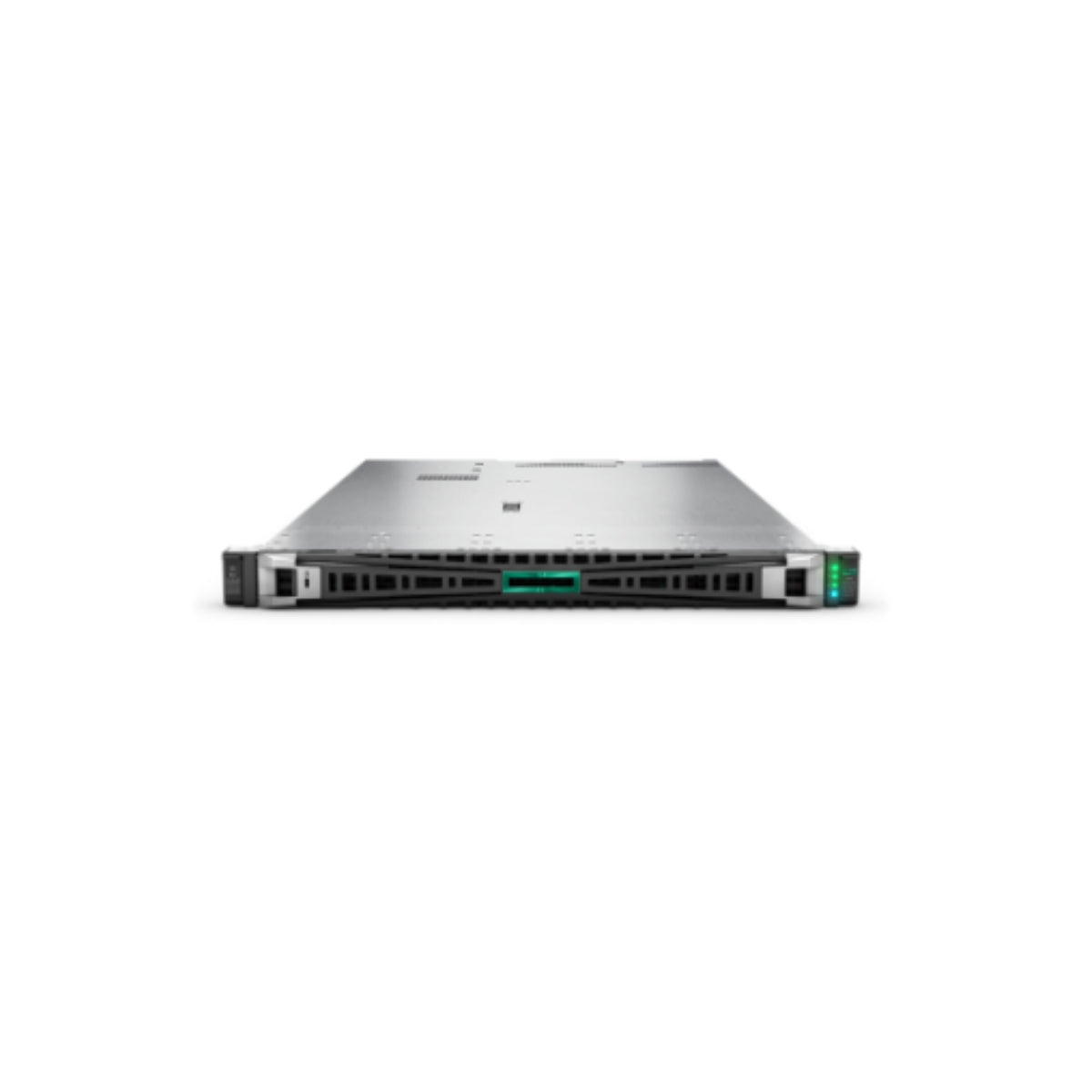

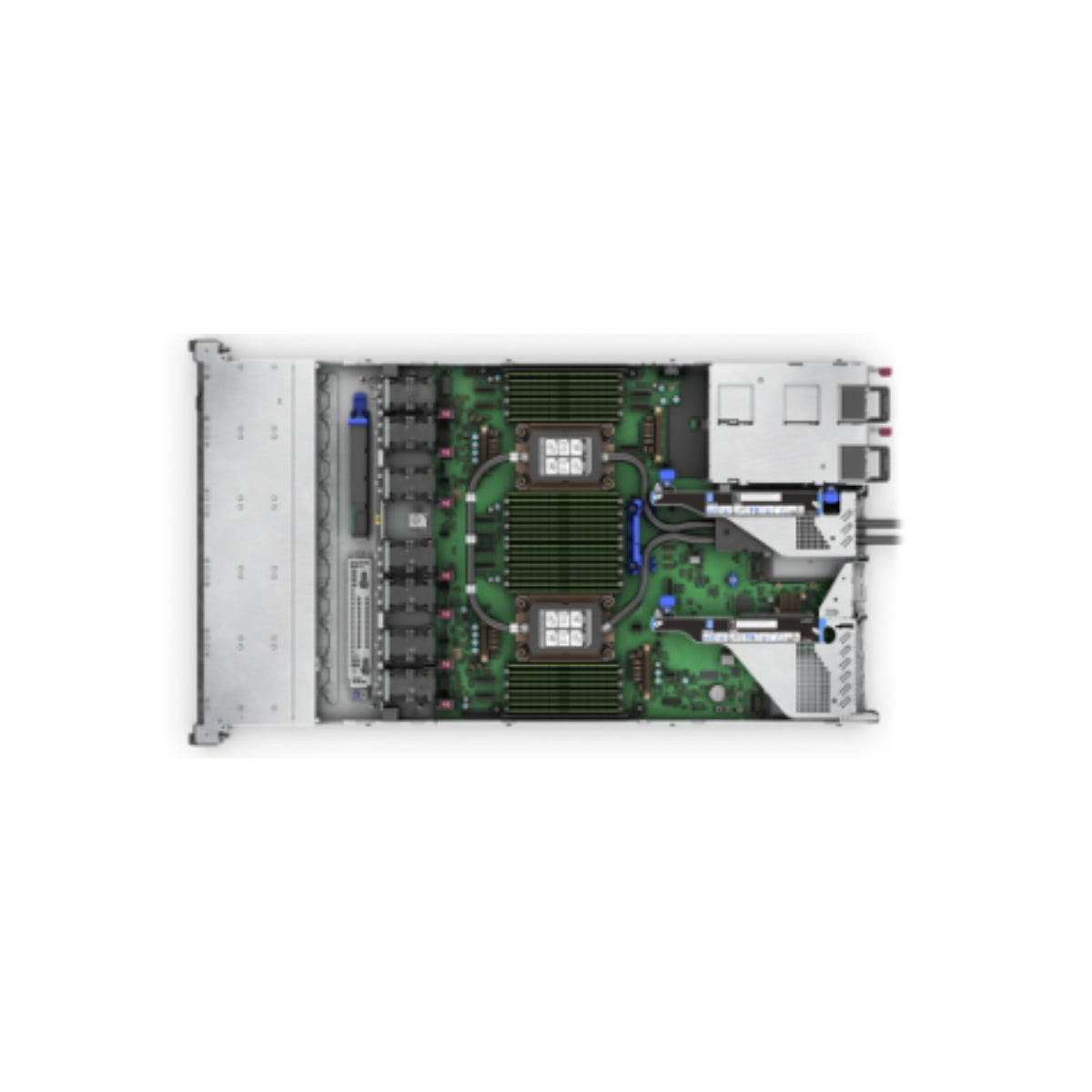

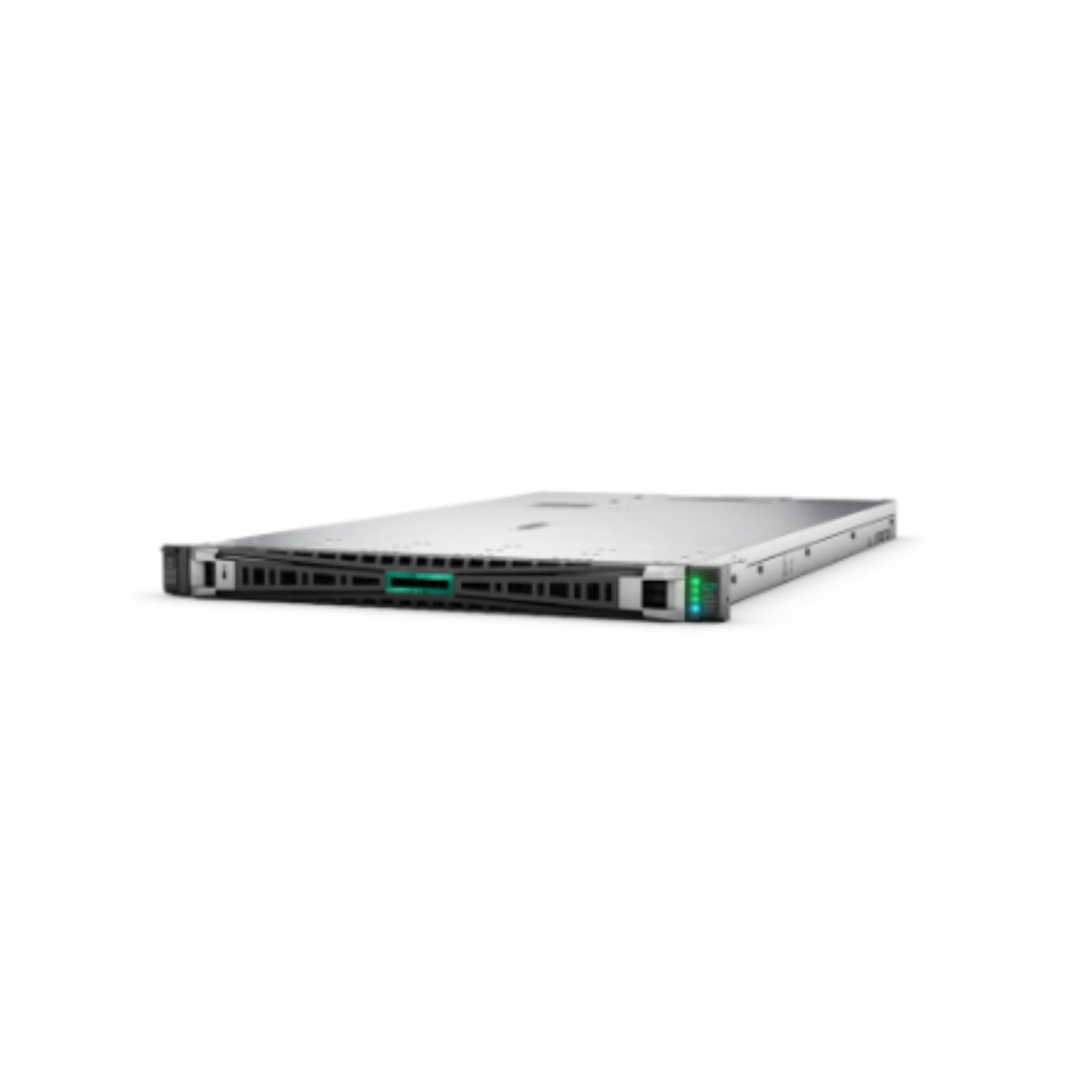

P89196-005 – HPE ProLiant Compute DL360 Gen12 1U Rack Server

BRAND NEW WITH FULL HPE WARRANTY!!!

The P89196-005 – HPE ProLiant Compute DL360 Gen12 1U Rack Server is a compact yet high-performance enterprise rack server engineered for virtualization, business-critical applications, and dense data center deployments. Powered by a single Intel® Xeon® 6505P 12-core processor operating at 2.20 GHz with up to 4.10 GHz Turbo Boost, this server balances multi-threaded compute performance with energy efficiency.

Configured with 64 GB of DDR5 Registered ECC Smart Memory and 2 × 480 GB SATA 6 Gb/s SSDs in hot-swap 2.5″ bays, this DL360 Gen12 model delivers fast storage performance and serviceability for demanding workloads. Dual 800 W hot-plug power supplies ensure uptime and resilience in critical environments, while HPE iLO7 remote management and enhanced security features provide the enterprise control and visibility required by IT teams.

Key Features – HPE ProLiant Compute DL360 Gen12 – P89196-005

• Processor:
 o Intel® Xeon® 6505P, 12 cores, 2.20 GHz base, up to 4.10 GHz Turbo
• Memory:
 o 64 GB DDR5 Registered ECC Smart Memory (2 × 32 GB)
• Storage:
 o 2 × 480 GB SATA 6 Gb/s hot-swap SSDs
• Controller (if applicable):
 o HPE MR408i-o Gen11 OCP Storage Controller with 4 GB cache
• Networking / Ports:
 o Integrated Broadcom 1 GbE 4-port BASE-T OCP adapter
 o USB 3.2 Gen1, VGA, dedicated iLO management port
• Power & Cooling:
 o Dual hot-plug 800 W Flex Slot Platinum Power Supplies
 o Standard server fan array
• Management:
 o HPE Integrated Lights-Out (iLO7) with Intelligent Provisioning
• Security (if applicable):
 o UEFI Secure Boot, Secure Start, Intel SGX support, Immutable Silicon Root of Trust
• Form Factor:
 o 1U rack-mount server

Technical Specifications

• Processor Type: Intel® Xeon® 6505P (12-core)
• Chipset / Platform: HPE ProLiant Gen12 architecture
• Memory Technology: DDR5 Registered ECC Smart Memory
• Storage Interface: SATA 6 Gb/s (hot-swap 2.5″)
• RAID Support: RAID 0/1/5/6/10/50/60 via HPE MR408i-o controller
• Expansion Slots: Up to 3 × PCIe Gen5 x16 and 2 × OCP3.0 slots supported
• Networking: Broadcom BCM5719 1 GbE 4-port BASE-T OCP adapter
• I/O Ports: USB 3.2 Gen1, VGA, iLO management port
• Operating System Compatibility: Supports enterprise OSs including Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi (HPE validated configurations recommended)

Physical Specifications

• Form Factor:
 o 1U rack server

• Weight:
 o 15.25 kg
 o 33.59 lbs

• Dimensions (H × W × D):
 o 42.93 mm × 434.59 mm × 753.11 mm
 o 1.69″ × 17.11″ × 29.65″

• Rack Compatibility:
 o Standard 19″ rack, occupies 1U height

Ideal For

• Virtualized server clusters and hypervisor hosts
• Enterprise databases and analytics servers
• Hybrid cloud computing environments
• Scalable and dense rack-mounted compute deployments
• Business-critical applications requiring high availability and remote management

Warranty & Support

• Standard manufacturer warranty: 3 years parts, 3 years labor, 3 years onsite support
• Support contract compatibility: HPE Care Pack, Proactive Care, Foundation Care, and extended service options available

FAQs – HPE ProLiant Compute DL360 Gen12 – P89196-005

Q1: Can the processor be upgraded?
A1: Yes. The DL360 Gen12 platform supports upgrade to other compatible Intel Xeon 6500/6700 Series processors within thermal and power limits.

Q2: How much memory can this server support?
A2: When fully populated across DIMM slots, this system supports up to 8 TB of DDR5 SmartMemory for memory-intensive workloads.

Q3: Does the P89196-005 include redundant power?
A3: Yes. This configuration includes dual hot-plug 800 W power supplies for redundancy and increased uptime.

Q4: Is remote management included?
A4: Yes. HPE iLO7 is embedded for secure remote monitoring, firmware updates, and provisioning.

Q5: What storage expansion options exist?
A5: The chassis supports additional hot-swap 2.5″ drives and configurable RAID options for scalable storage performance.

Q6: What rack size and height is required?
A6: This server installs in standard 19″ racks and occupies 1U of rack height.
