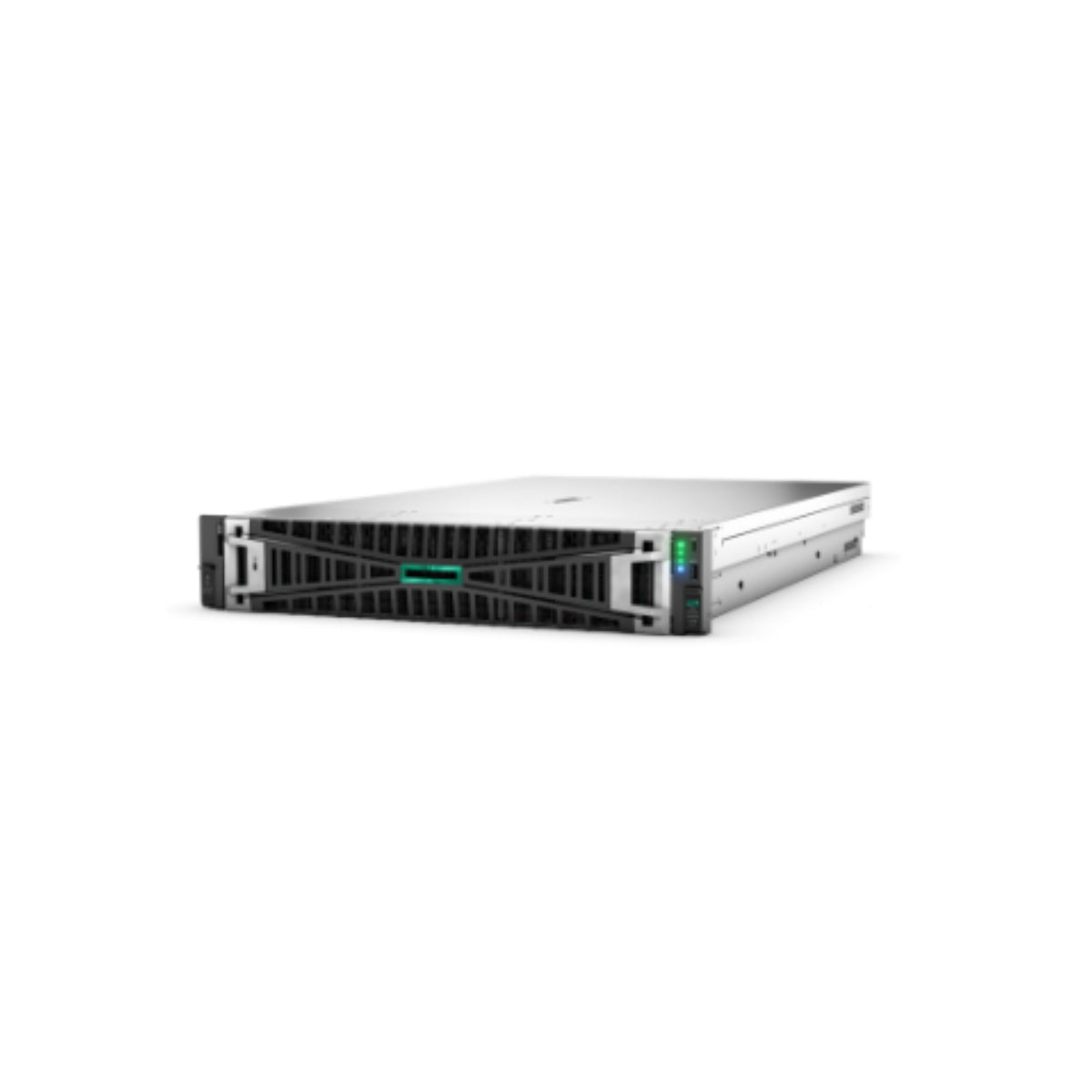

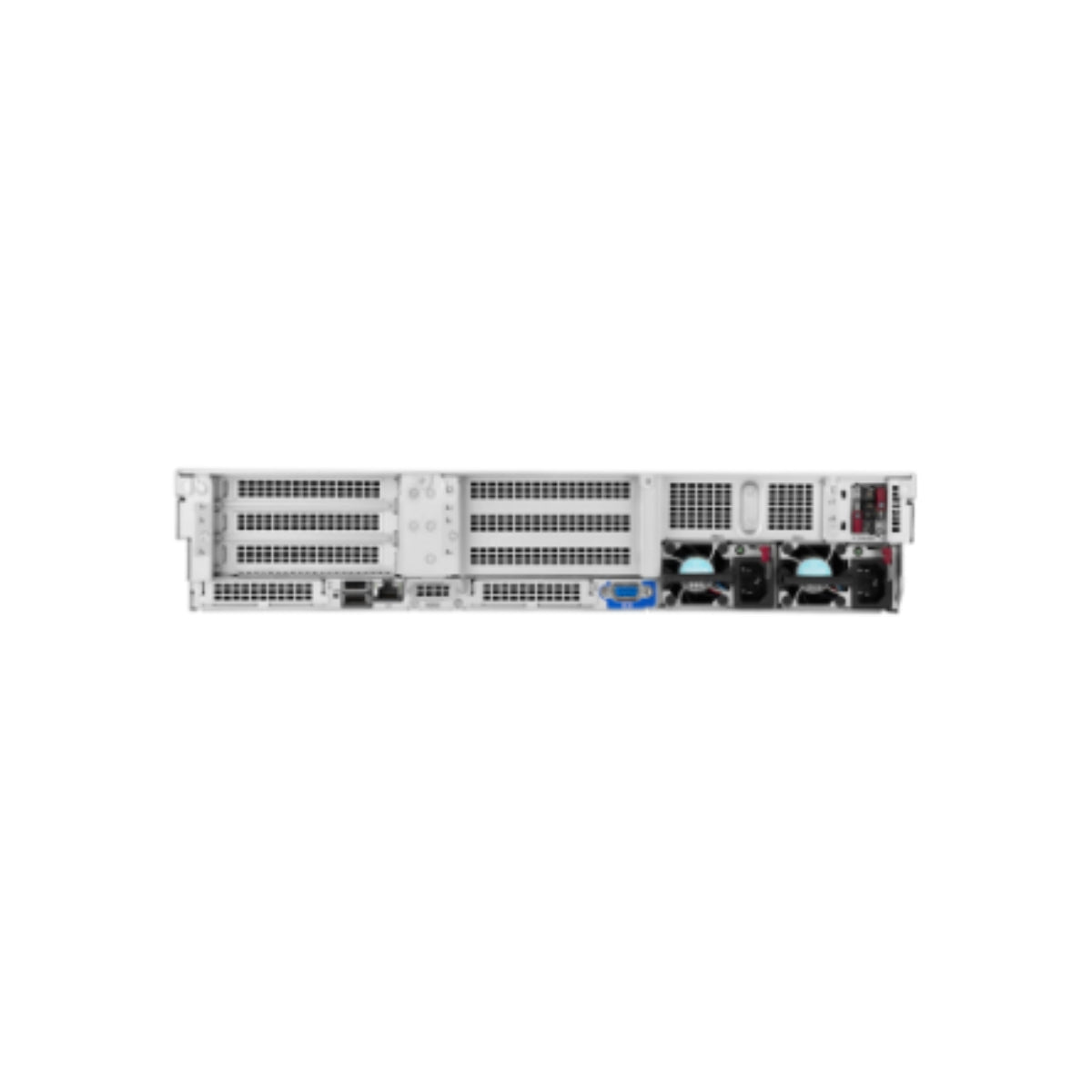

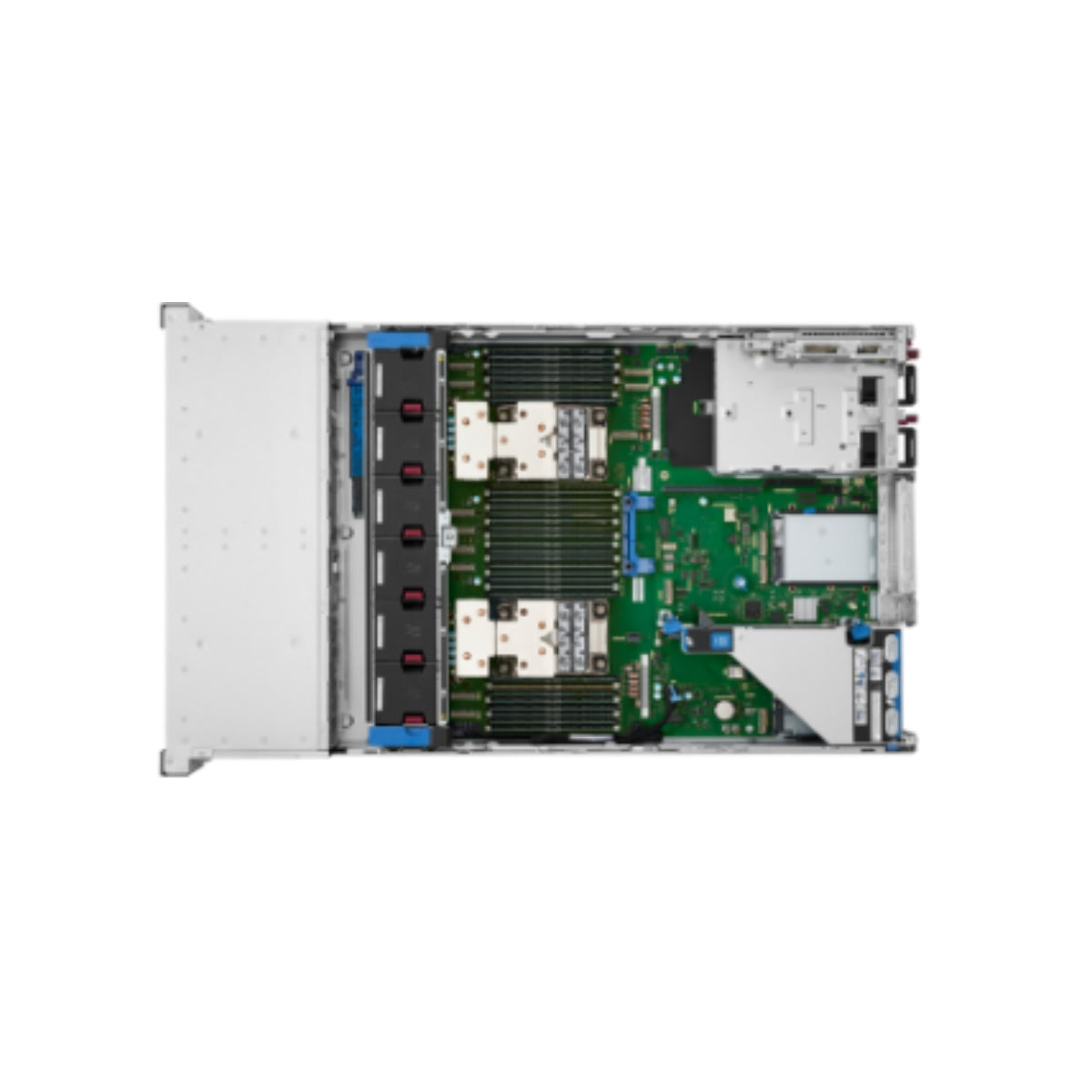

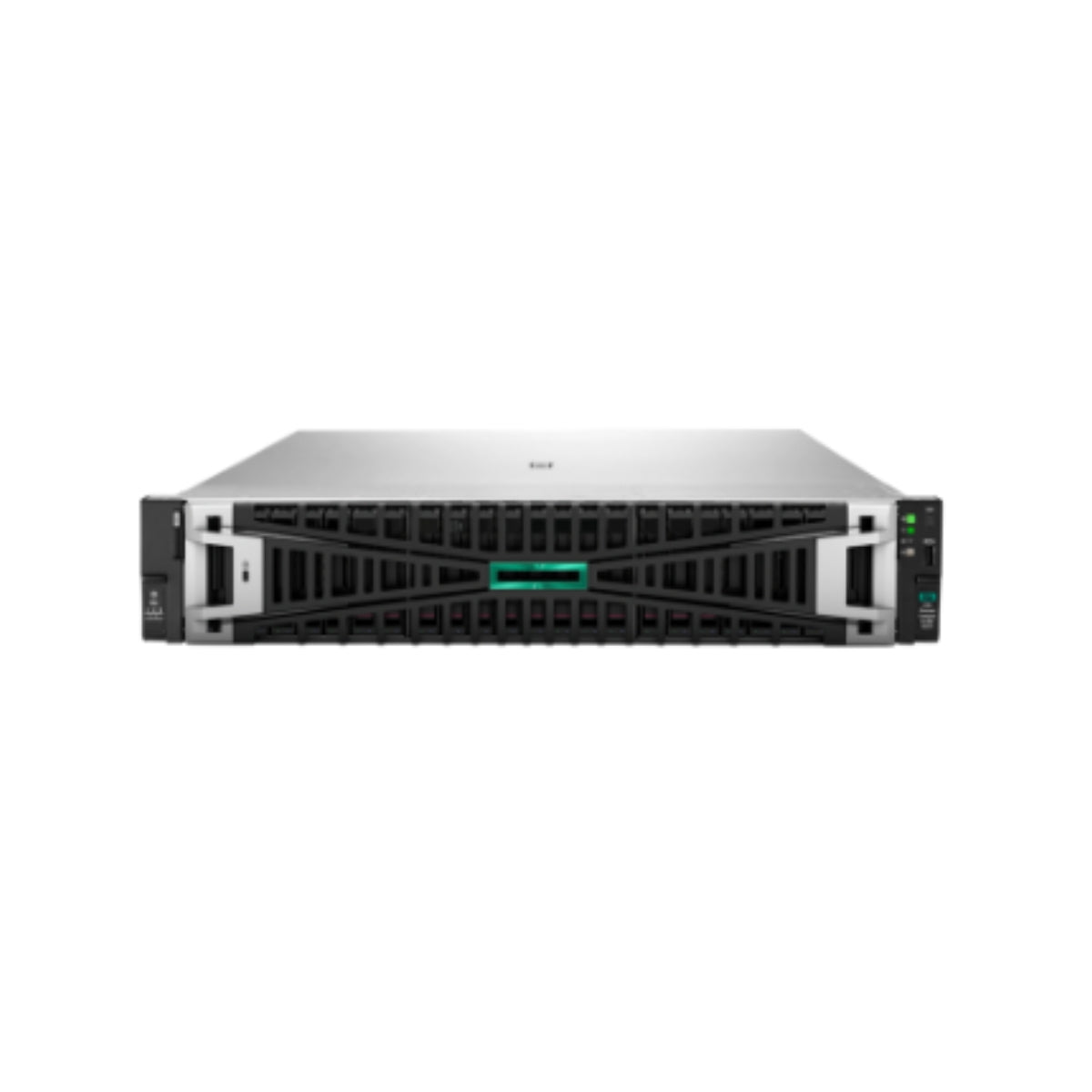

P89243-005 – HPE ProLiant Compute DL380 Gen12 2U Rack Server

BRAND NEW WITH FULL HPE WARRANTY!!!

The P89243-005 – HPE ProLiant Compute DL380 Gen12 2U Rack Server is a resource-dense, enterprise-class server built for mission-critical data center workloads, virtualization, and hybrid cloud infrastructure. Powered by a single Intel® Xeon® 6505P 12-core processor at 2.20 GHz (up to 4.10 GHz Turbo Boost) with 24 threads, and 64 GB of DDR5 registered ECC Smart Memory, this server delivers a strong balance of throughput, memory bandwidth, and efficiency for business-critical applications.

This DL380 Gen12 configuration includes 2 × 480 GB hot-swap SATA 6 Gb/s SSDs, scalable storage potential with up to 8 hot-swap 2.5″ bays, and support for advanced RAID levels using the HPE MR408i-o controller. Dual 800 W hot-plug power supplies provide redundancy and uptime assurance, while HPE Integrated Lights-Out (iLO7) delivers secure remote management and monitoring. Its 2U rack form factor fits standard 19″ data center racks, making it ideal for dense deployments where performance, manageability, and reliability are priorities.

Key Features – HPE ProLiant Compute DL380 Gen12 – P89243-005

• Processor:
 o Intel® Xeon® 6505P, 12 cores, 2.20 GHz base, up to 4.10 GHz Turbo Boost
• Memory:
 o 64 GB DDR5 Registered ECC Smart Memory
• Storage:
 o 2 × 480 GB SATA 6 Gb/s hot-swap SSDs
 o Up to 8 × hot-swap 2.5″ bays available
• Controller (if applicable):
 o HPE MR408i-o RAID controller with 4 GB cache support
• Networking / Ports:
 o Integrated Gigabit Ethernet (OCP)
 o USB 3.2 Gen1, VGA, dedicated iLO management port
• Power & Cooling:
 o Dual hot-plug 800 W Flex Slot Platinum Power Supplies
 o Standard hot-swap server fan array
• Management:
 o HPE Integrated Lights-Out 7 (iLO7) remote management
• Security (if applicable):
 o UEFI Secure Boot, Silicon Root of Trust, TPM support
• Form Factor:
 o 2U rack-mount server

Technical Specifications

• Processor Type: Intel® Xeon® 6505P (12-core)
• Chipset / Platform: HPE ProLiant Gen12 architecture
• Memory Technology: DDR5 Registered ECC Smart Memory
• Storage Interface: SATA 6 Gb/s / SAS / NVMe via backplane
• RAID Support: RAID 0, 1, 5, 6, 10, 50, 60 (via HPE MR408i-o controller)
• Expansion Slots: PCIe Gen5 expansion slots (dependent on riser)
• Networking: Integrated Gigabit Ethernet (OCP) with optional FlexibleLOM upgrades
• I/O Ports: USB 3.2 Gen1, VGA, iLO port
• Operating System Compatibility: Supports enterprise OSs such as Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi (HPE validated configurations recommended)

Physical Specifications

• Form Factor:
 o 2U rack-mount server

• Weight:
 o 18 kg
 o 39.68 lbs

• Dimensions (H × W × D):
 o 87.5 × 448 × 727 mm
 o 3.44″ × 17.64″ × 28.62″

• Rack Compatibility:
 o Standard 19″ rack, occupies 2U height

Ideal For

• Virtualized server clusters and enterprise hypervisor hosts
• Business databases and analytics workloads
• Hybrid cloud infrastructure deployments
• High-availability applications with redundant hardware
• Dense compute deployments in data center racks

Warranty & Support

• Standard manufacturer warranty: 3 years parts, 3 years labor, 3 years onsite support with next-business-day response
• Support contract compatibility: HPE Care Pack, Proactive Care, Foundation Care, extended HPE service offerings

UPC : 190017836508

FAQs – HPE ProLiant Compute DL380 Gen12 – P89243-005

Q1: Can I upgrade the processor?
A1: Yes. The DL380 Gen12 platform supports upgrade to other compatible Intel® Xeon® 6500/6700 Series processors within power and thermal guidelines.

Q2: How much memory can this server support?
A2: When fully populated, this platform supports up to 8 TB of DDR5 SmartMemory for demanding workloads.

Q3: Does this configuration include redundant power?
A3: Yes. Dual hot-plug 800 W power supplies deliver redundancy and help maintain uptime.

Q4: Are storage drives included?
A4: Yes. This SKU includes 2 × 480 GB SSDs in hot-swap bays for responsive boot and application performance.

Q5: Is remote management included?
A5: Yes. HPE Integrated Lights-Out (iLO7) is built-in for secure remote configuration, monitoring, and firmware updates.

Q6: What rack height does this server occupy?
A6: This server occupies 2U of rack height in a standard 19″ rack.
