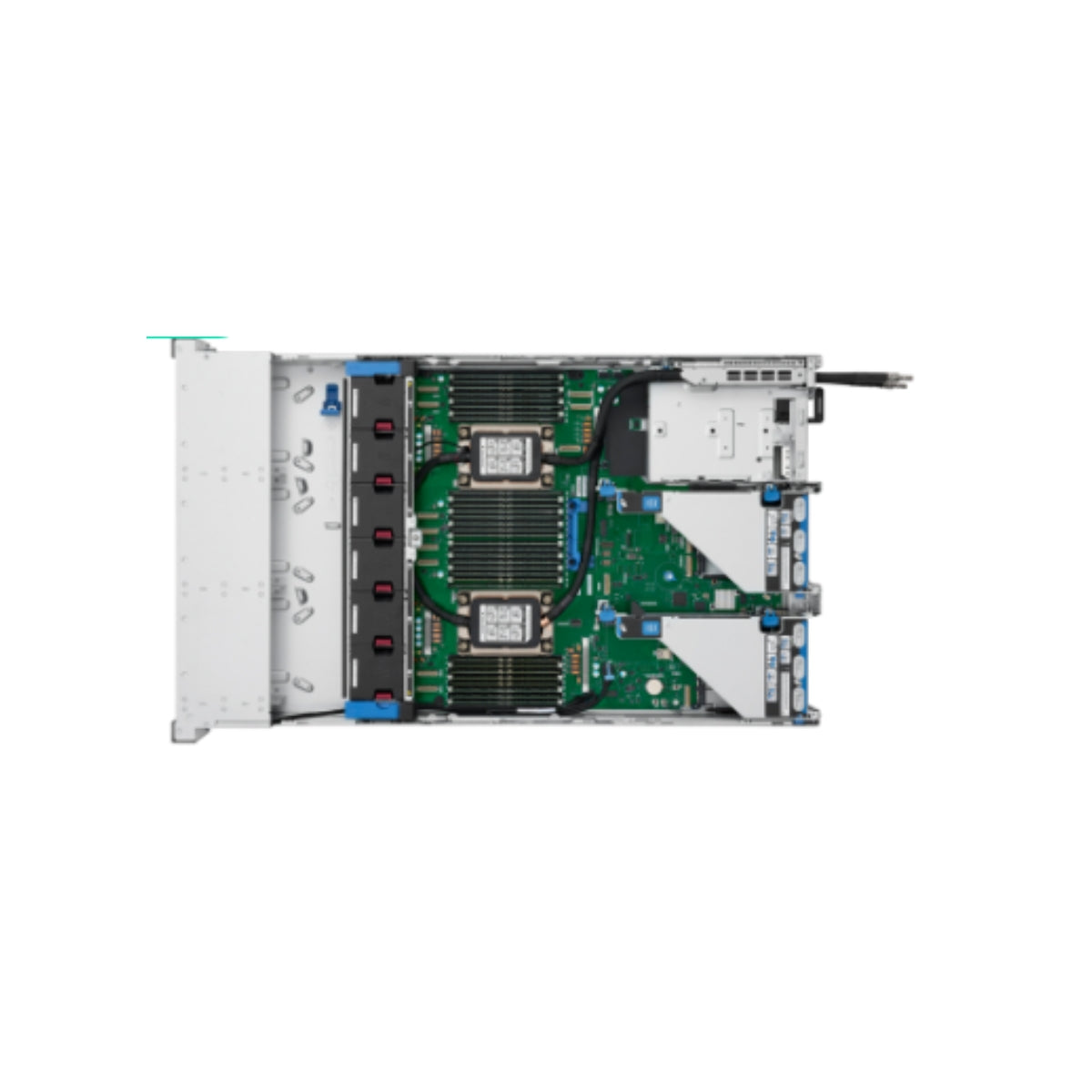

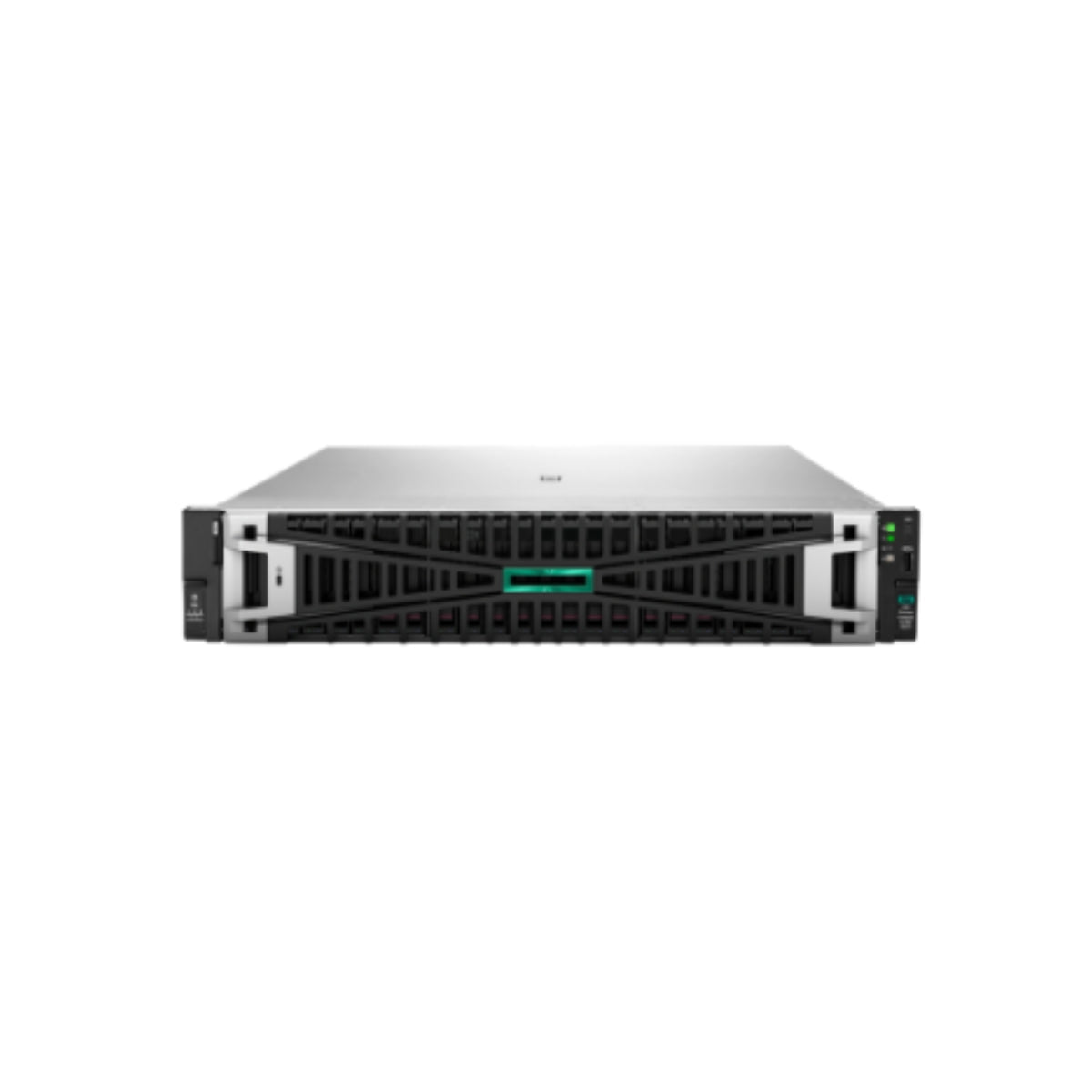

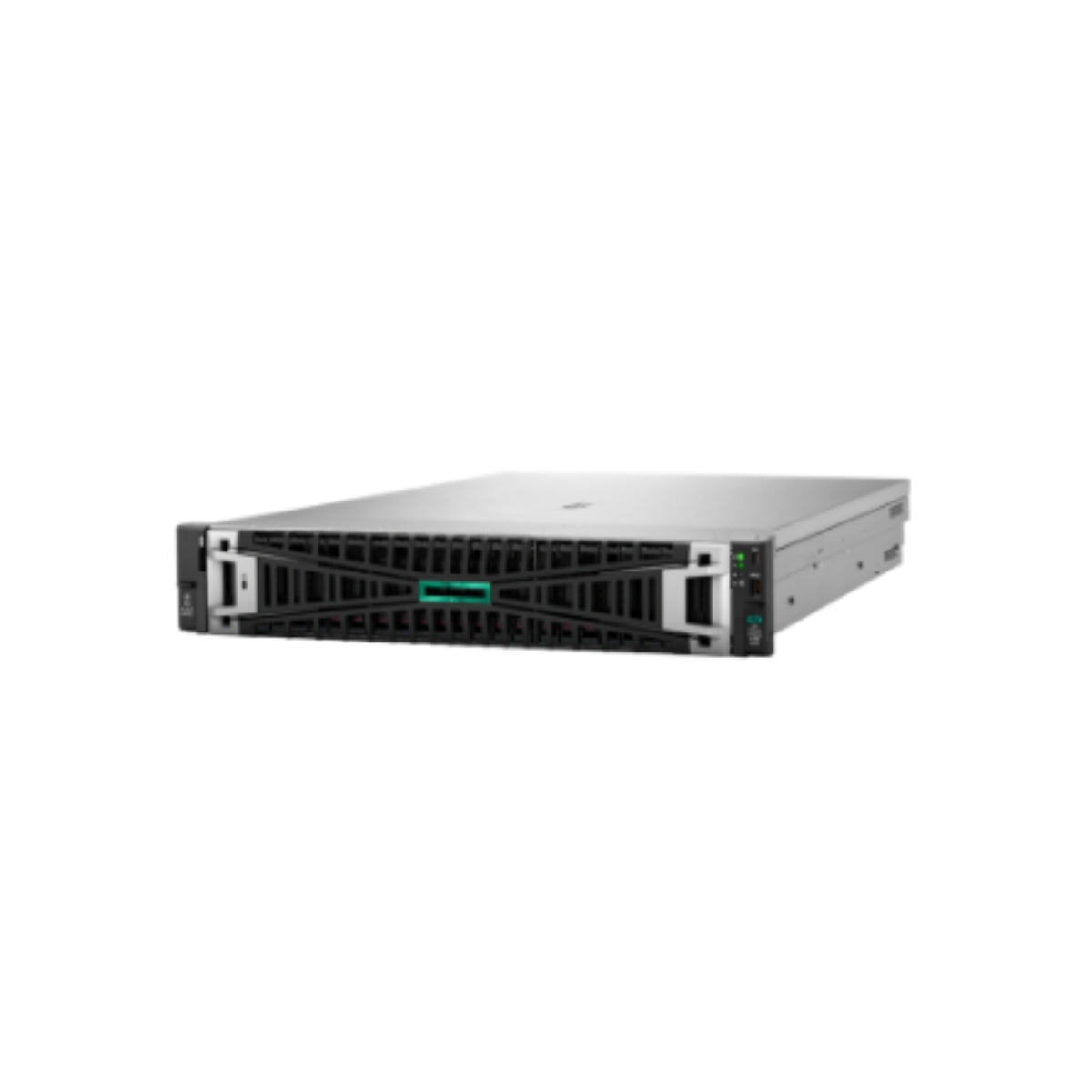

P90004-005 – HPE ProLiant Compute DL380 Gen12 6515P 1P 4x32GB-R 8SFF Server

BRAND NEW WITH FULL HPE WARRANTY!!!

The P90004-005 – HPE ProLiant Compute DL380 Gen12 6515P 1P 4x32GB-R 8SFF MR408i-o 2×960GB SSD Dual 1000W PS NA Server is a robust enterprise rack server engineered for demanding data center, virtualization, and hybrid cloud workloads. Powered by a single Intel® Xeon® 6515P processor with 16 cores at 2.30 GHz (up to 3.80 GHz Turbo Boost) and equipped with 128 GB of DDR5 registered ECC Smart Memory, this configuration delivers responsive, multi-threaded compute performance for business applications, analytics, and consolidation environments where high efficiency and predictable performance are essential.

Built on the scalable 2U rack form factor, this DL380 Gen12 configuration includes two 960 GB SATA 6 Gb/s SSDs and support for eight hot-swap 2.5″ drive bays for storage agility and serviceability. The integrated HPE MR408i-o RAID controller with 4 GB cache optimizes data protection and throughput, while dual 1000 W Flex Slot Titanium hot-plug power supplies provide redundant power delivery for mission-critical uptime. Advanced remote management via HPE Integrated Lights-Out 7 (iLO7) simplifies provisioning, monitoring, and lifecycle management across distributed IT environments.

Key Features – HPE ProLiant Compute DL380 Gen12 6515P – P90004-005

• Processor:
 o Intel® Xeon® 6515P, 16 cores, 2.30 GHz base frequency, Turbo Boost to ~3.80 GHz
• Memory:
 o 128 GB DDR5 Registered ECC Smart Memory (4 × 32 GB)
• Storage:
 o 2 × 960 GB SATA 6 Gb/s Read-Intensive SSDs (hot-swap SFF)
 o Up to 8 × hot-swap 2.5″ SAS/SATA/NVMe drive bays
• Controller (if applicable):
 o HPE MR408i-o Gen11 OCP RAID controller with 4 GB cache
• Networking / Ports:
 o Broadcom 4-port 1 GbE BASE-T OCP adapter
 o USB 3.x, VGA, dedicated iLO management port
• Power & Cooling:
 o Dual 1000 W Flex Slot Titanium hot-plug power supplies
 o Standard enterprise hot-swap fans
• Management:
 o HPE Integrated Lights-Out 7 (iLO7) remote management
• Security (if applicable):
 o TPM 2.0, Silicon Root of Trust, UEFI Secure Boot
• Form Factor:
 o 2U rack-mount server

Technical Specifications

• Processor Type: Intel® Xeon® 6515P (16-core)
• Chipset / Platform: HPE ProLiant Gen12 architecture
• Memory Technology: DDR5 Registered ECC Smart Memory
• Storage Interface: SAS/SATA/NVMe (via backplane)
• RAID Support: RAID 0, 1, 5, 6, 10, 50, 60 (with MR408i-o RAID controller)
• Expansion Slots: PCIe Gen5 slots and OCP 3.0 (platform dependent)
• Networking: Integrated Broadcom 1 GbE; optional FlexibleLOM or PCIe NICs
• I/O Ports: USB 3.x, VGA, dedicated iLO7 port
• Operating System Compatibility: Certified for Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi

Physical Specifications

• Form Factor:
 o 2U rack-mount server

• Weight:
 o 18 kg (minimum SFF configuration)
 o 39.68 lbs

• Dimensions (H × W × D):
 o 87.5 × 448 × 727 mm
 o 3.44″ × 17.64″ × 28.62″

• Rack Compatibility:
 o Standard 19″ rack, occupies 2U height

Ideal For

• Virtualized infrastructure and hypervisor hosts
• Enterprise database and analytics servers
• Hybrid cloud and distributed IT environments
• High-availability compute workloads requiring redundant power
• Scalable storage and multi-application server deployments

Warranty & Support

• Standard manufacturer warranty: 3 years parts, 3 years labor, 3 years onsite hardware support (3/3/3)
• Support contract compatibility: HPE Care Pack, Proactive Care, Foundation Care, and extended HPE service options

FAQs – HPE ProLiant Compute DL380 Gen12 6515P – P90004-005

Q1: Can I upgrade the processor?
A1: Yes. The DL380 Gen12 platform supports installable compatible Intel® Xeon® 6500/6700 Series processors for higher core counts, subject to power and thermal limits.

Q2: How much memory can this server support?
A2: When fully populated, this server supports up to 8 TB of DDR5 HPE Smart Memory across all DIMM slots.

Q3: Does this configuration include storage drives?
A3: Yes. This SKU includes two 960 GB SATA SSDs installed; additional drives can be added to the remaining hot-swap bays.

Q4: Are redundant power supplies included?
A4: Yes. Dual 1000 W Flex Slot Titanium power supplies provide power redundancy and improve uptime.

Q5: Does this server include remote management?
A5: Yes. HPE Integrated Lights-Out 7 (iLO7) is integrated for secure remote monitoring and management.

Q6: What rack height does this server occupy?
A6: This server occupies 2U in a standard 19″ rack.
