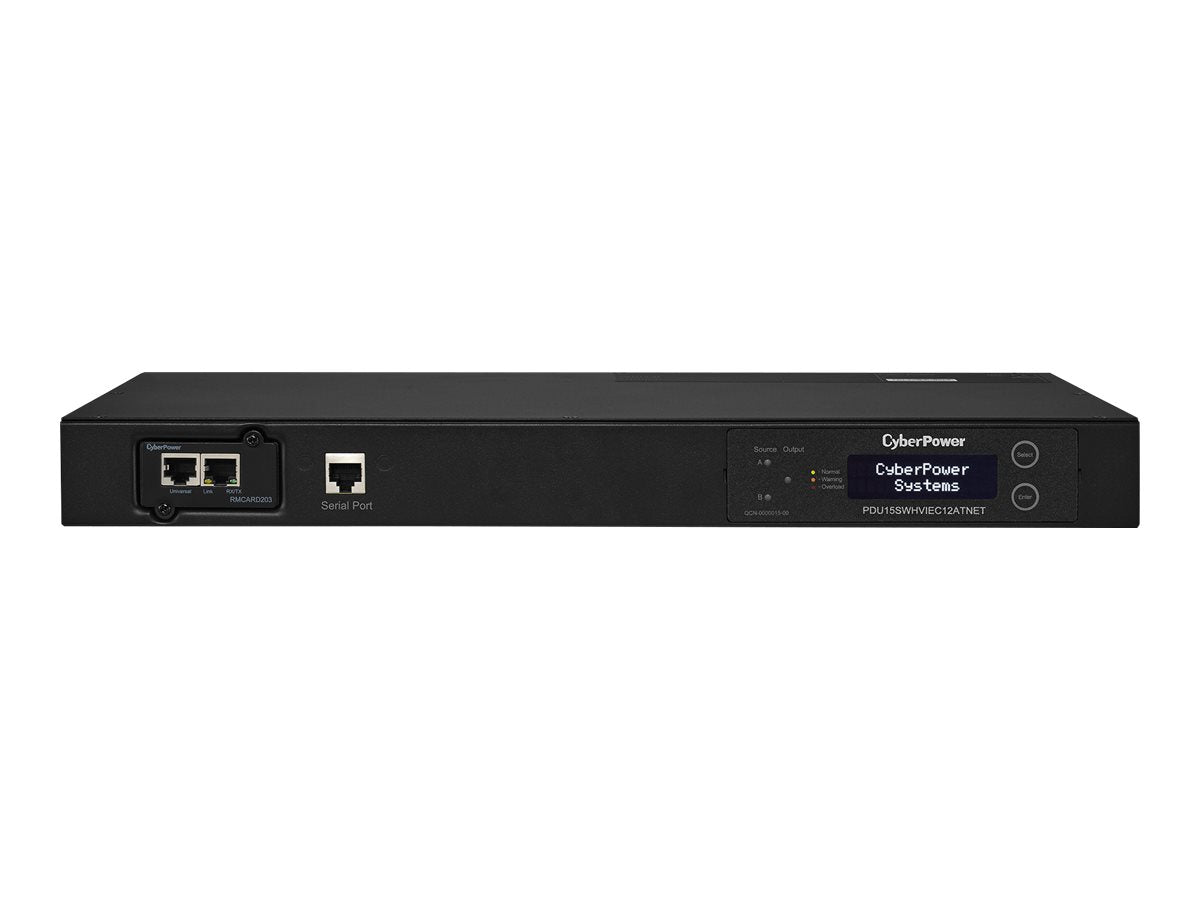

CyberPower Switched ATS Power Distribution Unit PDU15SWHVIEC12ATNET

The CyberPower PDU15SWHVIEC12ATNET, 12-outlet 1U rack mount switched auto transfer switch (ATS) PDU, provides 200-240V / 15A output. The PDU distributes power to 12 IEC-320 C13 receptacles from redundant IEC-320 C14 plugs. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded equipment. If there is a power failure or an under/over voltage, the PDU will switch to the secondary power source to insure continuous operation.

The PDU includes a RMCARD203 SNMP card. With the SNMP card and an IP address on the network interface, users have real-time monitoring and outlet control of the ATS PDU including event notifications.

The LCD provides local monitoring of voltage and amperage of the PDU and on/off control of the outlets.

Specifications

• Manufacturer: CyberPower Systems, Inc
• Manufacturer Part Number: PDU15SWHVIEC12ATNET
• Brand Name: CyberPower
• Product Model: PDU15SWHVIEC12ATNET
• Product Name: PDU15SWHVIEC12ATNET Switched ATS PDU 200-240V 15A 1U 12-Outlets (2) IEC C14
• Product Type: PDU
• PDU Type: Switched
• Input Receptacles: 2 x IEC 60320 C14
• Output Receptacles: 12 x IEC 60320 C13
• Input Voltage: 230 V AC
• Output Voltage: 230 V AC
• Input Current: 15 A
• Placement: Rack
• Rack Height: 1U
• Cord Length: 10 ft
• Height: 1.8"
• Width: 17.1"
• Length: 9.3"
• Weight (Approximate): 8.82 lb
• Energy Star: No
• Environmentally Friendly: Yes
• Environmental Certification: RoHS
