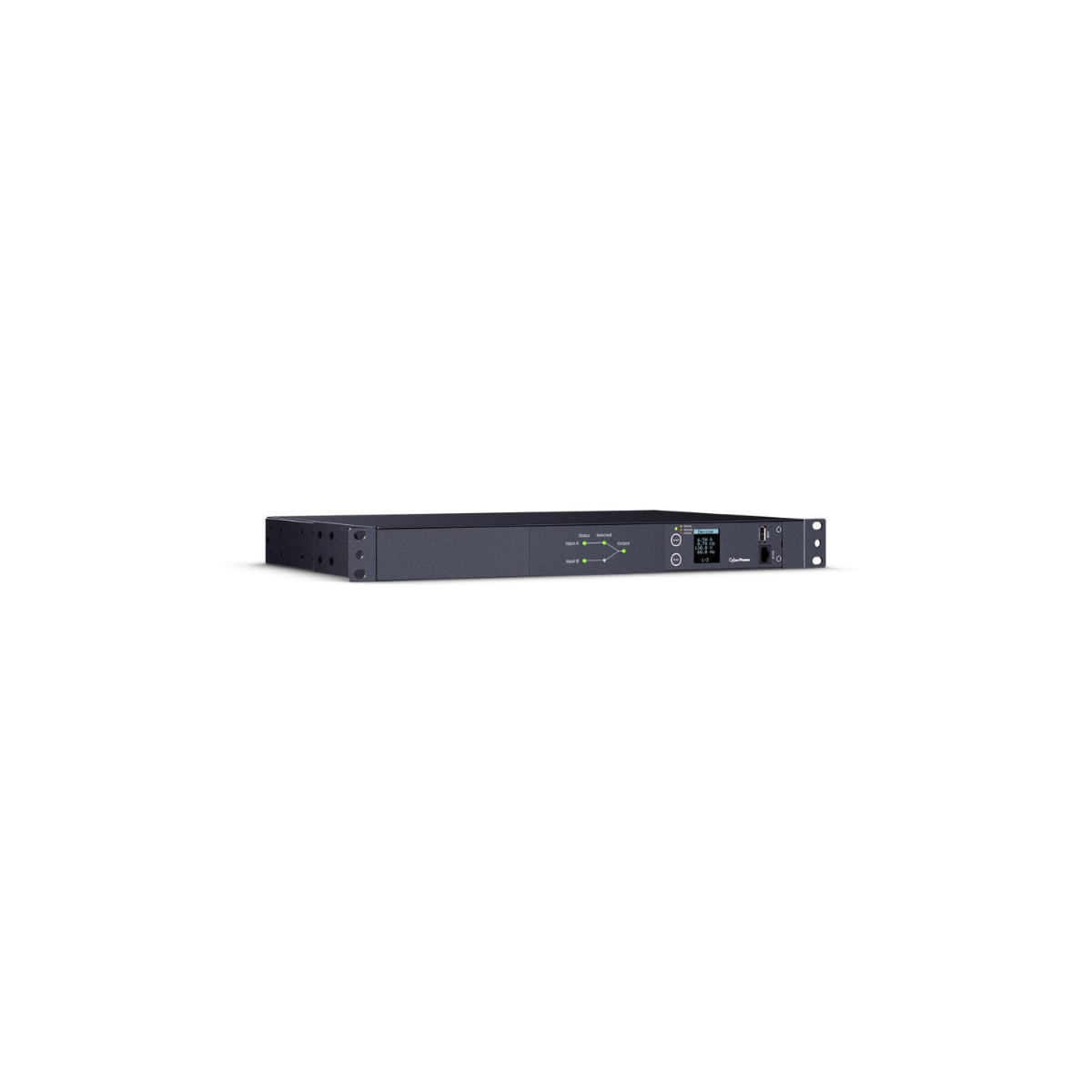

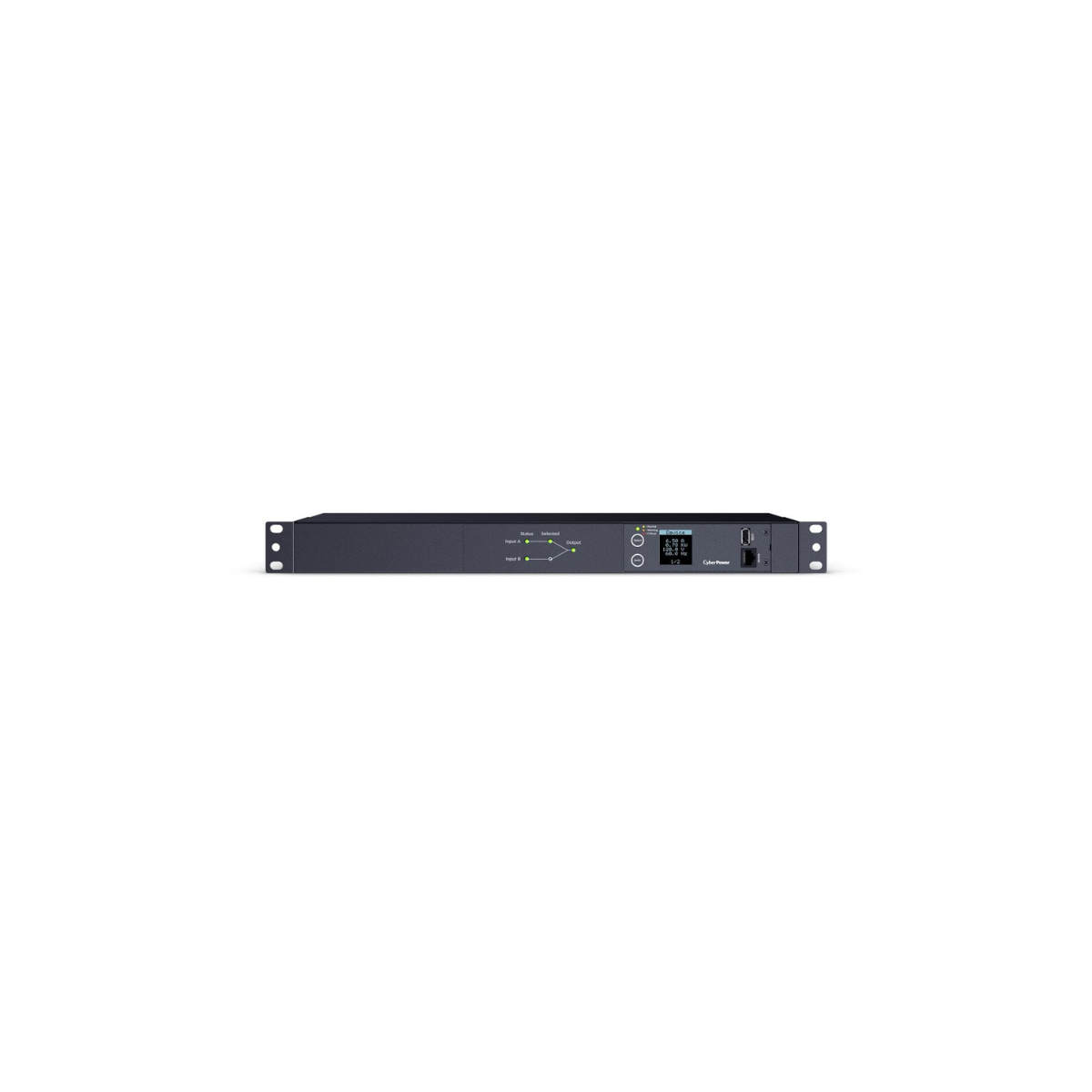

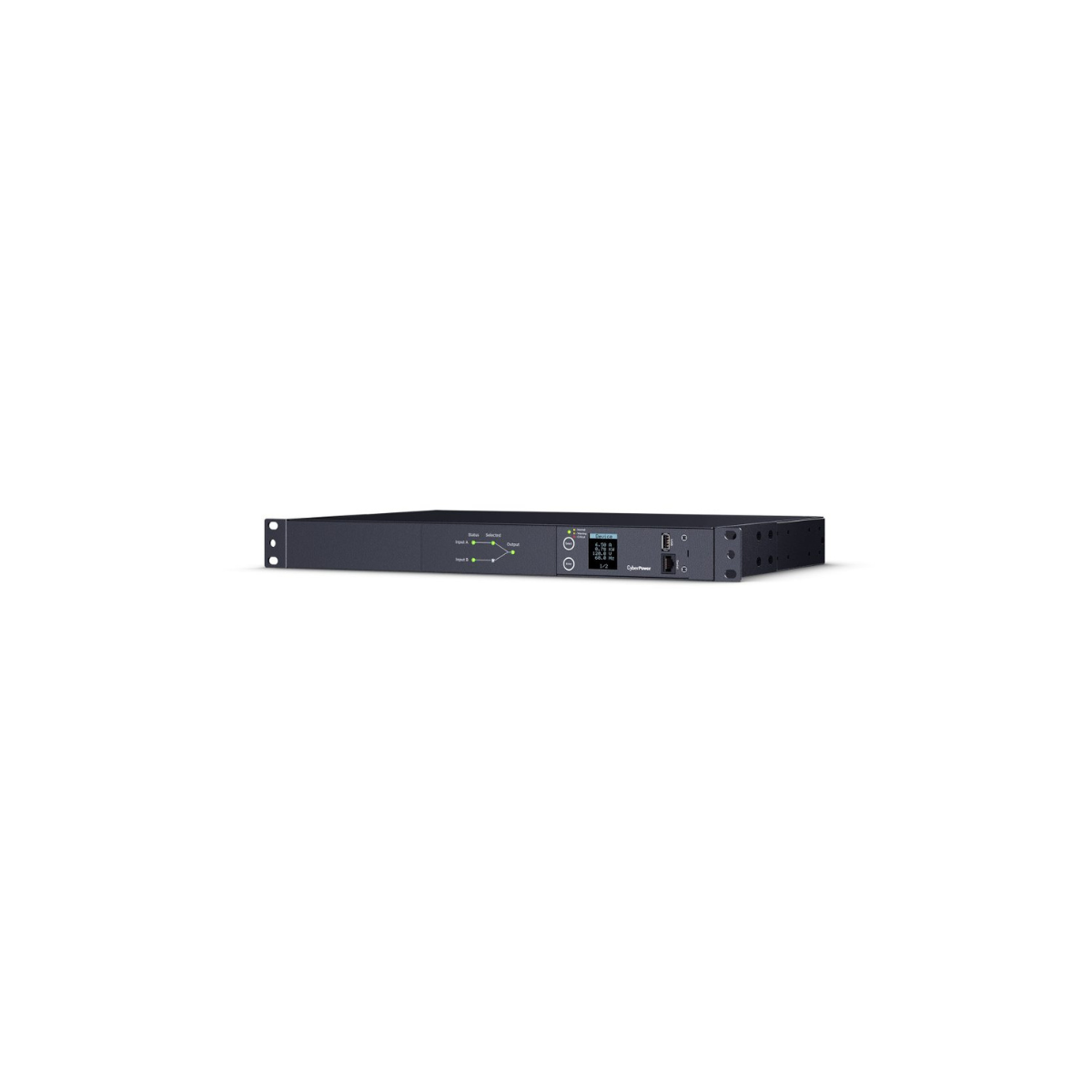

PDU24001 CyberPower Metered ATS PDU

BRAND NEW WITH FULL CYBERPOWER WARRANTY!!!

The PDU24001 CyberPower Metered ATS PDU is an enterprise-grade automatic transfer switch power distribution unit engineered to provide redundant power delivery for single-corded IT equipment. Designed for critical infrastructure environments, it automatically switches connected devices between two independent power sources to maintain uptime during source failure or instability.

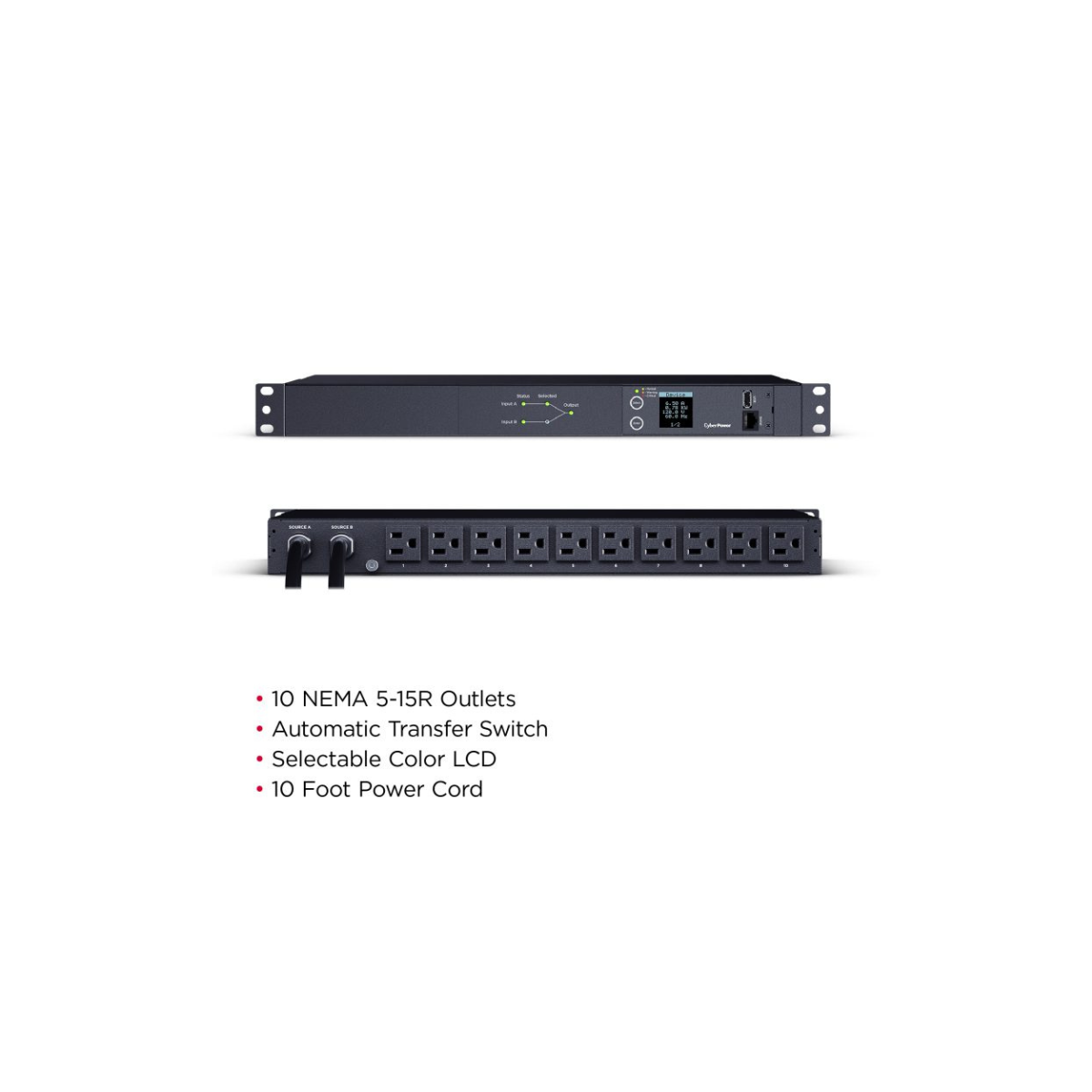

Built in a compact 1U rackmount form factor, the PDU24001 supports 100–120V single-phase input and distributes power through 10 NEMA 5-15R outlets. Dual NEMA 5-15P input cords connect to separate A/B power feeds, allowing seamless failover protection for servers, network switches, security appliances, and telecom equipment that do not have dual power supplies.

This model includes a multifunction LCD for real-time load monitoring, LED source indicators, and upgradeable firmware for long-term operational flexibility. Its durable metal chassis, automatic transfer switching capability, and rack-ready design make it ideal for enterprise racks, network closets, and edge deployments where continuous power availability is essential.

Key Features – CyberPower PDU24001

• Processor:
Embedded ATS management controller

• Memory:
N/A

• Storage:
N/A

• Controller:
Automatic Transfer Switch (ATS) controller

• Networking / Ports:
Serial RJ45 communication port, LCD status interface

• Power & Cooling:
15A single-phase input, dual power feeds, automatic source switching

• Management:
Load monitoring LCD, firmware upgrade support, LED source indicators

• Security:
Switch-free design to prevent accidental shutdowns

• Form Factor:
1U Rackmount

Technical Specifications

• Processor Type:
Embedded ATS controller

• Chipset / Platform:
CyberPower Metered ATS Platform

• Memory Technology:
N/A

• Storage Interface:
N/A

• RAID Support:
N/A

• Expansion Slots:
N/A

• Networking:
Serial communication support

• I/O Ports:
RJ45 Serial Port

• Operating System Compatibility:
Windows, Linux, macOS (management utility compatible)

Physical Specifications

• Form Factor:
1U Rackmount

• Weight:
o 4.35 kg
o 9.6 lbs

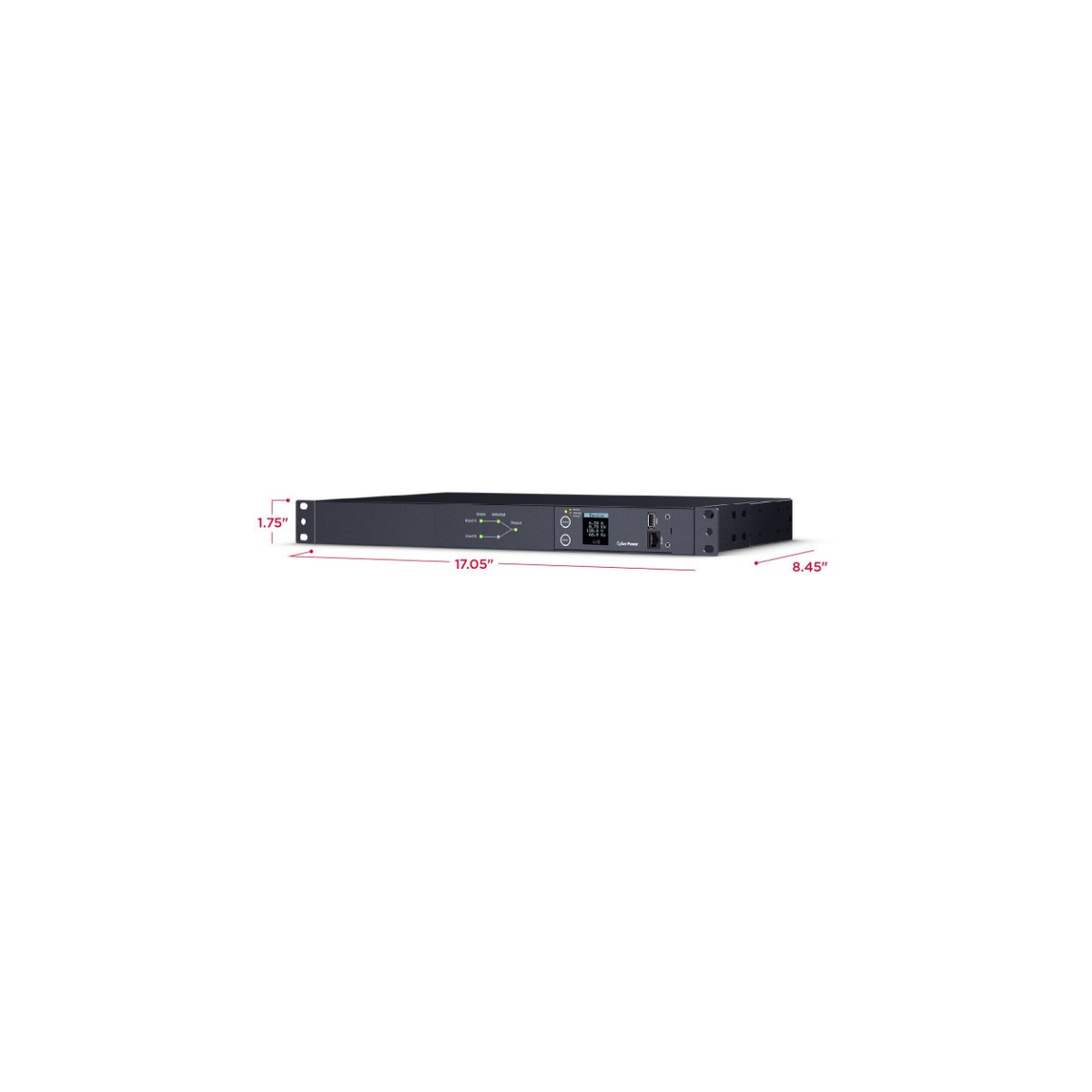

• Dimensions:
o 433 x 44 x 215 mm
o 17.05 x 1.75 x 8.45 inches

• Rack Compatibility:
Standard 19-inch rack, 1U height

Ideal For

• Enterprise rack environments
• Network and telecom closets
• Single-power-supply servers and appliances
• Edge computing deployments
• Critical infrastructure requiring redundant power feeds

Warranty & Support

• 3-Year Manufacturer Warranty
• Firmware upgrade support available
• Compatible with CyberPower management utilities

FAQs – CyberPower PDU24001

1. What is an ATS PDU?
An ATS (Automatic Transfer Switch) PDU automatically switches connected devices between two separate power sources during power failure or instability.

2. How many outlets are included?
It includes 10 NEMA 5-15R outlets.

3. What input connections does this PDU use?
It uses dual NEMA 5-15P input plugs for redundant A/B power sources.

4. Is this suitable for rack deployment?
Yes, it is designed for standard 1U rackmount installation.

5. Can it monitor power usage?
Yes, the integrated LCD provides real-time current monitoring and status information.

6. What type of equipment is this best suited for?
It is ideal for single-corded servers, switches, firewalls, and network appliances requiring redundant power input.
