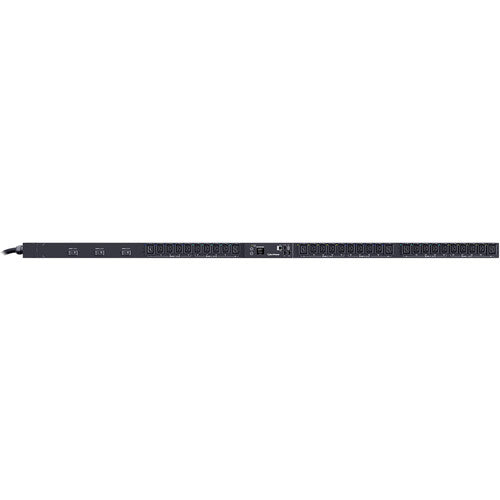

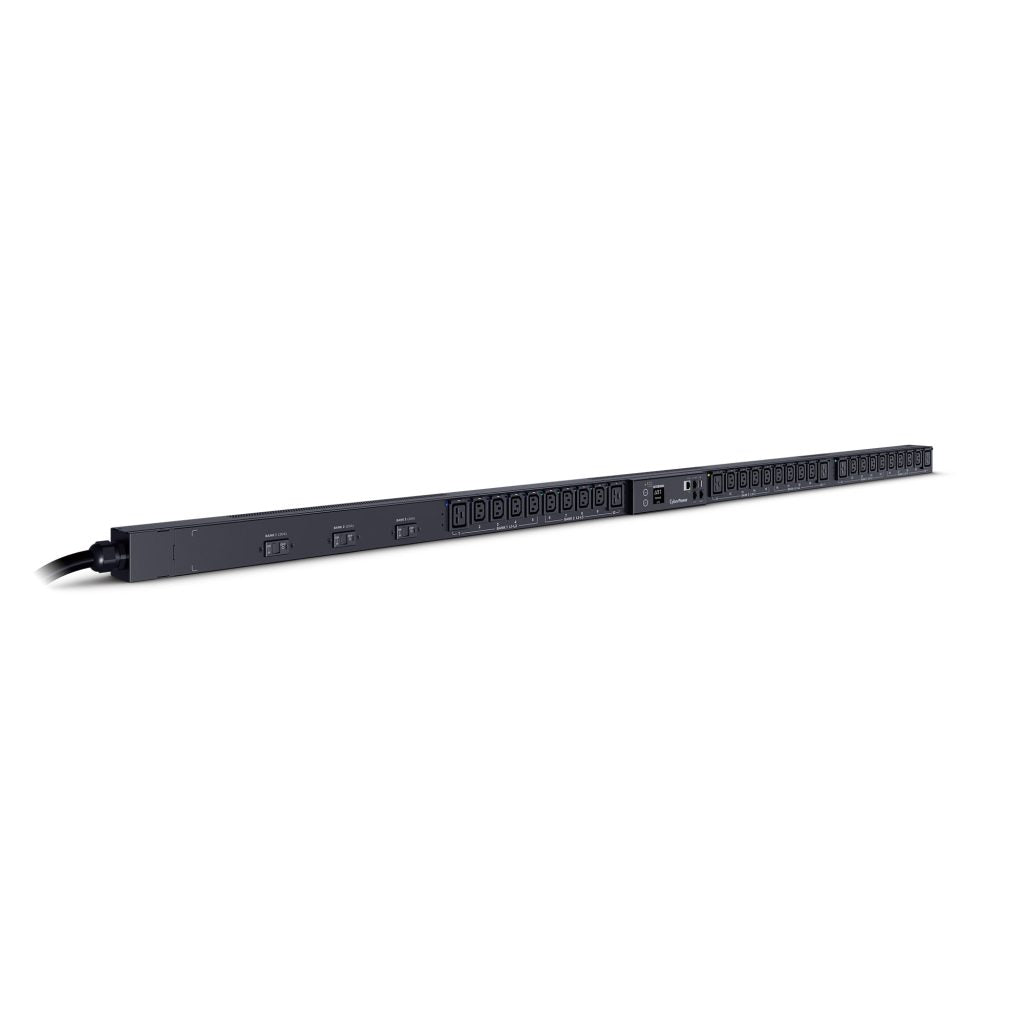

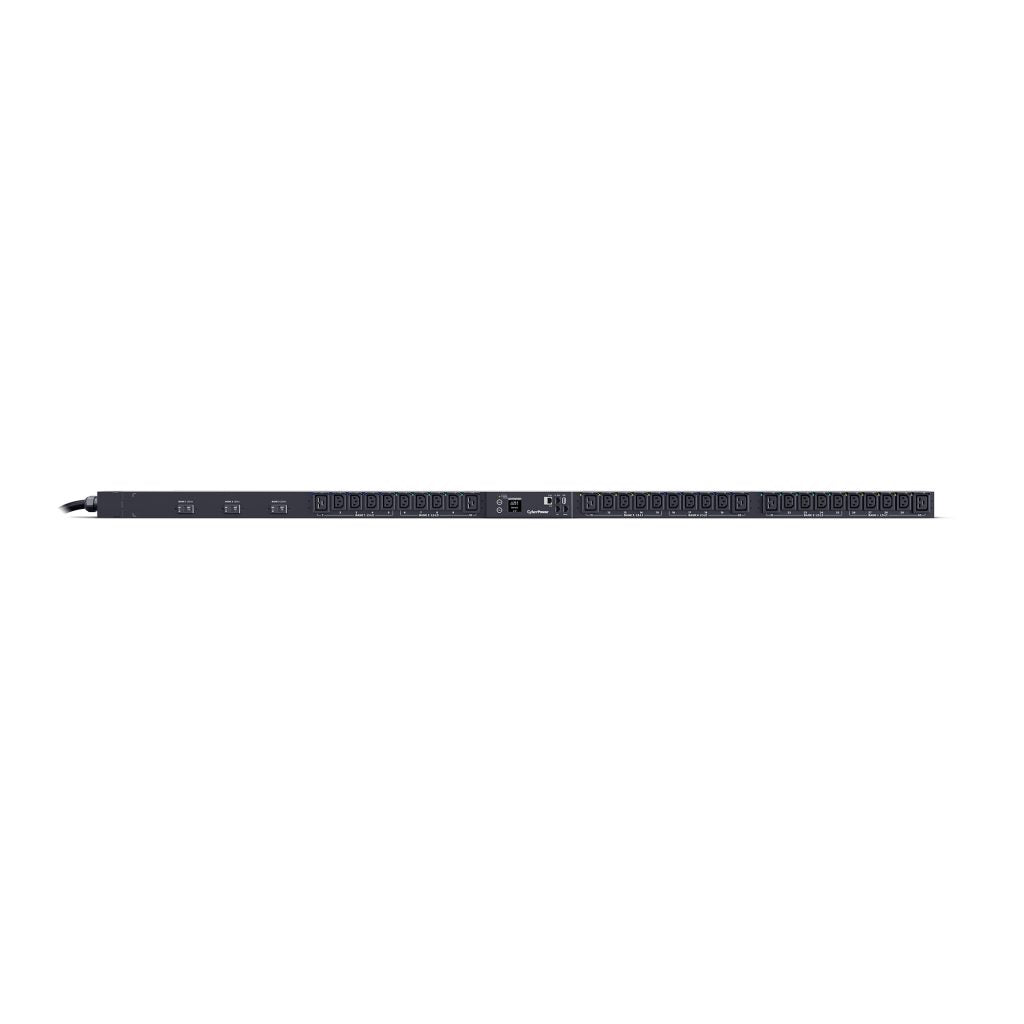

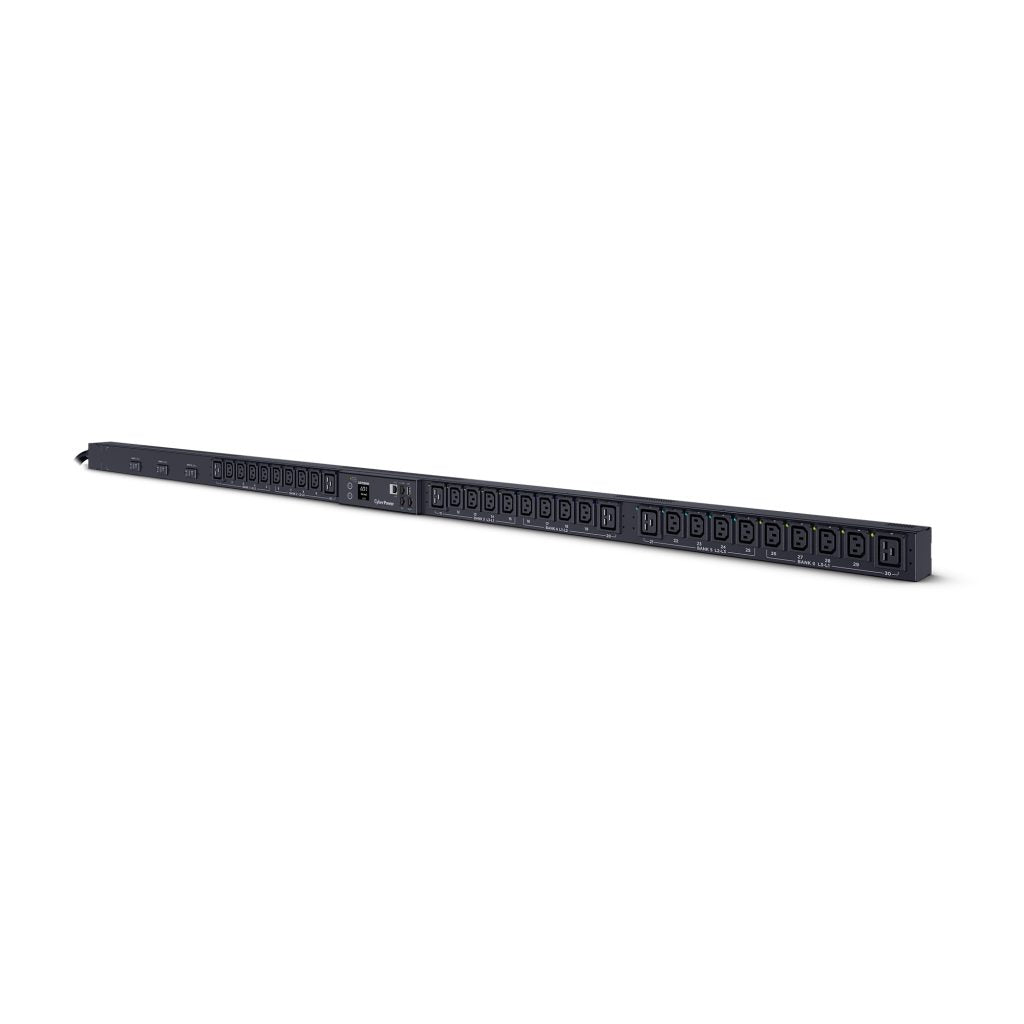

PDU83107 CyberPower Switched Metered by Outlet PDU

BRAND NEW WITH FULL CYBERPOWER WARRANTY!!!

The PDU83107 CyberPower Switched Metered by Outlet PDU is an enterprise-grade intelligent power distribution unit designed for high-density data center racks, colocation deployments, and mission-critical IT infrastructure. Engineered for 3-phase 200–240VAC environments, this vertically mounted PDU provides advanced outlet-level monitoring and remote outlet switching capabilities for improved operational control and energy management.

The PDU83107 enables IT administrators to remotely monitor power consumption in real time while individually controlling connected devices through secure network-based management interfaces. With support for SNMP, HTTP, HTTPS, SSH, and Telnet protocols, the unit integrates seamlessly into enterprise monitoring platforms and modern DCIM environments. Outlet-level metering improves capacity planning, power balancing, and uptime management across demanding rack deployments.

Built for scalable enterprise operations, the PDU83107 combines intelligent switching, environmental monitoring support, and secure remote accessibility in a space-efficient 0U rackmount form factor. Organizations deploy this model to support blade chassis, enterprise networking hardware, converged infrastructure, and high-performance compute environments where reliable managed power distribution is essential.

Key Features – PDU83107 CyberPower Switched Metered by Outlet PDU

• Processor:
 o Embedded intelligent PDU management controller

• Memory:
 o Integrated firmware management system

• Storage:
 o N/A

• Controller:
 o Switched Metered-by-Outlet Power Management Controller

• Networking / Ports:
 o Gigabit Ethernet Port
 o Serial Port
 o USB Port
 o Environmental Sensor Port
 o SNMP / HTTP / HTTPS / SSH / Telnet Support

• Power & Cooling:
 o 3-Phase 200–240VAC Input
 o Remote Outlet Switching
 o Outlet-Level Power Monitoring
 o Overload Protection
 o High-Density Power Distribution

• Management:
 o Remote Reboot Capability
 o Real-Time Power Monitoring

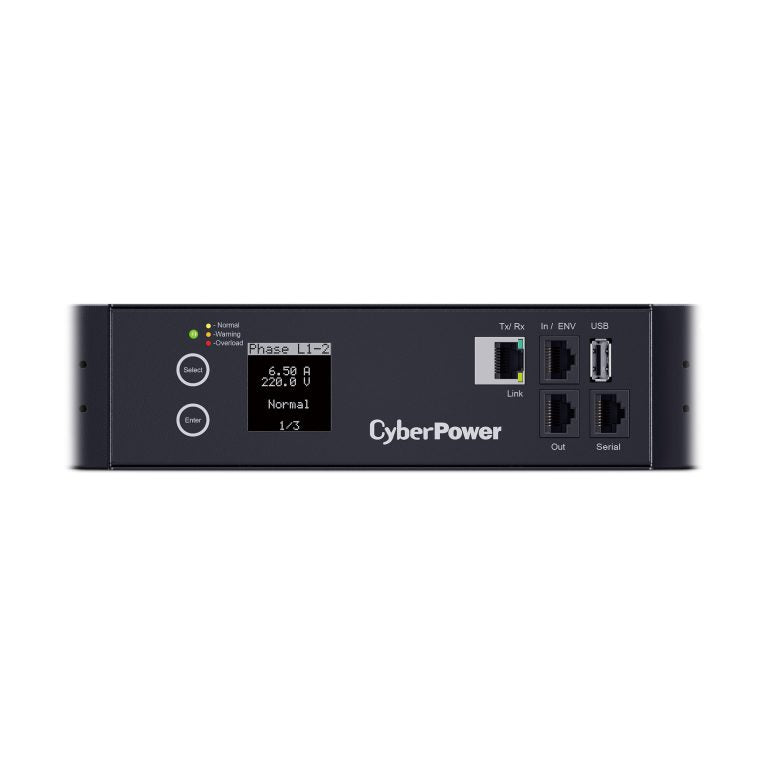

 o LCD Status Display
 o Daisy Chain Support
 o Event Logging & Alerts

• Security:
 o SSL Encryption
 o User Authentication
 o Secure Network Access
 o Local and Remote Access Control

• Form Factor:
 o 0U Vertical Rackmount PDU

Technical Specifications

• Processor Type:
 o Embedded Intelligent PDU Controller

• Chipset / Platform:
 o CyberPower Switched Metered-by-Outlet Platform

• Memory Technology:
 o Integrated Firmware Management

• Storage Interface:
 o N/A

• RAID Support:
 o N/A

• Expansion Slots:
 o Environmental Sensor Expansion Support

• Networking:
 o SNMP v1/v2/v3
 o HTTP
 o HTTPS
 o SSH
 o Telnet
 o Ethernet Connectivity

• I/O Ports:
 o 1 × RJ45 Ethernet
 o 1 × USB Port
 o 1 × Serial Port
 o Environmental Sensor Port

• Operating System Compatibility:
 o Windows
 o Linux
 o VMware
 o Network Management Platforms Supporting SNMP

Physical Specifications

• Form Factor:
 o Vertical Rackmount PDU
 o 0U Rack Height

• Weight:
 o 7.9 kg
 o 17.4 lbs

• Dimensions:
 o 1778 × 56 × 51 mm
 o 70 × 2.2 × 2.0 inches

• Rack Compatibility:
 o Standard 19-inch Server Racks
 o High-Density Data Center Cabinets
 o Vertical 0U Rack Deployment

Ideal For

• Enterprise data centers and colocation facilities
• High-density blade server environments
• Network core and aggregation racks
• Edge computing and distributed IT deployments
• Managed hosting and cloud infrastructure
• Intelligent rack-level power management applications

Warranty & Support

• Standard manufacturer warranty:
 o 3-Year Limited CyberPower Warranty

• Support contract compatibility:
 o CyberPower Remote Management Solutions
 o Environmental Sensor Integration
 o Compatible with DCIM and SNMP Monitoring Platforms

FAQs – PDU83107 CyberPower Switched Metered by Outlet PDU

1. Does the PDU83107 support remote outlet control?

Yes. Each outlet can be individually switched remotely, allowing administrators to reboot or power-cycle connected equipment without onsite access.

2. Can this PDU provide outlet-level power monitoring?

Yes. The PDU83107 offers metered-by-outlet monitoring for detailed visibility into power consumption and load balancing.

3. What environments is this PDU designed for?

The unit is designed for enterprise data centers, network racks, blade server environments, and high-density colocation deployments.

4. Does the PDU support secure remote management?

Yes. It supports HTTPS, SSH, SNMPv3, and user authentication for secure remote administration.

5. Is environmental monitoring supported?

Yes. The PDU supports optional environmental sensors for monitoring rack temperature and humidity conditions.

6. What rack type is compatible with the PDU83107?

The unit is designed for standard 19-inch server racks and installs vertically using a space-saving 0U mounting configuration.
