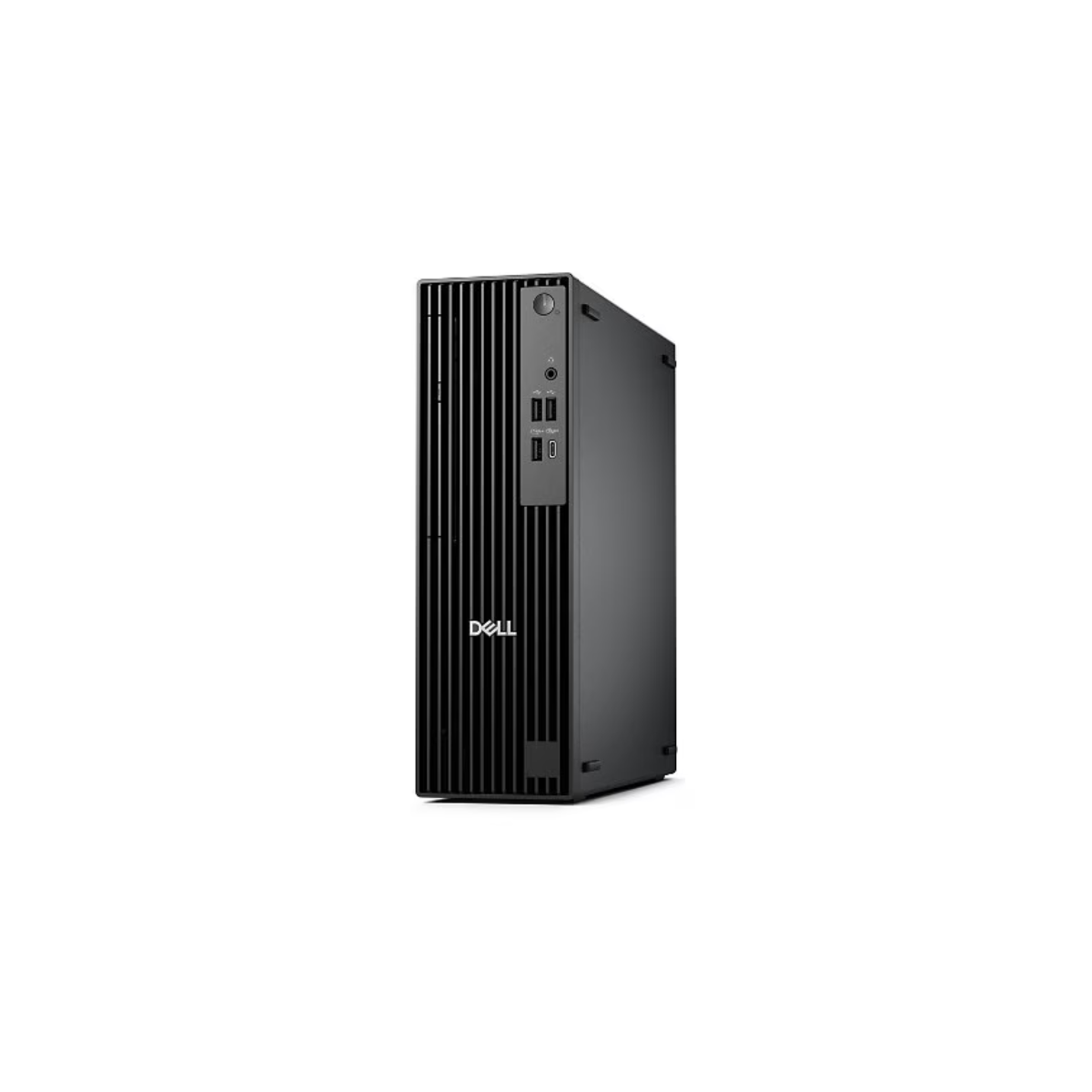

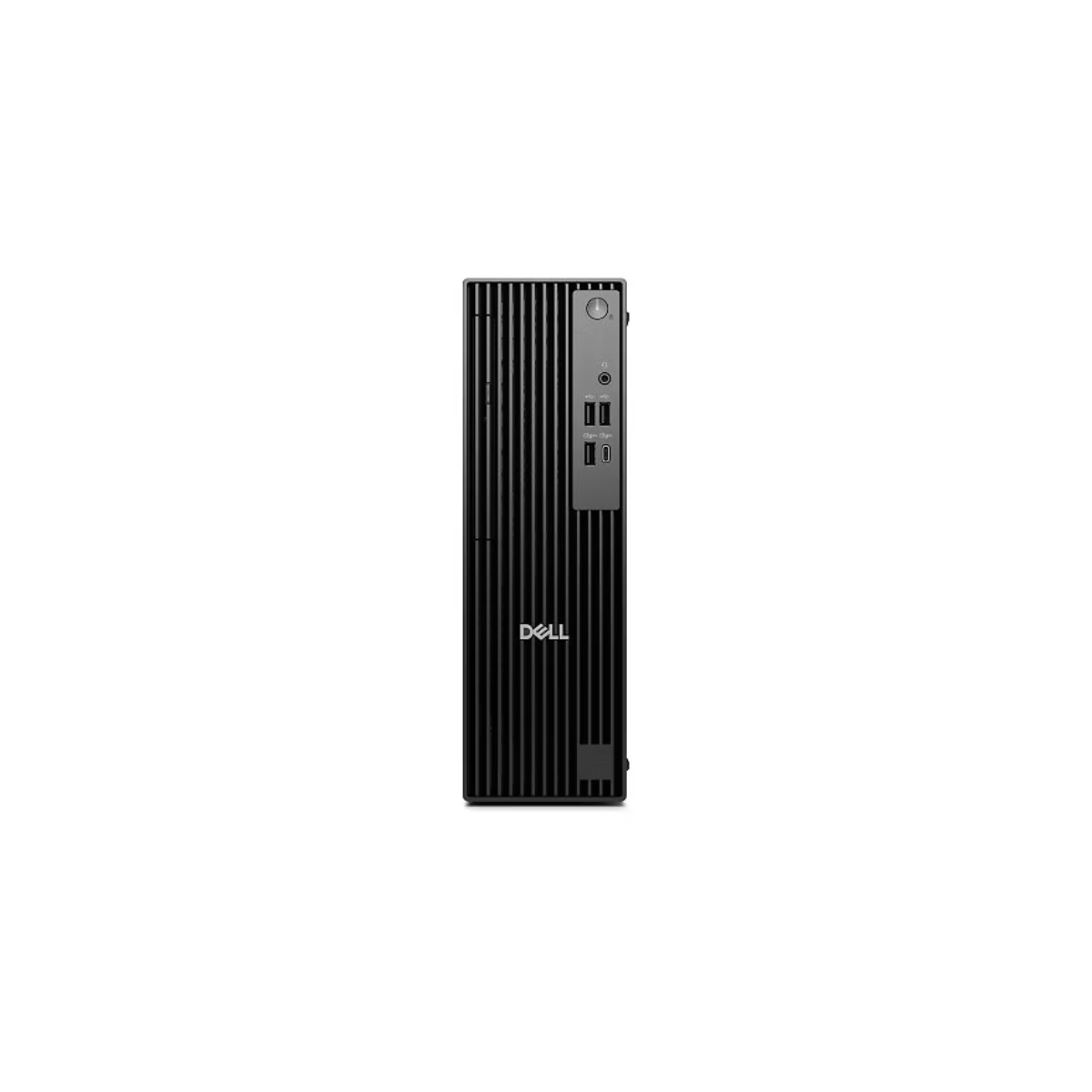

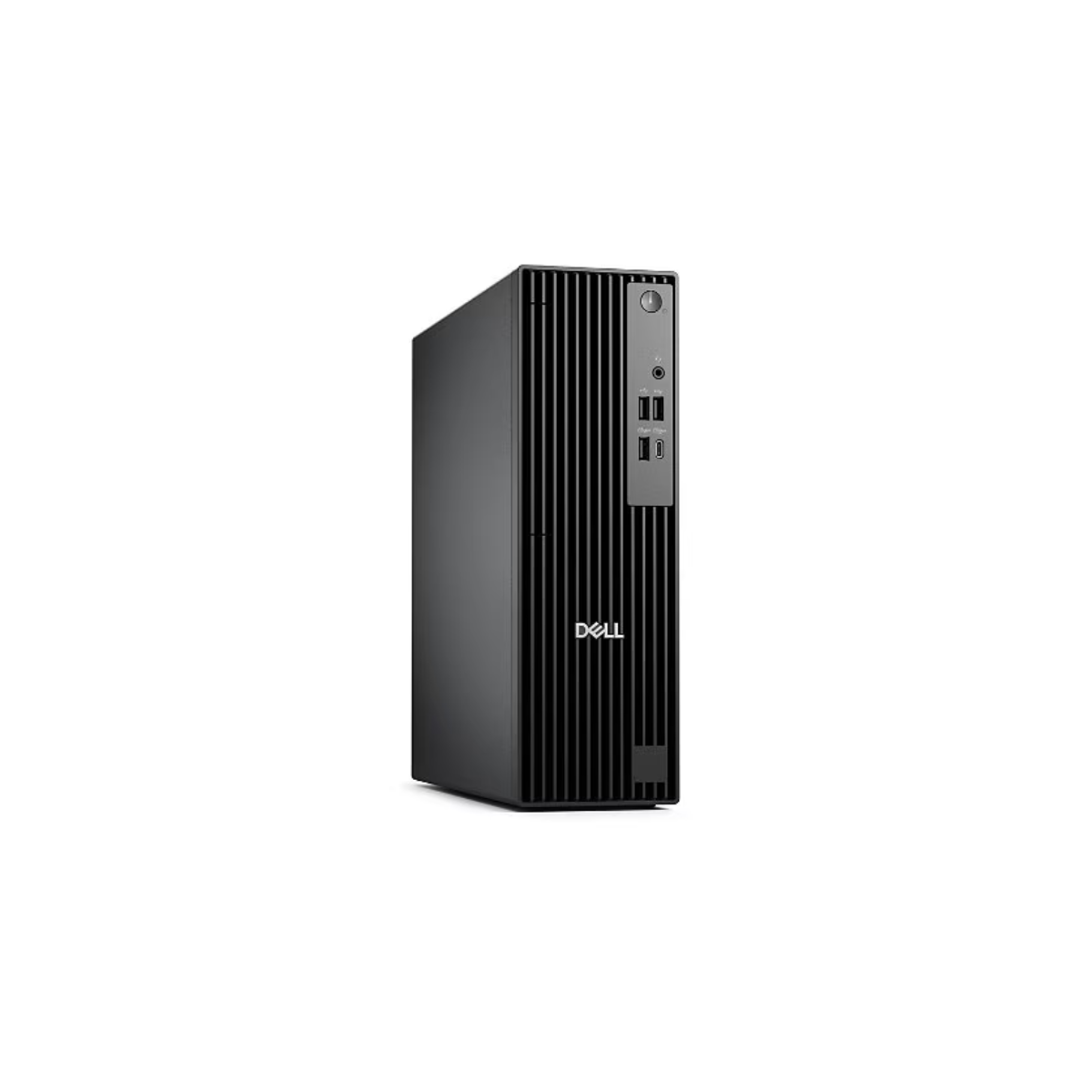

PKXV1 Dell Pro Slim QCS1250 Core i5 Slim Desktop PC

BRAND NEW WITH FULL DELL WARRANTY!!!

Overview

PKXV1 Dell Pro Slim QCS1250 Core i5 Slim Desktop PC is a business-focused desktop built around the 14th Gen Intel Core i5-14500 processor, 8GB of DDR5 memory, and a 256GB PCIe NVMe SSD. The 14-core processor combines six Performance cores and eight Efficient cores, with up to 5.0 GHz Turbo frequency and Intel UHD Graphics 770 for business graphics and multi-display productivity. Dell specifies Windows 11 Pro and a 180W power supply for this configuration.

The PKXV1 is designed for organizations that need conventional desktop performance in a space-efficient chassis. Its slim enclosure supports horizontal or vertical placement and provides three PCIe expansion slots, two DIMM slots, an available 3.5-inch SATA drive bay, Gigabit Ethernet, HDMI 2.1 and DisplayPort 1.4a. This makes the system suitable for office workstations, administrative environments, branch offices, education and other business deployments where expandability matters without moving to a full-size tower.

Key Features – PKXV1 Dell Pro Slim QCS1250

• Processor: Intel Core i5-14500, 14 cores / 20 threads, up to 5.0 GHz
• Memory: 8GB DDR5 SDRAM, 1 × 8GB, up to 4800 MT/s
• Storage: 256GB M.2 NVMe PCIe SSD, TLC
• Controller: Intel Q870 platform chipset
• Graphics: Integrated Intel UHD Graphics 770
• Networking / Ports:
  • 1 × Gigabit Ethernet RJ-45
  • 1 × DisplayPort 1.4a
  • 1 × HDMI 2.1
  • 1 × USB-C 3.2 Gen 1
  • 3 × USB-A 3.2 Gen 1
  • 4 × USB-A 2.0
• Power & Cooling: 180W internal power supply; active system cooling
• Management: Dell commercial management capabilities; Intel vPro platform eligibility is supported by the processor/platform, while this specific configuration does not include vPro management.
• Security: TPM 2.0, chassis intrusion switch and Kensington security slot
• Form Factor: Slim desktop

Technical Specifications

• Processor Type: Intel Core i5-14500, 14th Gen
• Processor Cores / Threads: 14 cores / 20 threads
• Performance Cores: 6
• Efficient Cores: 8
• Performance-Core Base Frequency: 2.6 GHz
• Performance-Core Max Turbo: 5.0 GHz
• Efficient-Core Max Turbo: 3.7 GHz
• Cache: 24MB Intel Smart Cache
• Processor Base Power: 65W
• Maximum Turbo Power: 154W
• Chipset / Platform: Dell Pro QCS1250 / Intel platform
• Memory Technology: DDR5 SDRAM, non-ECC
• Installed Memory: 8GB
• Memory Configuration: 1 × 8GB
• Memory Slots: 2 × DIMM
• Maximum Memory: 64GB
• Memory Speed: Up to 4800 MT/s
• Storage Interface: PCIe NVMe
• Installed Storage: 256GB M.2 TLC SSD
• Storage Expansion: 1 × M.2 2230/2280 SSD slot and 1 × 3.5-inch SATA drive bay
• RAID Support: Not specified for this exact SKU
• Expansion Slots:
  • 1 × half-height PCIe Gen 3 x16
  • 2 × half-height PCIe Gen 3 x1
  • 1 × M.2 2230 wireless slot
  • 1 × M.2 SSD slot
• Networking: Intel I219-LM Gigabit Ethernet, 10/100/1000Base-T
• I/O Ports:
  • 2 × USB 2.0 front/rear allocation
  • 2 additional rear USB 2.0 ports
  • 3 × USB 3.2 Gen 1 Type-A
  • 1 × USB 3.2 Gen 1 Type-C
  • 1 × DisplayPort 1.4a
  • 1 × HDMI 2.1
  • 1 × RJ-45 Gigabit Ethernet
  • 1 × 3.5mm headset jack
  • 1 × DC-in/power connector
• Operating System Compatibility: Windows 11 Pro 64-bit
• Audio: Realtek ALC3204 High Definition Audio
• Wireless: No WLAN card included in the PKXV1 configuration.

Physical Specifications

• Form Factor: Slim PC
• Weight:
  • 5.89 kg
  • 12.99 lbs
• Dimensions:
  • 303.5 × 293 × 95 mm (H × D × W)
  • 11.95 × 11.54 × 3.74 inches (H × D × W)
• Rack Compatibility: Not rack-mountable; designed for desktop placement in horizontal or vertical orientation
• Placement: Horizontal or vertical
• Color: Black
• Operating Temperature: 10°C to 35°C
• Operating Humidity: 10% to 90%

Ideal For

• Corporate office workstations
• Business productivity environments
• Administrative and professional users
• Branch-office deployments
• Education and institutional computing
• Reception and front-desk systems
• Multi-monitor business workstations
• Space-constrained desktop installations
• Workstations requiring PCIe expansion
• Businesses requiring future RAM and storage upgrades

Warranty & Support

• Standard Manufacturer Warranty: 3 Years Basic Onsite Service after Remote Diagnosis with Hardware-Only Support.
• Support Contract Compatibility: Dell commercial support upgrades, including longer-term Basic Onsite and applicable ProSupport options, can be selected according to the service configuration.
• Management: Dell commercial endpoint-management tools are supported for business deployment.

FAQs – PKXV1 Dell Pro Slim QCS1250

1. Can the 8GB RAM in the PKXV1 be upgraded?
Yes. The QCS1250 has two DIMM slots and supports up to 64GB of DDR5 memory. The supplied PKXV1 configuration uses one 8GB module, leaving the second slot available.

2. Can additional storage be installed?
Yes. The system provides an M.2 SSD interface and an available 3.5-inch SATA drive bay, giving businesses options for expanding storage beyond the factory-installed 256GB NVMe SSD.

3. Does the PKXV1 include Wi-Fi?
No. The exact PKXV1 configuration is listed with Gigabit Ethernet and no WLAN card. Dell offers QCS1250 configurations with wireless cards separately.

4. How many monitors can the PKXV1 connect to?
The standard configuration includes one HDMI 2.1 and one DisplayPort 1.4a output. The QCS1250 also supports optional rear port modules that can add another display interface depending on the selected module.

5. Does the PKXV1 have PCIe expansion capability?
Yes. The chassis provides one half-height PCIe Gen 3 x16 slot and two half-height PCIe Gen 3 x1 slots, allowing compatible low-profile expansion hardware to be installed.

6. Is the PKXV1 suitable for rack deployment?
No. It is a slim desktop PC, not a 1U or 2U rack server. The 303.5 × 293 × 95 mm chassis supports horizontal or vertical desktop placement.
