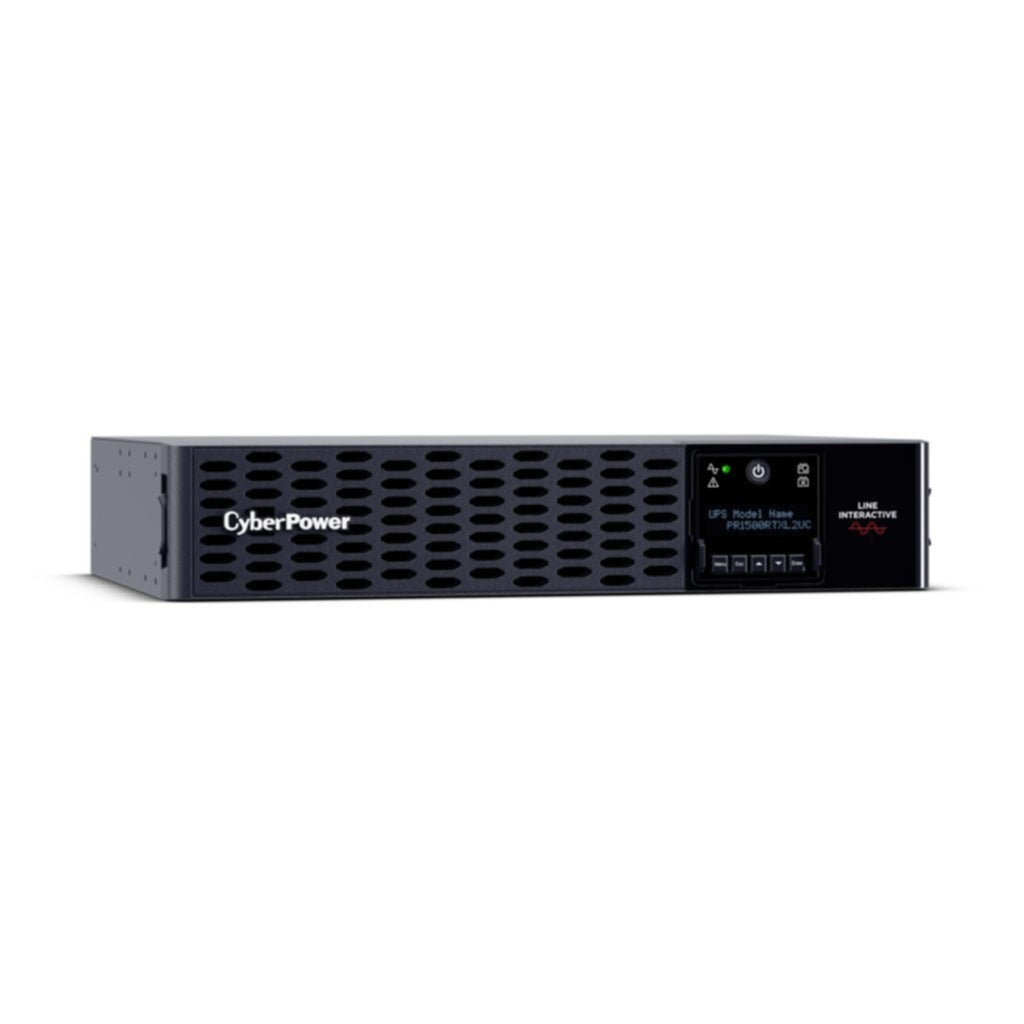

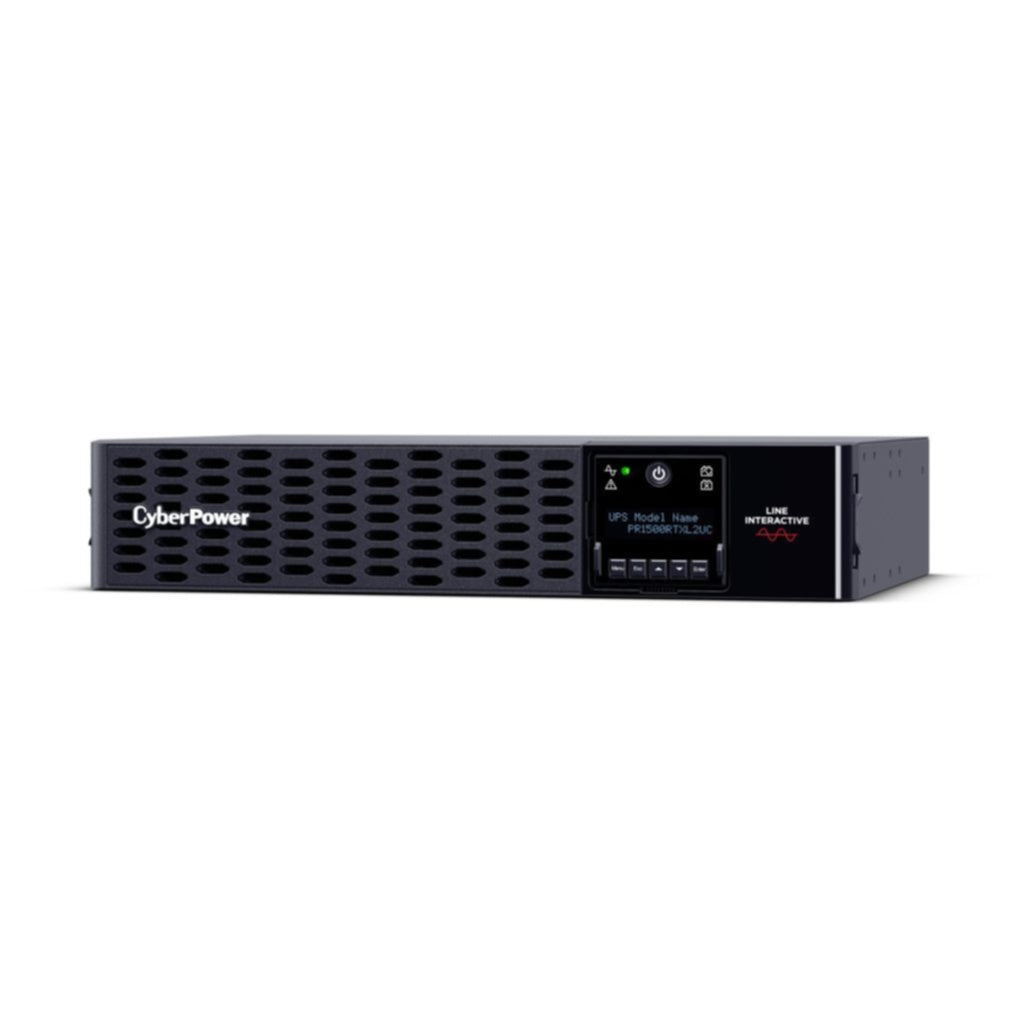

PR1500RTXL2UC – CyberPower Smart App Sinewave 1500VA UPS

BRAND NEW WITH FULL CYBERPOWER WARRANTY!!!

The CyberPower PR1500RTXL2UC is a Smart App Sinewave rack/tower-convertible UPS engineered to provide clean, reliable, and uninterrupted power protection for critical IT and networking equipment. Designed with line-interactive topology, surge protection, and battery backup, it safeguards systems against outages, voltage fluctuations, and power disturbances.

CyberPower’s Smart App Sinewave technology delivers true sine wave output, eliminating power gaps that can disrupt sensitive electronics or cause unexpected shutdowns. This makes the PR1500RTXL2UC especially suitable for ENERGY STAR® and Active PFC power supplies, commonly found in servers, network appliances, and storage systems.

Enhanced Power Reliability & Efficiency

The PR1500RTXL2UC improves battery longevity and efficiency through Battery Equalization Technology, which balances battery voltages to extend battery life, and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. This reduces battery wear while maintaining consistent output voltage.

CyberPower’s GreenPower UPS™ Bypass Design allows utility power to bypass the transformer during stable conditions, reducing energy consumption, heat generation, and operational noise—making it ideal for data centers and IT closets.

Advanced Design & User Experience

This model features an enhanced chassis design with:

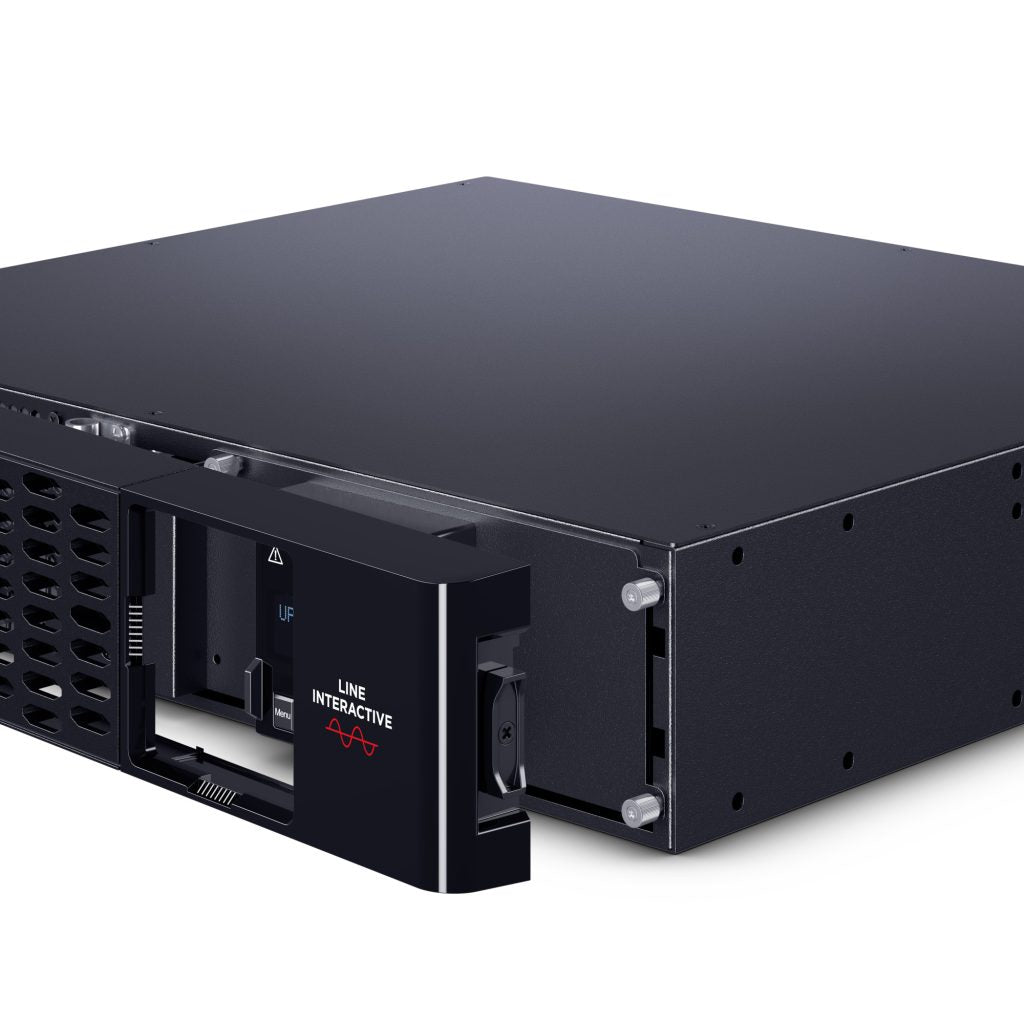

• Toolless front battery access for quick and easy battery replacement
• Captive screws for secure yet simple battery panel access

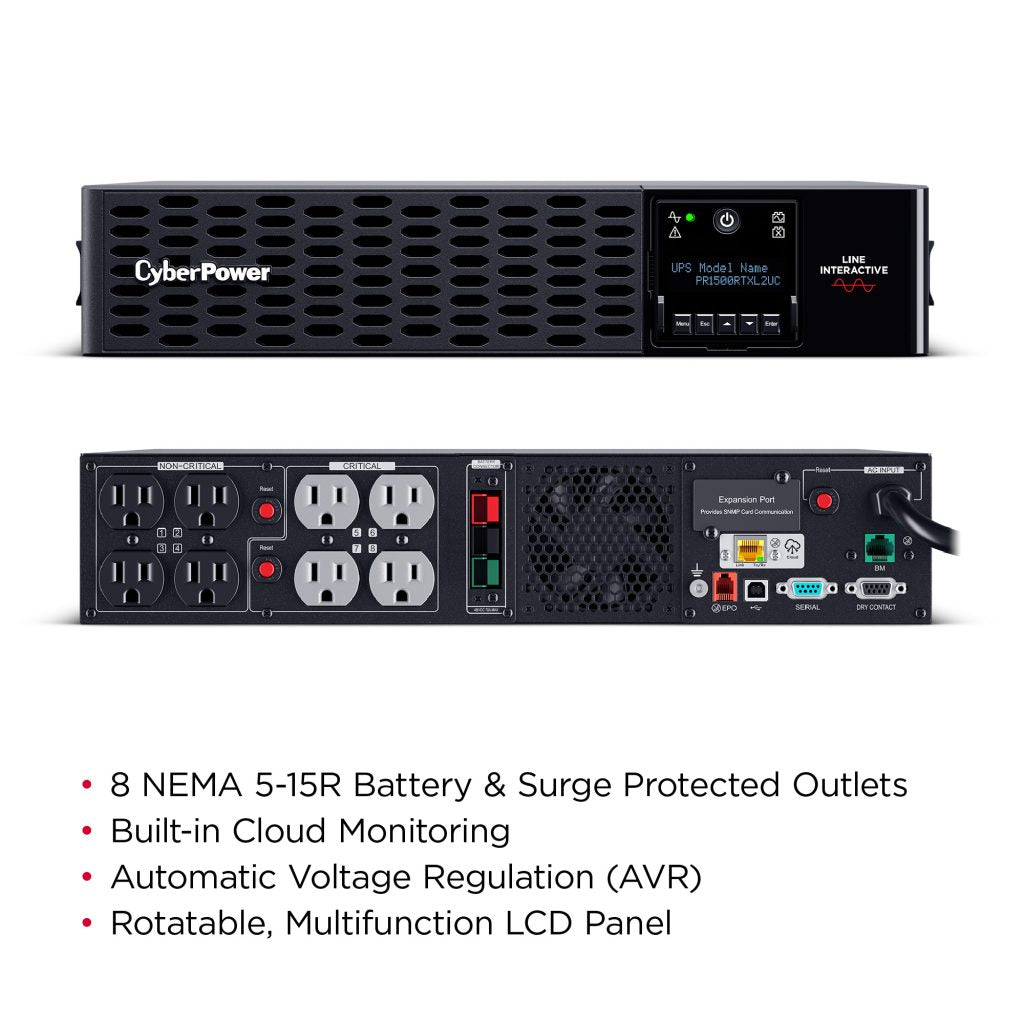

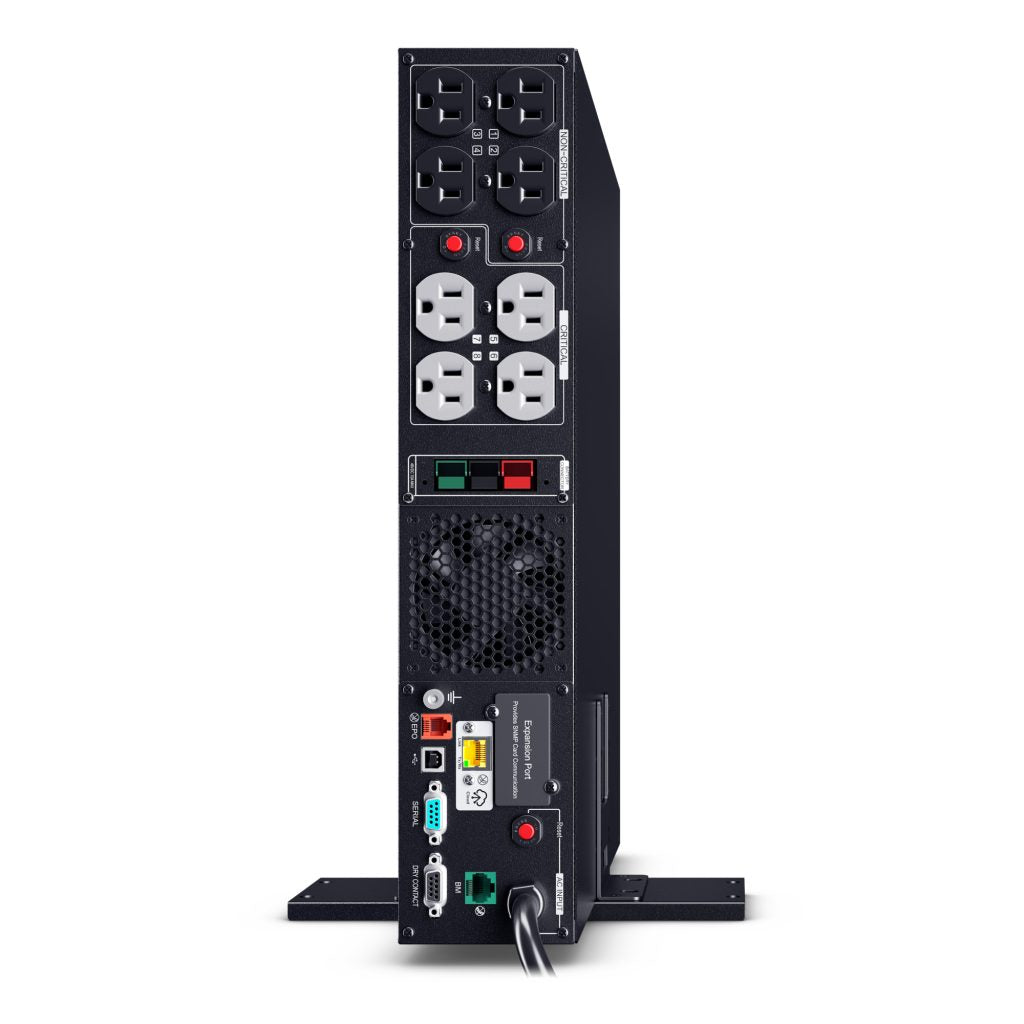

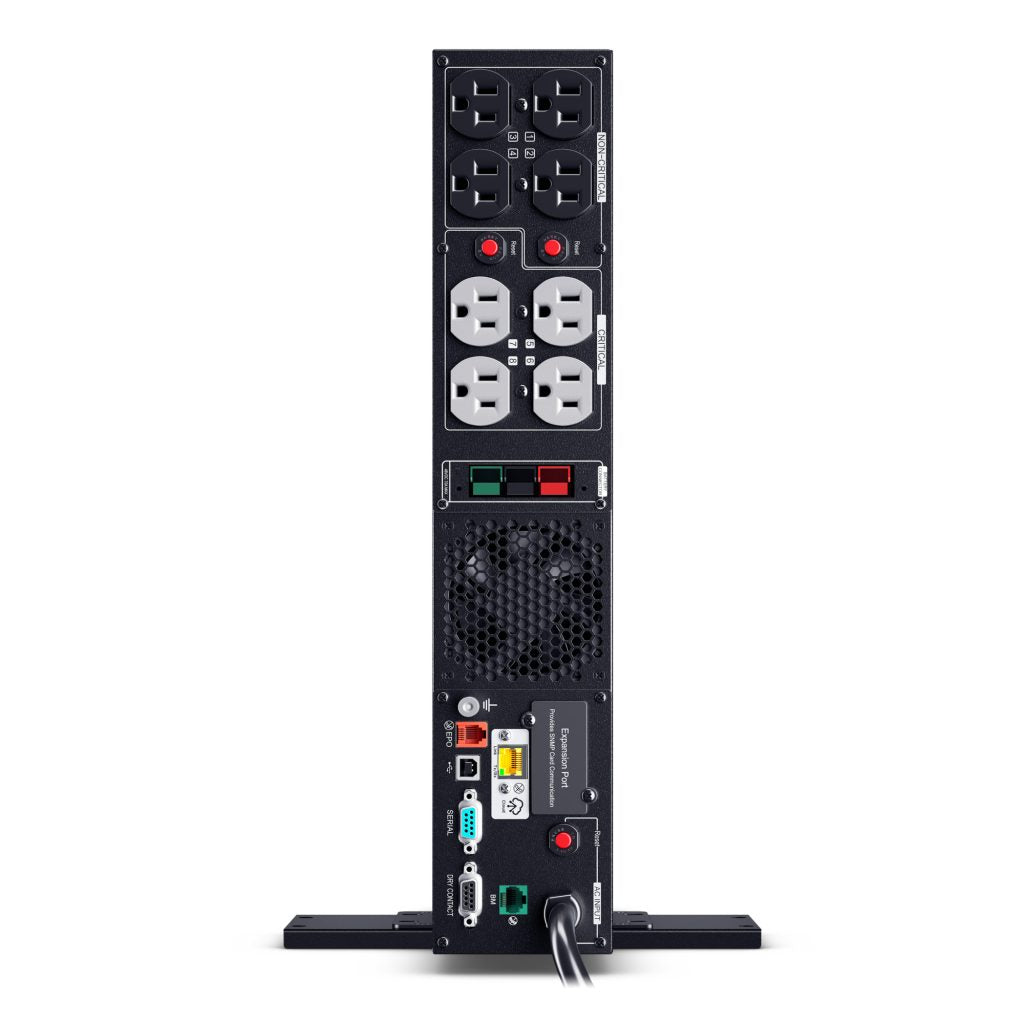

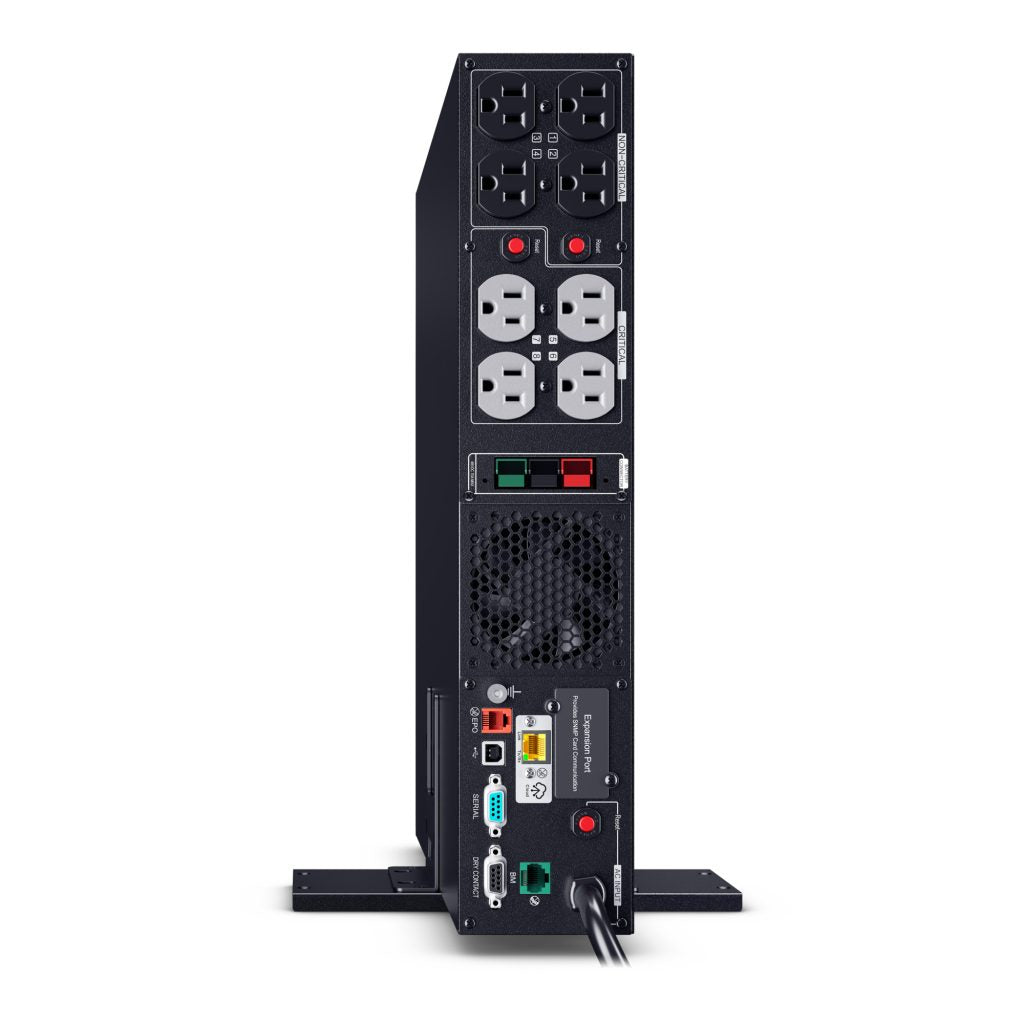

• Color-coded rear panel to simplify installation and cable management

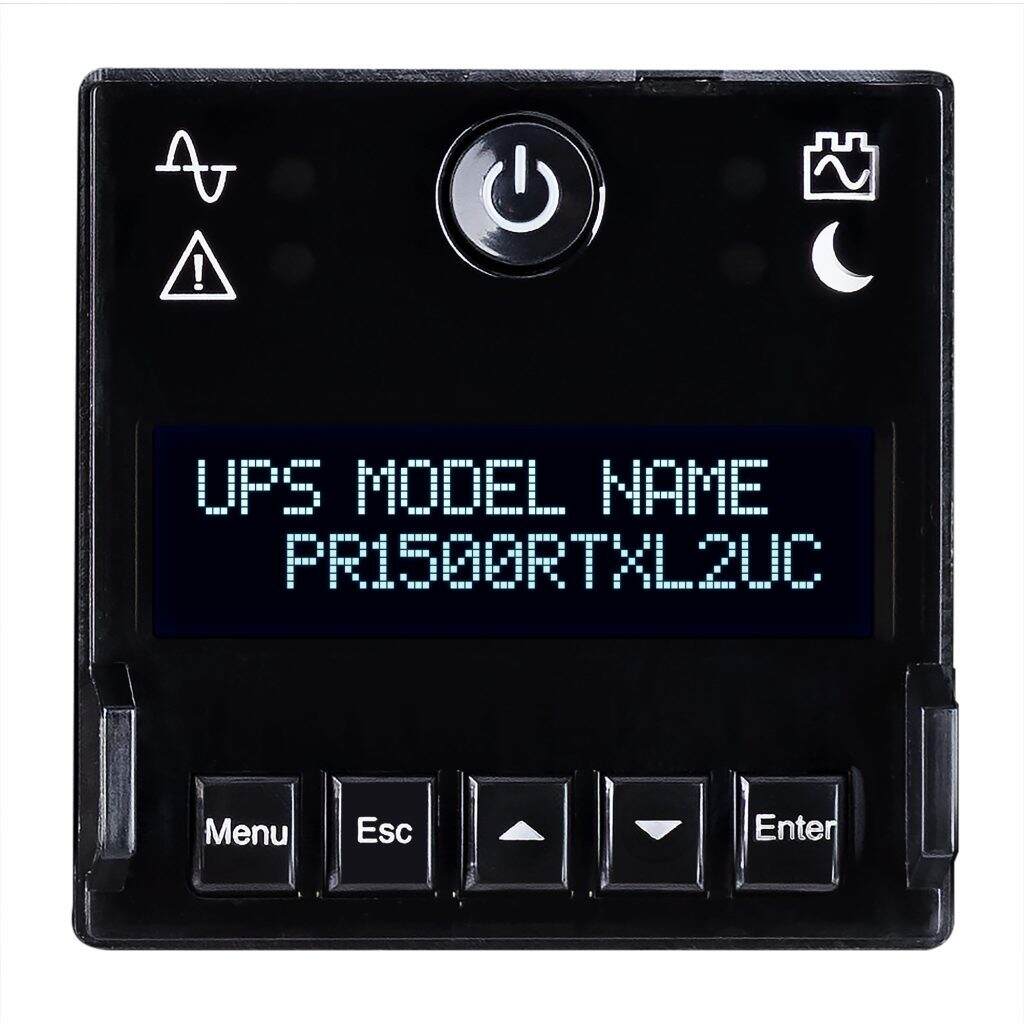

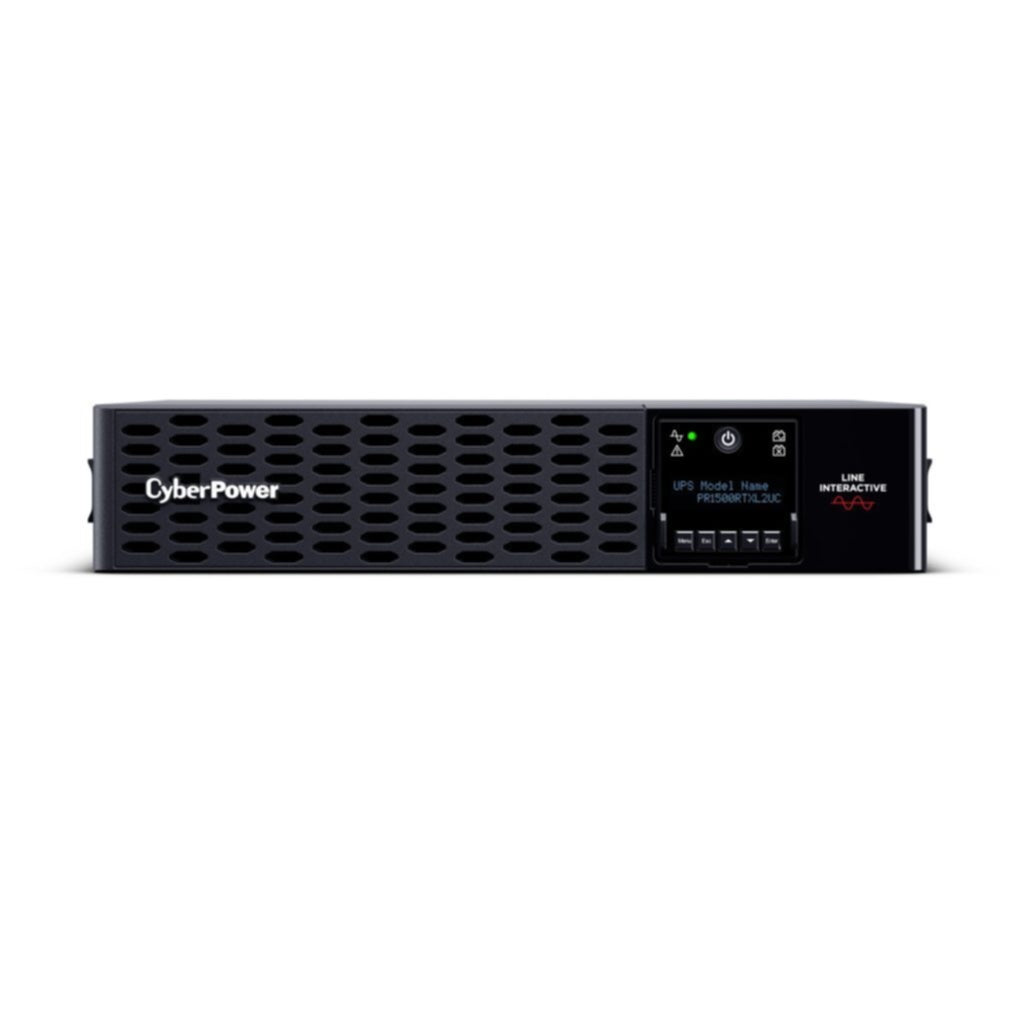

The innovative multifunction LCD panel rotates 90° and tilts for optimal visibility in rack or tower installations. It provides access to 47 different settings, including UPS statistics, configuration options, control management, and diagnostic testing.

Scalability, Management & Monitoring

The PR1500RTXL2UC supports:

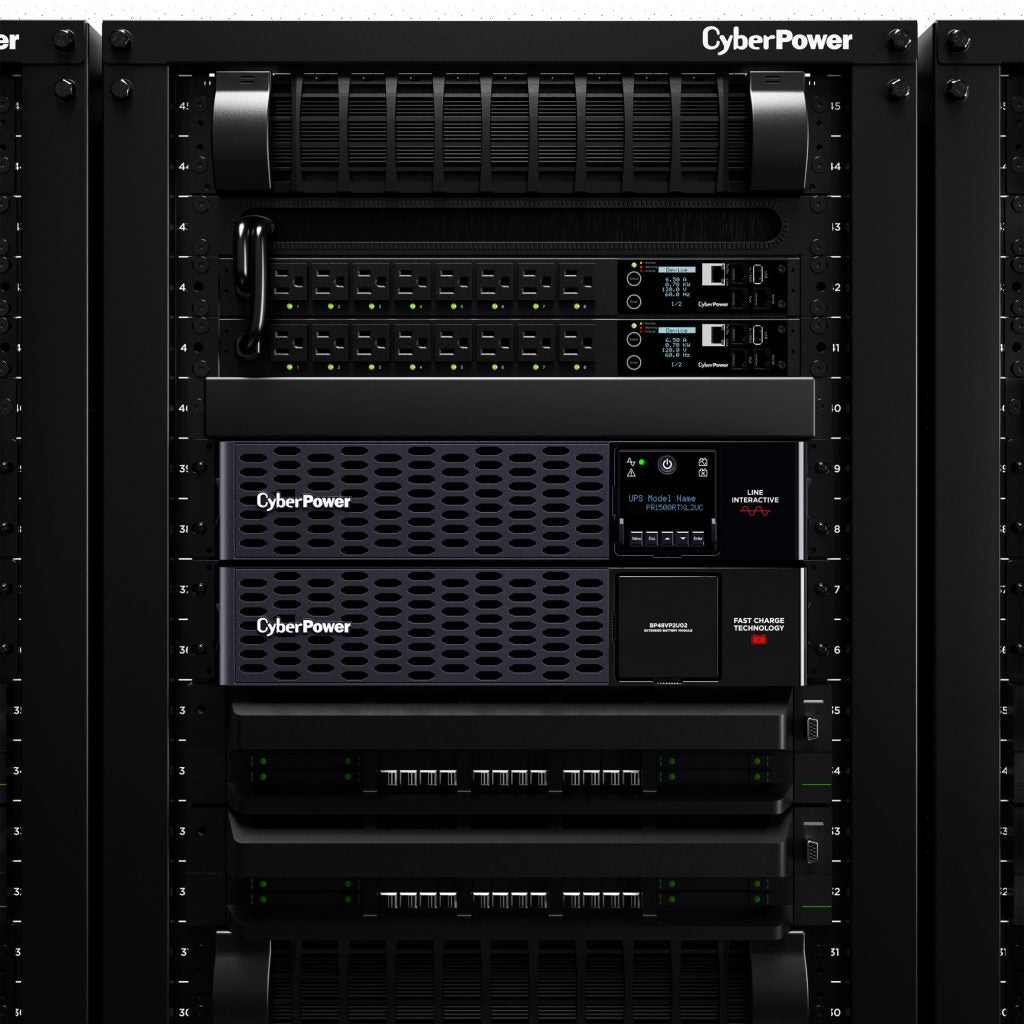

• Extended Battery Module (EBM) BP48VP2U02 for longer runtime during extended outages
• Optional RMCARD205 network management card for remote monitoring and control via standard network management systems
• Built-in cloud monitoring for alerts and visibility

With PowerPanel® Business Edition software, IT administrators gain powerful tools for UPS monitoring, graceful shutdown, event logging, and remote management.

Key Features

Power Protection

• Battery Backup for safe system shutdown
• Line-Interactive Topology
• Automatic Voltage Regulation (Double Boost / Single Buck)
• Pure Sine Wave Output
• Surge Protection (2430 Joules)
• EMI/RFI Filtration

Battery & Charging

• Battery Equalization Technology
• Fast Charge Technology
• Hot-swappable, user-replaceable batteries
• Supports Extended Battery Modules (EBMs)

Usability & Design

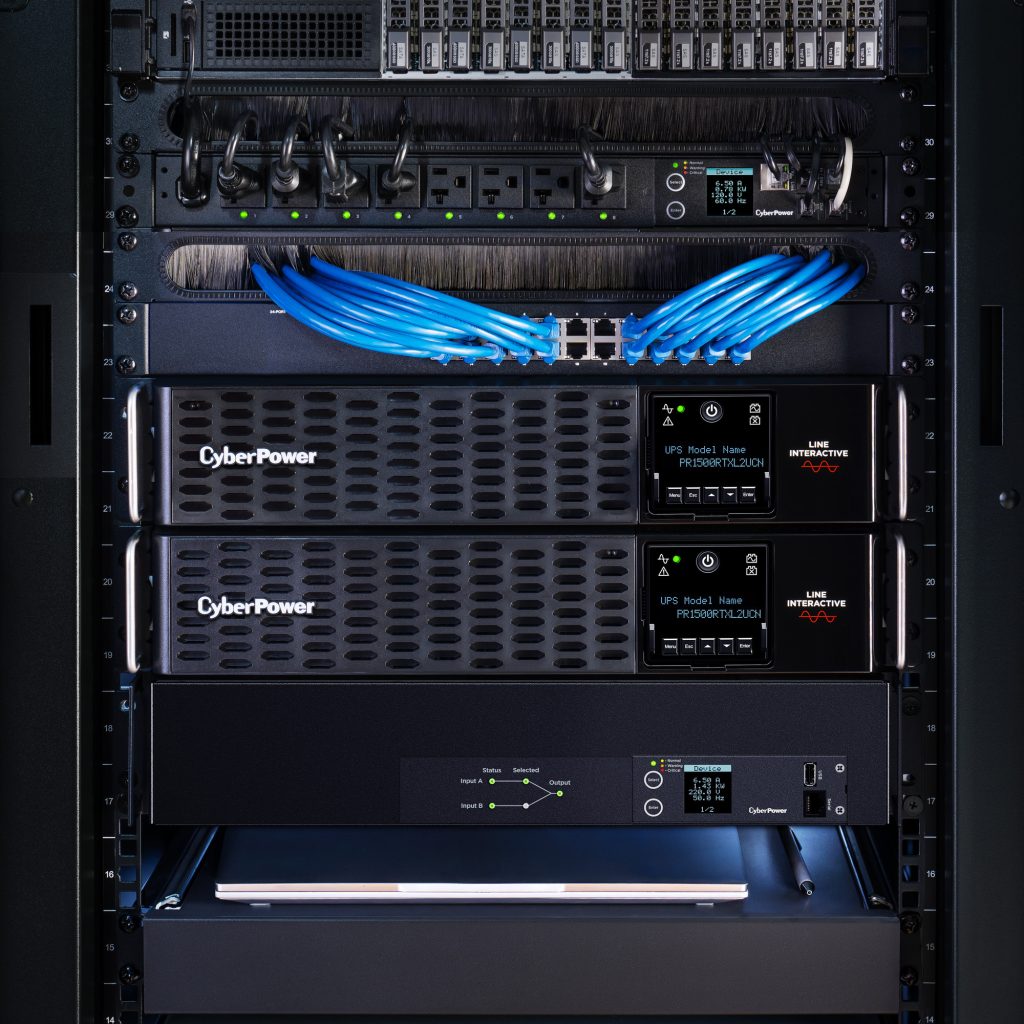

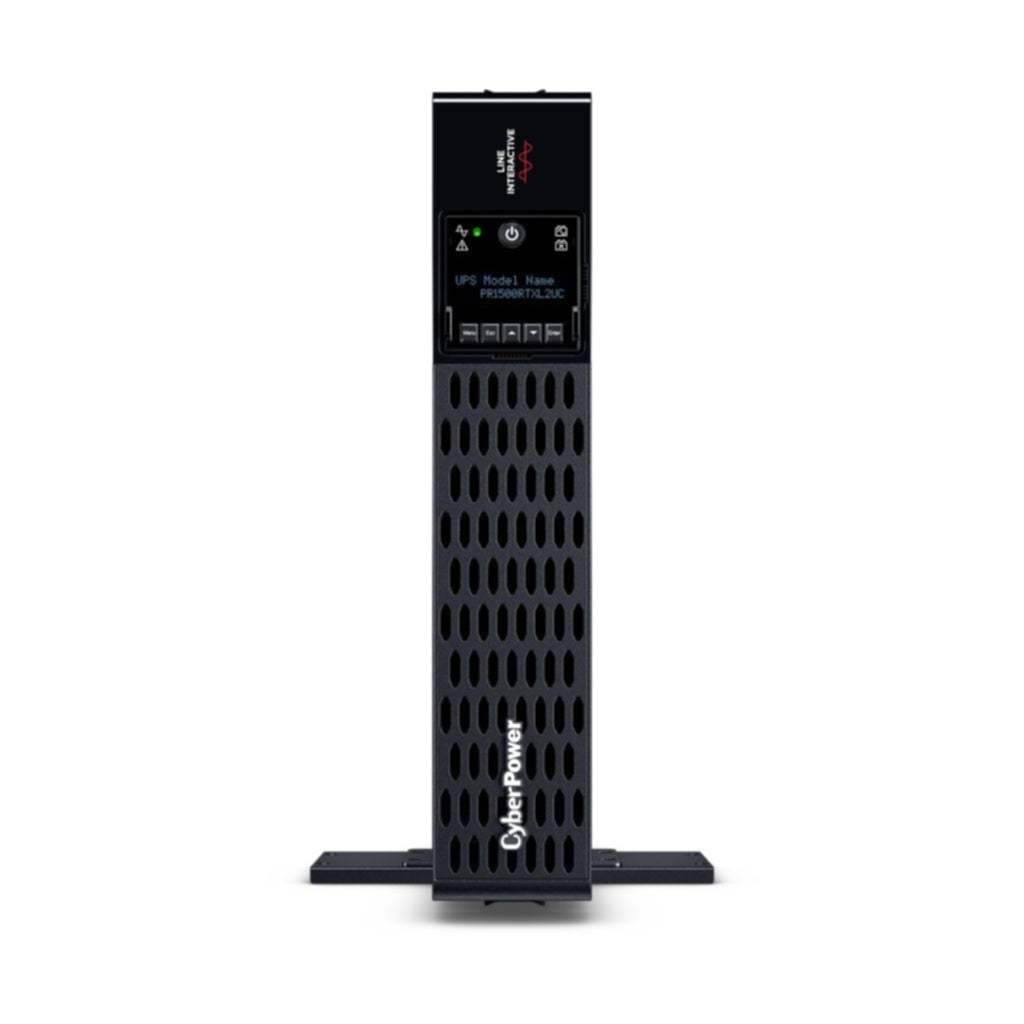

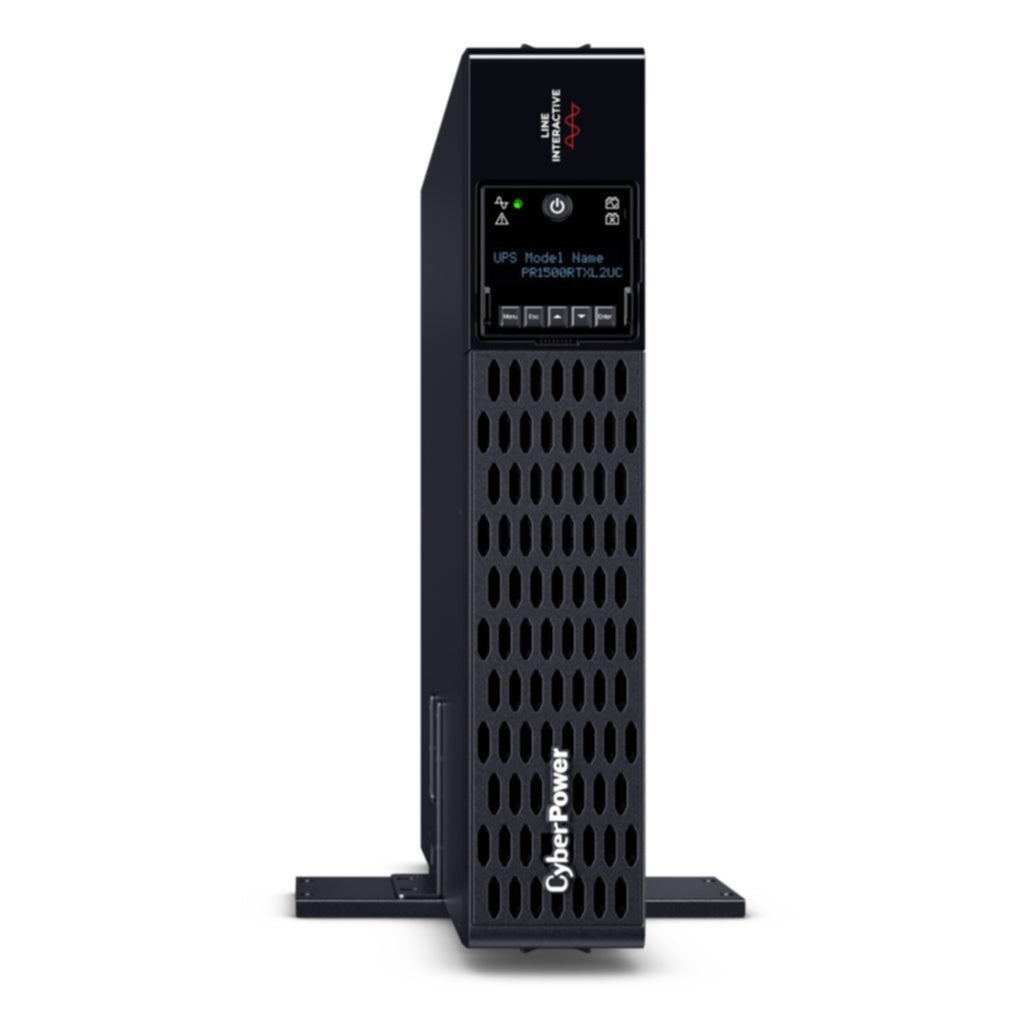

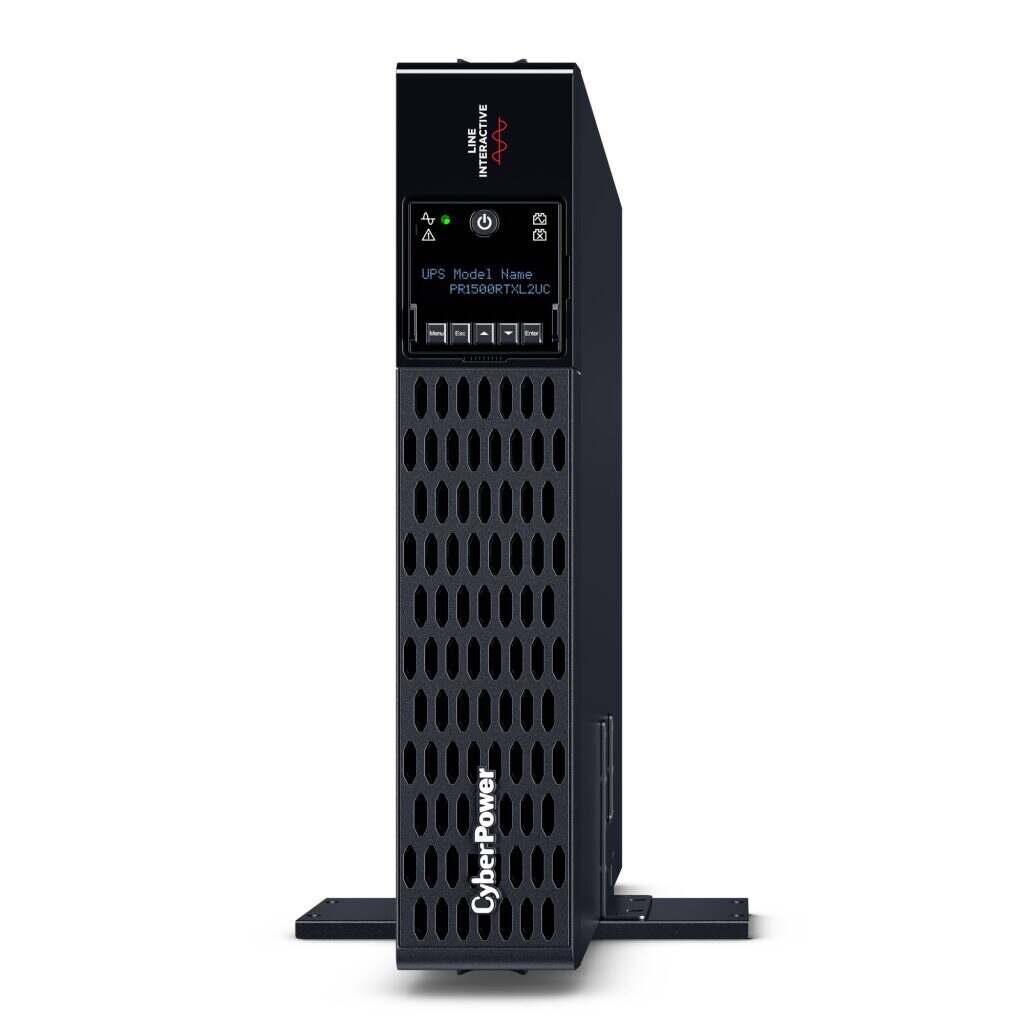

• Rack/Tower Convertible (2U rack height)
• Rotatable Multifunction LCD Display
• Toolless Battery Panel Access
• GreenPower UPS™ Energy-Saving Design

Technical Specifications

Capacity & Output

• VA Rating: 1500 VA
• Power: 1500 W
• Output Power Factor: 1
• On-Battery Waveform: Sine Wave
• Typical Transfer Time: 6 ms (max 11 ms)

Battery

• Battery Quantity: 4
• Battery Type: Sealed Lead-Acid
• Battery Size: 12V / 9Ah
• Runtime @ Full Load: 6.5 minutes
• Runtime @ Half Load: 17.9 minutes
• Recharge Time: 3 hours (0–90%)

Input / Output

• Input Voltage: 100–125 VAC
• Input Voltage Range: 70–155 VAC
• Input Plug: NEMA 5-15P (Right-Angle)
• Cord Length: 10 ft

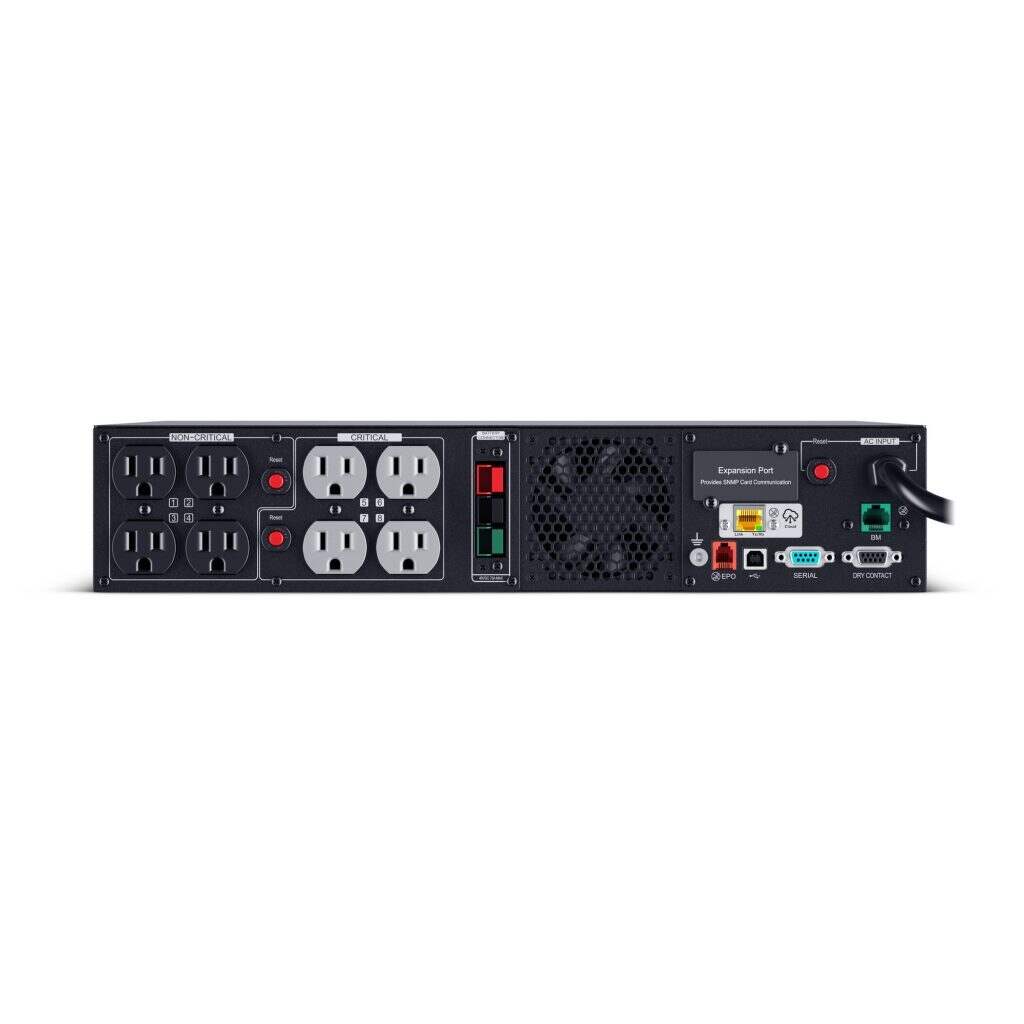

• Outlets: 8 × NEMA 5-15R (Battery & Surge)
• Critical Load Outlets: 4

Management & Communication

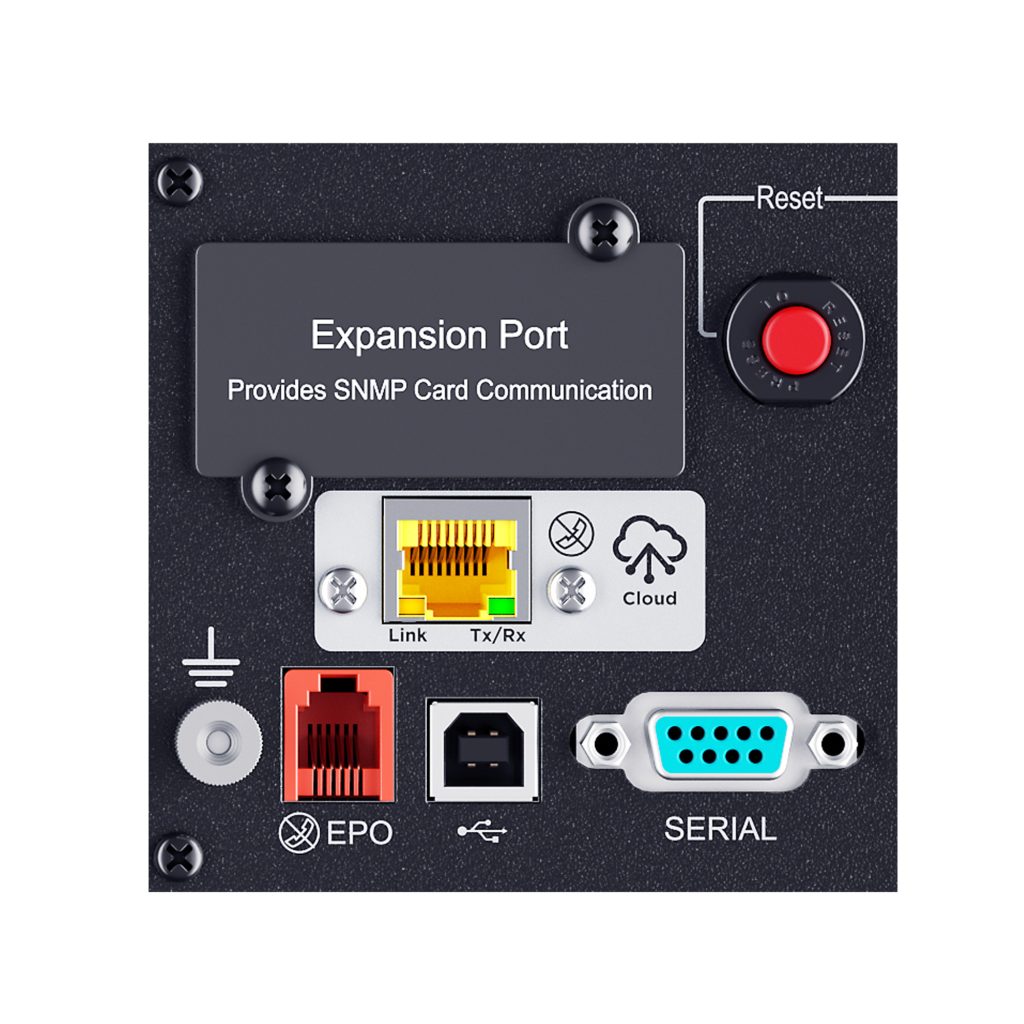

• USB, Serial, SNMP, Dry Contact, EPO
• Multifunction LCD & LED indicators
• Audible alarms (Battery, Overload, Fault)
• PowerPanel® Business software (free download)

Physical Specifications

• Form Factor: Rack / Tower
• Rack Height: 2U

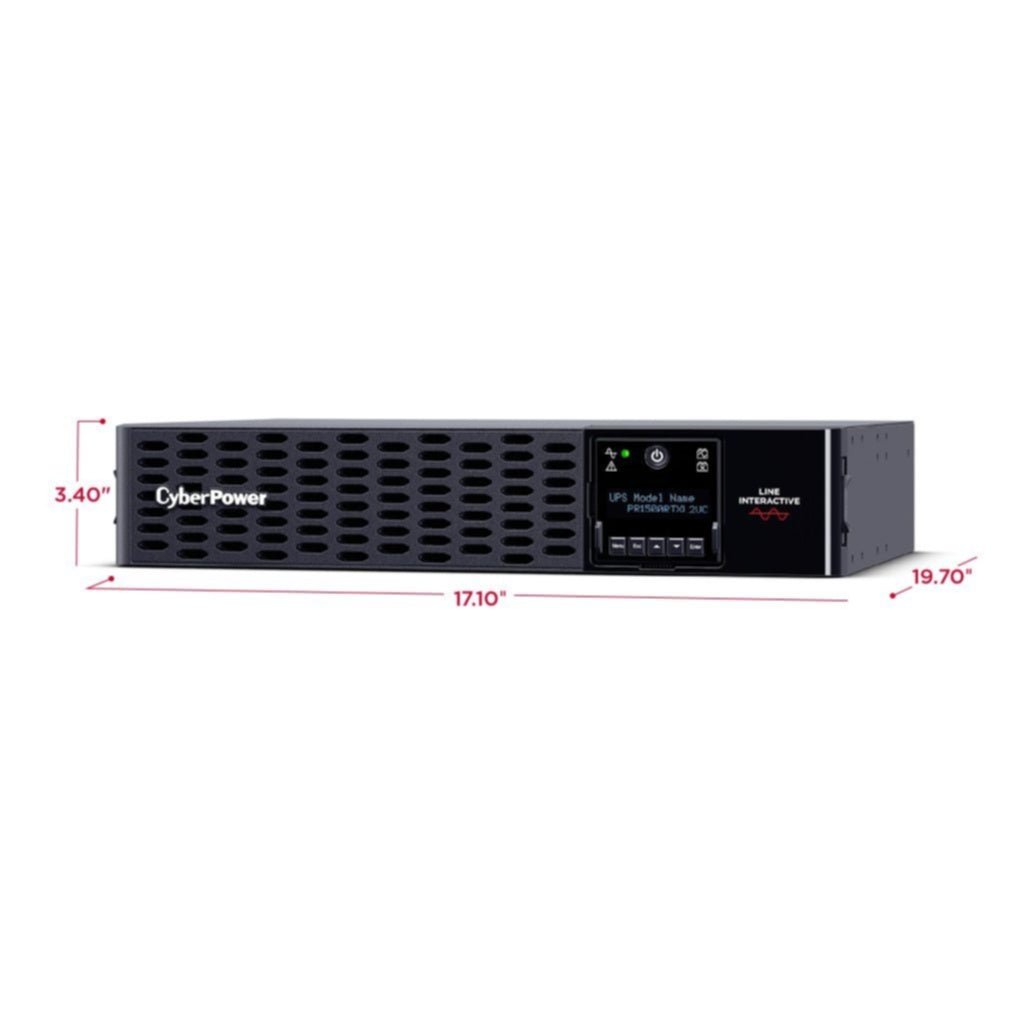

• Dimensions (W × H × D):
• 17.1 × 3.4 × 19.7 in
• 43.43 × 8.64 × 50.04 cm
• Weight:
• 67.7 lbs (30.71 kg)

Shipping

• Shipping Weight: 82 lbs (37.19 kg)
• Shipping Dimensions: 22 × 10.75 × 24.25 in

Typical Applications

• Corporate & Department Servers
• Network & Security Devices
• Storage Systems & NAS
• Telecom & VoIP Installations
• Data Centers & IT Closets

What’s in the Box

• UPS System
• Faceplate
• UPS User Manual
• 2-Post Rack Mounting Kit
• 4-Post Rail Kit
• Tower Mounting Kit
• Emergency Power Off Cable
• USB A-to-B Cable

Warranty & Protection

• Product Warranty: 3-Year Limited Warranty
• Connected Equipment Guarantee: $400,000
• ENERGY STAR® Certified
• RoHS Compliant

FAQs – CyberPower PR1500RTXL2UC

Q1: Is this UPS suitable for rack mounting?
Yes. It is a 2U rackmount UPS and also supports tower installation.

Q2: Can runtime be extended?
Yes. The UPS supports the BP48VP2U02 Extended Battery Module for longer runtime.

Q3: Does it support remote monitoring?
Yes. It supports USB, SNMP, cloud monitoring, and optional network management cards.

Q4: Is it compatible with Active PFC power supplies?
Yes. The pure sine wave output is ideal for modern Active PFC systems.

Q5: What kind of environments is this UPS best for?
It is ideal for data centers, enterprise IT rooms, telecom installations, and mission-critical business systems.
