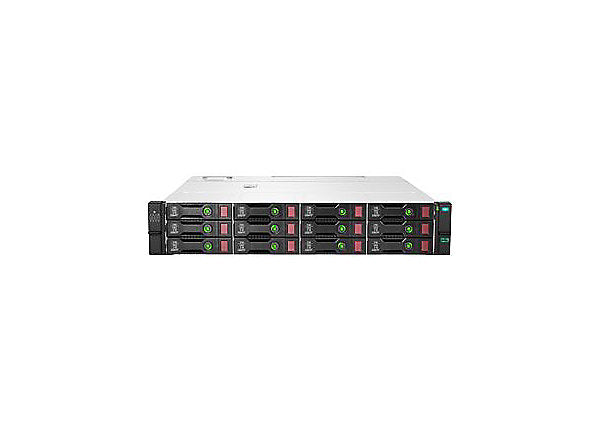

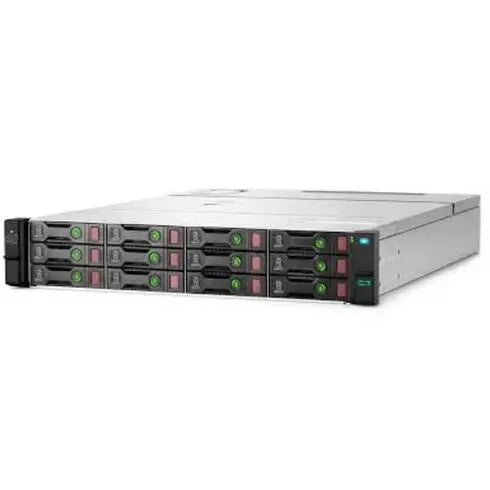

HPE D3610 12-Bay Storage Enclosure – Q1J09A

REFURBISHED. EXCELLENT CONDITION. 90 DAY CCS WARRANTY INCLUDED. AVAILABLE FROM CHICAGO COMPUTER SUPPLY.

Overview

Organizations facing increasing storage demands require scalable and cost-effective storage expansion without deploying full SAN or NAS infrastructure.

The HPE D3610 12-Bay Storage Enclosure (Q1J09A) is a 2U enterprise storage expansion enclosure designed for HPE ProLiant and BladeSystem environments. Featuring support for up to 12 LFF drives, 12Gb SAS connectivity, and redundant enterprise power infrastructure, the D3610 provides flexible direct-attached storage expansion for backup, archive, virtualization, and business-critical workloads.

As part of the HPE D3000 enclosure family, the D3610 enables businesses to expand storage capacity incrementally while maintaining compatibility with HPE SmartDrive infrastructure and enterprise storage environments.

Key Features

• 12-bay enterprise storage enclosure
• Supports large form factor (LFF) drives
• 12Gb SAS connectivity
• Scalable external storage expansion
• Redundant hot-plug power supplies
• Compatible with HPE ProLiant environments
• Rack-mountable 2U design
• Refurbished enterprise storage solution

Technical Specifications

Brand: HPE
Model: D3610
Part Number: Q1J09A
Product Type: Storage Enclosure

Drive Bays

• 12 × LFF drive bays
• 12 × 3.5-inch hot-swap drive bays
• Supports up to 12 drives installed

Storage Capacity

Maximum supported capacity: 120 TB

Connectivity

• 1 × 12Gb SAS interface
• Supports Serial ATA-600 and SAS 3

Expansion Support

• Flexible modular storage expansion
• Compatible with HPE SmartDrive carriers

Power Supply

• Dual hot-plug redundant power supplies
• 1+1 power redundancy configuration
• 460W power supplies
• 80 PLUS Gold certified

Features

• 92% efficient power supply
• Redundant cooling fans

Included Accessories

• Rack mounting kit included
• 2 × PDU interconnect cords included

Physical Specifications

• Form Factor: Rack-mountable
• Rack Height: 2U
• Width: 17.6 inches
• Depth: 23.5 inches
• Height: 3.4 inches
• Weight: 37.92 lbs

Use Cases

• Enterprise storage expansion
• Backup and archive infrastructure
• Bulk-capacity storage environments
• Direct-attached storage deployments
• Virtualization storage expansion
• Departmental storage growth
• SMB and enterprise data retention
• High-capacity business storage

Why Choose the HPE D3610 Q1J09A

• Cost-effective enterprise storage expansion
• Large-capacity LFF storage architecture
• 12Gb SAS connectivity improves storage throughput
• Redundant power and cooling improve reliability
• Compatible with HPE ProLiant server environments
• Simplifies storage scaling without SAN complexity
• Flexible modular expansion design
• Refurbished enterprise storage platform with warranty coverage

FAQs

What is the HPE D3610 Q1J09A used for?
It is used for expanding storage capacity in HPE ProLiant and BladeSystem environments.

How many drives does the enclosure support?
The enclosure supports up to 12 LFF drives.

Does the enclosure include hard drives?
No. Drives are not included unless specified separately.

What connectivity does the enclosure use?
It uses 12Gb SAS connectivity with support for SATA and SAS drives.

Is this a standalone SAN or NAS system?
No. This is a storage expansion enclosure that requires connection to compatible server or storage infrastructure.
