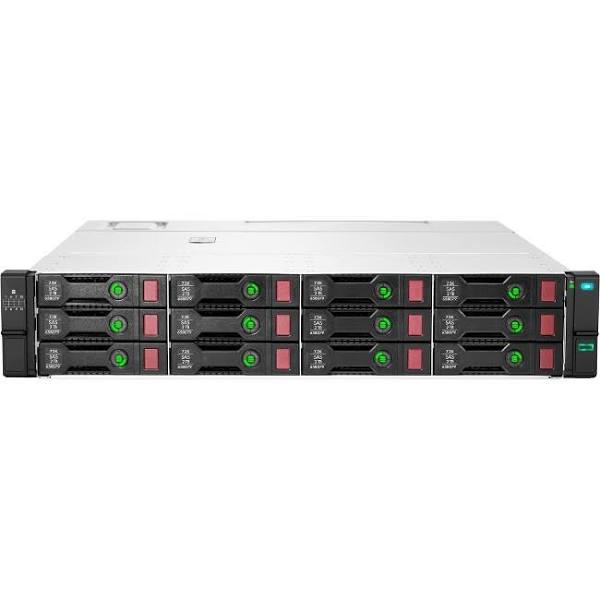

HPE D3610 12-Bay Storage Enclosure – Q1J14A

BRAND NEW. FULL THREE-YEAR HPE WARRANTY INCLUDED. AVAILABLE FROM CHICAGO COMPUTER SUPPLY.

Overview

Organizations experiencing rapid data growth need scalable external storage expansion without the cost and complexity of migrating to full SAN or NAS infrastructure.

The HPE D3610 12-Bay Storage Enclosure (Q1J14A) is a 2U enterprise storage enclosure designed to provide cost-effective and scalable direct-attached storage expansion for HPE ProLiant servers and BladeSystem environments. Featuring 12 large form factor drive bays, 12Gb SAS connectivity, and redundant power supplies, the D3610 delivers reliable high-capacity storage for backup, archive, virtualization, and business-critical data workloads.

Built for SMB and enterprise environments, the D3610 allows organizations to expand storage incrementally while maintaining compatibility with HPE SmartDrive infrastructure.

Key Features

• 12-bay enterprise storage enclosure
• 12Gb SAS storage expansion platform
• Supports up to 120TB storage capacity
• Large form factor 3.5-inch drive support
• Redundant hot-plug power supplies
• Compatible with HPE ProLiant environments
• Scalable modular storage expansion
• Enterprise-grade rack-mountable design

Technical Specifications

Brand: HPE
Model: D3610
Part Number: Q1J14A
Product Type: Storage Enclosure

Drive Bays

• 12 × LFF drive bays
• Supports up to 12 drives installed

Storage Capacity

Maximum supported capacity: 120 TB

Installed Drives

• 12 × 10 TB HDDs included
• Midline enterprise drives

Drive Interface

• Serial ATA-600
• SAS 3 / 12Gb SAS support

Drive Specifications

• 3.5-inch form factor
• 7200 RPM spindle speed

Expansion Support

• Modular external storage expansion
• Supports HPE SmartDrive carriers

Power Supply

• Dual redundant hot-plug power supplies
• 1+1 power redundancy design
• 460W power supplies
• 80 PLUS Gold certified

Power Consumption

Operational power consumption: 403W

Form Factor

2U rack-mountable storage enclosure

Dimensions

• Width: 17.6 inches
• Depth: 23.5 inches
• Height: 3.4 inches

Weight

59.97 lbs

Use Cases

• Enterprise storage expansion
• Backup and archive storage
• Large-capacity business data storage
• Virtualization storage expansion
• Departmental storage environments
• Direct-attached storage infrastructure
• SMB and enterprise storage growth
• Long-term data retention

Why Choose the HPE D3610 Q1J14A

• Cost-effective enterprise storage expansion
• High-capacity 12-bay LFF architecture
• 12Gb SAS connectivity improves storage performance
• Redundant power supplies improve availability
• Compatible with HPE ProLiant server environments
• Flexible modular storage scalability
• Simplifies external storage growth without SAN complexity
• Brand new with full three-year HPE warranty

FAQs

What is the HPE D3610 Q1J14A used for?
It is used for expanding storage capacity in HPE ProLiant and BladeSystem environments.

How many drives does the enclosure support?
The enclosure supports up to 12 LFF drives.

What is the maximum supported capacity?
The system supports up to 120 TB of storage capacity.

Does the enclosure include drives?
Yes. It includes 12 × 10 TB enterprise HDDs.

Does the system include redundant power supplies?
Yes. It includes dual hot-plug redundant power supplies.
