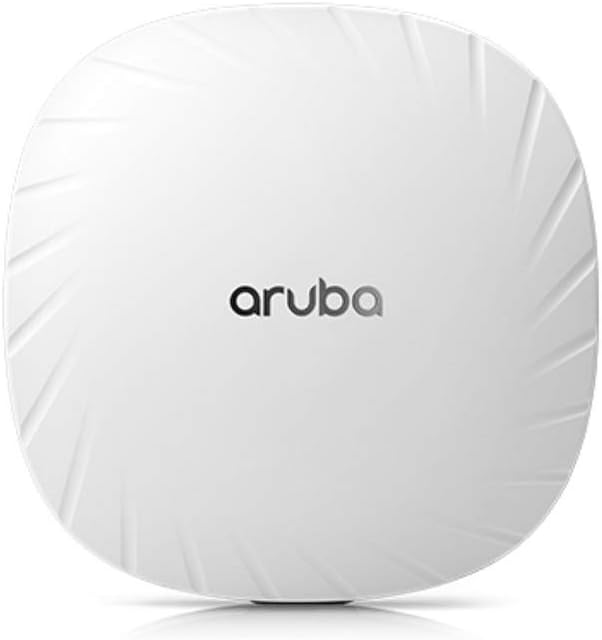

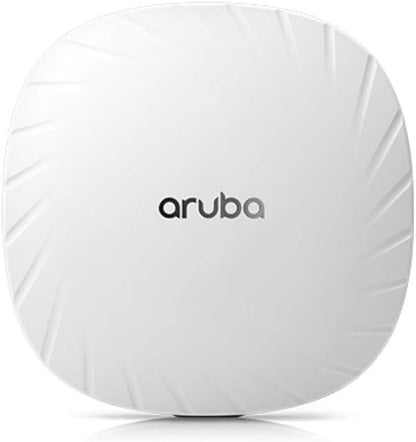

HPE Aruba AP-514 US Unified Wireless Access Point Q9H58A

HPE · Wireless-N · Wireless-AC · Dual Band · MIMO

BRAND NEW FACTORY SEALED & RETAIL BOXED WITH THE FULL HPE WARRANTY!!!

With an increasing number of mobile and Internet of Things (IoT) devices reliant on wireless access, networks must be capable of accommodating a diverse mixture of device types, applications and services.

The Aruba 510 series campus access points with 802.11ax technology are designed to deliver high-performance access for mobile and (IOT) devices in environments where density is an issue. The 510 series uses 802.11ax features to efficiently and simultaneously serve multiple clients and traffic types in dense environments, increasing data rates for both individual device and overall system.

Specifications

• Manufacturer: Aruba
• Brand: HPE
• Product Line: HPE Aruba
• Model: AP-514 (US)
• Edition: Campus
• Packaged Quantity: 1
• Antenna Form Factor: External
• Directivity: Omni-directional
• Antenna Qty: 4
• Ruggedized Design: Indoor
• Line Coding Format: 256 QAM, CCK, 16 QAM, QPSK, BPSK, OFDM, 1024 QAM, 64 QAM
• Performance: Maximum data rate (5 GHz): 4.8 Gbps, Maximum data rate (2.4 GHz): 575 Mbps, Peak data rate: 5.4 Gbps
• Type: Wireless access point
• Form Factor: In-ceiling
• Connectivity Technology: Wireless
• Data Link Protocol: IEEE 802.11g, IEEE 802.11a, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11b
• Wireless Protocol: 802.11a/b/g/n/ac
• Wi-Fi Bands: 2.4 GHz, 5 GHz
• Spread Spectrum Method: DSSS, OFDM
• Power Over Ethernet (PoE): PoE
• Status Indicators: System, Status
• Interfaces: 4 x antenna - RP-SMA, 1 x 1000Base-T (PoE+) - RJ-45, 1 x HPE Smart Rate - RJ-45, 1 x USB 2.0 - Type A, 1 x serial / console - micro-USB
• Power Consumption Operational: 20.8 watt
• Color Category: White
• MTBF: 560,000 years
• Compliant Standards: UL 2043, EN60601-1-2, ETS 300 019 Class 2.3, LVD 2014/35/EU, EN 60601-1-1, ETS 300 019-1-2, IEC/EN/UL 60950, EMC 2014/30/EU, FCC, ISED
• Width: 7.9 inch
• Depth: 7.9 inch
• Height: 1.8 inch
• Weight: 28.57 ounce
• Shipping Width: 9.1 inch
• Shipping Depth: 8.7 inch
• Shipping Height: 2.8 inch
• Shipping Weight: 2.23 lbs

UPC : 00190017273587
