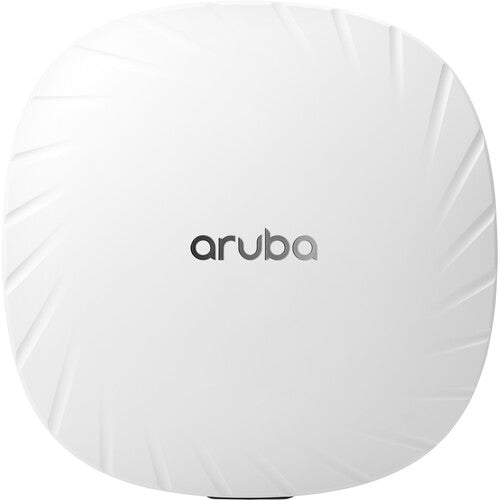

HPE Aruba AP-515 Dual-Band Wireless Access Point Q9H73A

The Aruba 510 series campus access points with 802.11ax technology are designed to deliver high-performance access for mobile and (IOT) devices in environments where density is an issue. The 510 series uses 802.11ax features to efficiently and simultaneously serve multiple clients and traffic types in dense environments, increasing data rates for both individual device and overall system.

• Brand: HPE
• SKU: Q9H73A
• Device Type: Wireless Access Point
• Wi-Fi: Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz) with MU-MIMO Support (4 x 4)
• Number of Antennas: 4
• Antenna Gain: 1.9 to 3.5 dBi
• Transmit Power: 21 to 24 dBm
• Antenna Placement: Internal
• Bluetooth: Yes
• Throughput: 2690 Mb/s Total
• Inputs/Outputs: 1x RJ45 2.5 GbE PoE+ (30 W, 802.3at), 1x USB-A 2.0, 1x Micro-USB LAN
• USB Sharing Support: Yes
• Wireless Security: WPA, WPA2-PSK, WPA3
• Operation Modes: Access Point
• Mobile App Compatible: Yes
• Supported IEEE Standards: 802.11a, 802.11ac, 802.11ax, 802.11b, 802.11g, 802.11n, 802.3af (PoE 15.4 W), 802.3at (PoE+ 30 W), 802.3bt Type 3 (PoE++ 60 W)
• Power Consumption: 12.6 W
• Operating Temperature: 32 to 82°F / 0 to 50°C
• Storage Temperature: -40 to 158°F / -40 to 70°C
• Operating Humidity: 5 to 93%
• Environmental Protection: No
• Mount Options: Wall, Ceiling
• Dimensions: 7.9 x 7.9 x 1.8" / 200 x 200 x 46 mm
• Weight: 28.6 oz / 810 g
