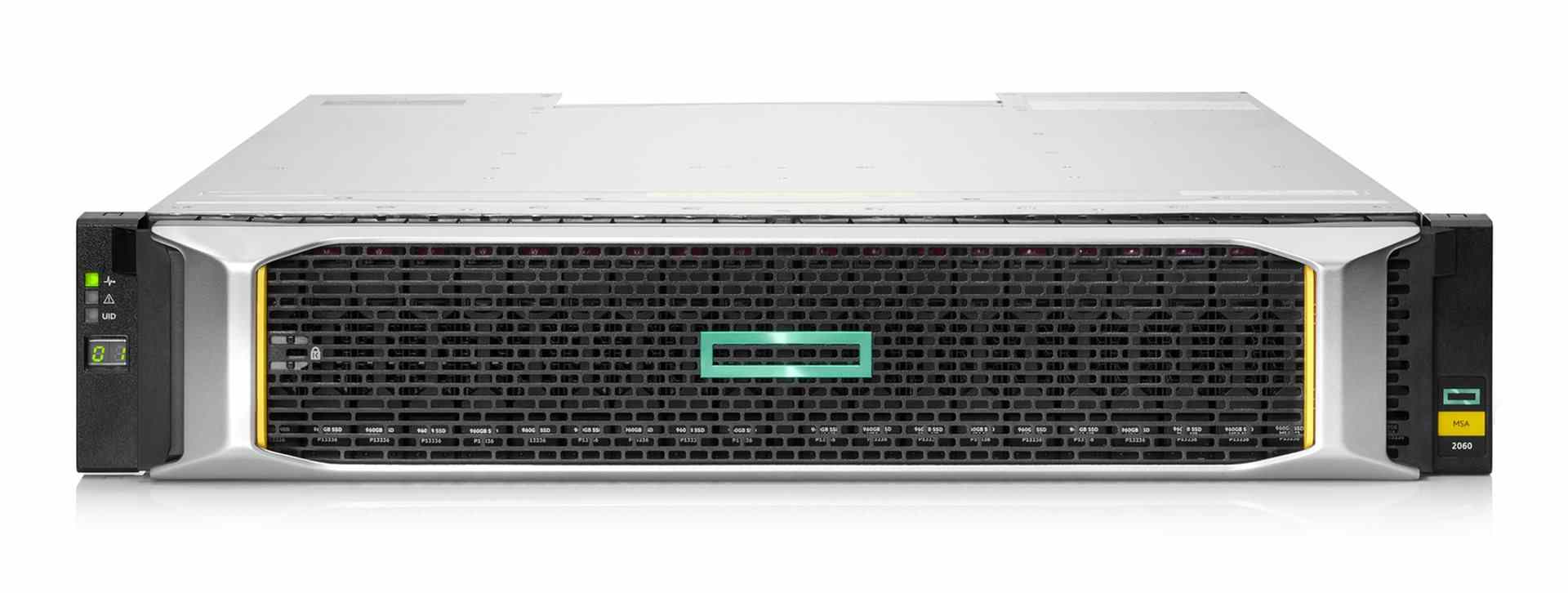

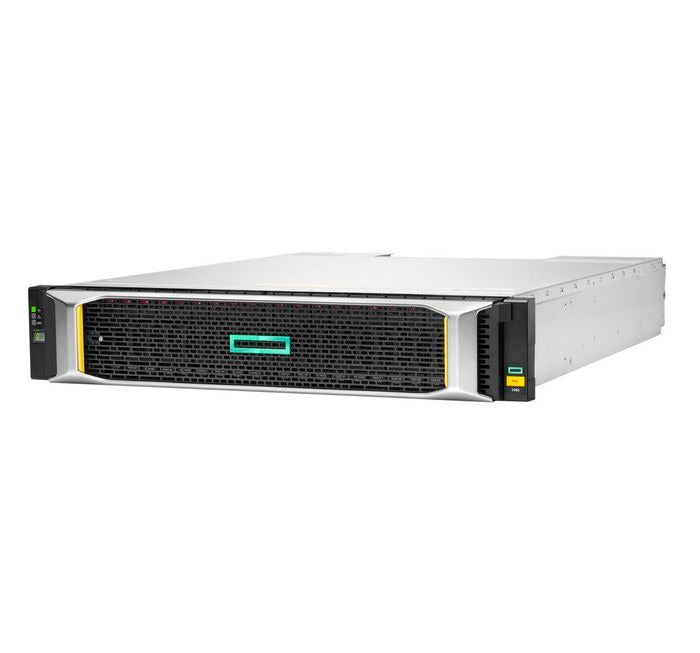

HPE MSA 2062 16Gb Fibre Channel SFF Storage Array – R0Q80A

BRAND NEW WITH THE FULL HPE WARRANTY!!!

Overview

The HPE MSA 2062 16Gb Fibre Channel Storage Array (R0Q80A) is a high-performance, entry-level SAN solution built for small and medium-sized businesses requiring enterprise-class storage, high-speed Fibre Channel connectivity, and affordable application acceleration. Delivering over 325,000 IOPS, the HPE MSA 2062 provides exceptional performance for virtualization, databases, backup environments, and business-critical workloads.

This storage platform includes dual HPE MSA 2060 16Gb Fibre Channel controllers and 3.84TB of integrated SSD capacity using two preinstalled 1.92TB Read Intensive SSDs. With support for up to 921TB of scalable storage capacity, the MSA 2062 enables organizations to expand storage infrastructure while maintaining reliability, performance, and cost efficiency.

Key Features

• Dual-controller 16Gb Fibre Channel SAN storage array
• Includes 3.84TB SSD storage capacity
• Delivers over 325,000 IOPS
• 8-port 16Gb Fibre Channel connectivity
• Supports up to 921TB storage expansion
• Enterprise-grade SAN reliability
• SAN backup and storage mirroring support

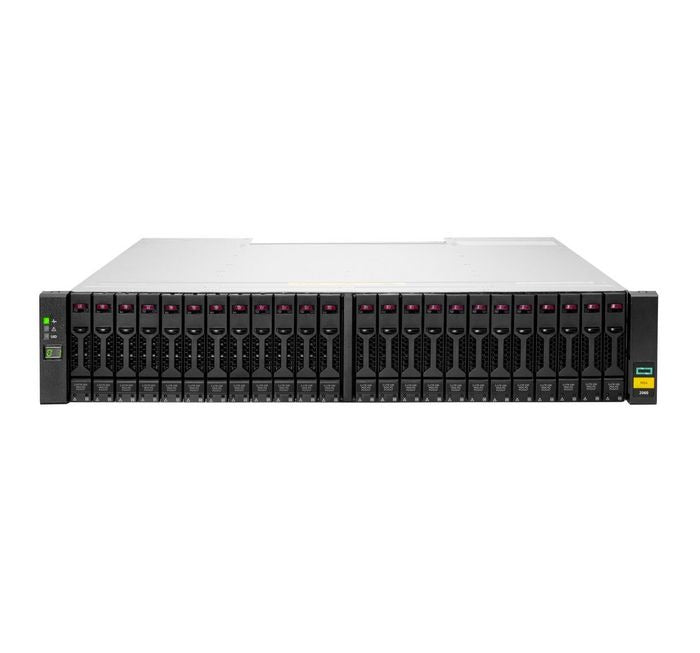

• 24 SFF drive bay scalability
• Energy Star compliant
• Optimized for virtualization and enterprise applications

Technical Specifications

Brand: HPE
Product Line: MSA 2062
Part Number: R0Q80A
Product Type: Fibre Channel SAN Storage Array

Included Storage

• 2 × HPE 1.92TB Read Intensive SFF SSDs
• Total included SSD capacity: 3.84TB

Storage Capacity

Maximum supported storage: 921TB

Storage Controllers

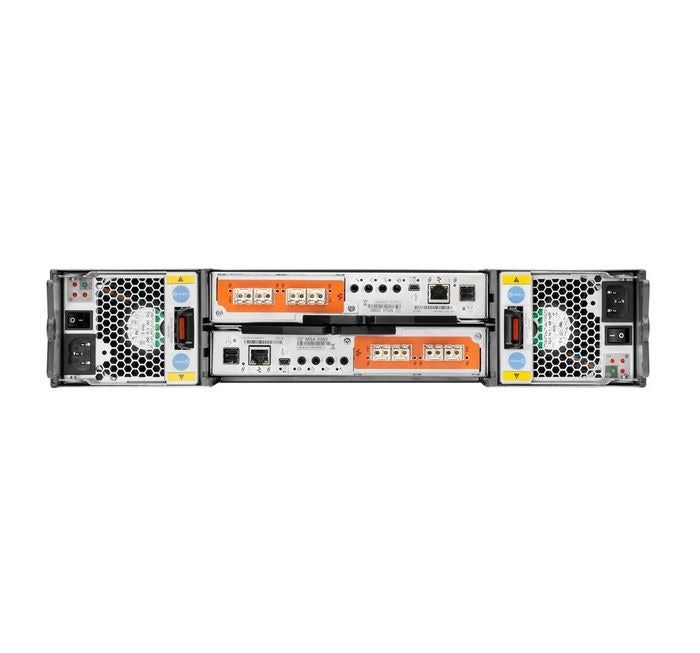

• 2 × HPE MSA 2060 16Gb FC SFF Storage Controllers
• Dual-controller architecture for redundancy and availability

Host Connectivity

8-port 16Gb Fibre Channel host interface

Storage Expansion

Supports:

• 24-drive SFF disk enclosures
• 12-drive LFF disk enclosures

Performance

• Over 325,000 IOPS
• Accelerated application and virtualization performance

Data Protection

• SAN backup support
• Storage mirroring support

Supported Operating Systems

• Windows Server 2019
• Windows Server 2016
• VMware vSphere 6.7
• Red Hat Enterprise Linux 8
• SUSE Linux Enterprise Server 15

Form Factor

2U rack-mountable chassis

Physical Dimensions

• Height: 3.5 in (8.9 cm)
• Width: 17.5 in (44.5 cm)
• Depth: 20.0 in (50.8 cm)

Weight

11.0 lbs (5.0 kg)

Energy Efficiency

Energy Star compliant

Warranty

• 3-year limited warranty
• Next business day parts exchange

Ideal Applications

• Fibre Channel SAN environments
• VMware virtualization
• Enterprise databases
• Backup and recovery
• Shared storage infrastructure
• Business-critical applications
• High-speed data access workloads

Benefits of the HPE MSA 2062

The HPE MSA 2062 combines high-speed Fibre Channel connectivity, SSD acceleration, and scalable enterprise storage in a cost-effective SAN platform. Designed for organizations that require dependable performance and simplified storage management, it delivers powerful storage capabilities without the complexity of larger enterprise arrays.

Key advantages include:

• High-performance Fibre Channel SAN connectivity
• Flash-accelerated application performance
• Flexible storage scalability
• Enterprise-class redundancy
• Simplified deployment and management
• Cost-effective shared storage solution
• Reliable virtualization support

Why Choose the HPE MSA 2062 R0Q80A

• 16Gb Fibre Channel connectivity delivers high-speed SAN performance

• Dual-controller architecture improves reliability and availability

• Integrated SSD performance enhances application responsiveness

• Scalable storage expansion supports growing business demands

• Ideal for virtualization and data-intensive workloads

• Cost-effective enterprise storage solution for SMB and mid-sized environments

• Compatible with leading operating systems and virtualization platforms

• Flexible infrastructure integration with long-term scalability benefits

FAQs

How much SSD storage is included?
The system includes 3.84TB SSD capacity using two 1.92TB Read Intensive SSDs.

What type of connectivity does the array support?
The storage array includes 8-port 16Gb Fibre Channel host connectivity.

What is the maximum storage capacity?
The HPE MSA 2062 supports expansion up to 921TB.

Does the array support virtualization platforms?
Yes. It supports VMware vSphere, Windows Server, Red Hat Linux, and SUSE Linux environments.

Is the storage system redundant?
Yes. The array includes dual storage controllers for high availability and failover protection.

What workloads is the MSA 2062 designed for?
It is ideal for virtualization, Fibre Channel SAN storage, databases, backup, and enterprise applications.

Does the system support storage mirroring and SAN backup?
Yes. SAN backup and storage mirroring support are included.
