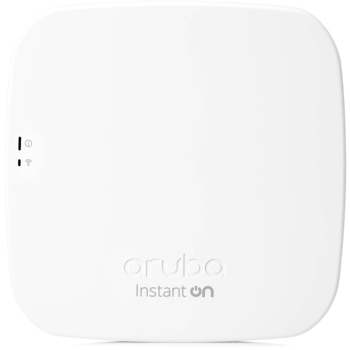

Aruba Instant On AP11 Indoor Access Point R2W95A

Designed for small retail stores and home offices, the aruba Instant On AP11 Indoor Access Point supports Wi-Fi 5 (802.11ac) and provides up to 867 Mb/s on the 5 GHz frequency band. It also supports Wi-Fi 4 (802.11n) and provides up to 300 Mb/s on the 2.4 GHz frequency band. Equipped with down-tilt, omni-directional internal antennas, this dual-band access point features a Gigabit Ethernet port that supports PoE (Power over Ethernet), ideal for transmitting both data and power over a single cable. Smart Mesh technology makes it easy to expand the network into hard-to-wire areas.

Multi-user MIMO technology allows the ceiling-mountable access point to handle multiple simultaneous data streams. An integrated Bluetooth Low Energy radio allows for location-based and indoor wayfaring applications. With the mobile app or the cloud portal, you can easily manage your Wi-Fi as well as create separate guest and employee networks. Use the included clips to mount the access point to the ceiling rails or to a solid surface, like a wall or ceiling.

• Brand: Aruba
• SKU # R2W95A

• Wireless Frequency Bands: 2.4 GHz, 5 GHz Dual-Band
• MU-MIMO Support: 2 x 2
• WLAN Mode: Wi-Fi 5 (802.11ac)
• Antenna Gain: 3.3 to 5.8 dBi
• Antenna Placement: Internal
• Throughput: 1167 Mb/s Total, 2.4 GHz: 300 Mb/s, 5 GHz: 867 Mb/s

• Ports: 1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Uplink) PoE

• Guest Network Support: Yes
• Wireless Security: WPA2, WPA3
• Lock Slot: Yes, Kensington

• Operating Temperature: 32 to 104°F / 0 to 40°C
• Operating Humidity: 5 to 93%

• Certifications: UL, as per Manufacturer
• Dimensions: 5.98 x 5.98 x 1.34" / 152 x 152 x 34 mm
• Weight: 6.81 oz / 193 g

• Package Weight: 1.25 lb
• Box Dimensions (LxWxH): 7.5 x 7.1 x 2.5"
