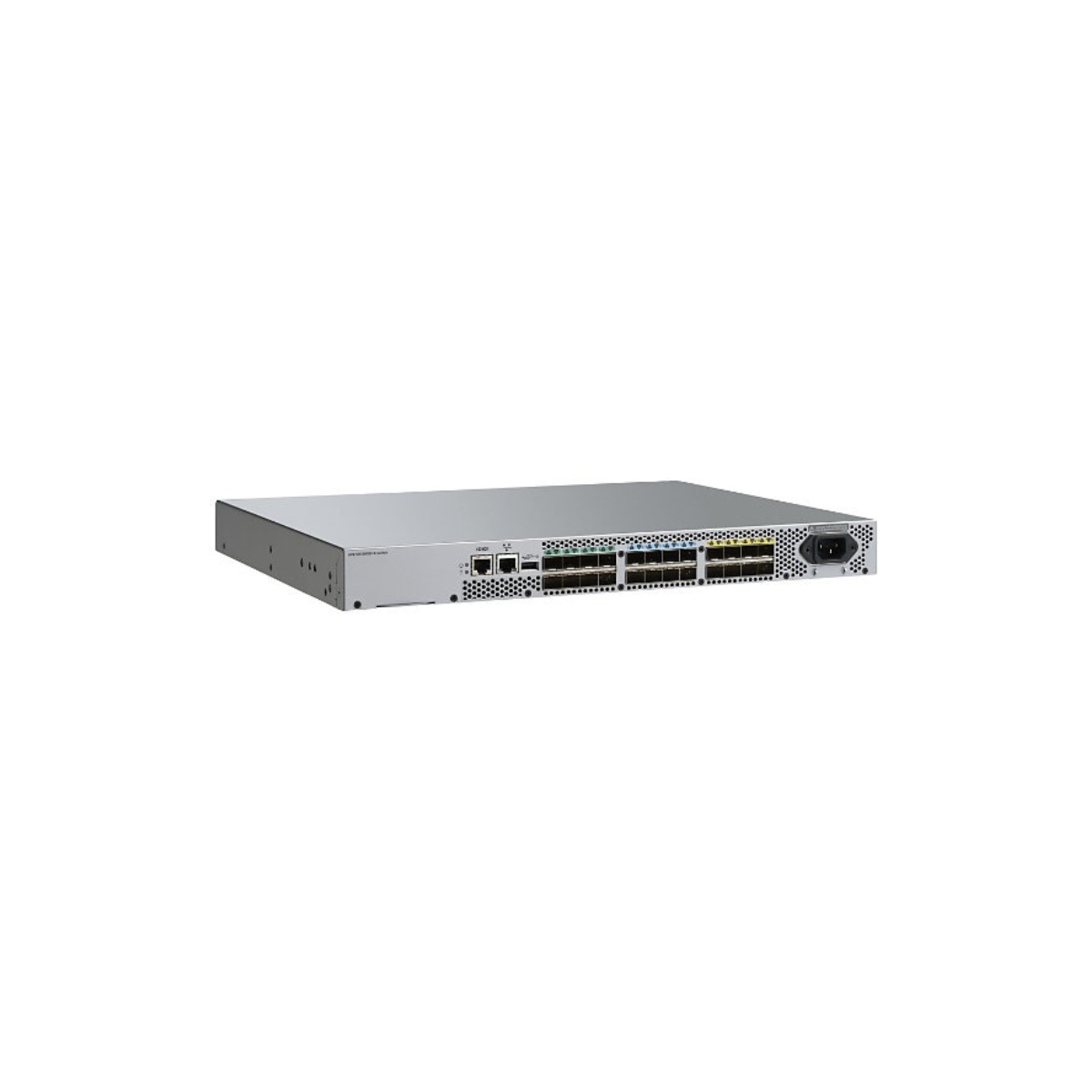

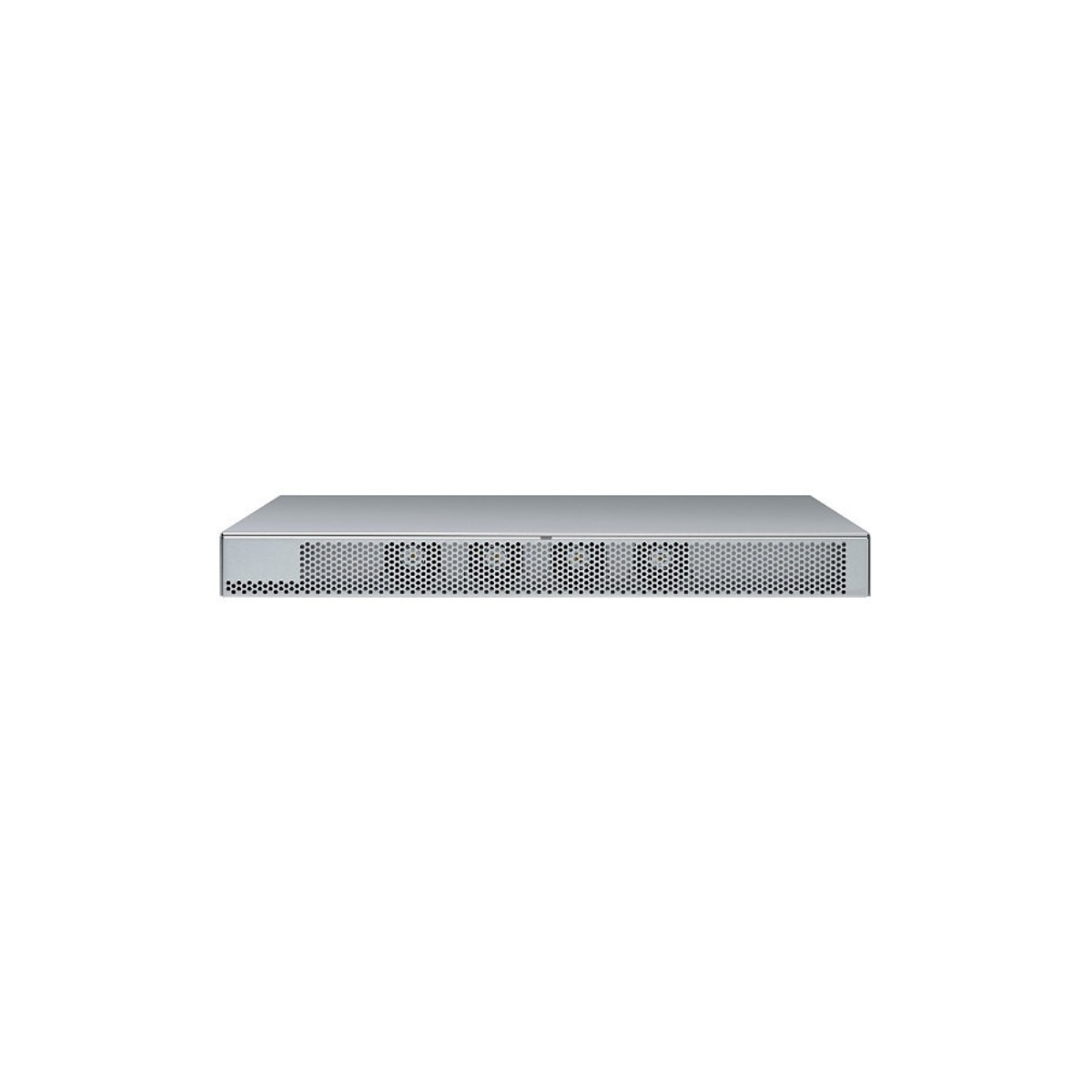

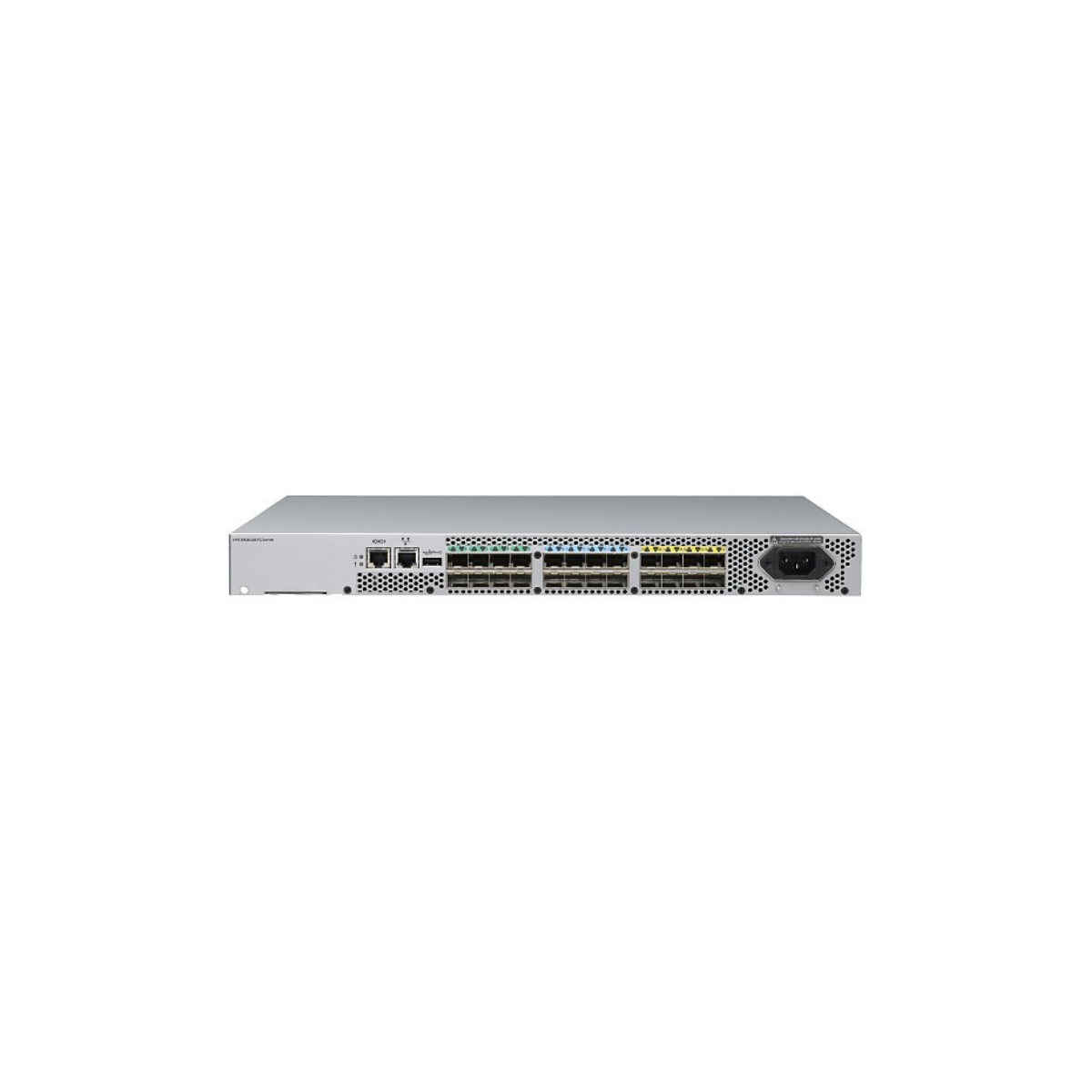

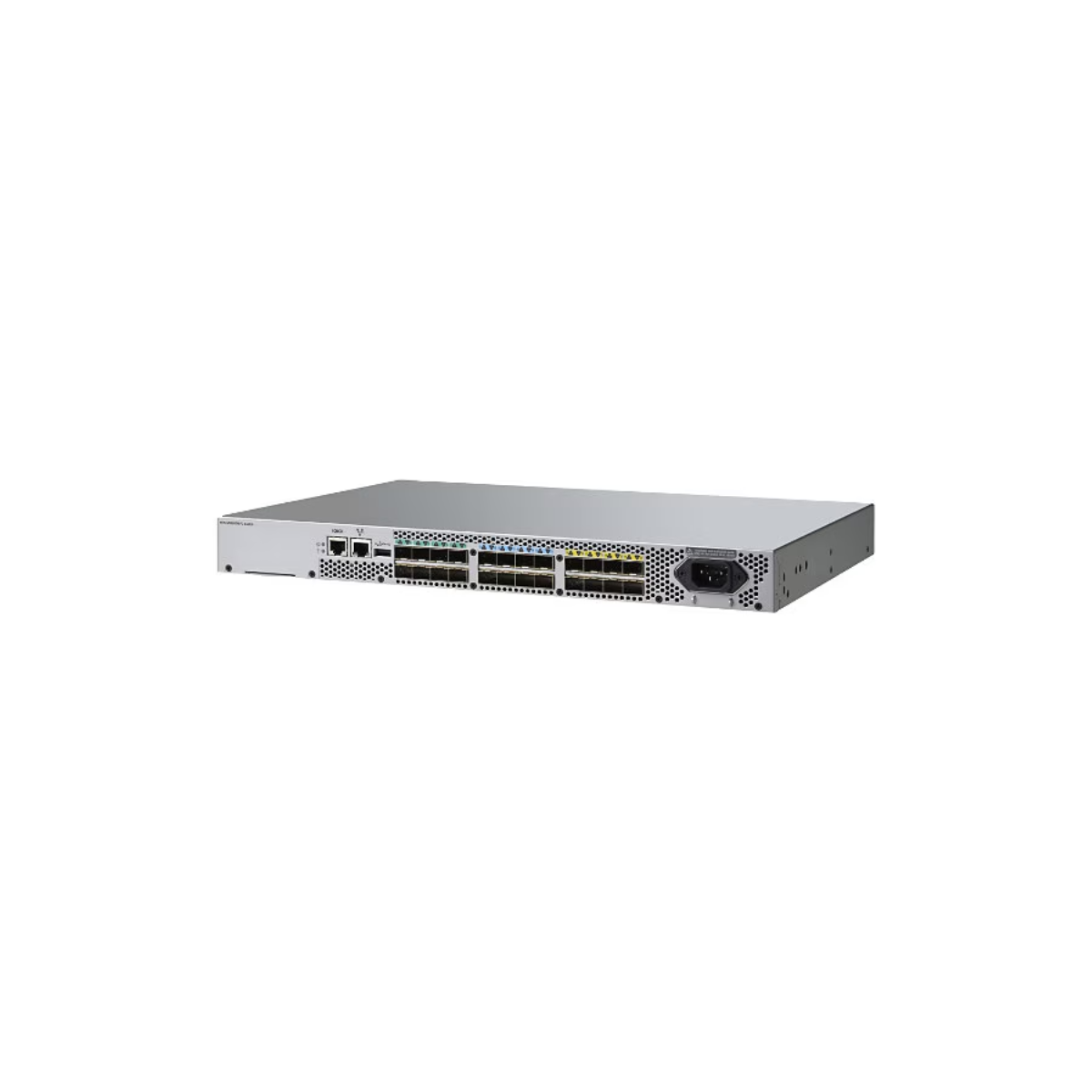

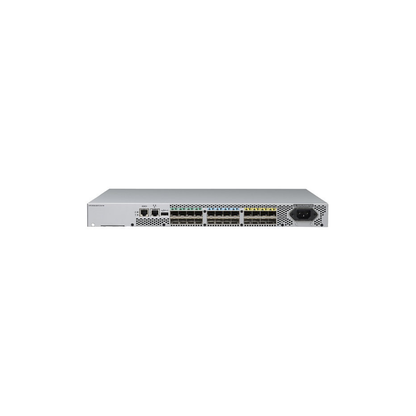

R4G55B HPE SN3600B 32Gb 24/8 8-Port 16Gb Short Wave SFP+ Fibre Channel Switch

BRAND NEW WITH FULL HPE WARRANTY!!!

Overview

The HPE SN3600B 32Gb 24/8 8-Port 16Gb Short Wave SFP+ Fibre Channel Switch (R4G55B) is an enterprise storage networking solution designed to connect servers and storage systems through a Fibre Channel Storage Area Network (SAN). It combines Gen6 32Gb Fibre Channel capability with eight active 16Gb short-wave Fibre Channel ports and support for additional 32Gb ports through port-on-demand activation.

Designed for data centers and business-critical storage environments, the SN3600B supports demanding storage traffic while maintaining a compact 1U rack-mountable footprint. Its backward compatibility with 4Gb, 8Gb, and 16Gb Fibre Channel helps organizations integrate existing storage infrastructure while planning future upgrades.

With centralized management capabilities, advanced zoning, and security features, the HPE SN3600B is suitable for enterprise SAN deployments supporting virtualization, shared storage, and flash-based storage environments.

Key Features – HPE SN3600B R4G55B

• Fibre Channel Performance: Gen6 Fibre Channel platform supporting 32Gb connectivity.
• Active Ports: 8 active 16Gb Fibre Channel SFP+ short-wave ports included.
• Port Expansion: 16 additional 32Gb Fibre Channel ports available through port-on-demand activation.
• Storage Networking: Designed for Fibre Channel SAN connectivity between servers and storage systems.
• Management: CLI, HTTP/HTTPS, SNMP, SSH, LDAP, SFTP, and SMI-S management support.
• Security: Supports role-based access control, IP address filtering, secure protocols, and authentication options.
• Software: Advanced Fabric OS, Advanced Web Tools, and Advanced Zoning.
• Form Factor: Compact 1U rack-mountable switch.
• Reliability: Forward Error Correction (FEC) helps detect and recover from transmission bit errors.

Technical Specifications

• Product Type: Managed Fibre Channel SAN switch
• Manufacturer: Hewlett Packard Enterprise (HPE)
• Model: SN3600B
• Manufacturer Part Number: R4G55B
• Fibre Channel Generation: Gen6
• Maximum Supported Port Configuration: Up to 24 ports
• Active Ports Included: 8 × 16Gb Fibre Channel SFP+ short-wave ports
• Port-on-Demand Capacity: 16 × 32Gb Fibre Channel ports
• Management Interfaces: 1 × Gigabit Ethernet management port, 1 × RS-232 serial port, 1 × USB port
• Port-to-Port Latency: 900 ns
• Frame Buffers: 2,000
• Maximum Frame Size: 2,112 bytes
• Management Protocols: CLI, HTTP, HTTPS, SNMP v1/v3, SSH, LDAP, SFTP, SMI-S
• Security and Authentication: SSL, RBAC, IP filtering, DH-CHAP, FCAP, RADIUS, TACACS+, LDAP
• Included Software: Advanced Fabric OS, Advanced Web Tools, Advanced Zoning
• Input Voltage: AC 90–264 V
• Frequency: 50/60 Hz
• Cooling: Integrated system cooling fans
• Rack Height: 1U

Physical Specifications

• Form Factor: Rack-mountable switch
• Weight:

  • 5.76 kg
  • 12.70 lbs

• Dimensions:
  • 428.8 × 42.9 × 306.6 mm
  • 16.88 × 1.69 × 12.07 inches
• Rack Compatibility: Standard 19-inch equipment rack; rack-mounting kit included.
• Weight Note: HPE specifies system weight with one integrated power supply and without transceivers.

Ideal For

• Enterprise Data Centers: Connecting servers and shared storage across a Fibre Channel SAN.
• Virtualized Infrastructure: Providing dedicated storage networking for virtualized server environments.
• Flash-Based Storage: Supporting storage deployments that require high-speed Fibre Channel connectivity.
• Business-Critical Applications: Connecting storage infrastructure used by enterprise applications and databases.
• SAN Modernization: Integrating compatible legacy Fibre Channel devices while preparing for higher-speed connectivity.
• Growing IT Environments: Activating additional ports as SAN connectivity requirements expand.

Warranty & Support

• Standard Manufacturer Warranty: HPE limited lifetime warranty for this B-series model; confirm eligibility and terms with HPE or the authorized reseller.
• Support Contracts: Check compatibility with available HPE support and service offerings for the specific serial number and purchase channel.
• Technical Assistance: HPE support resources and documentation are available for configuration, deployment, and troubleshooting.

FAQs – HPE SN3600B R4G55B

1. How many Fiber Channel ports are active when purchased?

This model includes eight active 16Gb Fiber Channel SFP+ short-wave ports. Additional 32Gb ports can be activated using compatible port-on-demand options.

2. Can the switch support 32Gb Fiber Channel connections?

Yes. The SN3600B is a Gen6 32GbFiber Channel platform and supports additional 32Gb ports through port-on-demand activation.

3. Is this switch suitable for enterprise SAN deployments?

Yes. It is designed for managed Fiber Channel SAN environments connecting servers and shared storage systems.

4. Can it work with older Fiber Channel equipment?

The platform supports backward compatibility with 4Gb, 8Gb, and 16Gb Fiber Channel. Compatibility should be confirmed for the specific devices, optics, and fabric configuration.

5. Does the product include rack-mounting hardware?

CDW lists a rack-mounting kit as included. Confirm the supplied accessories with the seller before ordering.

6. What is the physical size and weight of the switch?

HPE lists the system at approximately 428.8 × 42.9 × 306.6 mm (16.88 × 1.69 × 12.07 inches) and 5.76 kg (12.70 lbs), with one integrated power supply and without transceivers.
