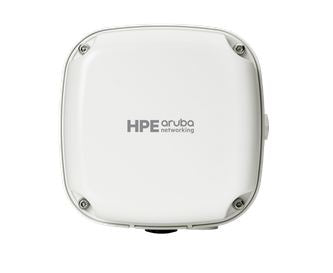

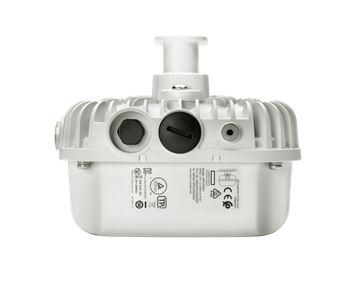

HPE Aruba Networking AP-565 (RW) – R4W43A – Outdoor Wi-Fi 6 Access Point – Dual 2×2 Radio – Integrated Omni Antennas

BRAND NEW WITH FULL HPE WARRANTY!!!

The HPE Aruba Networking AP-565 (RW) (R4W43A) is a rugged, outdoor-ready Wi-Fi 6 access point designed for harsh environments, industrial deployments, campuses, warehouses, and transport hubs. Featuring dual 2×2 radios, integrated omni-directional antennas, and hardened IP-rated construction, it delivers reliable wireless performance anywhere.

This AP supports Wi-Fi 6 (802.11ax), Bluetooth 5, and 802.15.4 (Zigbee) for IoT connectivity, offering robust wireless coverage across both 2.4 GHz and 5 GHz bands. Its wide range of certifications—including railway and medical standards—make it suitable for mission-critical and regulated deployments.

Key Features – HPE Aruba AP-565 (RW) – R4W43A

• Radio Type: Outdoor hardened Wi-Fi 6 dual radio (5 GHz 2×2 MIMO + 2.4 GHz 2×2 MIMO)
• Antenna Type: Built-in omni-directional antennas
• Antenna Gain:
 o 5 GHz: 5.4 dBi
 o 2.4 GHz: 3.2 dBi
 o BLE/802.15.4: 3.3 dBi
• Wi-Fi Standard: 802.11ax (Wi-Fi 6)
• Additional Wireless: Bluetooth 5, 802.15.4/Zigbee
• Transmit Power:
 o Bluetooth 5: up to 8 dBm
 o Zigbee: up to 8 dBm
 o BLE Class 2: up to 4 dBm

Ports

• E0: 10/100/1000BASE-T (RJ-45)

Certifications

• CB Scheme Safety, cTUVus
• UL2043 plenum rating
• Wi-Fi Alliance Certified (802.11a/b/g/n/ac/ax, Wi-Fi 6, Wi-Fi CERTIFIED Location)
• FCC / ISED
• CE Marked
• RED Directive 2014/53/EU
• EMC Directive 2014/30/EU
• Low Voltage Directive 2014/35/EU
• IEC/EN/UL 62368-1
• EN 60601-1-1, EN 60601-1-2

Railway Certifications:
• EN 50155:2017 – Railway Applications
• EN 50121-1:2017 – Railway EMC
• EN 50121-3-2 – Railway EMC
• EN 50121-4:2016 – Railway Immunity
• IEC 61373 ed2:2008 – Railway Shock & Vibration

Power Consumption

• Maximum (worst-case): 15.6W
• Idle mode: 4.2W
• Deep-sleep mode: 1.7W
• Power sources sold separately

Mounting

• Requires optional HPE Aruba mounting kit (sold separately)
• Suitable for walls, poles, and outdoor structures

Radio Coverage

• Outdoor hardened AP
• Dual-radio Wi-Fi 6
• Software-configurable:
 o Radio 0 – 5 GHz
 o Radio 1 – 2.4 GHz

Dimensions & Weight

• Weight: 1.03 kg (2.27 lbs)

Differentiator

• Built-in omni-directional antennas
• Wi-Fi 6 dual-radio outdoor design
• BLE & 802.15.4 IoT support

Warranty

• Limited lifetime warranty (duration depends on region/policy)
