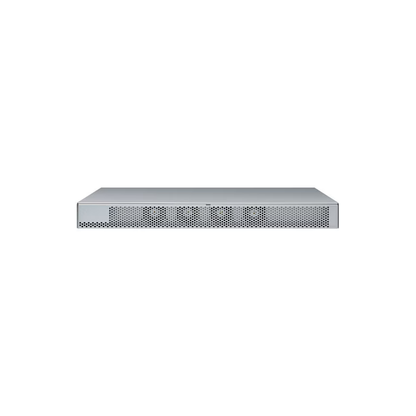

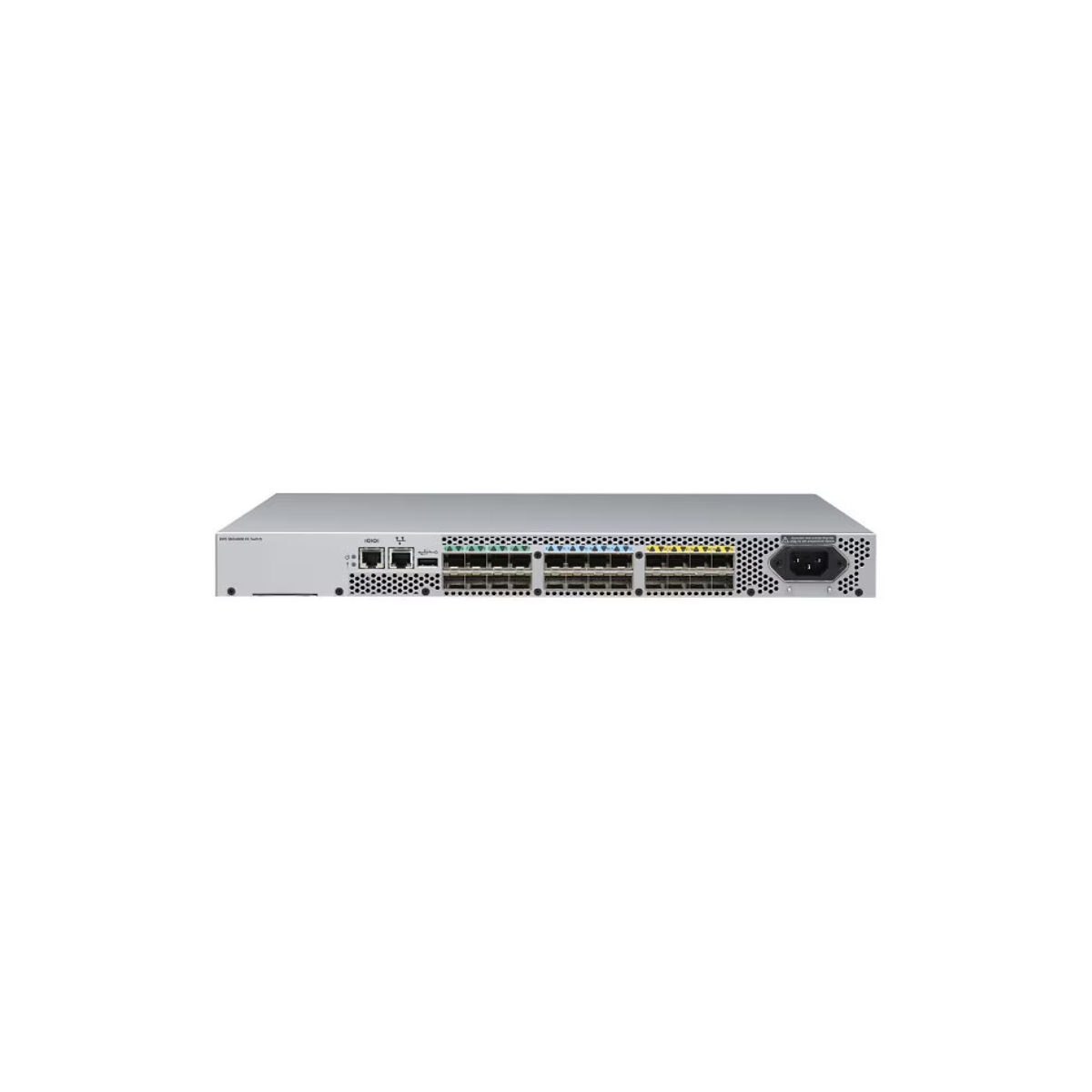

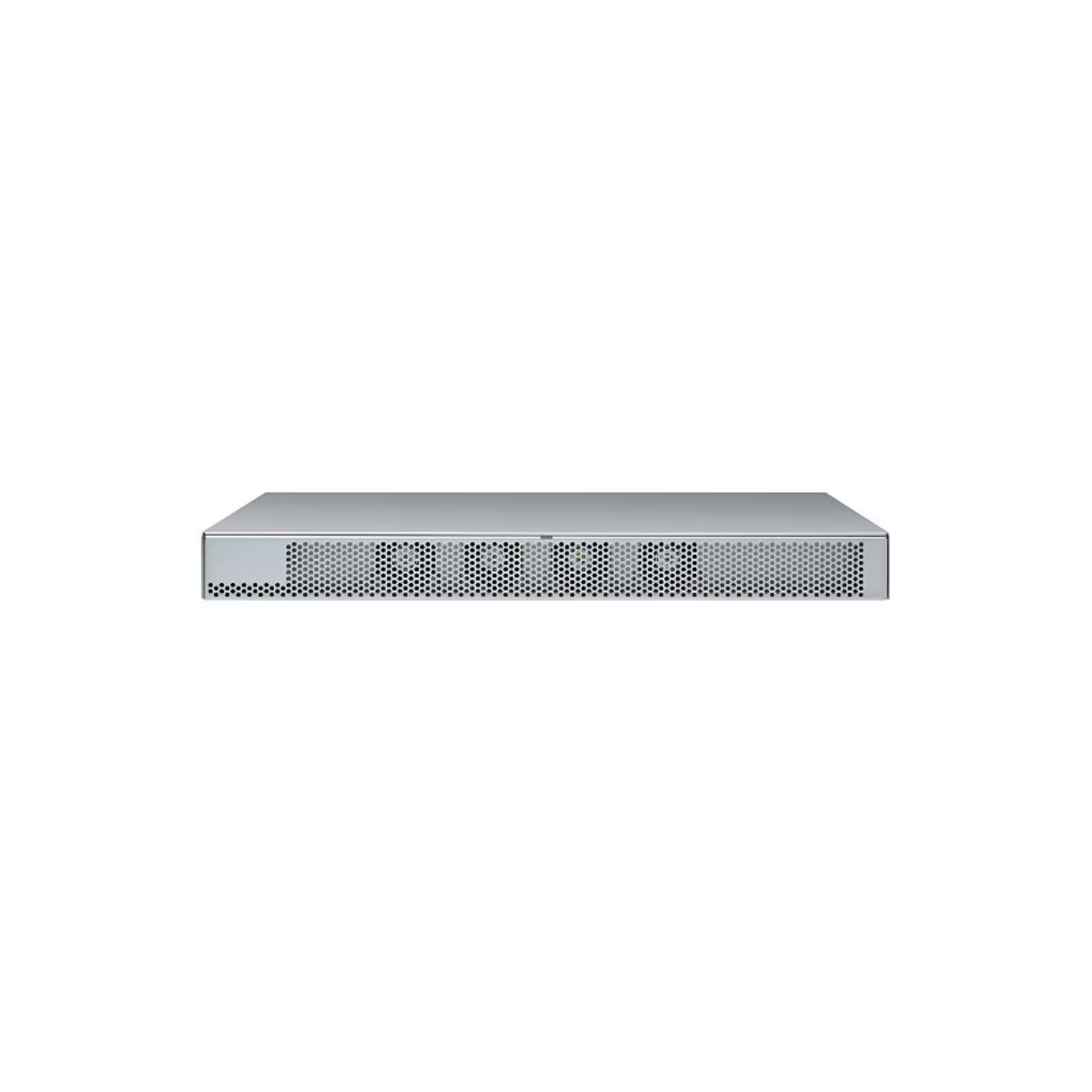

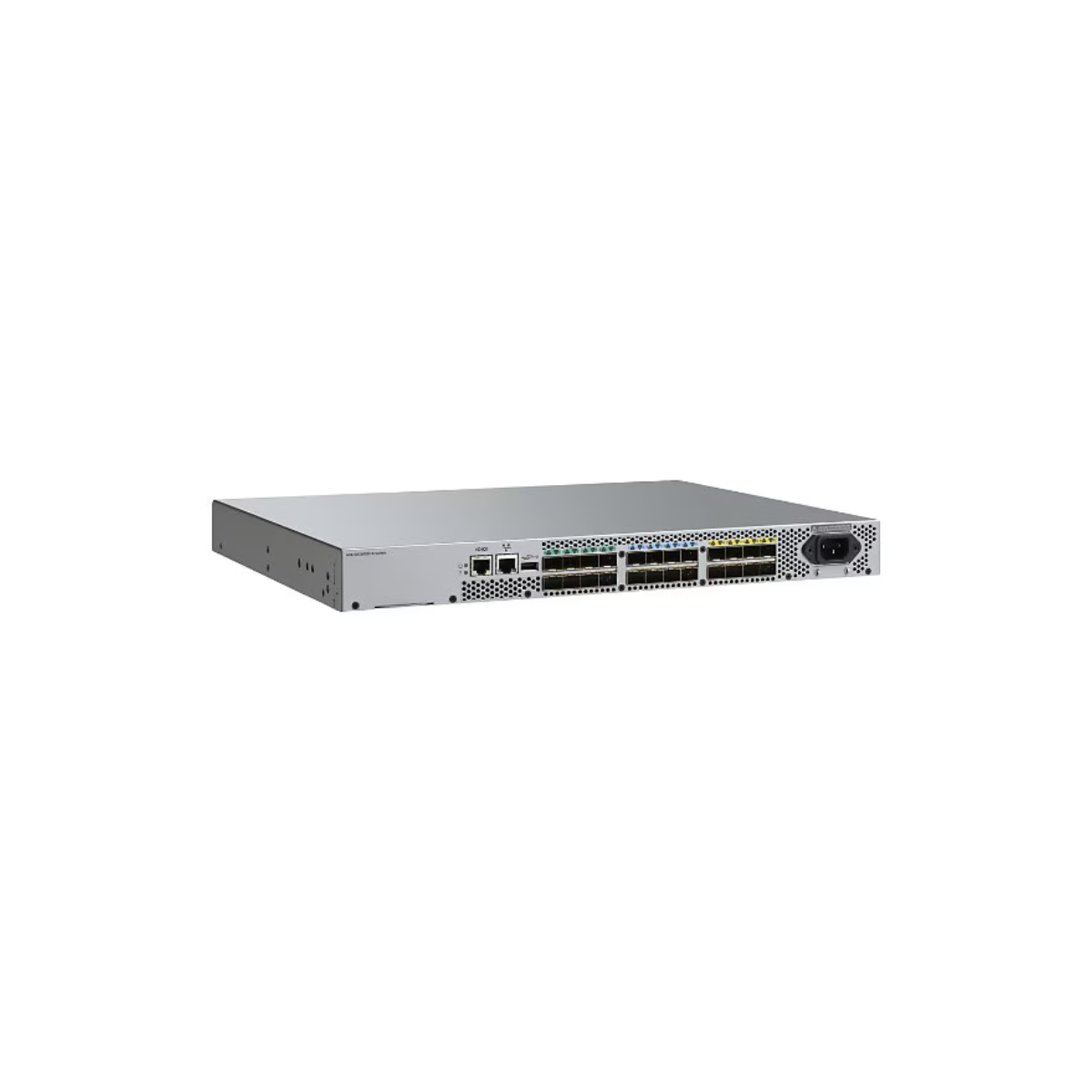

R8P28A HPE SN3600B 32Gb 24/24 Power Pack+ 24-Port 32Gb Short Wave SFP28 Fibre Channel Switch

BRAND NEW WITH FULL HPE WARRANTY!!!

Overview

The HPE SN3600B 32Gb 24/24 Power Pack+ 24-Port 32Gb Short Wave SFP28 Fibre Channel Switch (R8P28A) is an enterprise storage networking solution designed to connect servers and storage systems through a high-performance Fibre Channel Storage Area Network (SAN). It provides 24 active 32Gb Fibre Channel ports and includes 24 short-wave 32Gb transceivers, making it suitable for organizations deploying high-speed storage connectivity.

Built on HPE's Gen6 Fibre Channel platform, the SN3600B supports demanding storage workloads in a compact 1U rack-mountable design. Backward compatibility with 4Gb, 8Gb, and 16Gb Fibre Channel helps businesses integrate compatible existing infrastructure while upgrading storage network performance.

The included Power Pack+ software supports advanced SAN management and performance capabilities. With its high port density, enterprise fabric features, and compact footprint, the R8P28A is suited to data centers, virtualization environments, and organizations operating flash-based storage infrastructure.

Key Features – HPE SN3600B R8P28A

• Fibre Channel Performance: Gen6 Fibre Channel platform with port speeds up to 32Gbps.
• Active Ports: 24 active 32Gb Fibre Channel ports.
• Included Optics: 24 short-wave 32Gb SFP28 Fibre Channel transceivers.
• Storage Networking: Supports high-speed SAN connectivity between servers and storage arrays.
• Power Pack+ Software: Includes enhanced SAN management and performance capabilities.
• Management: Supports command-line and web-based management, SNMP, SSH, and other enterprise management protocols.
• Security: Supports role-based access control, secure management protocols, and authentication features.
• Reliability: Forward Error Correction (FEC) helps detect and recover from transmission errors.
• Form Factor: Compact 1U rack-mountable switch.
• Warranty: HPE lists a lifetime warranty for this model, subject to applicable terms.

Technical Specifications

• Product Type: Managed Fibre Channel SAN switch
• Manufacturer: Hewlett Packard Enterprise (HPE)
• Model: SN3600B
• Manufacturer Part Number: R8P28A
• Fibre Channel Generation: Gen6
• Fibre Channel Port Count: 24 active ports
• Port Speed: Up to 32Gbps per port
• Included Transceivers: 24 × 32Gb short-wave SFP28 Fibre Channel transceivers
• Backward Compatibility: 4Gb, 8Gb, and 16Gb Fibre Channel, subject to supported optics and configuration
• Aggregate Bandwidth: 768Gbps end-to-end full-duplex
• Port-to-Port Latency: 900 nanoseconds, under specified operating conditions
• Maximum Frame Size: 2,112 bytes
• Frame Buffers: 2,000 dynamically allocated
• Management Interfaces: Ethernet management port, RS-232 serial console, and USB port
• Management Protocols: CLI, HTTP/HTTPS, SNMP, SSH, LDAP, SFTP, and SMI-S
• Fabric Features: Advanced Zoning and Fibre Channel fabric management
• Software Package: Power Pack+
• Power Supply: One integrated AC power supply
• Cooling: Four integrated system cooling fans
• Airflow: Back-to-front airflow
• Input Voltage: 90–264V AC
• Input Frequency: 50/60Hz
• Rack Height: 1U

Physical Specifications

• Form Factor: 1U rack-mountable Fibre Channel switch
• Weight:

  • 5.76 kg
  • 12.65 lbs

• Dimensions (W × H × D):
  • 428.8 × 42.9 × 306.6 mm
  • 16.88 × 1.69 × 12.07 inches
• Rack Compatibility: Standard 19-inch equipment rack
• Weight Measurement Note: HPE specifies the system weight with one integrated power supply and without transceivers.

Ideal For

• Enterprise Data Centers: Connecting servers and shared storage across high-speed Fibre Channel SANs.
• Virtualized Infrastructure: Providing dedicated storage networking for virtual machines and enterprise applications.
• All-Flash Storage Environments: Supporting storage systems that require high-speed Fibre Channel connectivity.
• Database and Business-Critical Applications: Connecting storage infrastructure for demanding enterprise workloads.
• SAN Modernization: Upgrading compatible Fibre Channel infrastructure while retaining interoperability with supported legacy devices.
• High-Density Storage Networks: Consolidating multiple storage connections into a compact 1U switch.

Warranty & Support

• Standard Manufacturer Warranty: HPE lists a lifetime warranty for the R8P28A model. Confirm the applicable terms, eligibility, and coverage with HPE or the authorized reseller.
• Support Contract Compatibility: Contact HPE to confirm eligible support services, service-level options, and contract coverage for the specific unit.
• Technical Support: HPE product documentation and support resources are available for deployment, configuration, and troubleshooting.

FAQs – HPE SN3600B R8P28A

1. How many Fibre Channel ports are active on the R8P28A?

The switch includes 24 active 32Gb Fibre Channel ports and 24 short-wave 32Gb transceivers.

2. Is this switch suitable for enterprise SAN environments?

Yes. It is designed for managed Fibre Channel SAN deployments connecting servers, storage arrays, and business-critical applications.

3. Can the R8P28A connect to older Fibre Channel devices?

The SN3600B platform supports 4Gb, 8Gb, 16Gb, and 32Gb Fibre Channel speeds. Verify compatibility for the connected equipment, transceivers, and fabric configuration.

4. What management features are included?

The platform supports command-line and web-based management, SNMP, SSH, zoning, and other enterprise fabric administration features.

5. Does the switch include transceivers and rack-mounting hardware?

HPE lists 24 short-wave 32Gb transceivers and a rack-mounting kit among the included items for this model.

6. What warranty is available for this product?

HPE lists a lifetime warranty for the R8P28A. Buyers should confirm the applicable warranty conditions and support options before purchase.
