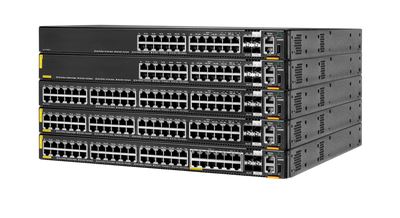

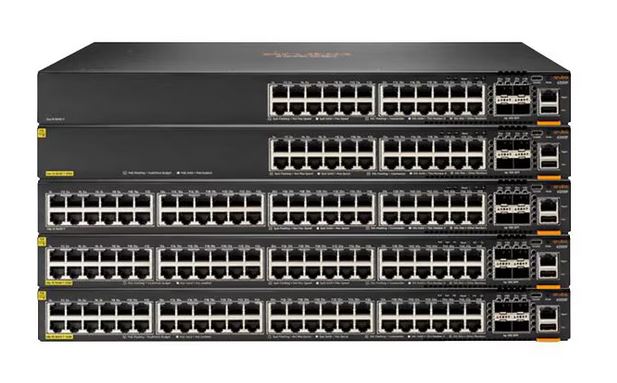

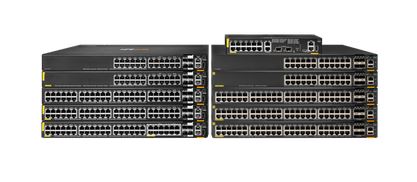

HPE Aruba Networking CX 6200M 24G Class4 PoE 4SFP+ Switch – R8Q68A

BRAND NEW WITH FULL HPE WARRANTY!!!

The HPE Aruba Networking CX 6200M (R8Q68A) is a high-performance, enterprise-class, 24-port PoE access switch designed for campus, branch, and edge networks. Featuring 24× Class4 PoE ports delivering up to 30W each, plus 4× SFP+ uplinks for 1/10Gb connectivity, it provides strong switching capacity, low latency, stackability, and modular power supply redundancy.

Built for modern network environments, it includes hot-swappable dual-PSU support and replaceable fan trays — making it scalable, serviceable, and highly reliable for high-availability networks.

Key Features – R8Q68A

• Total Ports: 24 × 10/100/1000BASE-T Class4 PoE
• Uplinks: 4 × 1G/10G SFP+ (2× LRM + 2× LRM/MACSec-256)
• PoE Output: Up to 30W per port, Max PoE Power 740W
• Stacking: Up to 8 units
• Switching Capacity: 128 Gbps
• Throughput: Up to 95.2 Mpps
• Latency: 2.28 μs (1G), 1.46 μs (10G)
• CPU: Quad-Core ARM Cortex-A72 1.8GHz
• Memory: 8GB DDR4, 16GB eMMC internal flash
• Redundancy: 2 × hot-swappable PSU bays (1 required)
• Supported PSUs: JL086A / JL087A
• Fans: Dual fan trays – hot-swappable (1 included)

Ports

• 24 × 10/100/1000BASE-T PoE (Class4)
• 4 × SFP+ (1/10Gb) uplink ports
• 1 × RJ-45 console port
• 1 × USB-C console port
• 1 × OOBM port
• 1 × USB-A host port

Power Specs

• Power Consumption: 76W (230V AC)
• Input Voltage: 100–120V / 200–240V
• Max PoE Delivery: 740W

Physical Specs

• Weight: 6.01 kg (13.25 lbs)
• Dimensions: 1.73 × 17.42 × 15.11 in (4.39 × 44.247 × 38.38 cm)

Warranty: Limited lifetime warranty
