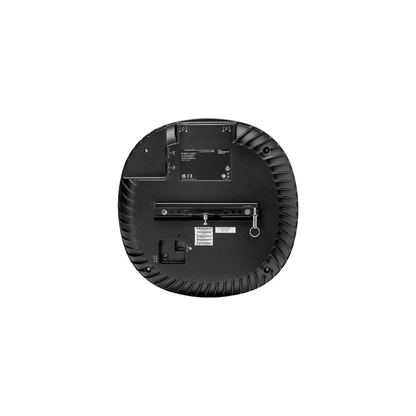

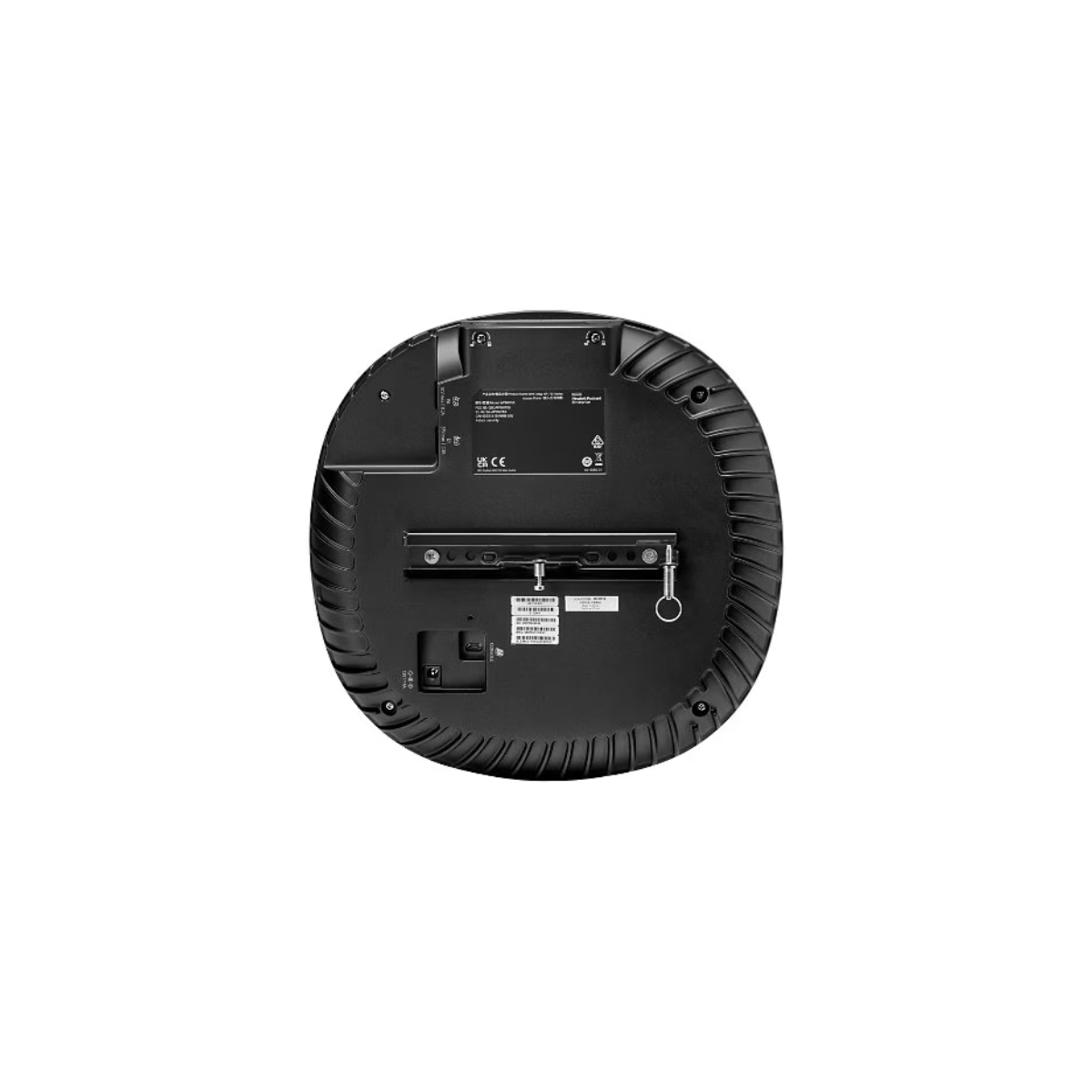

S0H11A HPE Aruba Networking AP-755 US Wi-Fi 7 5-Pack

BRAND NEW WITH FULL HPE ARUBA NETWORKING WARRANTY!!!

Overview

The S0H11A HPE Aruba Networking AP-755 (US) Tri Radio 4x4 Wi-Fi 7 Internal Antennas 5-Pack Campus Access Point is a high-performance enterprise wireless solution designed for demanding campus environments. This US-specific five-pack combines three concurrent 4x4 MIMO radios across 2.4 GHz, 5 GHz, and 6 GHz, delivering up to 18.7 Gbps maximum tri-band aggregate data rate. The AP-755 also supports Wi-Fi 7 capabilities including 320 MHz channels, Multi-Link Operation (MLO), 4096-QAM, and OFDMA.

Built for high-density enterprise deployments, the AP-755 provides dual 10GbE Smart Rate Ethernet ports, integrated down-tilt omnidirectional antennas, dual IoT radios, GNSS positioning, a barometric sensor, and two USB 2.0 ports for IoT expansion. HPE Aruba Networking Central and AOS-10 provide centralized management, automation, AI-powered insights, security policy control, and zero-touch deployment capabilities. The S0H11A is supplied as an eco-friendly 5-pack, with five mount kits included.

Key Features – HPE Aruba Networking AP-755

• Processor: Enterprise access-point processing platform for Wi-Fi 7 and network services
• Memory: Integrated system memory; capacity not specified in the published HPE QuickSpecs
• Storage: Integrated system storage; capacity not specified in the published HPE QuickSpecs
• Controller: HPE Aruba Networking AOS-10 with HPE Aruba Networking Central cloud management
• Networking / Ports: 2 × RJ-45 Smart Rate Ethernet ports, configurable up to 10GbE
• Wireless: Tri-radio 4x4 MIMO Wi-Fi 7 across 2.4 GHz, 5 GHz, and 6 GHz
• IoT: Dual Bluetooth 5.4 / 802.15.4-Zigbee radios
• Power & Cooling: 802.3af/at/bt PoE; 12V DC input; automatic thermal shutdown and recovery
• Management: HPE Aruba Networking Central, AOS-10, Zero Touch Provisioning, AirMatch and ClientMatch
• Security: WPA3, Enhanced Open, WPA2-MPSK, TPM, MACsec on E0, role-based policies and intrusion detection
• Location: Integrated GNSS receiver and barometric pressure sensor
• Form Factor: Indoor ceiling-mountable access point with integrated antennas
• Pack Configuration: 5 access points with 5 mount kits; one JY728A console adapter cable included in the eco-pack

Technical Specifications

• Processor Type: Integrated enterprise wireless/network processing architecture
• Chipset / Platform: HPE Aruba Networking 750 Series / AP-755
• Memory Technology: Not publicly specified by HPE for this SKU
• Storage Interface: Integrated system storage; interface not publicly specified
• RAID Support: Not applicable
• Expansion Slots: No conventional PCIe expansion slots
• Networking: 2 × RJ-45 Ethernet ports with 100/1000/2500/5000/10000BASE-T auto-sensing
• Wireless Standard: Wi-Fi 7 / IEEE 802.11be
• Wireless Radios: Three concurrent 4x4 MIMO radios
• 2.4 GHz: Up to 1.4 Gbps
• 5 GHz: Up to 5.8 Gbps
• 6 GHz: Up to 11.5 Gbps
• Maximum Tri-Band Aggregate Data Rate: 18.7 Gbps
• Client Capacity: Up to 512 associated client devices per radio
• BSSIDs: Up to 16 per radio
• I/O Ports: 2 × RJ-45 Ethernet, 2 × USB 2.0 Type-A, proprietary micro-B USB serial console, 12V DC power input
• USB Expansion: Up to 2A / 10W total for attached IoT devices
• Operating System: HPE Aruba Networking Wireless Operating System AOS-10
• Management Platform: HPE Aruba Networking Central
• Antenna: Integrated down-tilt omnidirectional antennas
• Peak Antenna Gain: 5.3 dBi at 2.4 GHz, 6.0 dBi at 5 GHz, 6.0 dBi at 6 GHz
• Security: WPA3, WPA2-MPSK, Enhanced Open, TPM, MACsec on E0
• IoT Connectivity: Bluetooth 5.4 and 802.15.4/Zigbee
• Location Technology: GNSS L1/L5 supporting GPS, Galileo, GLONASS and BeiDou

Physical Specifications

• Form Factor: Indoor ceiling-mountable wireless access point
• Weight:
  • Individual AP without mounting bracket: 1.53 kg / 3.37 lbs
  • Shipping weight: 2.13 kg / 4.70 lbs
• Dimensions:
  • Individual AP without mounting bracket: 260 × 260 × 57 mm
  • Individual AP without mounting bracket: 10.24 × 10.24 × 2.24 inches
  • Shipping dimensions: 350 × 320 × 83 mm
  • Shipping dimensions: 13.78 × 12.60 × 3.27 inches
• Rack Compatibility: Not rack-mountable; designed for indoor ceiling/wall installation using compatible HPE Aruba Networking AP mount kits
• Mounting: Mounting bracket is pre-installed on the AP; the five-pack includes five mount kits
• Operating Temperature: 0°C to +50°C / +32°F to +122°F
• Operating Humidity: 5% to 95% RH
• Plenum Rating: Yes, suitable for use in air-handling spaces

Ideal For

• High-density enterprise campus Wi-Fi
• Large corporate offices
• Healthcare environments
• Higher-education campuses
• Retail and large public venues
• Industrial IoT deployments
• High-bandwidth video and collaboration environments
• AR/VR and other low-latency applications
• Enterprise networks requiring 6 GHz Wi-Fi 7
• Locations requiring redundant Ethernet and power connectivity

Warranty & Support

• Standard Manufacturer Warranty: Limited Lifetime warranty for the HPE Aruba Networking 750 Series.
• Support Contract Compatibility: Compatible with applicable HPE Aruba Networking support services and HPE Aruba Networking Central subscription services.
• Management Subscription: HPE Aruba Networking Central AP Foundation and Advanced subscriptions are available in 1-, 3-, 5-, 7-, and 10-year terms. AOS-10 is included with the subscription.
• Deployment Support: Zero Touch Provisioning is supported for streamlined branch and distributed deployments.

FAQs – S0H11A HPE Aruba Networking AP-755

1. How many access points are included in S0H11A?
The S0H11A is a five-pack, containing five HPE Aruba Networking AP-755 US internal-antenna access points. HPE specifies that the eco-friendly bundle includes five mount kits and one JY728A console adapter cable.

2. What wireless performance does the AP-755 provide?
The AP-755 uses three concurrent 4x4 MIMO radios across 2.4 GHz, 5 GHz, and 6 GHz. Maximum radio data rates are 1.4 Gbps, 5.8 Gbps, and 11.5 Gbps respectively, for a maximum tri-band aggregate of 18.7 Gbps.

3. Does the AP-755 support redundant Ethernet connectivity?
Yes. It provides two 10GbE-capable Smart Rate ports. HPE supports link aggregation between the ports, and the dual-port architecture can provide redundancy for both data and power.

4. What power options are available?
The AP supports 802.3af/at/bt PoE on E0 and/or E1 as well as a 12V DC input. With 802.3bt Class 6 PoE, the AP operates without platform restrictions. HPE also lists a 48W AC/DC power adapter as an optional power accessory.

5. Can the AP-755 support IoT devices?
Yes. It includes dual IoT radios for Bluetooth 5.4 and 802.15.4/Zigbee, plus two USB 2.0 host ports capable of supplying up to 10W to connected devices.

6. How is the S0H11A managed in an enterprise environment?
The AP-755 runs AOS-10 and can be managed through HPE Aruba Networking Central, which provides centralized WLAN management, AI-powered insights, automation, policy control, and zero-touch provisioning.
