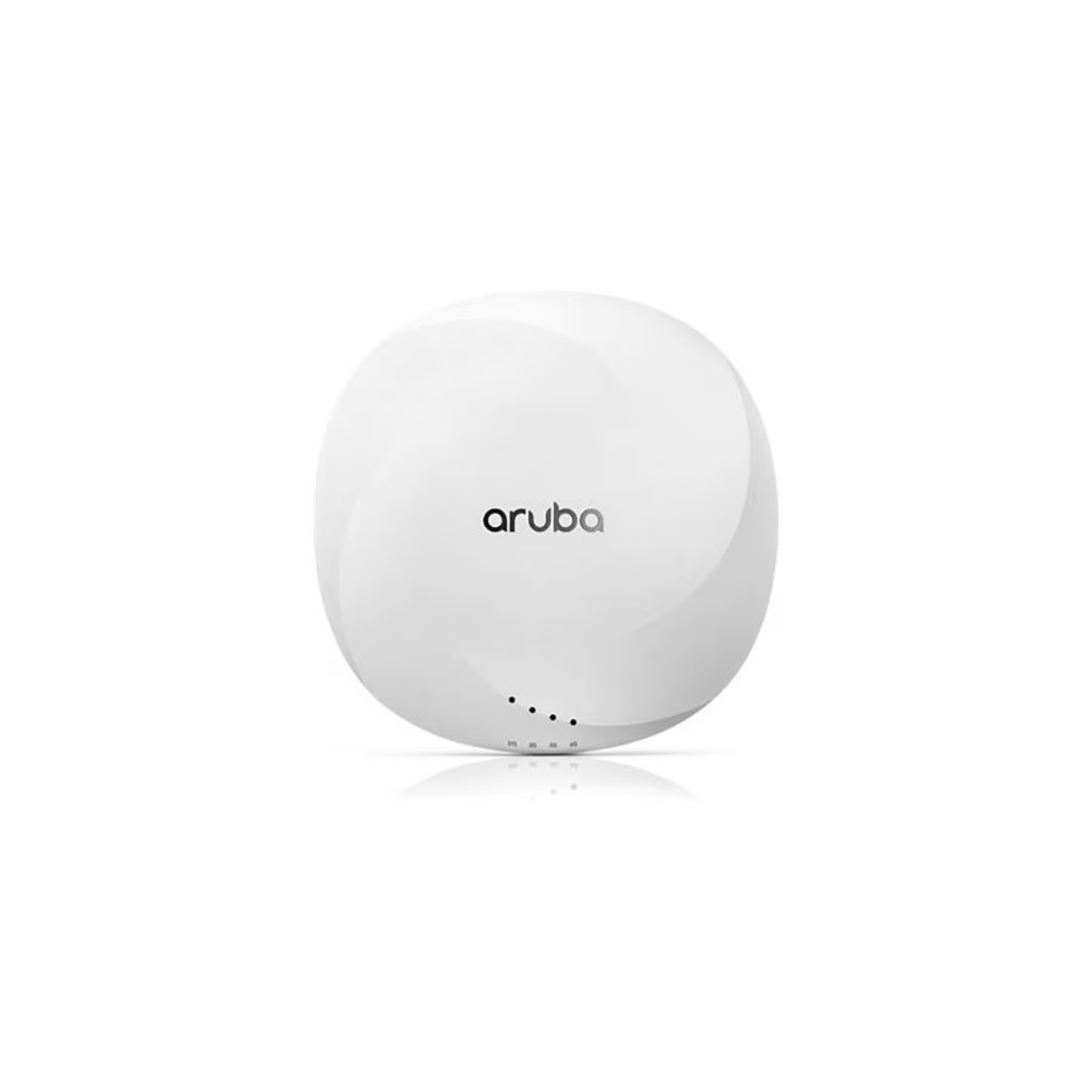

S1G50A HPE Aruba Networking AP-634 US Wi-Fi 6E Access Point

BRAND NEW WITH FULL HPE ARUBA NETWORKING WARRANTY!!!

Overview

The S1G50A HPE Aruba Networking AP-634 US Wi-Fi 6E Access Point is an enterprise-class indoor wireless access point designed for organizations deploying high-performance Wi-Fi across corporate campuses, branch offices, education facilities, healthcare environments, and other demanding WLAN locations. It combines concurrent 2.4 GHz, 5 GHz, and 6 GHz radios with 2x2 MIMO to provide reliable connectivity across the expanded Wi-Fi 6E spectrum while supporting modern enterprise client devices.

The AP-634 is built around a compact, ceiling- or wall-mountable design and provides dual Ethernet connectivity, integrated Bluetooth 5.0 and Zigbee capabilities, and centralized management through HPE Aruba Networking Central. Its Wi-Fi 6E architecture provides access to the 6 GHz band, helping enterprises address congested wireless environments and support higher-density deployments with compatible clients.

Key Features – HPE Aruba Networking AP-634

• Processor: Integrated enterprise wireless processing platform
• Memory: Integrated system memory
• Storage: Integrated system storage
• Controller: HPE Aruba Networking AOS-10 / Central-managed architecture
• Networking / Ports: 2 × Ethernet ports with Smart Rate connectivity
• Wireless: Tri-radio 2x2 MIMO Wi-Fi 6E
• Power & Cooling: PoE-powered architecture with optional DC power
• Management: HPE Aruba Networking Central, AOS-10, AirMatch and ClientMatch
• Security: WPA3, Enhanced Open, WPA2-MPSK, role-based access controls and enterprise WLAN security
• IoT: Bluetooth 5.0 and Zigbee
• Form Factor: Indoor ceiling/wall-mountable access point
• Antennas: Integrated internal antennas

Technical Specifications

• Processor Type: Integrated wireless/network processing architecture
• Chipset / Platform: HPE Aruba Networking 630 Series / AP-634
• Memory Technology: Integrated system memory
• Storage Interface: Integrated system storage
• RAID Support: Not applicable
• Expansion Slots: No conventional PCIe expansion slots
• Networking: 2 × Ethernet interfaces
• Wireless Standard: IEEE 802.11ax / Wi-Fi 6E
• Radio Configuration: Three concurrent 2x2 MIMO radios
• 2.4 GHz Radio: 2x2 MIMO
• 5 GHz Radio: 2x2 MIMO
• 6 GHz Radio: 2x2 MIMO
• Bluetooth: Bluetooth 5.0
• IoT: Zigbee / IEEE 802.15.4
• I/O Ports: Ethernet network ports, USB connectivity, console interface, and DC power input
• Operating System: HPE Aruba Networking AOS-10
• Management Platform: HPE Aruba Networking Central
• Antenna: Integrated internal antennas
• Mounting: Ceiling or wall installation
• Security: WPA3, Enhanced Open, WPA2-MPSK and enterprise role-based security

Physical Specifications

• Form Factor: Indoor enterprise wireless access point
• Weight:
  • 0.88 kg / 1.94 lbs
• Dimensions:
  • 185 × 185 × 40 mm
  • 7.28 × 7.28 × 1.57 inches
• Rack Compatibility: Not rack-mountable; designed for ceiling or wall mounting
• Mounting: Compatible with HPE Aruba Networking mounting accessories
• Operating Environment: Designed for indoor enterprise WLAN deployments

Ideal For

• Corporate campus wireless networks
• Enterprise branch offices
• Higher-education and university WLANs
• Healthcare facilities
• Retail environments
• High-density office deployments
• Wi-Fi 6E-enabled enterprise networks
• IoT-enabled business environments
• Organizations requiring centralized WLAN management

Warranty & Support

• Standard Manufacturer Warranty: Limited Lifetime warranty applicable to the HPE Aruba Networking 630 Series.
• Support Contract Compatibility: Compatible with applicable HPE Aruba Networking support services and HPE Aruba Networking Central subscriptions.
• Management Support: HPE Aruba Networking Central provides centralized configuration, monitoring, WLAN analytics, policy management, and operational visibility.

FAQs – S1G50A HPE Aruba Networking AP-634

1. Does the S1G50A support Wi-Fi 6E?
Yes. The AP-634 is a tri-radio Wi-Fi 6E access point, supporting the 2.4 GHz, 5 GHz, and 6 GHz bands.

2. How many wireless radios does the AP-634 have?
The AP-634 uses three concurrent 2x2 MIMO radios, providing simultaneous operation across the 2.4 GHz, 5 GHz, and 6 GHz bands.

3. Does the AP-634 support Bluetooth and Zigbee?
Yes. The access point includes Bluetooth 5.0 and Zigbee/802.15.4 capabilities for enterprise IoT and location-oriented applications.

4. Can the AP-634 be managed centrally?
Yes. It can be managed through HPE Aruba Networking Central and operates with AOS-10, providing centralized WLAN configuration, monitoring, analytics, and policy management.

5. Does the AP-634 support redundant Ethernet connectivity?
The AP-634 provides two Ethernet interfaces, allowing organizations to use the available connectivity options for network and power requirements according to the deployment design.

6. Where can the S1G50A be deployed?
The AP-634 is intended for indoor enterprise deployments, including offices, campuses, education facilities, healthcare environments, retail locations, and other organizations adopting Wi-Fi 6E.
