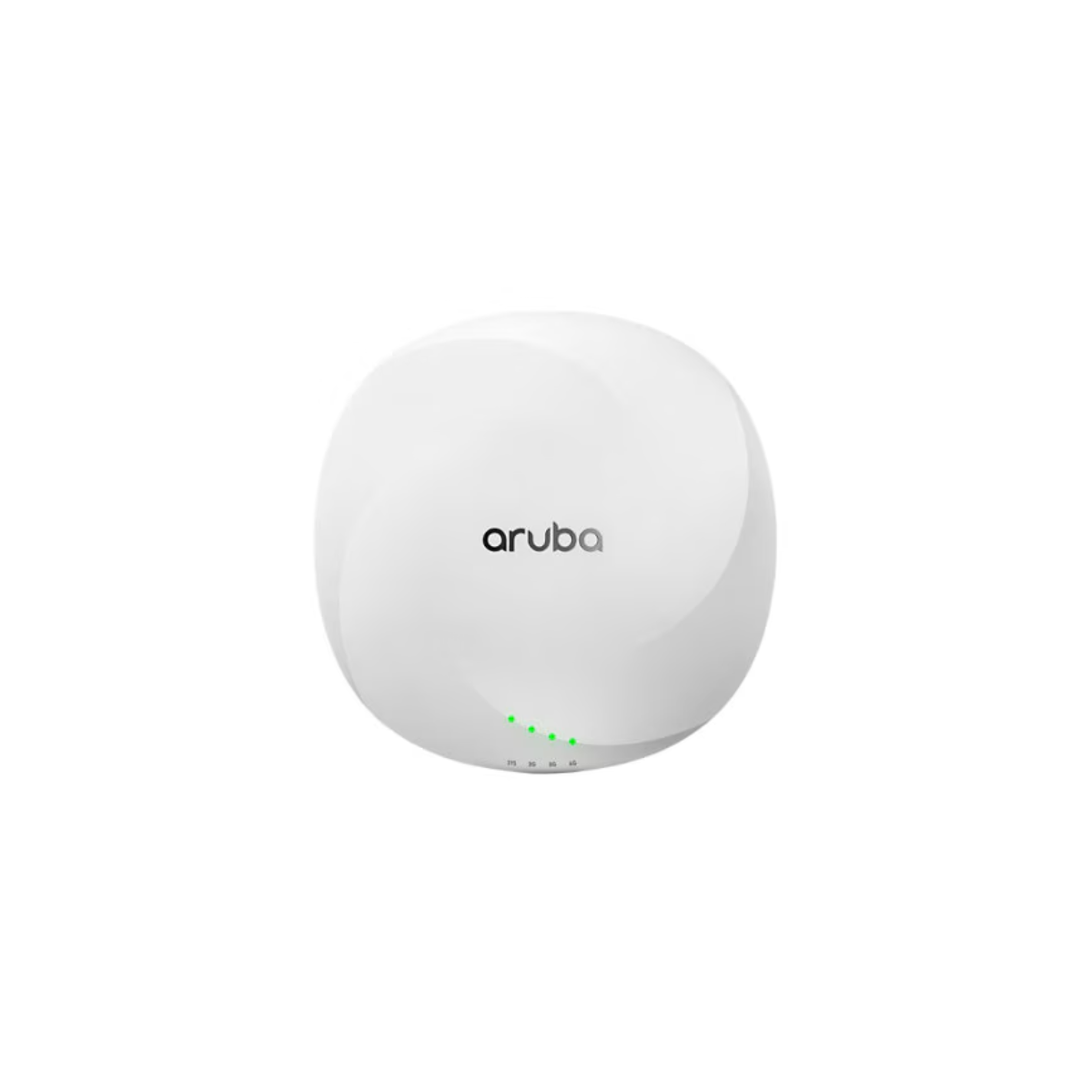

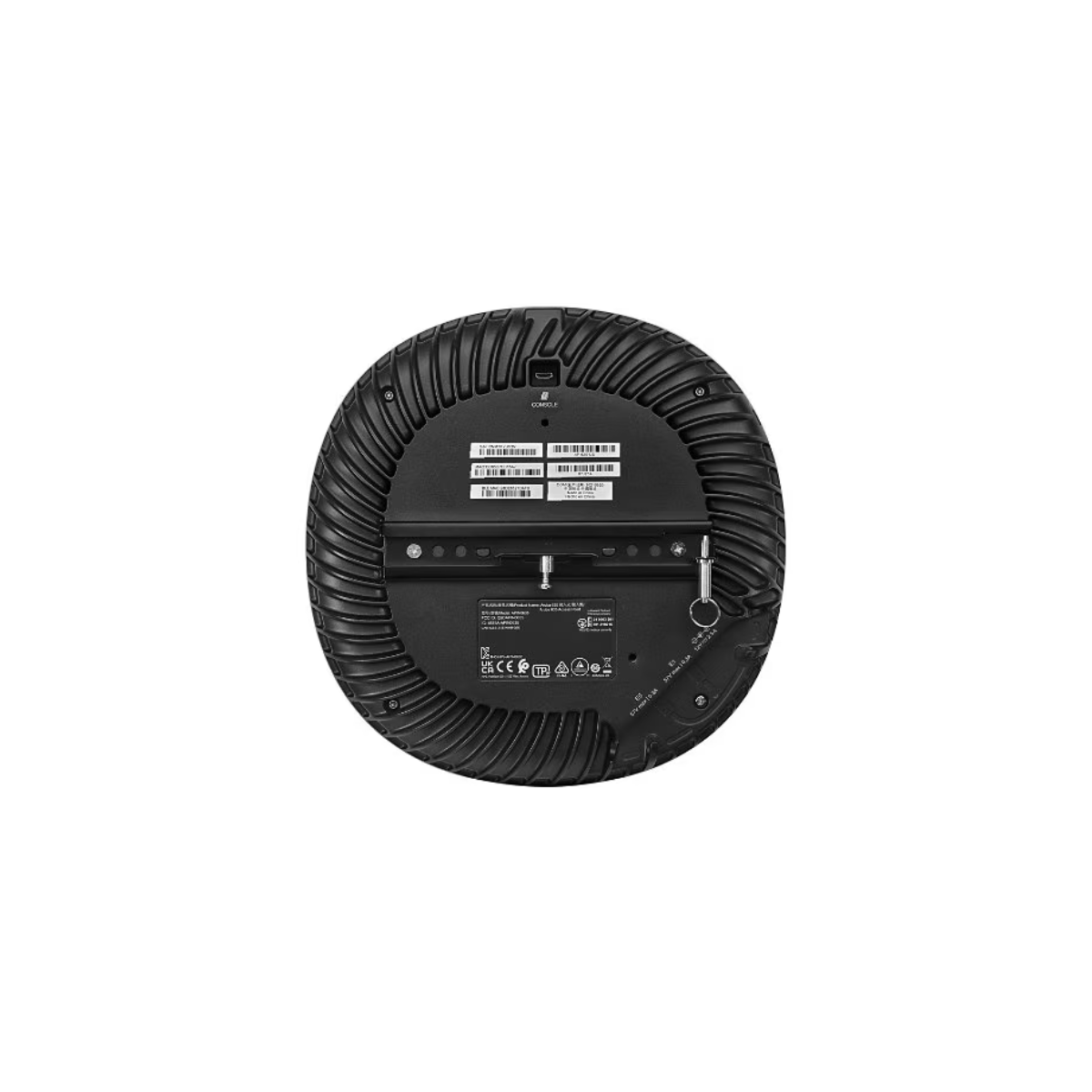

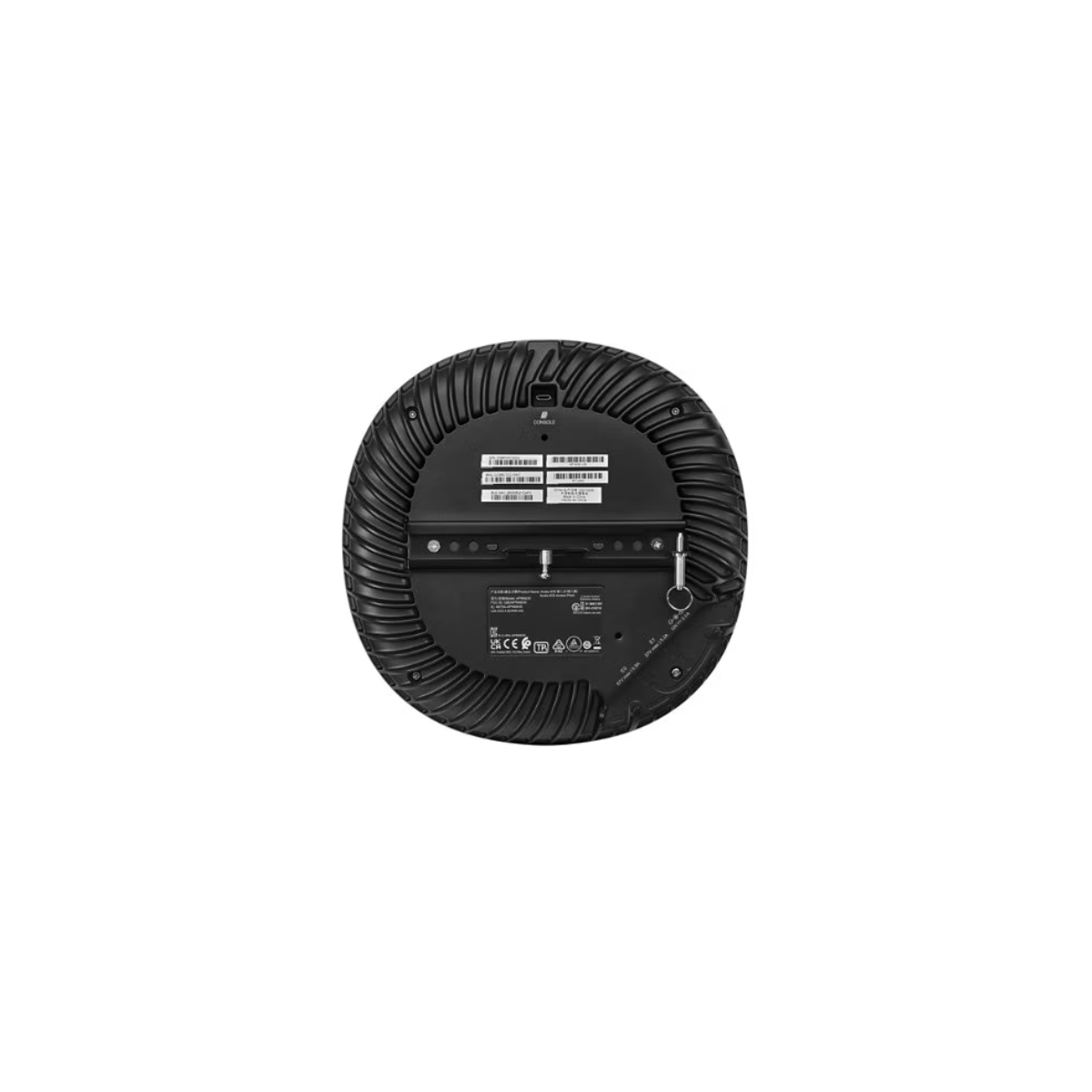

S3J36A HPE Aruba Networking AP-635 US Wi-Fi 6E 5-Pack

BRAND NEW WITH FULL HPE ARUBA NETWORKING WARRANTY!!!

Overview

The S3J36A HPE Aruba Networking AP-635 (US) Tri Radio 2x2 Wi-Fi 6E Internal Antennas 5-Pack Campus Access Point is an enterprise wireless deployment package designed for indoor campus, branch, and high-density business environments. It combines three concurrent 2x2 radios across the 2.4 GHz, 5 GHz, and 6 GHz bands, delivering a maximum aggregate data rate of 3.9 Gbps and supporting 160 MHz channels on the 6 GHz radio.

The AP-635 is designed for organizations moving beyond conventional Wi-Fi 6 deployments by using the additional 6 GHz spectrum available with Wi-Fi 6E. Its integrated internal antennas, dual 2.5GbE interfaces, Bluetooth 5.0, Zigbee support, GNSS positioning, and USB connectivity provide a flexible platform for enterprise WLAN and IoT deployments. The S3J36A is specifically a five-pack, making it suitable for standardized multi-AP rollouts.

Key Features – HPE Aruba Networking AP-635

• Processor: Integrated enterprise wireless processing platform
• Memory: Integrated system memory
• Storage: Integrated system storage
• Controller: HPE Aruba Networking Wireless Operating System / Instant OS with centralized management options
• Networking / Ports: 2 × 2.5GbE RJ-45 Ethernet ports
• Wireless: Tri-radio 2x2 Wi-Fi 6E
• Wireless Bands: 2.4 GHz, 5 GHz, and 6 GHz
• Power & Cooling: Power over Ethernet with optional 12V DC power adapter
• Management: On-premises, public cloud, VPC, and as-a-service management models
• Security: WPA, WPA2, WPA3-Enterprise, WPA3-Personal and Enhanced Open
• IoT: Bluetooth 5.0, IEEE 802.15.4/Zigbee and USB support
• Location: 802.11 FTM and integrated GNSS receiver
• Form Factor: Indoor ceiling/wall-mountable access point with integrated antennas
• Pack Configuration: 5 × AP-635 US access points

Technical Specifications

• Processor Type: Integrated enterprise wireless/network processing architecture
• Chipset / Platform: HPE Aruba Networking 630 Series / AP-635
• Memory Technology: Integrated system memory; capacity not specified in HPE's published QuickSpecs
• Storage Interface: Integrated system storage; interface not specified in the published QuickSpecs
• RAID Support: Not applicable
• Expansion Slots: No conventional PCIe expansion slots
• Networking: 2 × 2.5GbE RJ-45 Ethernet ports
• Wireless Standard: IEEE 802.11ax / Wi-Fi 6E
• Radio Configuration: Triple 2x2 MIMO
• 2.4 GHz: 20/40 MHz channels
• 5 GHz: 20/40/80 MHz channels
• 6 GHz: 20/40/80/160 MHz channels
• Maximum Aggregate Data Rate: 3.9 Gbps
• Antenna: Integrated downtilt omnidirectional antennas for 2x2 MIMO
• Antenna Gain: 4.6 dBi at 2.4 GHz, 7.0 dBi at 5 GHz, and 6.3 dBi at 6 GHz peak gain
• Ultra Tri-Band Filtering: Supported
• Bluetooth: Bluetooth 5.0
• IoT: IEEE 802.15.4/Zigbee and USB
• Location Services: 802.11 FTM and GNSS receiver
• I/O Ports: 2 × RJ-45 Ethernet, 1 × USB 2.0 Type-A, proprietary micro-B USB serial console, Kensington security slot
• Operating System Compatibility: HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS
• Management: On-premises, public cloud, VPC, and as-a-service options

Physical Specifications

• Form Factor: Indoor wireless access point
• Weight:
  • Individual AP without mounting bracket: 1.30 kg / 2.87 lbs
• Dimensions:
  • Individual AP without mounting bracket: 220 × 220 × 51 mm
  • Individual AP without mounting bracket: 8.66 × 8.66 × 2.01 inches
• Rack Compatibility: Not rack-mountable; designed for ceiling or wall installation
• Mounting: Mounting bracket is pre-installed; compatible mounting kits are available separately
• Operating Temperature: 0°C to +50°C / +32°F to +122°F
• Operating Humidity: 5% to 95% relative humidity
• Plenum Rating: UL2043 plenum rated for use in air-handling spaces

Physical-specification note: HPE publishes the 1.30 kg weight and 220 × 220 × 51 mm dimensions for each AP-635 unit. S3J36A is a 5-pack SKU; HPE's published QuickSpecs do not provide a separate five-pack aggregate chassis dimension/weight, so no estimated five-unit shipping weight is included.

Ideal For

• Enterprise campus Wi-Fi deployments
• Corporate office networks
• Higher-education campuses
• Healthcare facilities
• Retail and distributed business locations
• High-density indoor WLAN environments
• Wi-Fi 6E migration projects
• IoT-enabled enterprise networks
• Low-latency video and collaboration applications
• Organizations deploying multiple APs as a standardized rollout

Warranty & Support

• Standard Manufacturer Warranty: Limited Lifetime warranty.
• Support Contract Compatibility: HPE Aruba Networking Foundational Care services are available for AP-635 5-pack deployments, including 1-year and 3-year exchange options.
• Management Support: HPE Aruba Networking Central subscriptions are available for centralized AP management, including Foundation and Advanced subscription options.

FAQs – S3J36A HPE Aruba Networking AP-635

1. How many access points are included in S3J36A?
S3J36A is a 5-pack, containing five HPE Aruba Networking AP-635 US access points with internal antennas. HPE identifies S3J36A specifically as the US 5-pack SKU.

2. What wireless technology does the AP-635 support?
The AP-635 supports Wi-Fi 6E (802.11ax) with three concurrent 2x2 radios operating across 2.4 GHz, 5 GHz, and 6 GHz. Its maximum aggregate data rate is 3.9 Gbps.

3. Does the AP-635 have 2.5GbE connectivity?
Yes. Each AP provides two 2.5GbE RJ-45 Ethernet ports. HPE also specifies hitless failover for Ethernet and power, supporting high-availability deployments.

4. Can the AP-635 support IoT devices?
Yes. The AP includes Bluetooth 5.0, IEEE 802.15.4/Zigbee support, and a USB 2.0 host interface, allowing it to participate in enterprise IoT deployments.

5. What power options are available for the AP-635?
The AP supports PoE operation and can also use the optional HPE Aruba Networking AP-AC2-12B 12V/48W AC/DC power adapter. HPE also lists Smart Rate PoE injectors as available accessories.

6. Can S3J36A be centrally managed?
Yes. The 630 Series supports on-premises, public cloud, virtual private cloud, and as-a-service management models, with HPE Aruba Networking Central available as a management platform.
