HPE Aruba Networking CX 6300M 48p SFP 1G 2p SFP28 25G MACsec 2p SFP56 50G Switch – S4P43A

BRAND NEW WITH FULL HPE WARRANTY!!!

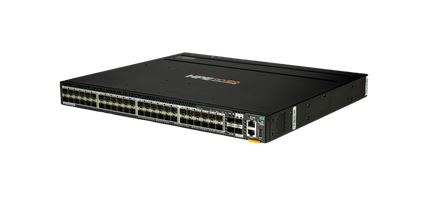

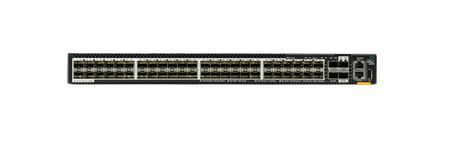

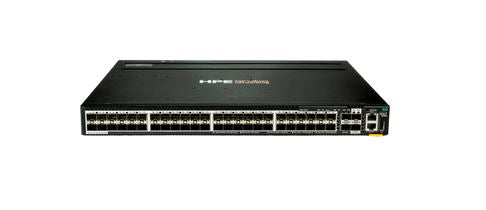

The HPE Aruba Networking CX 6300M (S4P43A) is a high-performance, modular-ready Layer 3 enterprise switch engineered for campus, aggregation, and data-center edge environments. This model includes 48× SFP 1G ports, 2× SFP28 25G uplink ports, and 2× SFP56 50G MACsec-enabled uplink ports, providing powerful bandwidth, secure connectivity, and flexible expansion options.

Purpose-built on Aruba’s modern AOS-CX operating system with a powerful cloud-native database, the CX 6300M delivers automation, analytics, and always-on reliability. With advanced security, MACsec encryption, and high-speed fiber connectivity, it is ideal for enterprise LAN cores, high-density deployments, or edge aggregation layers.

Key Features – HPE Aruba CX 6300M (S4P43A)

Ports & Connectivity

• 48 × 1G SFP fiber ports
• 2 × 25G SFP28 uplink ports (10/25G capable)
• 2 × 50G SFP56 uplinks with MACsec encryption
• 1 × USB-C Console Port
• 1 × RJ-45 Console Port
• 1 × OOBM port
• 1 × USB Type-A Host port

Performance

• Switching Capacity: 396 Gbps
• Throughput: up to 295 Mpps (model dependent)
• Stacking: Up to 10 switches per stack
• Latency optimized for 1G/25G/50G high-speed applications

Power & Cooling

• Supports modular PSUs:
 – Minimum: 1 PSU (ordered separately)
 – Maximum: 2 PSUs
• Supported Power Supplies: JL085A (AC), JL757A (DC)
• Includes: 2 fan trays (field-replaceable & hot-swappable)

Hardware & System

• Quad-Core ARM Cortex A72 @ 1.8 GHz
• 8 GB DDR4 memory
• 32 GB eMMC flash
• Packet buffer: 8/16/32 MB depending on configuration
• AOS-CX OS with real-time analytics & automation

Security

• MACsec on uplink ports
• Role-based access, dynamic segmentation
• Secure management and policy enforcement

Use Cases

• Enterprise core / aggregation switch
• High-density fiber-based campus deployments
• Data-center edge requiring 25G/50G uplinks
• Security-centric environments needing MACsec

Power Consumption

• With JL085A PSU:
 – Idle: 67W
 – Max load: 127W
• With JL757A PSU:
 – Idle: 61W
 – Max load: 123W

Dimensions & Weight

• Height: 1U (approx. 1.73 in)
• Width: 17.42 in
• Depth: 15.11 in
• Weight: ~13.2 lbs (6.01 kg)

Warranty:

Limited Lifetime Warranty (as per HPE conditions)
