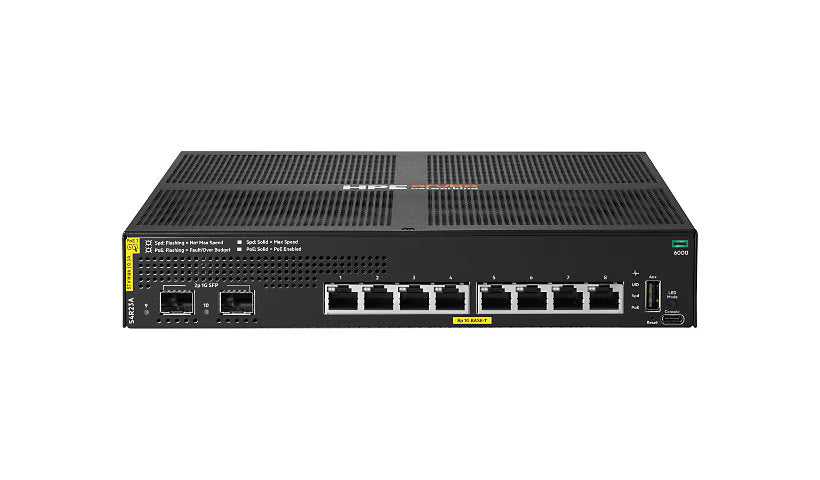

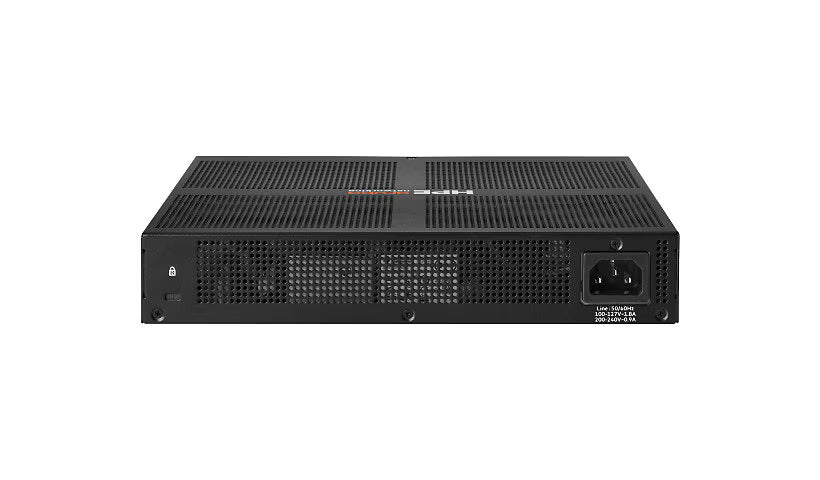

S4R23A#ABA HPE Aruba CX 6000 8-Port Managed PoE+ Switch

BRAND NEW WITH FULL HPE ARUBA WARRANTY!!!

The S4R23A#ABA HPE Aruba Networking CX 6000 8-Port Managed PoE+ Switch is an enterprise-grade Layer 2 Gigabit Ethernet switch designed to deliver reliable, secure, and high-performance network connectivity for branch offices, small and medium-sized businesses, retail environments, and remote workspaces. Featuring 8 Gigabit Class 4 PoE+ ports, 2 dedicated 1G SFP uplink ports, and a 67W PoE power budget, it provides efficient connectivity for IP phones, wireless access points, IP surveillance cameras, and other powered network devices.

Built on the Aruba ASIC architecture and powered by the AOS-CX operating system, the CX 6000 Series delivers enterprise-class switching, simplified management, advanced security, and dependable performance in a compact fanless design. The switch supports flexible management through Web GUI, CLI, Aruba Central, and Aruba NetEdit, making it an ideal networking solution for organizations seeking reliable wired access with simplified deployment and management.

Key Features – HPE Aruba Networking CX 6000 S4R23A#ABA

Processor:

• Dual-Core ARM Cortex-A9 processor

Memory:

• Embedded system memory for enterprise switching operations

Storage:

• Internal Flash memory for firmware and configuration storage

Controller:

• Aruba ASIC with AOS-CX Layer 2 managed switching

Networking / Ports:

• 8 × 10/100/1000 Gigabit Ethernet Class 4 PoE+ RJ-45 ports
• 2 × 1G SFP uplink ports
• USB Type-C console port
• USB Type-A host port

Power & Cooling:

• 67W PoE budget
• Internal power supply
• Fanless silent operation

Management:

• Aruba Central
• Web GUI
• Command Line Interface (CLI)
• REST APIs
• Aruba NetEdit
• SNMP
• Syslog

Security:

• Access Control Lists (ACLs)
• IEEE 802.1X Authentication
• Port Security
• Secure Management (SSH)
• RADIUS Authentication
• MAC Authentication
• DHCP Snooping

Form Factor:

• Compact Rack-Mount / Wall-Mount Switch

Technical Specifications

Processor Type:

Dual-Core ARM Cortex-A9 @ 1.016 GHz

Chipset / Platform:

Aruba ASIC Architecture

Operating System:

AOS-CX

Memory Technology:

Embedded DRAM and Flash

Storage Interface:

Internal Flash Storage

RAID Support:

Not Applicable

Expansion Slots:

2 × Gigabit SFP uplink ports

Networking:

• 8 × 10/100/1000Base-T Class 4 PoE+ ports
• 2 × 1000Base-X SFP uplinks
• IEEE 802.3af PoE
• IEEE 802.3at PoE+
• IEEE 802.1Q VLAN
• Link Aggregation (LACP)
• Quality of Service (QoS)
• Access Control Lists (ACLs)
• IPv4 / IPv6 Support
• Static Routing

Performance:

• Switching Capacity: 20 Gbps
• Throughput: 14.8 Mpps
• PoE Budget: 67W

I/O Ports:

• 8 × RJ-45 Gigabit Ethernet
• 2 × SFP
• USB Type-C Console
• USB Type-A Host

Operating System Compatibility:

• Aruba Central
• Web-based Management
• CLI Management
• SNMP-compatible Network Management Platforms

Physical Specifications

Form Factor:

Compact Rack Mount / Wall Mount

Cooling:

Fanless Design

Dimensions:

254 × 160 × 43.9 mm (W × D × H)

Weight:

Approximately 1.5 kg

Ideal For

• Small and Medium Businesses
• Branch Office Networking
• Retail Stores
• Educational Institutions
• Healthcare Clinics
• Hospitality Networks
• Remote Office Deployments
• Wireless Access Point Connectivity
• IP Phone Deployments
• IP Surveillance Systems

Warranty & Support

• HPE Aruba Limited Lifetime Warranty
• Software updates through HPE Aruba support policies
• Compatible with HPE Aruba Central cloud management
• Enterprise technical support available through HPE Aruba services

FAQs – HPE Aruba Networking CX 6000 S4R23A#ABA

1. Does the S4R23A#ABA support Power over Ethernet?
Yes. It supports IEEE 802.3af and IEEE 802.3at Class 4 PoE+ with a total PoE budget of 67 watts.

2. How many uplink ports are available?
The switch includes 2 dedicated Gigabit SFP uplink ports for high-speed fiber connectivity.

3. Is the switch fanless?
Yes. The CX 6000 8-port model features a fanless design, making it suitable for quiet office environments.

4. How can the switch be managed?
It supports Aruba Central, Web GUI, CLI, REST APIs, SNMP, and Aruba NetEdit for flexible network management.

5. Does the switch support Layer 3 routing?
The CX 6000 Series primarily provides enterprise Layer 2 switching with support for static routing, making it suitable for access-layer deployments.

6. What environments is this switch designed for?
It is ideal for small businesses, branch offices, retail stores, schools, healthcare facilities, hospitality environments, and enterprise edge networks requiring secure Gigabit Ethernet connectivity with PoE+ support.
