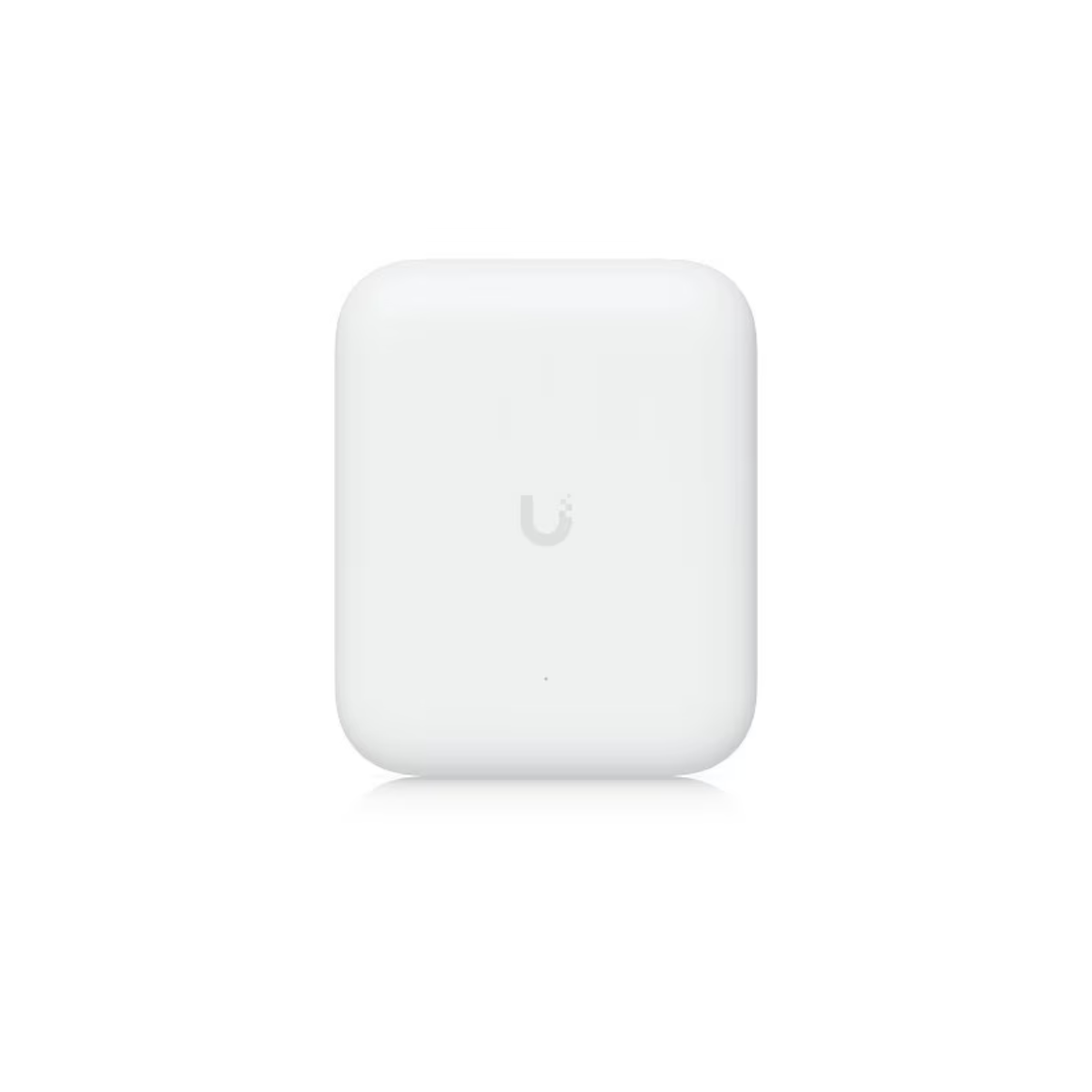

U7-OUTDOOR Ubiquiti UniFi U7 Outdoor Wireless Access Point – Wi-Fi 7

BRAND NEW WITH FULL UBIQUITI WARRANTY!!!

The Ubiquiti UniFi U7 Outdoor Wireless Access Point (P/N: U7-OUTDOOR) is a high-performance enterprise-grade Wi-Fi 7 access point engineered to deliver reliable outdoor wireless connectivity in demanding environments. Designed with an IPX6-rated weather-resistant enclosure, integrated directional antenna, and support for external omni antennas, it provides high-speed wireless coverage for campuses, warehouses, hospitality venues, outdoor workspaces, and public areas while seamlessly integrating with the UniFi Network platform.

Supporting Wi-Fi 7 with four spatial streams, a 2.5 Gigabit Ethernet uplink, and PoE+ power, the U7-OUTDOOR delivers exceptional throughput, low latency, and reliable connectivity for high-density client deployments. Its flexible wall and pole mounting options, enterprise security capabilities, and centralized cloud-based management make it an ideal solution for organizations expanding secure wireless coverage beyond traditional indoor environments.

Key Features – Ubiquiti UniFi U7 Outdoor Wireless Access Point

• Processor: Integrated enterprise Wi-Fi platform
• Memory: Manufacturer not specified
• Storage: Not applicable
• Controller: Managed through UniFi Network Application (Version 8.2.93 or later)
• Networking / Ports:

  • 1 × 1/2.5 Gigabit Ethernet RJ45 port
  • Wi-Fi 7 (802.11be)
  • 4 Spatial Streams

• Power & Cooling:
  • IEEE 802.3at PoE+
  • Maximum Power Consumption: 19 W
  • Passive fanless cooling

• Management:
  • UniFi Network Controller
  • Ethernet management
  • Remote centralized administration
• Security:
  • WPA3 support
  • Enterprise authentication through UniFi platform
• Form Factor:
  • Outdoor Wall or Pole Mount
  • IPX6 Weather-Resistant Enclosure

Technical Specifications

• Processor Type: Integrated Wi-Fi 7 networking platform
• Chipset / Platform: Ubiquiti UniFi Platform
• Memory Technology: Not specified by manufacturer
• Storage Interface: Not applicable
• RAID Support: Not applicable
• Expansion Slots: None
• Networking:
  • 4.3 Gbps (5 GHz)
  • 688 Mbps (2.4 GHz)
  • Wi-Fi 7 (IEEE 802.11be)
  • 2×2 DL/UL MU-MIMO (2.4 GHz)
  • 2×2 DL/UL MU-MIMO (5 GHz)
  • Maximum wireless data rates:
  • Coverage Area: Up to 465 m² (5,000 ft²)
  • Supports 250+ connected clients
• I/O Ports:
  • 1 × 1/2.5GbE RJ45 Ethernet
  • 2 × RP-SMA connectors for external antennas
  • Factory Reset Button
• Operating System Compatibility:
  • UniFi Network Application Version 8.2.93 or later

Physical Specifications

• Form Factor:
  • Outdoor Wall / Pole Mount
• Weight:
  • 1.2 kg
  • 2.6 lbs
• Dimensions:
  • 170 × 208 × 54.5 mm
  • 6.7 × 8.2 × 2.1 inches
• Rack Compatibility:
  • Not rack-mountable (Outdoor Wall and Pole Mount)

Ideal For

• Enterprise campus outdoor Wi-Fi
• Schools and universities
• Hospitality and resort properties
• Warehouses and logistics facilities
• Manufacturing plants
• Outdoor retail locations
• Public parks and recreation areas
• Stadiums and event venues
• Parking lots
• Large residential estates requiring outdoor wireless coverage

Warranty & Support

• Standard Ubiquiti Limited Hardware Warranty
• Optional UI Care extended coverage available for expedited replacement and priority support
• Managed through the UniFi Network ecosystem for centralized monitoring and firmware updates

FAQs – Ubiquiti UniFi U7 Outdoor Wireless Access Point

1. Does the U7-OUTDOOR support Wi-Fi 7?

Yes. The U7-OUTDOOR supports the IEEE 802.11be (Wi-Fi 7) standard, delivering higher throughput, improved efficiency, and lower latency than previous Wi-Fi generations.

2. How is the access point powered?

The access point is powered using IEEE 802.3at PoE+ and has a maximum power consumption of 19 watts.

3. Is the U7-OUTDOOR suitable for harsh outdoor environments?

Yes. It features an IPX6-rated weather-resistant enclosure and is designed to operate in temperatures ranging from -30°C to 60°C (-22°F to 140°F).

4. How many wireless clients can it support?

The U7-OUTDOOR is designed to support more than 250 concurrent wireless clients, making it suitable for high-density outdoor deployments.

5. Can external antennas be connected?

Yes. The access point includes two RP-SMA connectors for compatible external omni-directional antennas, in addition to its integrated directional antenna.

6. What deployment environments is the U7-OUTDOOR best suited for?

It is ideal for outdoor enterprise Wi-Fi deployments including campuses, hotels, warehouses, public venues, industrial facilities, and outdoor commercial spaces requiring centralized UniFi management and high-speed wireless connectivity.
