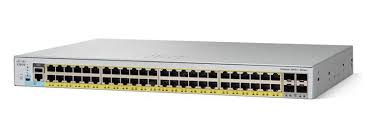

Cisco Catalyst 2960L-48PQ-LL 48-Ports Managed Switch WS-C2960L-48PQ-LL

Cisco Catalyst 2960-L Series Switches are fixed and smart-managed Gigabit Ethernet switches that provide enterprise-class access switching for branch offices, out-of-the-wiring-closet applications, and critical Internet of Things (IoT) deployments, as well as small and medium-sized businesses. They operate on Cisco IOS Software and support simple device management and network management via Command Line Interface (CLI) as well as an on-box web interface.

Catalyst 2960-L Smart Managed Switches are secure, reliable, enterprise grade switches built for small office deployments. These switches can be configured and managed via an on-box web interface allowing customers a quick and reliable way to get a small branch or office network up and running within minutes. These switches also feature limited CLI support for troubleshooting and monitoring.

Specifications:

• Manufacturer: Cisco Systems
• Brand: Cisco
• Product Line: Cisco Catalyst
• Model: 2960L-48PQ-LL
• Packaged Quantity: 1
• Type: ARM7
• Clock Speed: 800 megahertz
• RAM Installed Size: 512 megabyte
• Performance: Switching bandwidth: 176 Gbps, Forwarding performance (64-byte packet size): 77.38 Mpps, Forwarding bandwidth: 88 Gbps
• Capacity: STP instances: 64, SPAN sessions: 1, VLANs supported: 4094, Active VLANs: 64
• Type: Switch
• Subcategory: Network hubs and switches
• Subtype: Gigabit Ethernet
• Form Factor: Rack-mountable, Desktop
• Ports Qty: 48
• Routing Protocol: MLDv2, IGMP, MLD
• MAC Address Table Size: 8K entries
• Jumbo Frame Support: 10240 bytes
• Manageable: Yes
• Remote Management Protocol: CLI, SNMP 2c, TFTP, SNMP 1, SSH, Telnet, RMON 2, SNMP 3, HTTP, RMON
• Power Over Ethernet (PoE): PoE+
• PoE Budget: 370 watt
• Status Indicators: Port status, Link/speed, System, Port duplex mode, PoE
• Ports Qty: 48
• Type: 10/100/1000 (PoE+)
• Type: Cisco IOS LAN Lite
• Type: Internal power supply
• Nominal Voltage: AC 120/230 V
• Frequency Required: 50 - 60 hertz
• Color Category: Gray
• Authentication Method: Secure Shell (SSH), TACACS+, Kerberos, RADIUS
• MTBF: 1,370,769 Hours
• Width: 17.5 inch
• Depth: 11.5 inch
• Height: 1.7 inch
• Weight: 10.01 lbs
