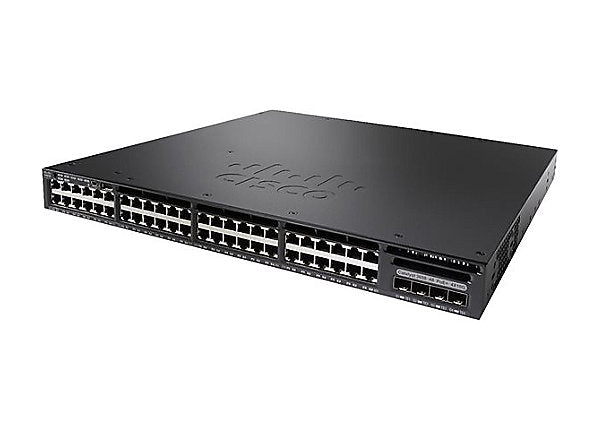

Cisco Catalyst 3650 Switch 48 Ports Managed Desktop WS-C3650-48TQ-S

The Cisco Catalyst 3650 series is the enterprise-class standalone and stackable access-layer switch that provides the foundation for full convergence between wired and wireless on a single platform. The Cisco Catalyst 3650 is built on the advanced Cisco StackWise-160, and takes advantage of the Cisco Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC). This switch can enable uniform wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. The Cisco Catalyst 3650 series switch supports full IEEE 802.3at Power over Ethernet Plus (PoE+), and offers modular and field-replaceable redundant fans and power supplies. It can help you increase wireless productivity and reduce your TCO.

Specifications

• Manufacturer :CISCO DS HARDWARE DIRECT
• Brand :Cisco
• Product Line :Cisco Catalyst
• Model :3650-48TQ-S
• Packaged Quantity :1
• RAM
• Installed Size :4 GB, 4 GB, 4 GB, 4 GB
• Flash Memory
• Installed Size :2 GB, 2 GB, 2 GB, 2 GB
• Performance
• Performance :Forwarding performance: 130.95 Mpps, Switching capacity: 176 Gbps
• Capacity
• Capacity :Virtual interfaces (VLANs): 4000, Switched virtual interfaces (SVIs): 1000, NetFlow entries: 48000, IPv4 routes: 24000
• Networking
• Type :Switch
• Subcategory :Network hubs and switches
• Subtype :Gigabit Ethernet
• Form Factor :Rack-mountable, Desktop
• Stackable :Stackable
• Ports Qty :48
• Advanced Switching :Layer 3
• Routing Protocol :RIPng, Static IP routing, OSPF, RIP-1, RIP-2
• MAC Address Table Size :32000 entries
• Jumbo Frame Support :9198 bytes
• Manageable :Yes
• Remote Management Protocol :RMON 2, SSH, SNMP 1, RMON 9, Telnet, CLI, RMON 3, RMON 1, SNMP 3, SNMP 2c
• Status Indicators :Status, Port transmission speed, Port duplex mode, Active, System
• Ports
• Qty :48
• Type :10/100/1000
• Ports (2nd)
• Qty :4
• Type :10 Gigabit SFP+
• Expansion Slots
• Expansion Slots :1 (total) / 1 (free) x Stacking Module slot
• Interface Provided
• Software
• Type :Cisco IOS IP Base
• Power Device
• Type :Internal power supply
• Hot-Plug :Hot-plug
• Power Redundancy :Optional
• Power Redundancy Scheme :1+1 (with optional power supply)
• Installed Qty :1
• Max Supported Qty :2
• Power Provided :250 watt
• Nominal Voltage :AC 120/230 V
• Frequency Required :50/60 hertz
• Miscellaneous
• Color Category :Black
• Rack Mounting Kit :Included
• Height (Rack Units) :1
• Authentication Method :TACACS+, RADIUS, Secure Shell (SSH)
• MTBF :527,580 Hours
• Dimensions & Weight
• Width :17.5 inch
• Depth :17.6 inch
• Height :1.7 inch
• Weight :15.9 lbs
