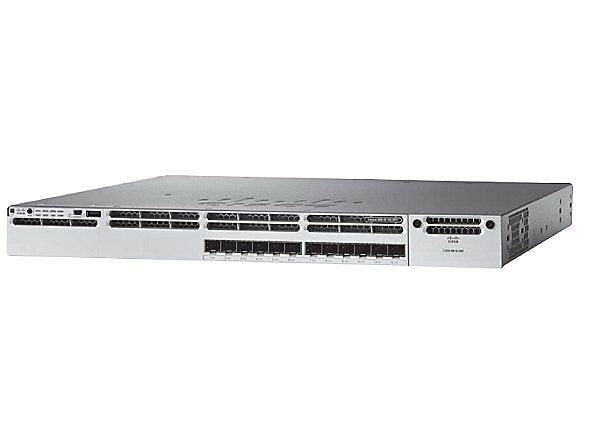

Cisco Catalyst 3850-12XS-S 12-Ports Managed Switch WS-C3850-12XS-S

Share information about your brand with your customers. Describe a product, make announcements, or welcome customers to your store.

BRAND NEW WITH THE FULL CISCO WARRANTY!!! Cisco · PoE · Gigabit Ethernet · Switches · Managed · 12 ethernet ports · Layer 3 · VLAN

The Cisco Catalyst 3850 Series is the next generation of enterprise-class stackable Ethernet and Multigigabit Ethernet access and aggregation layer switches that provide full convergence between wired and wireless on a single platform. Cisco's new Unified Access Data Plane (UADP) application- specific integrated circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility and application optimization. This convergence is built on the resilience of the new and improved Cisco StackWise-480 technology. The Cisco Catalyst 3850 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), Cisco Universal Power over Ethernet (Cisco UPOE), modular and field-replaceable network modules, RJ45 and fiber-based downlink interfaces, and redundant fans and power supplies. With speeds that reach 10Gbps, the Cisco Catalyst 3850 Multigigabit Ethernet Switches support current and next-generation wireless speeds and standards (including 802.11ac Wave 2) on existing cabling infrastructure.

Specifications

• Manufacturer: Cisco Systems
• Brand: Cisco
• Product Line: Cisco Catalyst
• Model: 3850-12XS-S
• Packaged Quantity: 1
• RAM
• Installed Size: 4 GB, 4 GB, 4 GB, 4 GB
• Flash Memory
• Installed Size: 4 GB, 4 GB, 4 GB, 4 GB
• Performance
• Performance: Switching capacity: 320 Gbps, Stacking bandwidth: 480 Gbps
• Capacity
• Capacity: Switched virtual interfaces (SVIs): 1000, NetFlow entries: 24000, Virtual interfaces (VLANs): 4000, IPv4 routes: 24000
• Networking
• Type: Switch
• Subcategory: Network hubs and switches
• Subtype: 10 Gigabit Ethernet
• Form Factor: Desktop, Rack-mountable
• Stackable: Stackable
• Ports Qty: 12
• Advanced Switching: Layer 3
• Routing Protocol: IGMPv3, RIP-1, RIP-2, IS-IS, MLDv2, IGMP, MLD, RIPng, IGMPv2, Policy-based routing (PBR)
• MAC Address Table Size: 32000 entries
• Jumbo Frame Support: 9198 bytes
• Manageable: Yes
• Remote Management Protocol: RMON 2, RMON 1, TFTP, SNMP 2c, Telnet, SSH, CLI, SNMP 1, SNMP 3
• Status Indicators: Port transmission speed, System, Power, Port duplex mode, Active, Status
• Qty: 12
• Type: 1 Gigabit / 10 Gigabit SFP+
• Expansion Slots
• Expansion Slots: 1 (total) / 1 (free) x expansion slot
• Interface Provided
• Type: Internal power supply
• Power Redundancy: Optional
• Power Redundancy Scheme: 1+1 (with optional power supply)
• Installed Qty: 1
• Max Supported Qty: 2
• Power Provided: 350 watt
• Nominal Voltage: AC 120/230 V
• Frequency Required: 50 - 60 hertz
• Miscellaneous
• Color Category: Gray
• Height (Rack Units): 1
• Authentication Method: TACACS+, Kerberos, Secure Shell (SSH), RADIUS
• MTBF: 371,440 Hours
• Width: 17.5 inch
• Depth: 17.7 inch
• Height: 1.8 inch
• Weight: 12.79 lbs

UPC : 00882658757945
