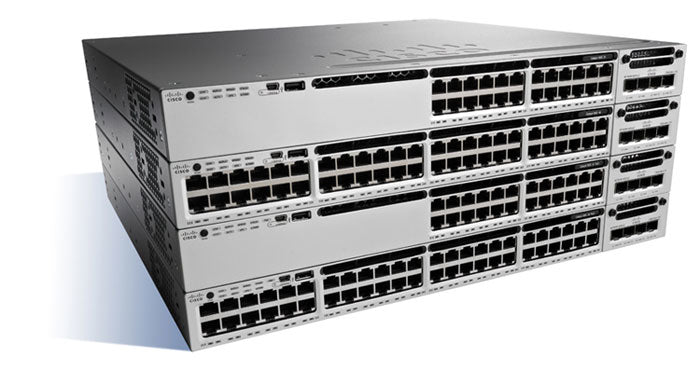

Cisco Catalyst 3850 24Port Poe Layer 3 Switch WS-C3850-24P-S

The Cisco Catalyst 3850 series is the enterprise-class stackable access-layer switches that provide full convergence between wired and wireless on a single platform. Cisco's Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility and application optimization. The Cisco Catalyst 3850 series switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), modular and field-replaceable network modules, redundant fans and power supplies.

Specifications

• Manufacturer: Cisco Systems
• Brand: Cisco
• Product Line: Cisco Catalyst
• Model: 3850-24P-S
• Packaged Quantity: 1
• Installed Size: 4 GB, 4 GB, 4 GB, 4 GB
• Installed Size: 2 GB, 2 GB, 2 GB, 2 GB
• Performance: Stacking bandwidth: 480 Gbps, Switching capacity: 88 Gbps
• Capacity: IPv4 routes: 24000, NetFlow entries: 24000, Switched virtual interfaces (SVIs): 1000
• Type: Switch
• Subcategory: Network hubs and switches
• Subtype: Gigabit Ethernet
• Form Factor: Desktop, Rack-mountable
• Stackable: Stackable
• Ports Qty: 24
• Advanced Switching: Layer 3
• Routing Protocol: RIPng, RIP-1, RIP-2, EIGRP
• MAC Address Table Size: 32000 entries
• Jumbo Frame Support: 9198 bytes
• Manageable: Yes
• Remote Management Protocol: SNMP 3, RMON 2, RMON 1, SNMP 1, Telnet, SNMP 2c, CLI, SSH
• Power Over Ethernet (PoE): PoE+
• PoE Budget: 435 watt
• Status Indicators: Status, Port transmission speed, Port duplex mode, PoE, System
• Qty: 24
• Type: 10/100/1000 (PoE+)
• Expansion Slots: 1 (total) / 1 (free) x expansion slot
• Interfaces: 1 x management (Gigabit LAN) 10Base-T/100Base-TX/1000Base-T - RJ-45 - RJ-45, 24 x 1000Base-T 10Base-T/100Base-TX/1000Base-T - RJ-45 - RJ-45 PoE+ - 30 W, 1 x management (RS-232) RS-232 - RJ-45 - RJ-45, 1 x management (mini-USB) console - mini-USB Type B - Type B, 1 x USB Type A, 2 x network stack device
• Type: Cisco IOS IP Base
• Type: Internal power supply
• Power Redundancy: Optional
• Power Redundancy Scheme: 1+1 (with optional power supply)
• Installed Qty: 1
• Max Supported Qty: 2
• Power Provided: 715 watt
• Nominal Voltage: AC 120/230 V
• Frequency Required: 50/60 hertz
• Width: 17.5 inch
• Depth: 17.7 inch
• Height: 1.8 inch
• Weight: 16.31 lbs
