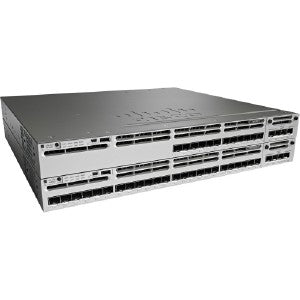

Cisco Catalyst 3850-24S-S 24-Ports Managed Switch WS-C3850-24S-S

BRAND NEW FACTORY SEALED & RETAIL BOXED WITH THE FULL CISCO WARRANTY!!! Cisco · PoE · Gigabit Ethernet · Switches · Managed · 24 ethernet ports · Layer 3 · VLAN The Cisco Catalyst 3850 series is the enterprise-class stackable access-layer switches that provide full convergence between wired and wireless on a single platform. Cisco's Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility and application optimization. The Cisco Catalyst 3850 series switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), modular and field-replaceable network modules, redundant fans and power supplies.

Specifications

• Manufacturer: Cisco Systems
• Brand: Cisco
• Product Line: Cisco Catalyst
• Model: 3850-24S-S
• Packaged Quantity: 1
• Installed Size: 2 GB, 2 GB, 2 GB, 2 GB
• Performance: Forwarding performance: 68.4 Mpps, Switching capacity: 92 Gbps, Stacking bandwidth: 480 Gbps
• Capacity: NetFlow entries: 24000, IPv4 routes: 24000, Switched virtual interfaces (SVIs): 1000
• Type: Switch
• Subcategory: Network hubs and switches
• Subtype: Gigabit Ethernet
• Form Factor: Rack-mountable, Desktop
• Stackable: Stackable
• Ports Qty: 24
• Advanced Switching: Layer 3
• Routing Protocol: RIP-2, RIPng, RIP-1, EIGRP
• MAC Address Table Size: 32000 entries
• Jumbo Frame Support: 9198 bytes
• Manageable: Yes
• Remote Management Protocol: Telnet, RMON 1, SNMP 3, CLI, SNMP 1, SNMP 2c, SSH, RMON 2
• Status Indicators: Power
• Qty: 24
• Type: Gigabit SFP
• Expansion Slots: 1 (total) / 1 (free) x Stacking Module slot
• Interfaces: 1 x serial (RS-232) RJ-45 management, 24 x 1000Base-X SFP, 1 x management (mini-USB) Type B, 1 x USB Type A, 1 x management (Gigabit LAN) RJ-45, 2 x network stack device
• Type: Cisco IOS IP Base
• Type: Internal power supply
• Power Redundancy: Optional
• Power Redundancy Scheme: 1+1 (with optional power supply)
• Installed Qty: 1
• Max Supported Qty: 2
• Power Provided: 350 watt
• Nominal Voltage: AC 120/230 V
• Frequency Required: 50/60 hertz
• Color Category: Gray
• Height (Rack Units): 1
• Authentication Method: TACACS+, Secure Shell (SSH), RADIUS, Kerberos
• MTBF: 300,760 Hours
• Width: 17.5 inch
• Depth: 17.7 inch
• Height: 1.8 inch
• Weight: 15.5 lbs

Additional Features : DHCP support, auto-negotiation, ARP support, Syslog support, Intrusion Detection System (IDS), full duplex mode, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), Cisco StackWise Technology, Unicast Reverse Path Forwarding (URPF), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Port Security, Remote Switch Port Analyzer (RSPAN), CAPWAP support, Hot Standby Router Protocol (HSRP) support, Management Information Base (MIB), Virtual Routing and Forwarding (VRF), Wireless Intrusion Prevention System (WIPS), Class of Service (CoS), Cisco StackPower technology, Flexible NetFlow (FNF), FTP client, DiffServ Code Point (DSCP) support, Storm Control, IP source guard, Weighted Tail Drop (WTD) UPC : 00882658684609
