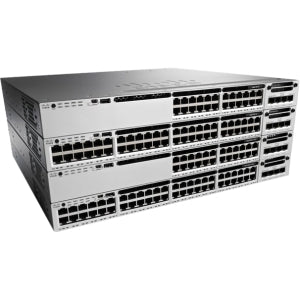

Cisco Catalyst 3850 48 Port Ge UPOE IP Service 1100W PS WS-C3850-48U-E

The Cisco Catalyst 3850 Series is the next generation of enterprise-class stackable access-layer switches that provide full convergence between wired and wireless on a single platform. Cisco`s new Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility and application optimization. This convergence is built on the resilience of the new and improved Cisco StackWise-480. The Cisco Catalyst 3850 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), Cisco Universal Power over Ethernet (Cisco UPOE), modular and field-replaceable network modules, redundant fans and power supplies.

Specifications

• Manufacturer: CISCO DS HARDWARE DIRECT
• Brand: Cisco
• Product Line: Cisco Catalyst
• Model: 3850-48U-E
• Packaged Quantity: 1
• Installed Size: 4 GB, 4 GB, 4 GB, 4 GB
• Installed Size: 2 GB, 2 GB, 2 GB, 2 GB
• Performance: Stacking bandwidth: 480 Gbps, Switching capacity: 176 Gbps
• Capacity: Switched virtual interfaces (SVIs): 1000, IPv4 routes: 24000, NetFlow entries: 48000
• Type: Switch
• Subcategory: Network hubs and switches
• Subtype: Gigabit Ethernet
• Form Factor: Desktop, Rack-mountable
• Stackable: Stackable
• Ports Qty: 48
• Advanced Switching: Layer 3
• Routing Protocol: EIGRP for IPv6, PIM-SM, RIP-2, EIGRP, IS-IS, BGP-4, RIPng, PIM-SSM, OSPFv3, RIP-1
• MAC Address Table Size: 32000 entries
• Jumbo Frame Support: 9198 bytes
• Manageable: Yes
• Remote Management Protocol: SNMP 3, SNMP 1, SNMP 2c, RMON 2, Telnet, CLI, RMON 1, SSH
• Power Over Ethernet (PoE): UPOE
• PoE Budget: 800 watt
• Qty: 48
• Type: 10/100/1000 (UPOE)
• Expansion Slots: 1 (total) / 1 (free) x Stacking Module slot
• Interfaces: 1 x USB Type A, 1 x serial (RS-232) RJ-45 management, 2 x network stack device, 1 x management (Gigabit LAN) RJ-45, 48 x 1000Base-T RJ-45 UPOE - 60 W, 1 x management (mini-USB) Type B
• Type: Cisco IOS IP Services
• Type: Internal power supply
• Power Redundancy: Optional
• Power Redundancy Scheme: 1+1 (with optional power supply)
• Installed Qty: 1
• Max Supported Qty: 2
• Power Provided: 1100 watt
• Nominal Voltage: AC 120/230 V
• Frequency Required: 50/60 hertz
• Height (Rack Units): 1
• Authentication Method: TACACS+, RADIUS, Kerberos, Secure Shell (SSH)
• MTBF: 205,110 Hours
• Width: 17.5 inch
• Depth: 17.7 inch
• Height: 1.8 inch
• Weight: 17.64 lbs
