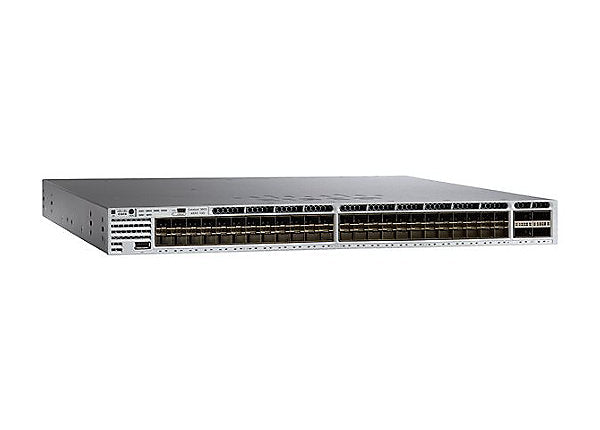

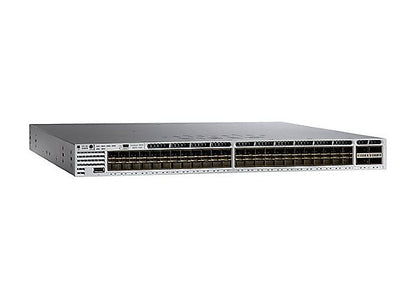

Cisco Catalyst 3850-48XS-E Managed L3 Switch WS-C3850-48XS-E

The Cisco Catalyst 3850 series switches are advanced, enterprise-class, stackable, access layer switches. They provide full convergence between wired and wireless networks on a single platform.

Specifications

• Manufacturer: CISCO DS HARDWARE DIRECT
• Brand: Cisco
• Product Line: Cisco Catalyst
• Model: 3850-48XS-E
• Packaged Quantity: 1
• Chassis
• Airflow Direction: Front to back airflow
• RAM
• Installed Size: 8 GB, 8 GB, 8 GB, 8 GB
• Flash Memory
• Installed Size: 8 GB, 8 GB, 8 GB, 8 GB
• Performance
• Performance: Stacking bandwidth: 480 Gbps, Switching capacity: 1280 Gbps
• Capacity
• Capacity: Virtual interfaces (VLANs): 4000, Switched virtual interfaces (SVIs): 1000, IPv4 routes: 24000, NetFlow entries: 96000
• Networking
• Type: Switch
• Subcategory: Network hubs and switches
• Subtype: 10 Gigabit Ethernet
• Form Factor: Desktop, Rack-mountable
• Stackable: Stackable
• Ports Qty: 48
• Advanced Switching: Layer 3
• MAC Address Table Size: 32000 entries
• Jumbo Frame Support: 9198 bytes
• Manageable: Yes
• Remote Management Protocol: SNMP 3, CLI, RMON 2, SNMP 1, TFTP, SNMP 2c, Telnet, SSH, RMON 1
• Status Indicators: System, Status, Active, Port transmission speed, Port duplex mode, Power
• Qty: 48
• Type: 1 Gigabit / 10 Gigabit SFP+
• Ports (2nd)
• Qty: 4
• Type: QSFP+
• Interface Provided
• Software
• Type: Cisco IOS IP Services
• Power Device
• Type: Internal power supply
• Power Redundancy: Optional
• Power Redundancy Scheme: 1+1 (with optional power supply)
• Installed Qty: 1
• Max Supported Qty: 2
• Power Provided: 750 watt
• Nominal Voltage: AC 120/230 V
• Frequency Required: 50 - 60 hertz
• Miscellaneous
• Color Category: Gray
• Height (Rack Units): 1
• Authentication Method: TACACS+, Kerberos, RADIUS, Secure Shell (SSH)
• MTBF: 286,900 Hours
• Width: 17.5 inch
• Depth: 20.1 inch
• Height: 1.8 inch
• Weight: 16.42 lbs
