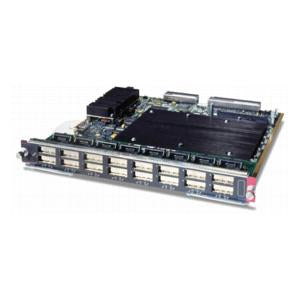

Cisco Catalyst 6000 16-port Gig-Ethernet Module WS-X6416-GBIC

The Cisco WS-X6416-GBIC is a 16-port Gigabit Ethernet switching module designed for the Cisco Catalyst 6000 and 6500 Series switches. It provides high-density, flexible Gigabit Ethernet connectivity for enterprise-level networking, specifically suited for aggregation, fiber-to-the-desktop, and data center applications.

Media & Performance

• Connectivity Media : Not Applicable
• Data Transfer Rate : 1Gbps Gigabit Ethernet Full-duplex

I/O Expansions

• Expansion Slots : 16 x GBIC

Management & Protocols

• ETHERLIKE-MIB (RFC 1643)
• IF-MIB (RFC 1573)
• Bridge MIB (RFC 1493)
• CISCO-STACK-MIB
• CISCO-VTP-MIB
• CISCO-CDP-MIB
• RMON MIB (RFC 1757)
• CISCO-PAGP-MIB
• CISCO-STP-EXTENSIONS-MIB
• CISCO-VLAN-BRIDGE-MIB
• CISCO-VLAN-MEMBERSHIP-MIB
• ENTITY-MIB (RFC 2037)
• HC-RMON
• RFC1213-MIB (MIB-II)
• SMON-MIB

Memory

• Memory : 512KB Buffer Memory per Port Installed

Controls/Indicators

• Status
• Link good
• Status
• Link good

Physical Characteristics

• Dimensions : 1.2 Height x 14.4 Width x 16 Depth
• Shipping Dimensions : 7.5 Height x 21.5 Width x 22.5 Depth
• Shipping Weight : 13.7 lb

Miscellaneous

• Queues per Port : 3 transmit, 2 receive
• The QoS port architecture (Rx/Tx) for this module is 1p1q4t/1p2q2t
• Primary Applications : Base server farm
• Interface Module Class : Classic
• Performance maximum (Mpps) : 15
• Forwarding engine/location : Centralized CEF Engine; located on supervisor engine's PFCx
• DFC modules integrated/upgrade requirements : Not supported
• Fabric connections : 32 Gbps shared bus connection (on Supervisor Engine 1A, Supervisor Engine 2, and Supervisor Engine 720)
